Watch VideoGarmin 010-03899-00 TransducersLiveScope™ 2 HD Transducer - LVS42HDOUR CLEAREST SONAR EVERSee fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper. Ultra High-Definition imagery with better target seperation No black box needed, so install is easy See highly detailed imagery at castable range and bottom track out to 125 feet Sonar automatically turns off when the transducer is out of the water Wider angles in forward, down and perspective modes Our Clearest SonarSee fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.No Black BoxThe LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.Fast ProcessingEnjoy fast processing speeds so you can see fish react in real time and know when to set the hook.Integrated SonsorsWater detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.Improved CoverageWider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.Vivid Color PalettesWhen LiveScope 2 HD is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.Take Control of Your View Spy Pole™ Mount: Attach your transducer to your Spy Pole mount to get wireless sonar control independent of your trolling motor. OneVü™ Sonar: Combine LiveScope 2 HD with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view. Forward Mode: Scout ahead of your boat to see what’s happening in real time with more coverage. Down Mode: Explore a wider live view of the activity directly beneath your boat. Perspective Mode: Get an overhead wider-angle perspective of what’s below and around your boat. In The Box LiveScope 2 LVS42HD transducer Adjustable perspective shaft mount for LiveScope 2 transducers Trolling motor barrel mount Power/network cable with adapter Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount Hardware Documentation SpecificationsGeneral Transducer Beamwidth: Forward: 20° x 165°, Down, Perspective: 20° x 180° Transducer Cable Length: 5.5m (18 ft) Transducer Number of Pins: 7 Dimensions: 5.2" x 5.3" x 1.9" Weight: 3.62 lbs Temperature Range: Operating: 0 C to 40 C Electrical Features: Power Input: 10-35v Power Usage: 32w max Fuse: 7.5 A Compass-Safe Distance: 4" Sonar Features: Frequency: 850 kHz - 1600 kHz Transmit Power: 521 W Maximum Depth: Down and Forward: 125' Sonar Type: Live Target Seperation @ 100': 12.6" Target Seperation @ 30': 3.8" Perspective Mode Mount Included: yes (adjustable angles) Water Detection Transmit Control: Yes Networking & Connections Garmin Marine Network Ports: 1 BlueNet (small connector) with GMN1 Adapter Power Connection: Yes (2-Wire) Normalized SKU: 0100389900UPC Code: 753759369101Garmin 010-03899-00 Video

Watch VideoGarmin 010-03899-10 TransducersLiveScope™ 2 Transducer - LVS44OUR FARTHEST-REACHING, CLEAREST SONAR EVERYou’ve never seen live-scanning sonar of this clarity reach this far. LiveScope 2 offers increased resolution, integrated image stabilization and improved stitching, so you’ll clearly see fish and structure. Clear imagery with better traget separation No black box needed, so install is easy See detailed imagery at castable range and bottom track out to 250 feet Sonar automatically turns off when the transducer is out of the water Wider angles in forward, down and perspective modes See ClearerSee fish and lures in real time at an improved range with up to 20% higher resolution, reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 250' in freshwater.No Black BoxThe LiveScope 2 transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.Fast ProcessingEnjoy fast processing speeds so you can see fish react in real time and know when to set the hook.Integrated SensorsWater detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.Improved CoverageWider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.Vivid Color PalettesWhen LiveScope 2 is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.Take Control of Your View Spy Pole™ Mount: Attach your transducer to your Spy Pole mount to get wireless sonar control independent of your trolling motor. OneVü Sonar: Combine LiveScope 2 with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view. Forward Mode: Scout ahead of your boat to see what’s happening in real time with more coverage. Down Mode: Explore a wider live view of the activity directly beneath your boat. Perspective Mode: Get an overhead wider-angle perspective of what’s below and around your boat. In The Box LiveScope 2 LVS44 transducer  Adjustable perspective shaft mount for LiveScope 2 transducers Trolling motor barrel mount Power/network cable with adapter Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount Hardware Documentation SpecificationsGeneral Transducer Beamwidth: Forward: 20° x 165°, Down, Perspective: 20° x 180° Transducer Cable Length: 5.5m (18 ft) Transducer Number of Pins: 7 Dimensions: 6.3" x 5.6" x 1.9" Weight: 3.93 lbs Temperature Range: Operating: 0 C to 40 C Electrical Features: Power Input: 10-35v Power Usage: 32w max Fuse: 7.5 A Compass-Safe Distance: 4" Sonar Features: Frequency: 600 kHz - 1050 kHz Transmit Power: 392 W Maximum Depth: Down and Forward: 250' Sonar Type: Live Target Seperation @ 100': 12.6" Target Seperation @ 30': 5.7" Perspective Mode Mount Included: yes (adjustable angles) Water Detection Transmit Control: Yes Networking & Connections Garmin Marine Network Ports: 1 BlueNet (small connector) with GMN1 Adapter Power Connection: Yes (2-Wire) Normalized SKU: 0100389910UPC Code: 753759325983Garmin 010-03899-10 Video

Furuno SS75M/12 TransducersSS75M Stainless Steel Thru-Hull Chirp Transducer - 12° Tilt - Med FrequencyFeatures: Frequency: Chirp 80 - 130 kHz Power Rating: 600 Watts Connector: 10 Pin Tilt: 12 Degree Deadrise of Hull: 8-15 Degrees This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SS75M/12

Furuno SS75H/20 TransducersSS75H Stainless Steel Thru-Hull 20° Tilt 600W Chirp - High FrequencyHigh-Frequency CHIRP Transducer with Temperature with Stainless Steel Thru-Hull.Features: Function: Depth,Temperature Frequency: 130-210 kHz Mount Style: Thru-Hull, Flush, 20 Degree Tilt Housing Material: Stainless Steel Install Type: Thru-Hull Power Rating: 600W This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SS75H/20UPC Code: 611679382177

Furuno PM265LH-12P TransducersPM265LH Bronze Pocket Mount CHIRP Transducer - 12-PinBronze, Pocket Mount CHIRP Transducer with Temp, with 12-Pin Connector, Low-Freq: 42-65 kHz, High-Freq: 130-210 kHz.The PM265LH is a bronze CHIRP transducer with Temp for use with Furuno's CHIRP broadband Fish Finders.Its flat-faced design is ideal for pocket/keel-mount installations.Traditional marine Fish Finders operate at discrete frequencies such as 50 kHz and 200 kHz, use relatively short-duration transmit pulses, and use narrowband sonar transducers. In contrast, CHIRP (Compressed High-Intensity Radar Pulse) uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer. The equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine Fish Finder. The echo energy returning to the transducer is likewise superior to that generated by a conventional transducer. The combination of CHIRP, a broadband transducer, and Furuno’s superior Digital Signal Processing, results in dramatically increased fish and bottom detection.The PM265LH CHIRPS across the following bandwidths:  Low-Frequency: 42-65 kHz High-Frequency: 130-210 kHz This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PM265LH12PUPC Code: 611679352071

Furuno B275MWHW-12P TransducersB275MWHW Bronze 1KW Thru Hull with Fairing Block & 12-Pin ConnectorThe B275MWHW combines medium and high frequencies into a single thru-hull model, advancing transducer design by delivering wider bottom coverage than any other 1 kW transducer available. It combines medium frequencies (60-100 kHz), which deliver ultra-wide beamwidths for maximum coverage under the boat down to 396 m (1300’) - the ultimate scouting tool for anglers targeting species down deep. The very popular high-frequency bandwidth (150 to 250 kHz) with wide 25° beamwidths provides excellent shallow-water performance with more coverage and superior fish-target separation in the upper water column. Its wide beam offers twice the coverage of standard high frequencies for detecting fish in the upper-water column, producing clear fish arches on the display. The B275MWHW is an exceptional choice for both inshore pelagic fishing and for deep water species where critical resolution and maximum coverage are required. The B275MWHW sets the standard for efficiently scouting massive areas for target species. Each B275MWHW includes Airmar’s high-performance fairing for exceptional performance at speed on boats over 8m (25’).The B275MWHW-12P comes with a 12-meter Cable with a 12-pin Connector.Features: Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance from the low frequency Medium frequency: 60 to 100 kHz, 57° to 73° ultra-wide beamwidth 16° average fore/aft, Maximum depth of 396 m (1300') High frequency: 150 to 250 kHz, 25° wide beamwidth, Maximum depth of 152 m (500') 140 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 75 and 200 kHz, plus everything else in the bandwidth Bronze housing with High-performance Fairing for optimal performance at high performance For boats 8 m (25') and above Patented Xducer ID® technology Max Deadrise Angle: 20° Hull Material: Fiberglass or wood Mounting Style: Thru-Hull with Fairing Max Vessel LOA: 8 m (25') and above Hole Size: 30 mm (1-3/16") Usable Shaft Length: 121 mm (4.75") Normalized SKU: B275MWHW12PUPC Code: 6116793889952

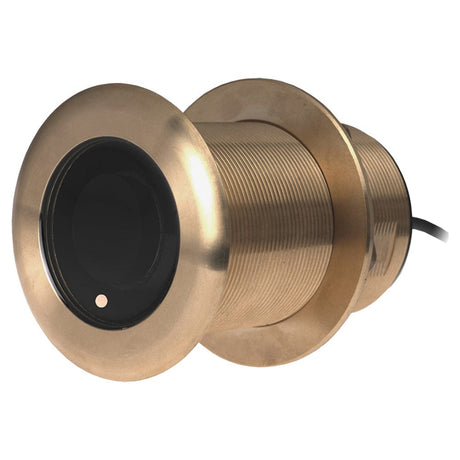

Airmar B60-12-9N TransducersB60 Thru Hull Transducer 12° Tilt, 9-Pin Xsonic Connector, Depth & TemperatureThe B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element™ feature. This Tilted Element transducer has the ceramic element fixed at either a 12° angle within the housing. When the transducer is installed almost flush with the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth Features: The depth and fast-response water temperature sensing 600 W of power Dual-frequency element: 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200') and 200 kHz with a 12° beamwidth for depth performance to 206 m (700') Perfect for center-console or trailered boats Low-profile bronze housing extends only 5 mm (3/16") outside the hull No effect on your boat’s running performance Bronze housing for fiberglass or wood hull Fixed 12° tilted version for 8 to 15° hull deadrise angles Cable-Length: 10 m (33') Hole Size: 60 mm (2-3/8") Usable Shaft Length: 68.5 mm (2.70") Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin Normalized SKU: B60129N

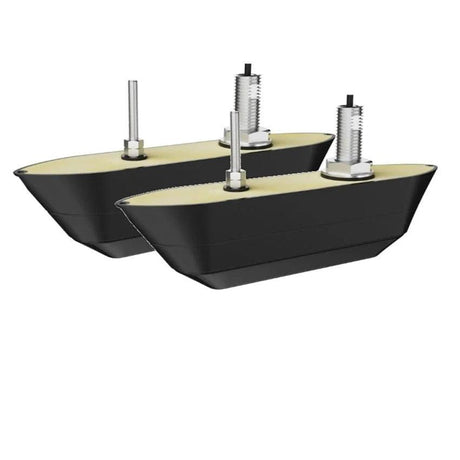

Navico 000-16240-001 TransducersActive Imaging HD 3-in-1 Fish Reveal (Dual) Thru Hull TransducersOur clearest sonar ever, Active Imaging™ HD Thru-Hull Transducer delivers the highest-definition views of Lowrance® CHIRP, SideScan, and DownScan Imaging™. Experience a new level of clarity and improved target separation with extremely detailed views of fish and fish-holding structure like rockpiles, standing timber, weedbeds, ditches, drop-offs, and more.FishReveal™Get the best of Lowrance® CHIRP sonar and DownScan Imaging™ on one screen with the FishReveal DownScan view, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.Designed for ClarityThe Active Imaging™ HD Thru-Hull Transducer not only delivers three key sonar technologies – Lowrance® CHIRP, SideScan, and DownScan Imaging™ – in one convenient package, but also features a new transducer design that boosts signal clarity.Features High definition (up to 1.2 MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports High/Wide CHIRP (200kHz) + 700/1200kHz and 455/1075kHz frequencies Thru-Hull Installation Compatible with Lowrance HDS® PRO and  Simrad® NSS 4 or with a S3100 module with HDS® LIVE and Elite FS™ & Simrad® NSSevo3s, NSOevo3s, NSX Normalized SKU: 00016240001UPC Code: 9420064134991

Lowrance 000-13997-001 TransducersLowrance TM185H-W High WideModel: 000-13997-001XSonic Airmar TM185 HW TM185HW Wide Beam - CHIRPS across the following bandwidths: -High-Frequency: 150-250 kHz, 25 deg Constant Beamwidth - Depth & fast-response water-temperature sensor Urethane housing and stainless steel mounting bracket - Boat Size: 8 m to 12 m (25 feet to 40 feet) - Boat Type: Outboards and I/O - Hull Type: Fiberglass, Wood, Metal -Can retrofit to existing TM258, TM260, TM265, and TM275 bracketNormalized SKU: 00013997001UPC Code: 9420024165911

Furuno 165T-265LH-PM488 TransducersFuruno Pocket Mount 1Kw Dual CHIRP for DFF3DModel: 165t-265LH-PM488DFF3D Elements (165khz)Low-CHIRPS from 42 kHz to 65 kHz, Beamwidth 25 deg to 16 degHigh-CHIRPS from 130 kHz to 210 kHz, Beamwidth 10 deg to 6 degBottom discrimination and Accu-fish compatible (without TID)12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and a pigtail cable for the DFF3DRecommended for a DFF1-UHD and DFF3D installationBuilt-in motion sensorBuilt in temp sensor Dimensions 12 L X 5 in W X 3.5 in H "Normalized SKU: 165T265LHPM488

Download LiteratureAirmar M265C-LH-MM TransducersM265 Low-High Chirp 1KW In Hull Transducer*Requires Mix & Match Cable*We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.The transducer is installed in the included tank, which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.Features: Depth only 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000') High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000') 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth Plastic transducer housing and mounting tank Patented Xducer ID® technology Specifications: Mounting Style: In-Hull Frequency Band: Low-High Max Deadrise Angle: 30° Material: Plastic Functions: Depth Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull Power Rating: 1 kW Deadrise Range: 0° to 22° Max Vessel LOA: Up to 11 m (36') Display Connector: Mix and Match Cable Optional Hull Material: Solid fiberglass only Sensor Connector: MMC High Frequency: 130-210 kHz Low Frequency Beamwidth: 25°-16° Low Frequency: 42-65 kHz Acoustic Window: Urethane High Frequency Beamwidth: 10°-6° Single or Dual Frequency: CHIRP-Ready Dual-Band Country of Origin: USA Cable-Length: 9 m (30') Weight: 5.2 kg (11.5 lb.) Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000') Normalized SKU: M265CLHMMUPC Code: 801769006018Airmar M265C-LH-MM Literature Download Product Brochure

Airmar DST820-BV-N2 TransducersDST820 Bronze Thru Hull - NMEA 2000 - 235kHzThe DST820 Smart Multisensor is the next evolution of Airmar’s industry-leading technology, replacing the DST810 and introducing PSTI compliance for enhanced onboard network security.With its secure QR-code setup, connecting your DST820 has never been easier—or safer. Simply scan the QR code and enter a one-time security password on your mobile device to protect your sensor on the network.Featuring Airmar’s high-performance Gen2 paddlewheel, the DST820 delivers unmatched speed-through-water accuracy— providing precise start-up data below 0.3 knots, linear accuracy from 0.6 knots, and stable, reliable readings all the way up to 45 knots.Whether you’re a day sailor, weekend cruiser, or tactical racer, accurate speed-through-water (STW) data helps you fine-tune sail trim and rig balance for maximum performance. For racers, precise STW readings enable accurate velocity made good (VMG) and target speed calculations, ensuring every tactical decision is data-driven.Together, the DST820 and Airmar’s CAST™ app make speed calibration simpler than ever. The free CAST app provides powerful calibration tools—once only available through costly PC-based software—now instantly accessible from your smartphone or tablet. Choose from basic or advanced calibration options to suit your needs.Beyond speed, the DST820 measures depth and water temperature, and provides a 5.7 Hz (5× per second) speed output with improved resolution. Its integrated attitude sensor delivers heel and trim data, enabling heel-compensated speed calibration across multiple heel angles and speed ranges—fast, intuitive, and completely independent of onboard instruments.With depth tracking from 0.5 m (1.6 ft) to 100 m (328 ft), the DST820 also provides reliable depth data to help ensure you never run aground.The result: industry-leading speed accuracy, wireless calibration convenience, and next-generation security—all in one powerful, compact sensor.Features: The DST820 is fully compliant with UK PSTI security standards, ensuring that the connection between DST820 and a mobile device is secure. The industry’s best speed paddlewheel – DST820 features the Gen2 paddlewheel for industry-leading speed performance from 0.3 knots to 45 knots. Smoother Speed – 5.7 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making when every second counts. Integrated Attitude Sensor – For heel and trim, and used in advanced speed calibration. DST820 secure Bluetooth® connectivity to Airmar’s CAST app provides the ability to: Calibrate the DST820 in a simple, intuitive way from your mobile device. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range. Advanced speed calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software. Specifications: Functions: Depth, Speed, Temperature, Attitude Mounting Style: Low Profile Thru-Hull Power Rating: 80 W Protocol Output: NMEA 2000® Housing: Bronze Max Deadrise Angle: 22° Hull Material: Fiberglass or metal Hole Size: 51 mm (2") Retractable housing: Yes Acoustic Window: Urethane Attitude Sensor: Yes Bluetooth Capable: YES Bluetooth BLE Cable-Length: 6 m (20') NMEA 2000® cable Certifications: CE Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing Conventional Beam: 10°x44° Data Rate: Depth: 1X/second, Speed: 5X/second, Heel/Trim: 10X/second Max Deadrise: Up to 22° Max Depth: 0.5 m (1.6') to 100 m (330') Minimum Depth: 0.5 m (1.6') NMEA 2000 LEN: 2 Pulses: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile Retrofits: Fits most Airmar 2" housings Speed Range: Up to 45 knots Temperature Accuracy: ±0.5°C (±1.8°F) Tilted Element: No Usable Shaft Length: 121 mm (4.75") Voltage: 9 to 16 VDC Water Temperature: -10° to 40°C (14° to 104°F) Normalized SKU: DST820BVN2
