Download LiteratureVictron Energy ORI241260020 ConvertersOrion 24/12-60 DC-DC Converter IP20Remote on/off connectorThe remote on/off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch (see manual).All models with adjustable output can also be used as a battery charger. For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.All models with adjustable output can be paralleled to increase the output current. Up to five units can be connected in parallel.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI241260020UPC Code: 8719076069607Victron Energy ORI241260020 Literature Download Quick Reference Guide

Download LiteratureVictron Energy ORI241230022 ConvertersOrion 24/12-30 DC-DC Converter IP20Remote on/off connectorThe remote on/off eliminates the need for a high-current switch in the input wiring. The remote on-off can be operated with a low-power switch or by the engine run/stop switch (see manual).All models with adjustable output can also be used as a battery charger. For example, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.All models with adjustable output can be paralleled to increase the output current. Up to five units can be connected in parallel.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI241230022UPC Code: 8719076069591Victron Energy ORI241230022 Literature Download Quick Reference Guide

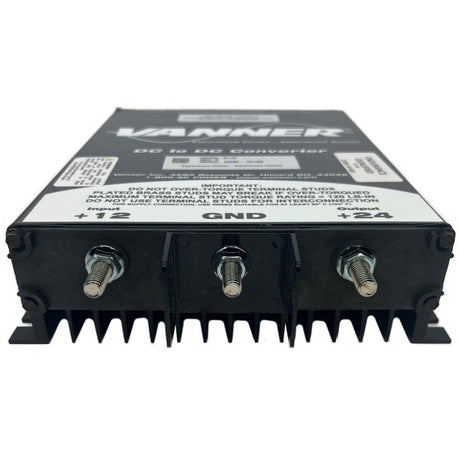

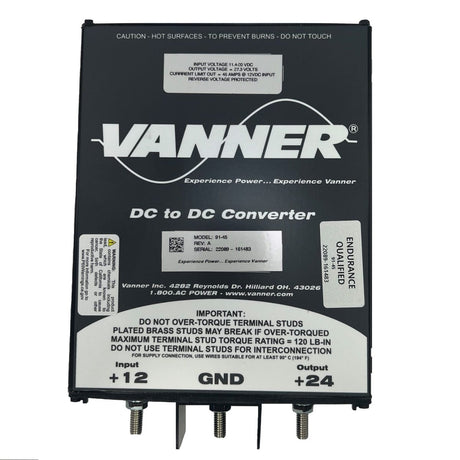

Vanner 91-45 Converters The Vanner 12-volt to 24-volt DC-to-DC converter is an efficient and highly reliable method of obtaining 24-volt DC power from a 12-volt DC electrical system.  Vanner converters have low ripple, regulated DC outputs, making them compatible with a wide variety of electrical loads.  DC to DC Converter 12 to 24 volt - 45 Amp Low ripple, regulated DC outputs Corrosion-resistant anodized aluminum case Large threaded terminals for easy wiring An accessible case allows for the repair of the solid-state circuit Replaces Vanner 91-10A Normalized SKU: 9145

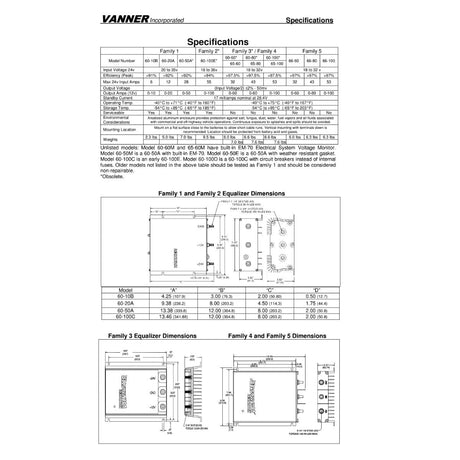

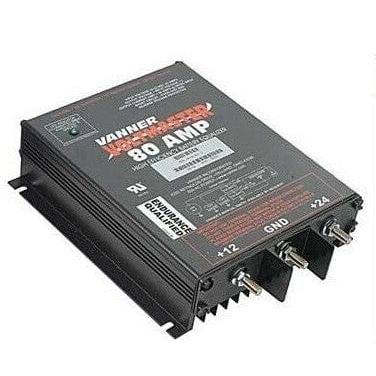

Vanner 66-80 Converters Vanner VoltMaster battery equalizers allow you to run 12-volt loads from your 24-volt battery system. Perfect for transit buses, private coaches, tour & charter buses, heavy trucks, off-highway equipment, and alternative energy applications. Vanner 80 Amp Equalizer is a reliable method of obtaining a 12-volt DC power source from a 24-volt DC electrical system In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends battery life This equalization ensures extended battery life and provides a stable 12-volt supply for operating accessories With the Vanner VoltMaster battery equalizer, you can run 12-volt loads from your 24-volt battery system Perfect for transit buses, private coaches, tour charter buses, heavy trucks, off-highway equipment, and alternative energy applications 12 Volt DC Power from Your 24 Volt DC System With Vanner VoltMaster battery equalizers, you can have an abundance of 12-volt DC power from your 24-volt battery system Our equalizers allow operation of more reliable and less costly 12-volt lighting and equipment on 24-volt electrical systems, saving you time and money Extend the Life of Your Batteries With Vanner VoltMaster battery equalizers, the voltage between each 12-volt battery is balanced in a 24-volt series-connected battery array This arrangement equalizes the 24-volt battery system and avoids the over-/under-charge problems associated with other approaches to providing 12 volts of power A Simple, More Reliable 24/12 Volt System With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space-consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems Sizes for Any Application Need Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs Input Voltage: 20 to 32 VDC Efficiency: >96% Max Input Current (24Vdc) 43: Amps Output Voltage: (Input Voltage/2) +/- 2% - 50 Mv Output Current (12Vdc): 0-80 Amps Operating Temperature: -40C to +75C Standby Mode Current @28.4V: 17 Milliamps nominal Storage Temperature: -54C to +95C UL Recognized: Yes User Serviceable: No Environmental Considerations: Anodized aluminum enclosure protects against salt, fungus, dust, water, fuel vapors, and all fluids associated with commercial and off-highway vehicle operations. Exposure to splashes and spills is expected, but continuous exposure should be avoided Mounting Location: Mounting location should be a flat surface close to the batteries, allowing short battery cable runs. The location should be protected from as many adverse environmental conditions as possible, including battery fumes. Vertical mounting with terminals down is recommended Weight: 6.3 lbs Dimensions: (HWD in inches) 9.8 x 8.5 x 2.5 Normalized SKU: 6680

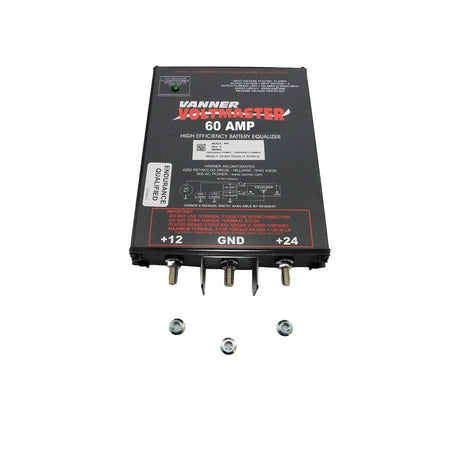

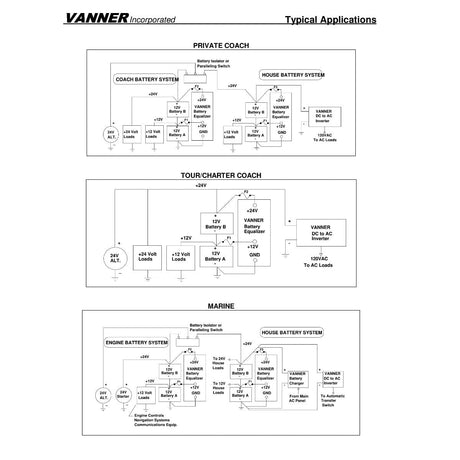

 Vanner 66-60 Converters Vanner VoltMaster battery equalizers allow you to run 12-volt loads from your 24-volt battery system. Perfect for transit buses, private coaches, tour & charter buses, heavy trucks, off-highway equipment, and alternative energy applications. Vanner 60 Amp Equalizer is a reliable method of obtaining a 12-volt DC power source from a 24-volt DC electrical system In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends battery life This equalization ensures extended battery life and provides a stable 12-volt supply for operating accessories With the Vanner VoltMaster battery equalizer, you can run 12-volt loads from your 24-volt battery system Perfect for transit buses, private coaches, tour charter buses, heavy trucks, off-highway equipment, and alternative energy applications 12 Volt DC Power from Your 24 Volt DC System With Vanner VoltMaster battery equalizers, you can have an abundance of 12-volt DC power from your 24-volt battery system Our equalizers allow operation of more reliable and less costly 12-volt lighting and equipment on 24-volt electrical systems, saving you time and money Extend the Life of Your Batteries With Vanner VoltMaster battery equalizers, the voltage between each 12-volt battery is balanced in a 24-volt series-connected battery array This arrangement equalizes the 24-volt battery system and avoids the over-/under-charge problems associated with other approaches to providing 12 volts of power A Simple, More Reliable 24/12 Volt System With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space-consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems Sizes for Any Application Need Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs Input Voltage: 20 to 32 VDC Efficiency: >96% Max Input Current (24Vdc):  32 Amps Output Voltage(Input Voltage/2) +/- 2% - 50 Mv Output Current (12Vdc): 0-60 Amps Operating Temperature: -40C to +75C Standby Mode Current @28.4V: 17 Milliamps nominal Storage Temperature: -54C to +95C UL Recognized: Yes User Serviceable: No Environmental Considerations: Anodized aluminum enclosure protects against salt, fungus, dust, water, fuel vapors, and all fluids associated with commercial and off-highway vehicle operations. Exposure to splashes and spills is expected, but continuous exposure should be avoided Mounting Location: The mounting location should be a flat surface close to the batteries, allowing short battery cable runs. The location should be protected from as many adverse environmental conditions as possible, including battery fumes. Vertical mounting with terminals down is recommended Weight: 6.0 lbs Dimensions:  (HWD in inches) 9.8 x 8.5 x 2.5 Normalized SKU: 6660

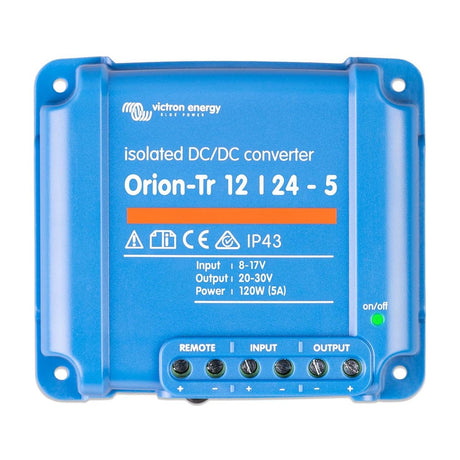

Victron Energy ORI122410110 ConvertersOrion-Tr 12/24-5A 120W Isolated DC-DC ConverterRemote on/offThe remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.IP43 protectionWhen installed with the screw terminals oriented downwards.Screw terminals No special tools needed for installation.Input fuse On 12V and 24V input models only.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI122410110UPC Code: 8719076016724

Download LiteratureNewmar 24-12-3 Converters24-12-3 DC ConverterConvert 17-32 VDC input to 12 VDC negative ground output for powering communication and navigation equipment on negative ground systems. (See Isolated Series for positive ground applications.)Features: Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within the rating The heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and the long life of components Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum cases with heavy-duty shock mounts assure survival in hostile environments Numerous Converter and Load Protection Circuits: Current limiting Automatic thermal shutdown Short circuit proof Reverse polarity Overvoltage protection Carries CE mark Specifications: Input Voltage: 17-32 Output Voltage: 13.6 Output Amps (Intermittent): 3 Output Amps (Continuous): 3 Case Size (H x W x D): 3.5 x 3.5 x 1.75 inches (8.9 x 8.9 x 4.5 centimeters) Weight: 1 lb. (.45 kg) Output: 13.6 VDC (internally adjustable 12.6 -14.5)  Ripple: 150 mV P-P maximum Regulation: 1% Line/Load Switching Frequency: 40 kHz Efficiency: 85% – Typical. Isolation: Output/Chassis; Input/chassis: 250 VDC Duty Cycle Ratings*: Intermittent: 20 minutes max on time, 20% duty. current limit set at approx. 105% of intermittent rating. Continuous: 24 hours, 100% duty *24-12-3: 2-minute max. on time Idle Current: Less than 100 mA (including power “ON” light) Operating Temp Specifications: 0-50 degrees C, Derate Linearly From 100% @ 40 degrees C To 50% @ 50 degrees C. Thermal shutdown @ 70 degrees C Case Temperature Model 24-12-3: Full output -25 degrees to +30 degrees C; Derate linearly from 100% @ +30 degrees C to 45% @ +50 degrees C Mechanical Specifications: Powder-coated aluminum heat sink case Front panel terminal block Heavy-duty mounting flange Conformal coated PC board Options:Operation as battery charger or parallel redundant operation* – derate to continuous duty rating (contact factory)This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 24123Newmar 24-12-3 Literature Download Quick Reference Guide

Download LiteratureVictron Energy ORI241205200R ConvertersOrion-Tr 24/12-5 (60W) DC-DCFeatures: High efficiency - Using synchronous rectification, full load efficiency exceeds 95% IP43 protection - When installed with the screw terminals oriented downwards Screw terminals - No special tools are needed for the installation Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI241205200RUPC Code: 8719076022855Victron Energy ORI241205200R Literature Download Quick Reference Guide Product Brochure

Progressive Dynamics 9380V Converters We now offer the ability to charge common battery types with out having to replace your converter. A simple procedure allows you to select between; Flooded Lead Acid (FLA), Absorbed Glass Material(AGM) Lithium Iron Phosphate (LiFePO4) Or you can select a fixed output of 13.6 VDC A visual indicator will confirm the setting. Your selection is stored inmemory, guarantying the correct charging profile every time you power up.The fully automatic advanced multi-stage charging of our “Total Charge Management System” (TCMS) ensures an optimal charging profile for the battery type you’ve selected. The accessory port will accept the PD92201 “Charge Wizard” remote pendant for manual control of the charger when needed.  Normalized SKU: 9380V

Isotherm SEH00018HA ConvertersIsotherm AC/DC Converter #SEH00018HANormalized SKU: SEH00018HA

Download LiteratureVictron Energy ORI124838110 ConvertersOrion-TR 12/48-8A (380W) Isolated DC-DC ConverterRemote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 48.2 V Output Voltage Adjust Range: 40-60 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 8 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A Short Circuit Output Current: 25 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 380 W Efficiency: 89 % No Load Input Current (2): < 220 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.8 kg (4 lb) Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI124838110UPC Code: 8719076063650Victron Energy ORI124838110 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download Literature Watch VideoVictron Energy ORI242440140 ConvertersOrion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMPThe Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.   Fully Programmable: Battery charge algorithm (configurable) or fixed output.  Smart alternator compatibility: engine running detection mechanism.   Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen.   Remote On/Off:A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:An unlimited number of units can be connected in parallel.High Temperature Protected:The output current will reduce at high ambient temperatures.  IP43 Protection:When installed with the screw terminals oriented downward.  Screw Terminals:No special tools are needed for installation.  Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): < 80 mA  Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Normalized SKU: ORI242440140UPC Code: 8719076048985Victron Energy ORI242440140 Literature Download Quick Reference Guide Owners Manual Product BrochureVictron Energy ORI242440140 Video

Download Literature Watch VideoVictron Energy ORI242440120 ConvertersOrion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMPThe Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.   Fully Programmable: Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.   Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen.   Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines):The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details).  Remote On/Off:A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:An unlimited number of units can be connected in parallel.High Temperature Protected:The output current will reduce at high ambient temperatures.  IP43 Protection:When installed with the screw terminals oriented downward.  Screw Terminals:No special tools are needed for installation.  Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): < 80 mA  Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI242440120UPC Code: 8719076047728Victron Energy ORI242440120 Literature Download Quick Reference Guide Owners Manual Product BrochureVictron Energy ORI242440120 Video

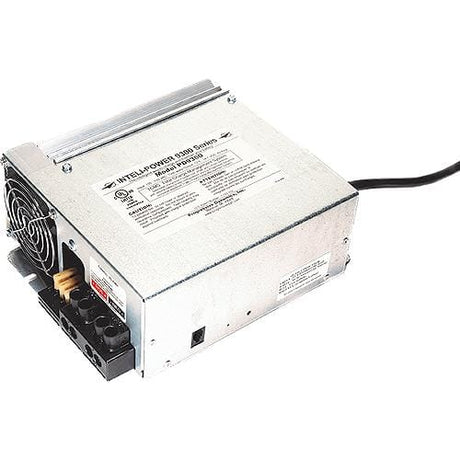

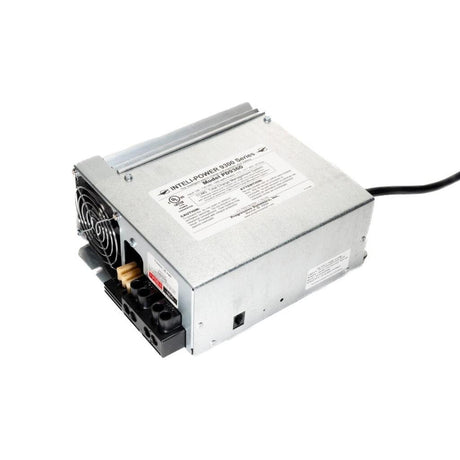

Progressive Dynamics PD9360V Converters Inteli-Power® 9300 Series, 60AThe PD9300 series offers features not standard in RV converter/chargers. We now offer the ability to charge common battery types without having to replace your converter. A simple procedure allows you to select between Flooded Lead Acid (FLA), Absorbed Glass Material (AGM), and Lithium Iron Phosphate (LiFePO4) batteries. Or you can select a fixed output of 13.6 VDC. A visual indicator will confirm the setting. Your selection is stored in memory, guaranteeing the correct charging profile. Works with all common battery types: Flooded Lead Acid (FLA), Absorbed Glass Material (AGM), Lithium Iron Phosphate (LiFePO4) Reverse Battery Protection Electric Current Limiting High/Low Voltage Protection Automatic Thermal Protection Made in USA Input: 105–130 VAC, 60 Hz, 1000 Watts Output: 13.6–14.7 VDC, 60 amps Dimensions: 3.6 H x 8 L x 9 inches W Weight: 5.8 pounds Selectable charge profiles, including Lithium, AGM, and Flooded Lead Acid to match battery type or provide constant output voltage for special applications GFCI protection with the lowest ground fault leakage, allowing safe use of RV AC outlets without tripping the facility power sources Reverse battery protection prevents damage if battery leads are accidentally cross-connected (only the fuse will blow) Replacement fuses are widely available at automotive stores Replaces Progressive Dynamics 9160ALV Normalized SKU: PD9360VUPC Code: 675566936010

Progressive Dynamics PD9345V ConvertersProgressive Dynamics 9300 Series Converter 45a #PD9345VNormalized SKU: PD9345V

Progressive Dynamics PD9330V ConvertersProgressive Dynamics 9300 Series Converter 30a #PD9330VNormalized SKU: PD9330V
