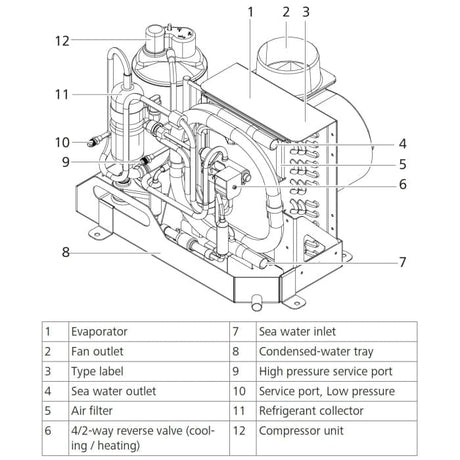

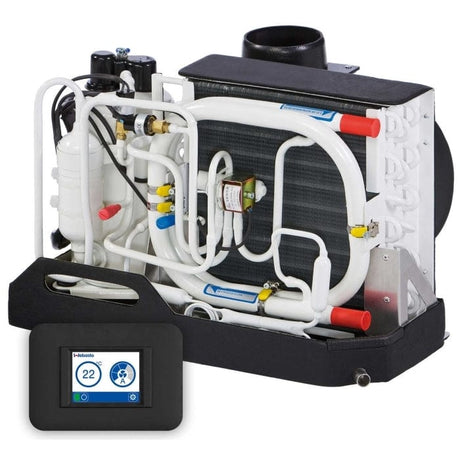

Webasto WBCL120004F Air Conditioning The compact BlueCool S-Series self-contained air conditioner features a highly efficient compressor, requiring little energy. This unit ships complete with premium MyTouch control and features a USB interface which aides in more precise trouble-shooting for qualified technicians. Compatible with optional BlueCool Connect system. BlueCool S Series Self-Contained Air Conditioner with Reverse Cycle Heat and MyTouch Control 16,000 BTU/hr Cooling Capacity 16,000 BTU/hr Heating Capacity 230V Operation at 50/60Hz Suggested Breaker 16A Rated Current at 60Hz: 6-8.7A(moderate-tropical conditions) Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 30A Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 20A Max Starting Current 47A Optional EasyStart can deliver 65-75% Start Current Reduction: MICROAIR-ASY-364-X36-BLUE Comp. LRA 37A Duct Ring 5 inch Rotatable Blower This unit offers whisper-quiet performance 5 Fan Speeds. Each individual fan speed setting can be customized via the BlueCool Expert Tool Return Air Grille(air inlet grille) must be a minimum of 315 square inches Minimum Seawater flow at the AC unit is 3.7 GPM 1,000 GPH Continuous Duty Pump Suggested(sold separately) Seawater Inlet/Outlet .75 inch O.D. Drain Pan Outlet .625 inch O.D. Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) AC unit dimensions: 13.39 inch(340mm) High x 21.26 inch(540mm) Width x 13.9 inch(353mm) Depth Electric Box dimensions: 12.2 inch (310mm) x 10 inch (254mm) x 3.27 inch (83mm) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. MyTouch touchscreen display with control panel and display cable included MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect allows you to integrate multiple BlueCool units into one interface that can be operated via the BlueCool app and controlled via your MFD or remotely via the BlueCool Cnnect application: WEBASTO-2510219B No minimum run time. BlueCool S-Series units will shut off when the set point temperature is reached. When the compressor shuts off after running it is programmed to stay off for 4.5 minutes to prevent short cycling R410A Refrigerant(550 grams) This unit is equipped with High Pressure and Low-Pressure Service ports Epoxy-painted stainless drain pan Backed by a limited 2-year warranty on parts and labor Normalized SKU: WBCL120004F

Dometic 9108732762 Air ConditioningEnviroComfort ECD6K-HV AC Retrofit Kit - 115V - 6,000 BTU The Dometic Marine Air 6,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round.  This 6,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 5,000 to 7,000 BTU range.All units have high-velocity blowers with internal motors for a more compact installation footprint.  The blower can be rotated to a horizontal or vertical position for greater installation flexibility.  Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning.ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation.  The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity.Legacy Part Number - 207500306Features: High-velocity, rotatable blower for horizontal or vertical installation Environmentally friendly R-410A refrigerant Easy to use Dometic Passport I/O digital control and display (P/N 9600005997) Plastic remote electrical box for convenience in mounting Stainless-steel drain pan Pre-installed return-air filter, easily removable and cleanable Small, compact, space-saving design Specifications: Input voltage - 115 V Starting amps - 36 A Fuse Max. / Min. - 20 A/12 A Input frequency 50/60 Hz Refrigerant type - R410A Colling capacity - 6,000 BTU Min. supply duct size - 4" Seawater inlet connection - .625" Dimensions - Height 11.25" x Width 16" x Depth 9"  Weight -  38 Pounds In the Box: Self-contained AC unit Digital control w/bezel and 15' cable Instruction manual *Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 9108732762UPC Code: 713814198459

Velair 26255G Air Conditioningi09 9,000 BTU 24V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle HeatThe Velair compact DC air conditioning units are powered directly by 24 volts from the boat’s battery bank, without the need for a generator or inverter.VSD Inverter Smart technology offers the advantages of eliminating power peaks at start-up, maximum energy efficiency, and significantly reduced compressor noise and vibration during operation.The twin rotary compressor with a brushless permanent magnet synchronous motor (PMSM) varies its rotation speed to continuously adapt to the difference between the set/requested temperature and the ambient temperature detected by the sensor integrated into the control panel. This ensures highly precise room temperature control in all conditions, with minimal noise and vibration. The outgoing air flow is kept constant thanks to DC brushless variable speed technology fans, which can be rotated for easier on-board installation.Specifications: Cooling Capacity Range: 2500-9000 BTU/h Power Supply Voltage: 24 Volts Direct Current (24VDC) Power Consumption Cooling (Max): 22 Amps Power Consumption Eco Mode: 9 Amps Max Air Flow: 200 CFM Air Exit Duct Diameter: 4" Return Grill Minimum Size: 62 in2 Supply Grill Minimum Size: 39 in2 Minimum Seawater Flow: 3.2 GPM Refrigerant: R32 (330g) Weight: 55.1 LBS Cooling unit dimensions (with electric box): 22.5" x 12.6" x 12.6" Control Panel Cable Length: 26'/8m Velair air conditioners are designed and manufactured in Italy and comply with electromagnetic compatibility (EMC) regulations.Compact Velair DC air conditioning units include a Smart M7 Touch wall-mount control panel with an elegant, ultra-thin design and integrated room temperature sensor, electronic LED control with touch interface, and a magnetic installation frame on a standard 503-sized box that does not require screws for connection to the panel.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 26255G

Webasto 2511258A Air Conditioning The Webasto FCF Evo 6k is a compact self-contained marine air conditioning system designed to deliver reliable cooling and reverse-cycle heating for cabins and small onboard spaces. Featuring environmentally friendly R32 refrigerant, a corrosion-resistant titanium condenser, and an intuitive touch-screen control display, the FCF Evo provides efficient, quiet comfort in demanding marine environments. Features 6,000 BTU/h cooling capacity (1.8 kW) 6,500 BTU/h heating capacity (1.9 kW) 230V, single-phase operation Compatible with 50–60 Hz power systems Energy-efficient R32 refrigerant (GWP 675) Titanium condenser for superior corrosion resistance Stainless steel condensate tray Quiet, efficient operation with low 2.4A cooling current draw Capacitive touch marine A/C control display included Black-coated control box with 2 m wiring harness Installation-friendly compact design Optional HDMS Soft Start available Good replacement for FCF Platinum 6k 5011395A Specifications Manufacturer: Webasto Series: FCF Evo Model: FCF Evo 6k Part Number: 2511258 Cooling Capacity: 6,000 BTU/h (1.8 kW) Heating Capacity: 6,500 BTU/h (1.9 kW) Voltage: 230V Phase: Single Phase Frequency: 50–60 Hz Refrigerant: R32 Current Draw (Cooling): 2.4A Airflow: 275 m³/h (161.8 CFM) Dimensions: 15.9" L x 12.6" W x 12.4" H Dimensions (Metric): 405 x 320 x 315 mm Weight: 45 lb (20.4 kg) What's Included FCF Evo 6k self-contained A/C unit Marine A/C control display 5 m display cable Black control box with 2 m fixed wiring harness Normalized SKU: 2511258A

Velair 26254E Air Conditioningi09 9,000 BTU 12V DC Variable Speed Smart Marine Air Conditioner with Reverse-Cycle HeatThe Velair compact DC air conditioning units are powered directly by 12 volts from the boat’s battery bank, without the need for a generator or inverter.VSD Inverter Smart technology offers the advantages of eliminating power peaks at start-up, maximum energy efficiency, and significantly reduced compressor noise and vibration during operation.The twin rotary compressor with a brushless permanent magnet synchronous motor (PMSM) varies its rotation speed to continuously adapt to the difference between the set/requested temperature and the ambient temperature detected by the sensor integrated into the control panel. This ensures highly precise room temperature control in all conditions, with minimal noise and vibration. The outgoing air flow is kept constant thanks to DC brushless variable speed technology fans, which can be rotated for easier on-board installation.Specifications: Cooling Capacity Range: 2500-9000 BTU/h Power Supply Voltage: 12 Volts Direct Current (12VDC) Power Consumption Cooling (Max): 45 Amps Power Consumption Eco Mode: 18 Amps Max Air Flow: 200 CFM Air Exit Duct Diameter: 4" Return Grill Minimum Size: 62 in2 Supply Grill Minimum Size: 39 in2 Minimum Seawater Flow: 3.2 GPM Refrigerant: R32 (330g) Weight: 55.1 LBS Cooling unit dimensions (with electric box): 22.5" x 12.6" x 12.6" Control Panel Cable Length: 26'/8m Velair air conditioners are designed and manufactured in Italy and comply with electromagnetic compatibility (EMC) regulations.Compact Velair DC air conditioning units include a Smart M7 Touch wall-mount control panel with an elegant, ultra-thin design and integrated room temperature sensor, electronic LED control with touch interface, and a magnetic installation frame on a standard 503-sized box that does not require screws for connection to the panel.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 26254E

Download LiteratureDometic 9610003000 Air ConditioningSmartStart III Single Phase Soft Starter for 230V GT16 Marine Air ConditionerReduces boat air conditioning startup spikes.Features: Water-resistant Prevents voltage spikes when starting, helps prevent power outages Problem-free air conditioner start-up at moorings with low-quality electrical circuit protection Reduces startup amps by up to 65% Normalized SKU: 9610003000UPC Code: 7315091463270Dometic 9610003000 Literature Download Product Brochure
