Download LiteratureBlue Sea System 9012 ComponentsL Solenoid Switch - 12-24VDC - 250AFeatures: Hermetically sealed contacts / vaporproof Ignition protected - safe for installation aboard gasoline powered boats Activated by an ON-OFF switch mounted anywhere Integrated coil control minimizes heating and amperage draw 450 Amp Class Designed for 12 or 24 Volt systems Ignition protected -- safe for installation aboard gasoline-powered boats Activated by a low amperage ON-OFF switch mounted anywhere Specifications: Control Circuit Connection: 20 AWG Tinned Wire Nominal Voltage: 12V DC / 24V DC Coil Function: Normally Open Mounting: #10 Operating Amperage Current: 3.6A when changing state Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V Terminal Stud Torque: 90 in-lb (10.17 Nm) Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size Cranking Rating 30 sec: 1,000A / 1000A DC Contact Form: SPST-NO Input Voltage: 9-36V DC Inrush Rating: 0.25 sec (10 repeats): 2000A Switching Cycles: 1,000,000 Terminal Stud: Serrated Flange Nut Terminal Stud Length: 0.66" (16.76mm) Terminal Stud Size: 5/16" (M8) Weight: 1.00lb (0.45 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Lockable = NONE AFD = NONE Positions = NONE Amps - Max = 450ABLUE SEA 9012 SOLENOID L SERIES 250A12/24VNormalized SKU: 9012UPC Code: 632085090128Blue Sea System 9012 Literature Download  Owners Manual

Volvo Penta 21400091 RelaysRelays open and close circuits using electromechanical or electronic switches. Except for small motors and low-ampere Solenoids, relays switch lesser currents in a control circuit and do not usually regulate power-consuming equipment. Nonetheless, because a tiny voltage given to a relay's coil can result in a voltage switched by the contacts, relays can "control" larger voltages and amperes. Protective relays detect electrical irregularities such as overcurrent, undercurrent, overloads, and reverse currents and can prevent equipment damage. Key Features: Volvo Penta relay This product replaces part 873765 Genuine Volvo Penta Relay 12V (20-30A) for starter and glow plug systems, among other things. This authentic relay is potted to prevent corrosion. If you are unsure about which relay you need, please contact us first. Great value for your money Product Specifications: SKU: 21400091 Weight: 0.08 LBS Diagram Reference Number: 10 Alternate Products SKU: "REC21400091", "21400091" Manufacturer Part Number (MPN): 21400091 Quantity: 1 Volvo Penta Exploded view / schematic Extra AlternatorThis product replaces:873765Normalized SKU: 21400091

EMP 460256 RelaysEMP Starter Relay 70a 4.3-8.2L #460256Normalized SKU: 460256UPC Code: 840080492520

EMP 460042 RelaysEMP Relay 4.3-8.1L M4 Feb-2004-up Box #460042Normalized SKU: 460042UPC Code: 840080492513

EGIS 6601 RelaysEGIS Mini Automatic Charging Relay 125 Amp Bulk PackModel: 6601 Automatically Manages Charging ans Isolation of Battery Banks, ensuring auxiliary loads will not deplete starting battery and prevent engine starting. Auto Sensing for both 12V and 24V systems. Remote and local LED indications with panel and surface mounting. Compact voltage sensing relay for battery charge management.Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.Auto Sensing for both 12V and 24V Systems.Normalized SKU: 6601UPC Code: 850067590637

Download Literature EGIS 5601 Relays PT2 - Time Delay Relay 30A  - 12V Prevents dead batteries from add-on equipment, maximizing operational readiness and saving maintenance costs. Delivers power to equipment after engine off or at the end of shift (video downloads), automatically timing off and optionally if battery voltage is low. Protects sensitive on-board electronics via under-voltage and over-voltage shutdown. Normalized SKU: 5601UPC Code: 850035199916 EGIS 5601 Literature Download Product Brochure

Mercury Marine 8M0210756 RelaysMercury Relay #8M0210756Normalized SKU: 8M0210756UPC Code: 678633176715

Mercury Marine 821509T01 RelaysMercury Relay #821509T01Normalized SKU: 821509T01UPC Code: 745061334021

EMP 300-26074 RelaysThis product replaces:840080461946Normalized SKU: 30026074UPC Code: 840080461946

EMP 300-26073 Relays This power trim relay replaces Mercury OEM part number 18211 and fits 1987-1996 Mercury and Mariner outboards in the following configurations: 2-cylinder: 35 HP 3-cylinder: 60 HP If your trim isn't responding or is behaving erratically, the relay is one of the first things worth checking. It's a small part with a big job, controlling the electrical signal that operates your power trim system. Also crosses with the following aftermarket part numbers: Sierra: 18-5729 ARCO: R211 Mallory: 9-15200 Normalized SKU: 30026073UPC Code: 840080412757

EMP 89-89103 RelaysEMP Relay #89-89103Normalized SKU: 8989103UPC Code: 840080499864

EMP 300-26098 RelaysThis product replaces:840080405582Normalized SKU: 30026098UPC Code: 840080405582

EMP 300-26039 RelaysThis product replaces:840080410760Normalized SKU: 30026039UPC Code: 840080410760

EMP 300-08903 RelaysEMP Relay #300-08903Normalized SKU: 30008903UPC Code: 840080494081

  Download LiteratureBlue Sea System 7611 Components7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery ChargingFeatures: 120 Amp continuous rating 12/24V DC auto ranging voltage input Senses charging on two battery banks Side and bottom knockouts for cable connections Clip-on cover insulates terminal connections 7/8" (22 mm) stud length to accept multiple cable terminals Integrated LED indicates ACR status 1/4" x .032" male quick connect terminals for ground and optional features Specifications: Intermittent Rating: 5 min.: 210 Amps Continuous Rating: 120 Amps Nominal Voltage: 12/24 Volts DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:AFD = NONE Amps - Max = 120 Amp Lockable = NONE Positions = NONENormalized SKU: 7611UPC Code: 632085076115Blue Sea System 7611 Literature Download  Owners Manual

  Download LiteratureBlue Sea System 7601 Components7601 DC Mini ACR Automatic Charging Relay - 65 AmpFeatures: 65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines Compact case design allows surface and panel mounting Senses charging on two battery banks Snap-on cover insulates terminal connections LED indicates ACR status 1/4" x .032" male quick connect terminal for ground 5/8" (16 mm) stud length to accept multiple cable terminals 12V DC voltage input Specifications: Intermittent Rating: 5 min.: 115A Terminal Stud Size: 1/4"-20 Relay Contact Position: Open (30 sec.): 12.75V DC Continuous Rating: 65A Maximum Torque: 75 in-lb (8.5 Nm) Relay Contact Position - Open High: 16.0V DC Amperage Operating Current: 175mA (Combine) Relay Contact Position: Combine (30 sec.): 13.0V DC Under Voltage Lockout: 9.5V DC Amperage Operating Current: 15mA (Open) Relay Contact Position: Combine (2 min.): 13.6V DC Maximum Cable Size: 1/0 AWG Relay Contact Position: Open (10 sec.): 12.35V DC WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 7601UPC Code: 632085076016Blue Sea System 7601 Literature Download  Owners Manual

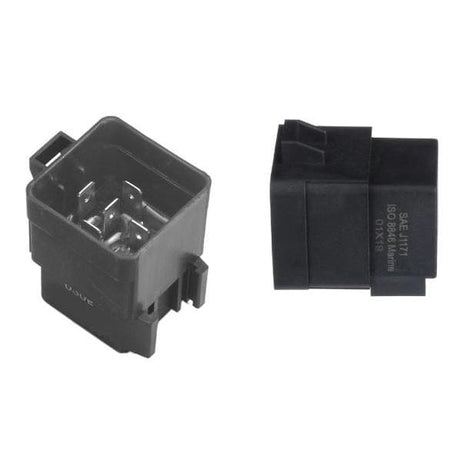

EMP 300-08902 Relays This relay is a direct replacement for Mercury OEM part 882751A04, designed for Mercury Verado 135-400R outboards and 8.1L MerCruiser inboard engines. Relays in these applications handle switched power to various electrical systems, including fuel pumps, trim systems, and other high-current circuits. When a relay fails, the system it controls stops working, which can show up as a no-start condition, a non-functioning trim motor, or other electrical gremlins depending on which circuit it serves. It's a direct fit replacement with no modifications needed and crosses with Sierra part 18-5850 for easy verification. Compatible Applications: Mercury Verado 135-400R outboards MerCruiser 8.1L inboard engines Replaces OEM Part Number: Mercury 882751A04 Also Crosses With: Sierra: 18-5850 Normalized SKU: 30008902UPC Code: 840080494074
