Download LiteratureEgis 9831-2535 RelaysTriple XD - NMEA 2000 - Relay/ACR/Relay with Knobs - 12 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 98312535UPC Code: 850067590187Egis 9831-2535 Literature Download Quick Reference Guide

Download LiteratureEgis 9821-8550 RelaysDual XD - NMEA 2000 - Relay/Relay with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 98218550UPC Code: 850067590224Egis 9821-8550 Literature Download Quick Reference Guide

Download LiteratureEgis 9821-8350 RelaysDual XD - NMEA 2000 - ACR/Relay with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 98218350UPC Code: 850067590194Egis 9821-8350 Literature Download Quick Reference Guide

Download LiteratureEgis 9821-8330 RelaysDual XD - NMEA 2000 - ACR/ACR with Knobs - 8 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 98218330UPC Code: 850067590231Egis 9821-8330 Literature Download Quick Reference Guide

Download LiteratureEgis 9811-4500 RelaysSingle XD - NMEA 2000 - Relay with Knobs - 4 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 98114500UPC Code: 850067590200Egis 9811-4500 Literature Download Quick Reference Guide

Download LiteratureEgis 9811-4300 RelaysSingle XD - NMEA 2000 - ACR with Knobs - 4 Position DTFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. 500A continuous / 1600A cranking (per switch) - supports all standard marine electrical systems. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Applications: Seamless NMEA 2000 Integration – Control switches, monitor switch status, and battery voltage. Flexible Control Options – Operate via NMEA 2000 or discrete analog inputs for added versatility. 35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Eliminates Dead Start Batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 98114300UPC Code: 850067590217Egis 9811-4300 Literature Download Quick Reference Guide

Download LiteratureEgis 8820-1550 RelaysDual XD Flex 2 - Relay/Relay with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 88201550UPC Code: 850035199534Egis 8820-1550 Literature Download Quick Reference Guide

Download LiteratureEgis 8820-1530 RelaysDual XD Flex 2 - Relay - ACR with KnobsFeatures: Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors, pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality. Applications: Replaces Two Individual High Amp Relays with One Compact Module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables.. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Normalized SKU: 88201530UPC Code: 850035199626Egis 8820-1530 Literature Download Quick Reference Guide

Download LiteratureEgis 8630-2535 RelaysTriple XD Flex Relay with KnobsSet of three programmable relays designed for use in 12 or 24 VDC lithium battery systems. Typically the two outer devices would be set up as remote on-off switches and the middle one would be set up as an Automatic Charge Relay. The relay settings are programmable and the list of available options is optimized for lithium batteries. Normalized SKU: 86302535UPC Code: 850053879463Egis 8630-2535 Literature Download Quick Reference Guide

J&N Electric 240-58023 RelaysJ&N Electric Yamaha Relay #240-58023Normalized SKU: 24058023

Recmar REC3854138 RelaysThis product replaces:0987625, 3854138 / 3854138, 38541389Normalized SKU: REC3854138UPC Code: 8435422146340

Download LiteratureEgis 8720-1390 RelaysXD Series Dual Flex 2 (ACR-Mech Only) with Knobs - Flying WiresFeatures Replaces Two Individual High Amp Relays with One Compact Module reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into.. Designed to Replicate Common Multi-Battery Switching and Charge Management Functions:  Common dual battery load switching via the outer relays and a central automatic charging relay to share charge current is easily implemented. Multiple Automatic Charging Relay (ACR) Into One Device: For 2-3 Battery Systems that require 1 or 2 ACRs, a single three-relay ACR provides a drastic improvement in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables. Expandable with Link and Cross-Link Busbars to Additional Dual, Triple, or Single XD Relays: Supports 2 or 3 battery systems with standard busbar interconnect accessories. Bullet-proof Construction: Sealed to IP67/IP6K9K, high-temperature electronics and materials allow mounting anywhere. Stainless steel cable lug studs. Large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive Manual Control option simplifies operation and awareness of the state of manual override and whether the device is being left in a locked off or locked on state (not available on competitive solutions) Simple Programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers.  35-75% Reduction in Mounting Space & Product Weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug & Play Compatible with Legacy Competitor Products:   Single, dual, and triple relays options available with DTM/ATM connectors pin for pin compatible with ML Series Bi-stable Relays. 90-95% Less Off-State Current: Compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:LED Status DisplayEasy to see front facing LED indicator provides visual device status, remote LED replicates local on-device LED3-Position Manual OverrideForce each individual relay Open or Closed and optionally leave knob in either position to lock relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for included weatherproof label set makes circuit and relay identification easy. Blank labels for custom applications.Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.Stainless HardwareCorrosion is no issue with quality stainless steel studs and self locking flanged nuts.ProgrammableVia dip switches located under protective cover. An easy to use configuration guide on reverse make custom settings a breeze to configure for a wide variety of applications.Smaller FootprintXD Relays offers high Amp rating in a smaller package than competitive solutions, reducing install space requirements to a minimum.Integrated VentHigh quality Gortex vent regulates internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 87201390UPC Code: 850053879494Egis 8720-1390 Literature Download Quick Reference Guide

Recmar REC60E-81950-00 RelaysThis product replaces:881350T01 / 60E-81950-00, 60E8195000Normalized SKU: REC60E8195000UPC Code: 8435422163095

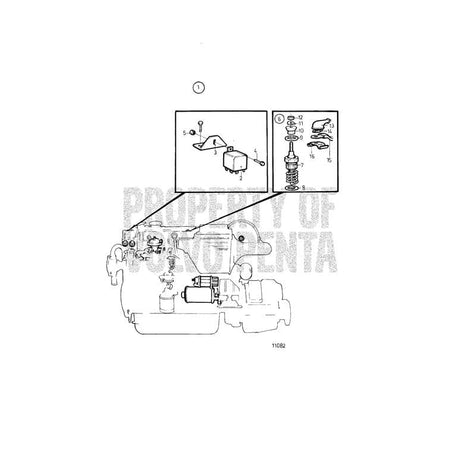

Volvo Penta 22637542 RelaysVolvo Penta Exploded view / schematic Glow Plug KitThis product replaces:873740Normalized SKU: 22637542

Recmar REC89-817109A3 Relays#N/ANormalized SKU: REC89817109A3UPC Code: 8435422177580
