Download LiteratureFuruno GP39 ChartplottersGP39 GPS/WAAS Navigator with 4.2" Color LCDFuruno's GP39 GPS Navigator provides accurate and reliable position fixing, thanks to a 12-channel GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology. The GP39 has various display modes, including Plotter, Highway, Steering, NAV data and Satellite monitor, as well as 2 user-customizable display modes, allowing you to select which data you want displayed on its 4.2" color LCD. Up to 3,000 points of ship track, 10,000 waypoints and 100 routes (each with up to 30 waypoints) can be stored. The waypoint and route data can be exported/imported via a USB flash drive or signal converter.The GP39 can be networked with a fish finder, sonar, radar or other navigation equipment for feeding highly accurate navigation data. The GP39 receives the TLL (Target Latitude/Longitude) sentence from networked fish finders or sonars and can display the received information, allowing you to easily mark fish school locations.Features: Designed GPS core delivers enhanced position fixing accuracy Bright 4.2" high-resolution color LCD (700cd) Storage for 3,000 track points, 10,000 waypoints and 100 routes SBAS capable for better positioning calculations Share and display position information on networked equipment such as a Fish Finder, Sonar, Radar, etc. NMEA0180 input port receives data from Fish Finder, Radar, etc. 7 display modes available, including 2 user-customizable modes Displays position data in Loran TD's USB port for importing/exporting waypoints and routes; Upload/download data in GPX format for easy transfer to TZtouch/TZtouch2 "Click-In" hanger for easy mounting/dismounting and uses no knobs - also perfect for overhead mounts Multi-language ready : English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian and Thai The GP39 includes antenna (GPA017), power cable, hard cover, mounting bracket and standard installation materials. The GP39 serves as the direct replacement for the GP32, which is no longer available for sale from Furuno USA. Specifications:Antenna Type = NONE Resolution (VxH) = NONE Routes = 100 Screen Size = 4.2" WAAS = Yes Waypoints = 10,000Normalized SKU: GP39UPC Code: 611679364487Furuno GP39 Literature Download  Owners Manual  Product Brochure

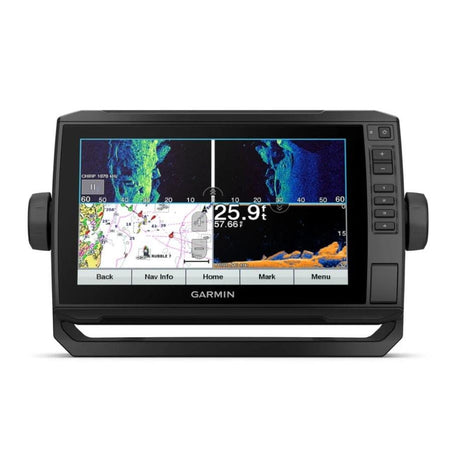

Garmin 010-N2343-51 ChartplottersGarmin ECHOMAP 94sv UHD Combo US and Canada GN+ with GT54 Transducer - RemanufacturedModel: 010-N2343-51 See below and around your boat in incredible detail with optional transducer US and Canada GN+ Share data with other devices on your network (7" and 9" models only) Manage your marine experience from nearly anywhere Control the most powerful trolling motor available Create your own maps on the fly and tailor them to fit your needs The sunlight-readable 9" touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.Select the transducer bundle to add a GT54 transducer for Ultra High-Definition ClearVü and SideVü scanning sonars, which show you crystal-clear images below and around your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 17,000 lakes with up to 1’ contours.Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7" and 9" models only).Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications1, software updates, Garmin Quickdraw™ Community data and more.Take control of the most powerful and efficient trolling motor available2, route it to waypoints, follow tracks and more from the screen of your chartplotter.Specifications General Physical dimensions 11.4" x 6.5" x 2.4" (28.2 x 16.4 x 6.0 cm) Display size 7.8" x 4.8"; 9" diagonal (19.9 x 11.3 cm; 22.9 cm diagonal) Display resolution 400 x 800 pixels Display type WVGA display Weight 2.3 lbs (1.0 kg) Water Rating IPX7 Power consumption 18W Antenna Internal or external over NMEA 2000 Mounting options Bail or flush Receiver 5 Hz Garmin Marine Network™ ports 1 Panoptix™ port Maps & Memory Preloaded maps US and Canada GN+ Accepts data cards 1 microSD™ card; 32 GB maximum size Waypoints 5,000 Routes 100 Track log 50,000 points; 50 saved tracks Outdoor Recreation Features Tide tables Yes Chartplotter Features Garmin Sonar compatible Yes Supports AIS (tracks target ships position) Yes Supports DSC (displays position data from DSC-capable VHF radio) Yes GCV™ Black Box sonar support Yes ActiveCaptain compatible Yes Sailing Features Yes Sonar Features & Specifications Dual-frequency (50/200 kHz) sonar capable Yes Dual-beam (77/200 kHz) sonar capable Yes Transmit power 500 W (RMS) / 4,000 W (peak to peak) CHIRP sonar technology Yes (Built-in) ClearVü Yes with CHIRP (built-in) SideVü Yes with CHIRP (built-in) Maximum depth 2,300 ft @ 77 kHz, freshwater Bottom lock (shows return from the bottom up) Yes Water temperature log and graph Yes Sonar recording Yes Sonar history rewind Yes Connections NMEA 2000® compatible Yes Transducer pin numbers 12 NMEA 0183 input ports 1 NMEA 0183 output ports 1 Video input ports None Video output ports None Wireless connectivity Yes What's in the Box: ECHOMAP 94sv UHD ComboUS and Canada GN+ - Remanufactured GT54UHD-TM transducer Power/data cable Tilt/swivel mount with quick release cradle Flush mount Protective cover Hardware Documentation Normalized SKU: 010N234351

Lowrance 000-15984-001 ChartplottersSee more and catch more with the new HDS Pro fishfinder/chartplotter. Watch fish react to your lure live with new, high-resolution ActiveTarget 2 Live Sonar, and find fish and holding structure with new, ultra high-definition Active Imaging HD. Quickly find fishing areas with the latest and most detailed C-MAP charts, and get full system networking and expanded boat control from bow to stern. Support for new ActiveTarget Scout and Ghost Trolling Motor 360 chart overlay views. Touchscreen control of Power-Pole anchors, Ghost Trolling Motor, Autopilot and Lowrance Outboard Pilot. NMEA 2000, Wireless and Bluetooth, connectivity – plus smartphone notifications. SolarMAX HD Touchscreen viewable at extreme angles and through polarized lenses NEW - High-definition 1MHz Active Imaging HD ready (Lowrance CHIRP/SideScan/DownScan Imaging) NEW - High-resolution ActiveTarget 2 Live Sonar ready, Supports two ActiveTarget Systems for multiple views simultaneously Preloaded C-MAP DISCOVER OnBoard charts with 1-foot contours on 19,000+ US Lakes, 9,400+ Canadian Lakes Wide range of optional chart upgrades including C-MAP REVEAL, Navionics, Florida Marine Tracks and more Normalized SKU: 00015984001UPC Code: 9420064129645

  Download LiteratureFuruno GP170D ChartplottersGP170D IMO DGPS NavigatorFuruno's GP170D is a highly stable and reliable GPS/Differential position fixing system for ocean going ships, large yachts, ferries and commercial vessels. It is an ideal position sensor for Radar, AIS, ECDIS, Autopilot, Echo Sounder and other navigation and communications equipment. The designed GPS chip and antenna deliver enhanced stability and precision in position fixing. Noise rejection capabilities are incorporated in the new receiver, delivering anti-jamming function as well as a high level of tolerance towards multi-path mitigation. Tolerance towards multi-path mitigation is further enhanced when the GPA020S or GPA021S antenna unit is utilized. A variety of display modes are available including Plotter, Course, Highway, Data and Integrity. The Integrity display mode delivers a highly accurate Skyplot presentation of currently viewable satellites, status on GNSS/SBAS signal reception including strength and SNR, and elevation angles of available satellites, as well as detailed information about available beacon stations.Features: Differential GPS utlizes terrestrial station signals to enhance Satellite-based positioning Augmentation to enhance precision by utilizing SBAS and DGPS Full compliance with IMO MSC. 114 (73) and IEC 61108-4 10 Hz (0.1 second) position update rate making steady own ship tracking possible Front panel USB port for export/import of routing data, menu settings and user settings BAM (Bridge Alert Management) ready LAN interface for efficient network integration into bridge system (IEC 61162-450) Simplified menu operation Enhanced route planning/management function Specifications: Display Size: 5.7" Display Type: Color LCD Power Use: 12-24 VDC Receiver Type: GPS or DGPS Specifications:Antenna Type = NONE Resolution (VxH) = NONE Routes = NONE Screen Size = 5.7" WAAS = NONE Waypoints = NONENormalized SKU: GP170DUPC Code: 611679356796Furuno GP170D Literature Download  Quick Reference Guide  Owners Manual

Garmin 010-03177-01 ChartplottersGarmin GPSMAP9217 17in Plotter With US and Canada GN+Model: 010-03177-01GPSMAP® 9217 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with 4K resolution on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with preloaded Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ comes with Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).Normalized SKU: 0100317701UPC Code: 753759343590

Garmin 010-03177-00 ChartplottersGarmin GPSMAP9017 17in Plotter With Worldwide BasemapModel: 010-03177-00GPSMAP® 9017 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with 4K resolution on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with support for Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ includes a 1-year subscription for daily chart updates and support for Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).Normalized SKU: 0100317700UPC Code: 753759343583

Garmin 010-03176-01 ChartplottersGarmin GPSMAP9213 13in Plotter With US and Canada GN+Model: 010-03176-01 Premium 4K IPS sunlight-readable touchscreen display Glass helm with edge-to-edge design for seamless and modern look Processing power is up to 7 times faster than previous generations for superior performance, plus get faster wireless ActiveCaptain® app transfer speeds with 5GHz Wi-Fi® connectivity Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features Build extensive networks with reliable connectivity and gigabit speeds on the Garmin BlueNet™ network Enjoy high-quality entertainment with video integration capabilities with HDCP distribution Uses the NMEA?2000® and NMEA?0183® networks to connect to your compatible autopilots, sensors and more; compatible with existing marine ecosystems Take command of monitoring, control and automation systems with support for the EmpirBus™ system and other third-party solutions via OneHelm™ integrated digital switching Keep tabs on engine performance with extensive engine integration, including SAE J1939 connectivity and a wide range of support for outboard engine manufacturers Navigate with preloaded Garmin Navionics+™ charts with Auto Guidance+™ technology (for planning purposes only and does not replace safe navigation operations); get support for Garmin Navionics Vision+™ charts with premium features such as high-resolution relief shading Connect your compatible Garmin devices and more with integrated BLUETOOTH® and ANT® technologies; use spoken commands to control the chartplotter with your compatible headset or Garmin smartwatch Built for harsh marine conditions with an IPX7 water-resistance rating GPSMAP® 9213 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with 4K resolution on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with preloaded Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ comes with Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).Specifications Weight 9.1 lbs. (4.13 kg) Dimensions 13.2" x 9.19" x 3.56" (33.5 cm x 23.4 cm x 9.1 cm) What's in the Box: Chartplotter microSD preinstalled 2-meter backbone/drop cable and T-connector for the NMEA 2000® network Flush mount kit Bail mount Documentation Normalized SKU: 0100317601UPC Code: 753759343538

Garmin 010-03176-00 ChartplottersGarmin GPSMAP9013 13in Plotter With Worldwide BasemapModel: 010-03176-00 Premium 4K IPS sunlight-readable touchscreen display Glass helm with edge-to-edge design for seamless and modern look Processing power is up to 7 times faster than previous generations for superior performance, plus get faster wireless ActiveCaptain® app transfer speeds with 5GHz Wi-Fi® connectivity Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features Build extensive networks with reliable connectivity and gigabit speeds on the Garmin BlueNet™ network Enjoy high-quality entertainment with video integration capabilities with HDCP distribution Uses the NMEA 2000® and NMEA 0183® networks to connect to your compatible autopilots, sensors and more; compatible with existing marine ecosystems Take command of monitoring, control and automation systems with support for the EmpirBus™ system and other third-party solutions via OneHelm™ integrated digital switching Keep tabs on engine performance with extensive engine integration, including SAE J1939 connectivity and a wide range of support for outboard engine manufacturers Support for Garmin Navionics+™ charts with Auto Guidance+™ technology (for planning purposes only and does not replace safe navigation operations) and Garmin Navionics Vision+™ charts with premium features such as high-resolution relief shading Connect your compatible Garmin devices and more with integrated BLUETOOTH® and ANT® technologies; use spoken commands to control the chartplotter with your compatible headset or Garmin smartwatch Built for harsh marine conditions with an IPX7 water-resistance rating GPSMAP® 9013 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with 4K resolution on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with support for Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ includes a 1-year subscription for daily chart updates and support for Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).Specifications Weight 9.1 lbs. (4.13 kg) Dimensions 13.2" x 9.19" x 3.56" (33.5 cm x 23.4 cm x 9.1 cm) What's in the Box: Chartplotter microSD™ preinstalled 2-meter backbone/drop cable and T-connector for the NMEA 2000® network Flush mount kit Bail mount Protective cover Documentation Normalized SKU: 0100317600UPC Code: 753759343521

Garmin 010-03175-01 ChartplottersGarmin GPSMAP9210 10in Plotter With US and Canada GN+Model: 010-03175-01 10" model features full HD display Glass helm with edge-to-edge design for seamless and modern look Processing power is up to 7 times faster than previous generations for superior performance, plus get faster wireless ActiveCaptain® app transfer speeds with 5GHz Wi-Fi® connectivity Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features Build extensive networks with reliable connectivity and gigabit speeds on the Garmin BlueNet™ network Enjoy high-quality entertainment with video integration capabilities with HDCP distribution Uses the NMEA 2000® and NMEA 0183® networks to connect to your compatible autopilots, sensors and more; compatible with existing marine ecosystems Take command of monitoring, control and automation systems with support for the EmpirBus™ system and other third-party solutions via OneHelm™ integrated digital switching Keep tabs on engine performance with extensive engine integration, including SAE J1939 connectivity and a wide range of support for outboard engine manufacturers Navigate with preloaded Garmin Navionics+™ charts with Auto Guidance+™ technology (for planning purposes only and does not replace safe navigation operations); get support for Garmin Navionics Vision+™ charts with premium features such as high-resolution relief shading Connect your compatible Garmin devices and more with integrated BLUETOOTH® and ANT® technologies; use spoken commands to control the chartplotter with your compatible headset or Garmin smartwatch Built for harsh marine conditions with an IPX7 water-resistance rating GPSMAP® 9210 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with a high-resolution display on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with preloaded Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ comes with Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).Specifications WEIGHT 5.55 lbs (2.52 kg) DIMENSIONS (HxWxD) "10.24" x 7.87" x 3.54" (26.0 cm x 20.cm x 9.1 cm)" What's in the Box: Chartplotter microSD™ preinstalled Power cable 2-meter backbone/drop cable and T-connector for the NMEA 2000® network Flush mount kit Bail mount Protective cover Documentation Normalized SKU: 0100317501UPC Code: 753759343477

Garmin 010-03175-00 ChartplottersGarmin GPSMAP9010 10in Plotter With Worldwide BasemapModel: 010-03175-00 10" model features full HD display Glass helm with edge-to-edge design for seamless and modern look Processing power is up to 7 times faster than previous generations for superior performance, plus get faster wireless ActiveCaptain® app transfer speeds with 5GHz Wi-Fi® connectivity Enjoy premium sailing features, such as sailing polars, plus see laylines, race start line guidance and more with Garmin SailAssist™ features Build extensive networks with reliable connectivity and gigabit speeds on the Garmin BlueNet™ network Enjoy high-quality entertainment with video integration capabilities with HDCP distribution Uses the NMEA 2000® and NMEA 0183® networks to connect to your compatible autopilots, sensors and more; compatible with existing marine ecosystems Take command of monitoring, control and automation systems with support for the EmpirBus™ system and other third-party solutions via OneHelm™ integrated digital switching Keep tabs on engine performance with extensive engine integration, including SAE J1939 connectivity and a wide range of support for outboard engine manufacturers Support for Garmin Navionics+™ charts with Auto Guidance+™ technology (for planning purposes only and does not replace safe navigation operations) and Garmin Navionics Vision+™ charts with premium features such as high-resolution relief shading Connect your compatible Garmin devices and more with integrated BLUETOOTH® and ANT® technologies; use spoken commands to control the chartplotter with your compatible headset or Garmin smartwatch Built for harsh marine conditions with an IPX7 water-resistance rating GPSMAP® 9010 is the integrated touchscreen chartplotter designed for captains who demand the best. Enjoy edge-to-edge clarity with a high-resolution display on a glass helm with premium design and materials. Plot your paradise faster than ever with processing power that’s up to 7 times faster than previous generations, and get 5GHz Wi-Fi® connectivity for ActiveCaptain® app updates. Get a connected boating experience by linking your compatible MFDs, cameras, sonars and more on the gigabit-speed Garmin BlueNet™ network. The full suite of Garmin SailAssist™ features allows you to see wind speed, direction and other critical data at a glance. When your hands are full, use spoken commands to operate the chartplotter (compatible headset or smartwatch required; not included). Navigate on the water with support for Garmin Navionics+™ charts, or upgrade to premium Garmin Navionics Vision+™ charts. Garmin Navionics+ includes a 1-year subscription for daily chart updates and support for Auto Guidance+™ technology, which helps you navigate and avoid land- and water-based obstacles based on chart data (for planning purposes only and does not replace safe navigation operations).Specifications WEIGHT 5.55 lbs (2.52 kg) DIMENSIONS (HxWxD) "10.24" x 7.87" x 3.54" (26.0 cm x 20.cm x 9.1 cm)" What's in the Box: Chartplotter microSD™ preinstalled Power cable 2-meter backbone/drop cable and T-connector for the NMEA 2000® network Flush mount kit Bail mount Protective cover Documentation Normalized SKU: 0100317500UPC Code: 753759343460

Humminbird 411240-1XCHO ChartplottersHumminbird APEX® 19 VX MSI+ Chartplotter/Fishfinder without TransducerThe APEX 19 VX MSI+ CHARTPLOTTER CHO provides the clearest sonar imaging on the sharpest multi-function display that anglers have ever seen. Industry-leading MEGA Imaging+ and Dual Spectrum CHIRP sonar come standard, with even more performance from a dedicated sonar channel for accessory 2D CHIRP transducers up to 2kW. See it all clearly with an 18.5 " Full-HD touchscreen that provides customized display of information from advanced network options like NMEA 2000®, HDMI In/Out, WiFi, and Bluetooth®. Add the power of the One-Boat Network™ to integrate the accuracy of Humminbird GPS charts, unrivaled boat control from Minn Kota, and reach new depths with wireless Cannon® downrigger control.  The APEX Series is the kind of MFD that will take you fishing to a new level. This CHO (Control Head Only) model is the perfect pairing for anglers looking to select their own transducer, such as a Stainless Steel thru-hull option (SSTH 14 HW MSI+) or simply to add a display to an existing Humminbird network.Features: Control Head Only Model: This model does not include a transducer. This CHO model is a great choice for those looking to connect to Built-in MEGA Imaging on Minn Kota trolling motors, accessory transducer options like MEGA 360 Imaging, or share sonar data from an existing Humminbird Ethernet network.  Full HD Display with Cross Touch® interface: APEX delivers eye-popping detail with a 1920H x 1080V display. See the incredible detail of sonar and chart images that will ensure you never miss a thing. Control it all using the touchscreen or the keypad—it's up to you. Customized Experience:  Utilize an intuitive user interface and sidebar menu that provide customizable settings and view combinations to make your fishing experience all your own. Dual Core Processor: Perform any task with speed and ease, thanks to the ultra-responsive interface and upgraded processing power.   Industry-leading Humminbird sonar: Equipped with MEGA Side Imaging+, MEGA Down Imaging+, and Dual Spectrum CHIRP sonar to keep you on the fish. MEGA Imaging+ provides views up to 250' under and out to either side of your boat, and Dual Spectrum CHIRP shows exceptional 2D sonar with superior target separation and fish clarity.  Dual Channel CHIRP Sonar: Dual sonar ports offer connection with any Humminbird sonar options, as well as a dedicated port for 2D CHIRP transducers up to 2kW.  Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S. Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.  AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness, and vegetation as you drive your boat.  Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless AutoChart Live mapping capacity. One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota and Cannon products to unlock more features and capabilities for anglers everywhere. Make more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.  Dual Ethernet Ports: Build a powerful, professional-grade fishing system with dual Ethernet ports on APEX chartplotters. Easily network products without the need for an external network hub, allowing the connection of multiple control heads and Ethernet accessories like Minn Kota i-Pilot Link and Humminbird CHIRP Radar. HDMI Compatible: See it all with independent HDMI In and HDMI Out ports on APEX. Connect and view accessory camera and video sources, as well as output to accessory displays for more viewing and rigging options.  Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smartphone notifications on your Humminbird.  NMEA 2000 networking built in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking. Additionally, APEX is compatible with CZone® Contact 6, Contact 6 Plus, and digital switching devices. Includes control head, power cable, and gimbal mounting bracket. This CHO model does not include a transducer, allowing you to pick the best fit for your rigging needs.  Product comes with a 2-Year Limited Warranty Normalized SKU: 4112401XCHO

Simrad 000-16277-001 ChartplottersNSS4-16 16" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App Menu: Provides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power Button: Power your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1920 x 1080 Screen Brightness: >1200 nits Size and Type: 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 40 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Weather: SiriusXM via WM4 module (USA only) Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 423.5 mm x 241.6 mm x 88.6 mm (16.67″ x 9.51″ x 3.49″) With bracket: 453.4 mm x 266.4 mm x 88.6 mm (17.85″ x 10.49″ x 3.49″) Mounting Type: Bracket mount (bracket optional). Rear mount (brackets supplied) Weight: 3.8 kg (8.38 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Normalized SKU: 00016277001UPC Code: 9420064135431

Simrad 000-16276-001 ChartplottersNSS4-12 12" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App MenuProvides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power ButtonPower your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your own preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, Video out via USB. IPCAM-1, FLIR 232/300 series. ONVIF IP Camera IP Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 12" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 40 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Weather: SiriusXM via WM4 module (USA only) Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 338.9 mm x 208.4 mm x 84.8 mm (13.34″ x 8.20″ x 3.34″) With bracket: 367.8 mm x 232.8 mm x 84.8 mm (14.48″ x 9.17″ x 3.34″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 2.8 kg (6.17 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Normalized SKU: 00016276001UPC Code: 9420064135424

Simrad 000-16275-001 ChartplottersNSS4-10 10" MFD - No SonarNSS 4 brings a trio of control options, designed to provide maximum control in all settings and conditions. The touchscreen is ideal for exploring charts, which is smoother than ever on NSS 4. Drag to discover new areas, pinch to zoom in and out, and tap for more detail on areas of interest. The rotary dial lets you scroll through menus and adjust data displays in an instant. The keypad brings a selection of one-touch functions for easy navigation.Main Menu/Pages ButtonSwitch instantly to full-screen mode, giving a clear overview of all key data without clutter. App MenuProvides quick access to the settings menu to make tweaks on the fly.Rotary DialUseful for a variety of functions: menu navigation, Used to zoom in/out, push to select, and more.X ButtonReturn to the previous screen or cancel the current action.Waypoint ButtonA super quick and easy way to mark waypoints accurately on your chart. Power Button: Power your device on and off.Configurable Custom KeysThese fully customizable buttons are designed to provide instant access to your favorite apps and features. The buttons can be assigned multiple functions, each triggered by a short or long press. (10” includes only one custom key) Dual SD Card SlotConvenient front-facing slots for easy access to chart cards and memory cards.Unmatched SpeedExperience the power of a lightning-fast Qualcomm® 8-core processor, designed to keep up with every move on the water.Instant ResponseNavigate seamlessly from one app to the next with zero lag and smooth transitions. So you can focus on boating and fishing – and not on the screen.Ultra-fast ChartingNSS 4 delivers our fastest-ever auto-routing and rapid chart rendering, helping you hit your next spot quickly.Advanced Angling Tech for the Ultimate Sportfishing System Tap into intelligent sonar technology via sonar modules or another networked display. Active Imaging™ HD provides ultra-clear, high-resolution sonar that reveals fish and underwater structures in stunning detail – making it easier to pinpoint the best angling spots.Seamless integration with the full suite of Simrad® electronics puts you in total control. Connect effortlessly with our most powerful HALO® radars, the RECON™ trolling motor, the incredible Simrad® app, and more...Built for Complete CustomizationMake NSS 4 yours with its extensive range of customization options. Build instrument screens that work for you, tweaking our pre-configured dashboards to match your boating style. And create custom split screens based on your preferences and screen setup.Features: A trio of hybrid controls: touch, rotary, and keypad Premium glass-to-edge design Lightning fast Qualcomm® 8-core processor Redesigned operating system Support for various 1kW CHIRP echo sounders Support for Active Imaging™ & Active Imaging™ HD Support for C-MAP® X-gen charts and others Simrad® RECON™, Rhodan® and Motorguide® Trolling Motor Compatible Compatible with Simrad suite: S3100 & S5100 sonar modules, radar, and more... Support for Mercury®, CZone®, SiriusXM®, and more... 2-year limited warranty Autopilot Maneuvers / Turn Patterns: U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth Steering Modes: Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav Cartography Chart Format: C-MAP Tile (CMT) Discover X, Reveal X C-MAP Tile (CMT) Reveal X Charts Supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Connectivity Bluetooth: Bluetooth 4.0 with support for Bluetooth Classic (currently not used) Ethernet: 1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) NMEA 0183: No NMEA 2000: 1 x NMEA 2000 Micro-C port, 1 LEN PC Connectivity: No Video: Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera WiFi: Wi-Fi 5 (IEEE 802.11ax) Display Backlight Color: White Resolution: 1280 x 800 Screen Brightness: >1200 nits Size and Type: 10" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity, and sunlight viewability with polarized sunglasses Viewing Angles: 80° top/bottom, 80° left/right Waterproof rating: IPX6 and IPX7 Electrical Power Consumption, max.: 28 W Recommended Fuse Rating: 5 A Supply Voltage: 12/24 V DC (10 - 31.2 V DC min-max) Humidity: IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) GPS Correction: 10 Hz high-speed update (internal) GPS Receiver Channels: 32 Channels Position Accuracy: Horizontal Accuracy 3 m (9.8 ft) Update rate: 10Hz MFD AIS: Receive AIS data over NMEA 2000 Autopilot: NAC-1, NAC-2, NAC3, NAC-D compatible Cartography included: Worldwide basemap (not for navigation). A detailed chart card on the network required Cartography supported: C-MAP Discover™ X, C-MAP Reveal™ X. Third-party charts CMOR, StikeLines (check with provider for available content) Digital Switching: Czone / DDS External Storage: 2x (microSD®, SDHC®) GPS: 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, and QZSS SBAS (WAAS) Radar (inc. compatibility): Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars Sonar (inc. compatibility): No built-in Echosounder ports. Compatible with Network Sonar modules S3100, S5100, and other MFDs with echosounder ports Waypoints, Routes, Tracks: 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network Compass Safe Distance - Metric, imperial: 35 cm (1.15 ft) Physical Dimensions (W x H x D): Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) Mounting Type: Bracket mount (bracket supplied). Rear mount (brackets supplied) Weight: 1.8 kg (3.97 lb) Other Warranty Period: 2 Years Interface: Hybrid multi-touch screen, buttons, and rotary knob Normalized SKU: 00016275001UPC Code: 9420064135417

Raymarine T70602 ChartplottersRaymarine Axiom2 XL 16 Bundle with RVM1600Model: T70602The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.Navigate with Confidence. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single displayThree RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.Specifications Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) PoE operating voltage range 9.5 V dc to 32 V dc 9.5 V dc to 32 V dc Current 8.56 A Fuse rating 15 A Nominal supply voltage 12 V dc / 24 V dc Operating temperature -25°C to +55°C (-13°F to 131°F) Storage temperature -30°C to +70°C (-22°F to 158°F) Relative humidity up to 93% @ 40°C (104°F) Waterproof rating IPx6, IPx7 IPx6, IPx7 Weight 5.9 kg (13 lbs) USB connection USB-A: Touch input, USB-B: Touch output Accessory connection USB Micro B GPS antenna connection TNC type connector External storage Remote card reader required Ethernet connection PoE RayNet (10/100/1,000 Mbits/s) x 3 HDMI connections HDMI in, HDMI out HDMI in, HDMI out HDMI in, HDMI out Audio output Left and Right RCA connectors via Power/Video/Audio cable. Analog video connections Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) NMEA 2000 connection DeviceNet connector Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Wireless connections Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n External alarm connection Bare-ended wires x 2 Bare-ended wires x 2 Internal storage 64 GB Solid State Input Voltage 12 V dc / 24 V dc Input Draw 76.56 W @ 12V / 71.53 W @ 24V Dimensions Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) What's in the Box: Raymarine Axiom2 XL 16 MFD Mounting gasket tape Rear mounting bars x 2 Mounting bar fixings (M5x20 pozi countersunk) x 4 Mounting fixings: Bolts (M5x35), Wavy washers (M5), Nuts (M5) Mounting feet x 4 Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3)) Documentation DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft) RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft) Power/Video/Audio cable 1.5 m (4.92 ft) right-angled RVM1600 Power cable 1.5 m (4.9 ft). RayNet (female) to RayNet (female) network cable 2 m (6.6 ft). Documentation Mounting screws M4.5 x 20 (x4). Normalized SKU: T70602

Watch VideoGarmin 010-02919-00 ChartplottersGPSMAP® 1623 ChartplotterGET A SHARPER VIEW FROM A CONNECTED HELMWith its sleek design, powerful processing, and upgraded IPS display, this advanced 16” chartplotter integrates seamlessly into a Garmin marine system. Easily integrate with more engines.  Connect to compatible third-party devices with digital switching and OneHelm™ integrations.  Easily build a marine system by using our advanced network connectivity.  Manage the marine experience from nearly anywhere1.  Live Sonar SupportPair with Panoptix™ or LiveScope™ easy-to-interpret live sonar (transducer required, sold separately) to see all around the boat in real-time.Faster, Sharper, SmarterWith its added processing power and slimline design featuring edge-to-edge glass, it’s easy to fit this plotter in a wider range of dash configurations.Bright and Clear OpticsHigh-resolution IPS display chartplotter offer improved sunlight readability and visibility from any angle.Optional Charts and MapsBring a fresh new look and feel to the chartplotter with an optional upgrade to a Garmin Navionics Vision+™ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery, and more.Power-Pole® Shallow Water AnchorBy networking select Garmin chartplotters with a Force® trolling motor and a compatible Power-Pole shallow water anchoring system, users can access advanced boat control features3 from the plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection, and end-of-route anchoring. Spend more time fishing and less time positioning.Trolling Motor IntegrationGet support and integration for a Force trolling motor (sold separately) to gain complete control while fishing.Charge Integration From Power-PoleCHARGE Marine Power Manager from Power-Pole integrates with compatible Garmin chartplotters to help keep battery power going longer and stronger on the water. Users are able to charge batteries on the run, monitor power use, select where power is allocated, control emergency starts, and even transfer power between battery banks — all from the chartplotter display.Garmin Sailassist™ Sailing FeaturesView laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, and more.Sailing PolarsUse the polar table to see key data, including how fast users should go at a certain wind angle and speed — so users know whether the sail trim needs to be adjusted.Garmin Marine NetworkIf users have multiple compatible Garmin devices on the boat, users can share information — such as maps, user data, radar, and IP camera video — among them.NMEA 2000® and NMEA 0183 NetworksConnect to compatible autopilots, digital switching, weather, the Fusion audio system, media, VHF, AIS, and more from one screen.Activecaptian® APPBuilt-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Helm app, Garmin Quickdraw™ Community data, and more1.Integrated ANT® TechnologyConnect with some of the favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments, and wireless remote controls.Engine ConnectivityUsers can connect a chartplotter to different engines, including select Yamaha® engines.OneHelm FeatureThis feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.Send InReach® Device MessagesPair an inReach satellite communicator4 to the chartplotter, and type custom messages by using the MFD’s on-screen keyboard. Access the contact list, or enter an email, inReach address, or phone number. Users can also group messages by conversation for a texting-like experience.In the Box: Chartplotter microSD™ preinstalled Power cable NMEA 2000® T-connector NMEA 2000 drop cable Flush mount kit with gasket protective cover Trim piece snap covers  Connections NMEA 2000® Ports: 1 NMEA 0183 Input Ports: 1 NMEA 1083 Input (TX) Ports: 1 Video Input Ports: 1 (BNC composite) Video Output Ports: 1 HDMI J1939 Ports: 1 Garmin Marine Network Ports: 2 USB Ports: 1 Bluetooth® Pairing ANT+ (Connectivity) Garmin Wi-Fi Network (Local Connection) Specifications: Unit Dimensions: 15.1" x 10.3" x 3" (38.4 cm x 26.2 cm x 7.6 cm) Unit Weight: 9.7 lbs (4.4 kg) 1Requires ActiveCaptain app on a compatible smartphone paired to a chartplotter2Auto Guidance+ is for planning purposes only and does not replace safe navigation operations3Integration of these features requires the purchase of a C-Monster® GATEWAY through Power-Pole4Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.Wi-Fi is a registered trademark of the Wi-Fi Alliance.Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100291900UPC Code: 753759335045Garmin 010-02919-00 Video
