SI-TEX T2060-4 Radar SystemsSi-Tex T2060A-4 10.4" Display 6kW Open Array Radar with 4.5' AntennaModel: T2060A-4 Dual-Speed antenna with 48-rpm capability for high speed/river operations Split-screen display of long- and short-range targets simultaneously True-Trail Function identifies moving targets Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing Standard AIS Interface module capable of tracking 200 targets***** Optional 50-target Automatic Tracking Aid (ATA). Specifications Scanner 4.5' Open Array Peak Power Output 6kW Output Frequency 9410 +/- 30MHz Beam Width 1.8° Horzontal, 22° Vertical Rotation 24 or 48 RPM Pulse width .08, 0.15, 0.3, 0.5, 1 usec IF Frequency 60MHz Range Accuracy Better than 8m or 1% of range scale selected, whichever is greaer Minimum Detecting Distance 25m Display Unit Size/Type 10.4" TFT Color LCD Resolution 480 x 640 Display modes Heads up, North up*, Course Up*, WPT up** Dimensions 12 19/32" x12 19/32" x 5 39/64" Power 10.8 - 31.2vDC Power Consumption 110 watts or less *Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user. **Requires waypoint data input. What's in the Box: MRD-104 Display RB717A - Pedestal 6kW RW701A-04 - 4.5' Antenna 242J159098A ?15M Cable DC Power Cable Quick Reference guide Operation manual Normalized SKU: T20604UPC Code: 010407320854

SI-TEX T2040-4 Radar SystemsSi-Tex T2040A-4 10.4" Display 4kW Open Array Radar with 4.5' AntennaModel: T2040A-4 Dual-Speed antenna with 48-rpm capability for high speed/river operations Split-screen display of long- and short-range targets simultaneously True-Trail Function identifies moving targets Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing Standard AIS Interface module capable of tracking 200 targets***** Optional 50-target Automatic Tracking Aid (ATA). Specifications Scanner 4.5' Open Array Peak Power Output 4kW Output Frequency 9410 +/- 30MHz Beam Width 1.8° Horzontal, 22° Vertical Rotation 24 or 48 RPM Pulse width .08, 0.15, 0.3, 0.5, 1 usec IF Frequency 60MHz Range Accuracy Better than 8m or 1% of range scale selected, whichever is greaer Minimum Detecting Distance 25m Display Unit Size/Type 10.4" TFT Color LCD Resolution 480 x 640 Display modes Heads up, North up*, Course Up*, WPT up** Dimensions 12 19/32" x12 19/32" x 5 39/64" Power 10.8 - 31.2vDC Power Consumption 80 watts or less *Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user. **Requires waypoint data input. What's in the Box: MRD-104 Display RB716A - Pedestal 4kW RW701A-04 - 4.5' Antenna 242J159098A ?10M Cable DC Power Cable Quick Reference guide Operation manual Normalized SKU: T20404UPC Code: 010407320830

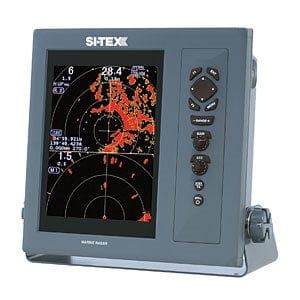

SI-TEX T2040-3 Radar SystemsSi-Tex T2040A-3 10.4" Display 4kW Open Array Radar with 3.5' AntennaModel: T2040A-3 Dual-Speed antenna with 48-rpm capability for high speed/river operations Split-screen display of long- and short-range targets simultaneously True-Trail Function identifies moving targets Features include Interference Rejection, Target Expansion, Parallel Index, True/Relative Bearing Standard AIS Interface module capable of tracking 200 targets***** Optional 50-target Automatic Tracking Aid (ATA). Specifications Scanner 3.5' Open Array Peak Power Output 4kW Output Frequency 9410 +/- 30MHz Beam Width 2.5° Horzontal, 22° Vertical Rotation 24 or 48 RPM Pulse width .08, 0.15, 0.3, 0.5, 1 usec IF Frequency 60MHz Range Accuracy Better than 8m or 1% of range scale selected, whichever is greaer Minimum Detecting Distance 25m Display Unit Size/Type 10.4" TFT Color LCD Resolution 480 x 640 Display modes Heads up, North up*, Course Up*, WPT up** Dimensions 12 19/32" x12 19/32" x 5 39/64" Power 10.8 - 31.2vDC Power Consumption 80 watts or less *Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on application of user. **Requires waypoint data input. What's in the Box: MRD-104 Display RB716A - Pedestal 4kW RW701A-03 - 3.5' Antenna 242J159098A ?10M Cable DC Power Cable Quick Reference guide Operation manual Normalized SKU: T20403UPC Code: 010407320823

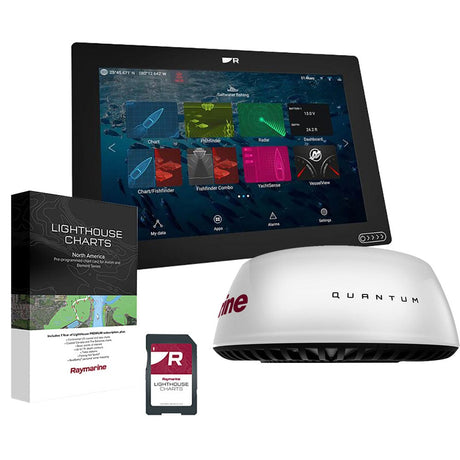

Download Literature Watch VideoRaymarine T70590 Radar SystemsAxiom+ 12 RV Chartplotter/Fishfinder with Raymarine Quantum™ Q24C Radar BundleAxiom+ 12 RV Chartplotter/Fishfinder  The performance-tuned Axiom® Plus is a generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving users the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.The higher-resolution IPS displays deliver 25 percent more brightness, and day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Performance Tuned: Designed for speed, responsiveness, and future expansion. Powerful quad-core processor, plus increased onboard storage for personal data and apps Fluid and fast chart redraw of Raymarine LightHouse Charts, plus Navionics and C-MAP  ClearCruise™ Augmented Reality-capable for smarter navigation decisions Smart and intuitive LightHouse 3 OS makes navigating easy Maximum Visibility: Upgraded IPS display technology delivers charts, sonar, radar, and video in stunning color IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays 7-, 9-, and 12-inch all-weather displays are 25 percent brighter (up to 1,800 nits)  HydroTough™ Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls  Improved viewing with LightHouse 3 color themes, including light, dark, and night mode The Axiom+ 12 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, installation instructions, and the Lighthouse North America Chart. Features: IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for any style of navigating RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world. Optional transducer required.  Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High-Frequency CHIRP, and 600 Watt (50/200 kHz) sonar Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish-targeting Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue =Latitude, and more Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short-range Marine Audio Control - Turn up the volume and control NMEA2000-compatible marine audio systems like Rockford Fosgate Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more Built-in Wi-Fi lets users stream and control Axiom from a smartphone or tablet. Users can also sync Axiom's waypoints, routes, and charts with Navionics mobile app Quantum™ Q24C Radome with Wi-Fi & Ethernet - 10M Power & 10M Data Cable IncludedRaymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.Setting a standard for compact solid-state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplify installation plus Quantum's energy-efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.Superior Radar ImagingFLIR's exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality.CHIRP Pulse CompressionExcellent short-range detection and enhanced target detail with an 18' (6m) minimum range. CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges.Small Target DetectionQuantum's CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.Simplified InstallationSimple Wi-Fi connection between Quantum and any Raymarine LightHouse II-powered MFD. Quantum's small-diameter power cable is easy to route through tight spaces. Easy to upgrade - Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminates the need to run radar cables.Energy Efficient & Lightweight DesignWeighs 50% less than traditional magnetron radars. Safe Emissions thanks to Quantum's low-power solid-state radar transmitter. Very low power consumption (17 Watts transmit and 7 watts standby). They extended vessel battery life when under sail. Normalized SKU: T70590Raymarine T70590 Literature Download Owners Manual Product BrochureRaymarine T70590 Video

Furuno 1945 w/o Cable Radar SystemsFuruno 1945 6kw 4' Open Array radar with 10.4" Color Display Without CableModel: 1945WO Easy-to-install 10.4" portrait color LCD (350 cd) display Bonded LCD provides clear view in all weather conditions Stable AIS/ARPA target-tracking with zoom display function Full Screen Mode lets operators observe a wider range around the vessel Enhanced auto tuning/gain/anti-clutter controls Echoes in yellow, green, orange or multiple colors Furuno's new 1945 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters. The 1945 allows you to see far away objects before they are visible, and allows you to see in the dark, fog or during periods of obstructed visibility in any weather condition. With its advanced signal processing technology, the 1945 demonstrates a substantial increase in target detection, particularly for close range targets.The 1945 can be interconnected with other navigation equipment such as chart plotters and sounders through Furuno's programmable NMEA 0183 interface system, affording operators the ability to expand their boat's system as needed.Up to 100 AIS and 10 ARPA targets can be tracked and overlaid on the radar screen to assist the operator in monitoring other vessel movements. Since AIS works by VHF transceiver system, a variety of navigational information such as vessel name, speed, ROT, draft, and the destination of the selected targets can be included in real time. Unlike ARPA targets, AIS targets are visible on-screen even if they are obscured by large ships or islands.With a push of the "OFF CENTER" button, own ship position can be shifted to a pre-registered point on the screen, allowing the operator to focus on a specific area ahead of or around the vessel without losing track of the position.Specifications Output Power 6kw Screen size 10.4" Screen type Color LCD Range 64n.m. Horizontal beam width 1.9 degrees Antenna 49.4" Open Array What's in the Box: 1945DISP Display RSB0070-059A Gear Box Xn12A4 Antenna Normalized SKU: 1945w/oCable

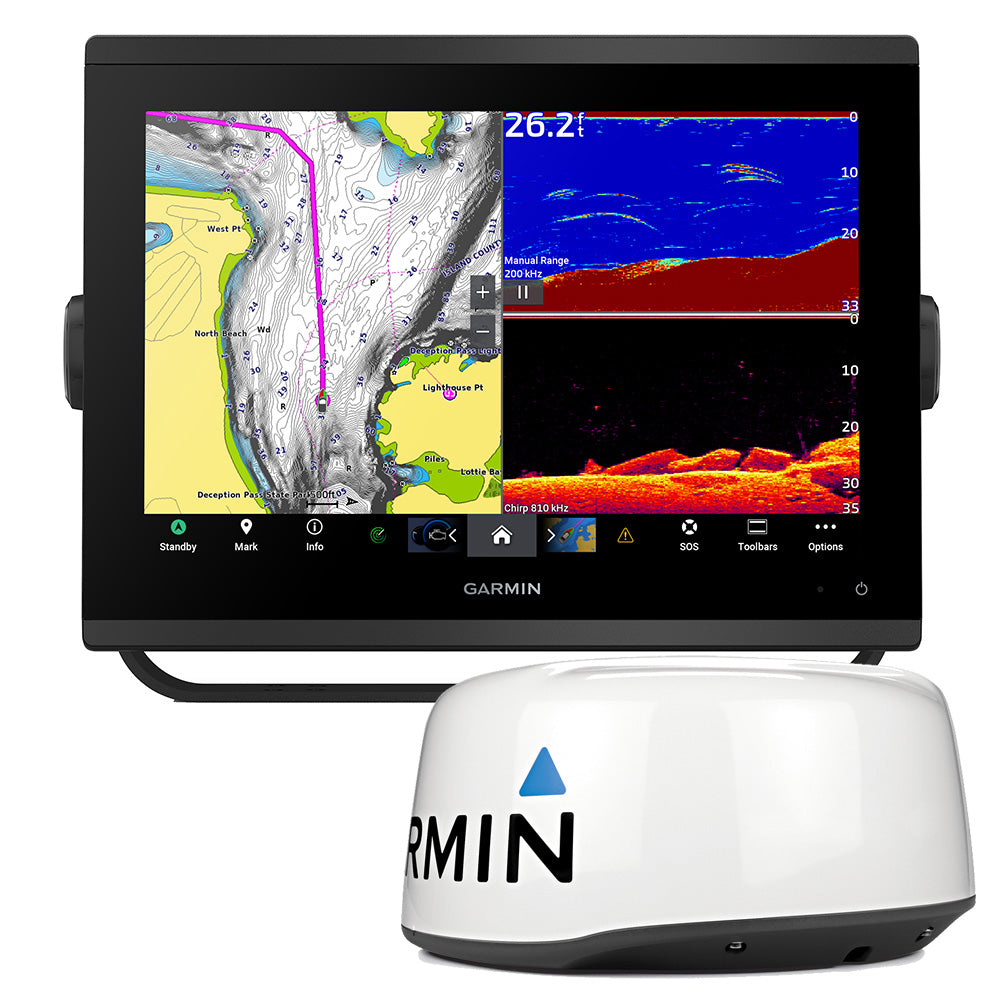

Garmin 010-02367-80 Radar SystemsGPSMAP® 1243xsv Combo GPS/Fishfinder GN+ with GMR 18HD+You’re an angler who wants premium features, maps, and charts for your connected helm, plus built-in sonar. This crisp 12" high-resolution chartplotter makes that wish come true.Get a sharper view from your connected helm with the GPSMAP® 1243xsv chartplotter. With its high-resolution 12” in-plane switching display, ultra-sleek design, and vivid sonar color palette, it seamlessly integrates into your Garmin marine system. GPSMAP 1243xsv also features built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and live sonar devices. Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras, and multimedia — by using HTML 5.0, NMEA 2000® and NMEA 0183 network connectivity, J1939 for engines, and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix® marine smartwatches, wind transducers, wireless remote controls, and more. Features: High-resolution in-plane switching touchscreen display offers improved sunlight readability and wide-angle visibility over previous-generation 12” units  Fast and responsive, this robust GPSMAP® system references 10 Hz GNSS (GPS, GLONASS, and Galileo) for accurate positioning and smooth speed as well as COG data  Slimline display borders, edge-to-edge glass, and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content.  J1939 engine connectivity for easy integration with engines and our exclusive OneHelm™ feature for connecting to your compatible third-party devices, such as EmpirBus™ digital switching Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using NMEA 2000® and NMEA 0183 network connectivity and the Garmin Marine Network Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, software updates, and more.  Integrated ANT® connectivity support for use with your compatible quatix® marine smartwatches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument, and wireless remote controls Built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure  Supports live sonar devices, 1 kW CHIRP traditional sonar, and more What's In The Box? Chartplotter microSD preinstalled Power cable  NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation GPSMAP x3 chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100236780

Garmin 010-02366-80 Radar SystemsGPSMAP® 943xsv Combo GPS/Fishfinder GN+ with GMR 18HD+You’re an angler who wants premium features, maps, and charts for your connected helm plus built-in sonar. This crisp 9" high-resolution chartplotter makes that wish come true.Get a sharper view from your connected helm with the GPSMAP® 943xsv chartplotter. Its higher-resolution 9” in-plane switching display has 50% more pixels than previous-generation chartplotters. And with its compact footprint, vivid sonar color palette, and double the processing power of previous-generation GPSMAP devices, it seamlessly integrates into your Garmin marine system. GPSMAP 943xsv also features built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and live sonar devices. Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations)  for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using HTML 5.0, NMEA 2000® and NMEA 0183 networking, J1939 for engines, and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix® marine smartwatches, wind transducers, wireless remote controls, and more. Features: Higher-resolution in-plane switching touchscreen display offers improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” units  Fast and responsive, with nearly twice the processing power of previous-generation GPSMAP® devices, this system references 10 Hz GNSS (GPS, GLONASS, and Galileo) for accurate positioning and smooth speed as well as COG data  Slimline display borders, edge-to-edge glass, and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) ; plus, there’s support for optional Garmin Navionics Vision+™ premium map content.  J1939 engine connectivity for easy integration with engines and our exclusive OneHelm™ feature for connecting to your compatible third-party devices, such as EmpirBus™ digital switching Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using NMEA 2000® and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, software updates, and more. Integrated ANT® connectivity support for use with your compatible quatix® marine smartwatches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument, and wireless remote controls Built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure  Supports live sonar devices, 1 kW CHIRP traditional sonar, and more What's In The Box? Chartplotter microSD preinstalled Power cable NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs Flush mount kit with gasket Protective cover Trim piece snap covers  Documentation GPSMAP x3 chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100236680

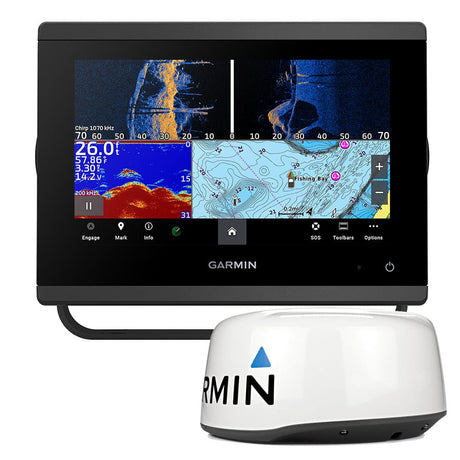

Garmin 010-02365-80 Radar SystemsGPSMAP® 743xsv Combo GPS/Fishfinder GN+ with GMR 18HD+You’re an angler who wants premium features, maps, and charts for your connected helm plus built-in sonar. This crisp 7" high-resolution chartplotter makes that wish come true.Get a sharper view from your connected helm with the GPSMAP® 743xsv chartplotter. Its higher-resolution 7” display has 60% more pixels than previous-generation chartplotters. And with its compact footprint, vivid sonar color palette, and nearly double the processing power of previous-generation GPSMAP devices, it seamlessly integrates into your Garmin marine system. GPSMAP 743xsv also features built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars and supports 1 kW CHIRP traditional sonar as well as fully networkable radar and live sonar devices. Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using HTML 5.0, NMEA 2000® and NMEA 0183 networking, J1939 for engines, and the Garmin Marine Network. Or pair your plotter with your other compatible Garmin devices, such as quatix® marine smartwatches, wind transducers, wireless remote controls, and more.Features: Higher-resolution touchscreen display offers improved sunlight readability with 60% more pixels than previous-generation 7” units  Fast and responsive, with nearly double the processing power of previous-generation GPSMAP® devices, this system references 10 Hz GNSS (GPS, GLONASS, and Galileo) for accurate positioning and smooth speed as well as COG data  Slimline display borders, edge-to-edge glass, and reduced unit footprint make for easy retrofit in a wider range of dash configurations Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there’s support for optional Garmin Navionics Vision+™ premium map content. J1939 engine connectivity for easy integration with engines and our exclusive OneHelm™ feature for connecting to compatible third-party devices, such as EmpirBus™ digital switching Easily build your marine system — from compatible sonar and autopilots to compatible radar, cameras and multimedia — by using NMEA 2000® and NMEA 0183 networking and the Garmin Marine Network Use built-in Wi-Fi® networking to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, software updates, and more Integrated ANT® connectivity support for use with your compatible quatix® marine smartwatches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument, and wireless remote controls Built-in Ultra High-Definition SideVü™ and ClearVü™ scanning sonars with high-contrast vivid color palettes to help distinguish fish from structure  Supports live sonar devices, 1 kW CHIRP traditional sonar, and more What's In The Box? Chartplotter microSD preinstalled Power cable NMEA 2000 T-connector NMEA 2000 drop cable Bail mount with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation GPSMAP x3 chartplotters are preloaded with Garmin Navionics+ offshore, coastal, and inland water charts for the U.S. and Canada WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100236580

Simrad 000-15948-001 Radar SystemsSimrad Halo 300x 130w Pulse Compression Radar System without AntennaModel: 000-15948-001 HALO 3000 - 130W power for longer range (from 6m to up to 96nm) and higher-resolution target detection Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation Easy operation with Harbour, Offshore, Weather, and Bird modes Track up to 50 targets per defined area with ZoneTrack (two areas can be defined) VelocityTrack Doppler technology for collision avoidance Dangerous Target Alerts for radar and AIS targets Ready instantly from standby, and in 16-25 seconds from power-on The HALO® 3000 array radar offers a premium experience on the water. An impressive 130 W of power — equivalent to a 25 kW magnetron radar — delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.The HALO 3000-series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and — more importantly — schools of fish at a distance.Designed with an intuitive interface, HALO 3000 has smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simplified approach also extends to fishing, with HALO 3000’s powerful Bird+ mode — a must-have tool for sportfishing enthusiasts. Bird+ mode allows you to focus the full 130W of HALO 3000’s power on bird finding, enabling boaters to find schools of fish up to 8nm away.Specifications Environmental Operating temperature -25°C to +55°C (-13°F to +131°F) Relative humidity IEC60945 Exposed product Vibration IEC60945 Exposed product UV IEC60945 Exposed product Waterproofing IPX6 for the pedestal and antenna, IPX5 for the RI-50 interface module Relative wind velocity HALO 2000 and HALO 3000 radars with 3 ft, 4 ft or 6 ft antenna have a wind rating of 80 knots at 48 rpm in both 24V and 12V systems. Power Power consumption 250 W (peak, 12V) at maximum wind velocity 395 W (peak, 24V) at maximum wind velocity 45-75 W (average) at zero wind velocity 11 W (average) in standby mode. Refers to RI-50 input terminals Power up time 30-40 seconds from POWER OFF to TRANSMIT Physical Height 429 mm (16.88") with antenna mounted Antenna swing circle diameter 3 ft model: 3.75 ft / 1142 mm / 44.96": 4 ft model: 4.73 ft / 1443 mm / 56.81": 6 ft model: 6.72 ft / 2047 mm / 80.59" Pedestal weight 20.3 Kg (44.8lb) RI-50 weight 1.6 Kg (3.5 lb) 10 m (33 ft) cable weight 1.6 Kg (3.5 lb) Antenna (Sold Separately) Rotation speed 16 to 48 rpm depending on operating mode Beam width 3 ft model: 2.4°+/-10% (-3 dB width) — 1.7° with Beam sharpening mode on: 4 ft model: 1.8°+/-10% (-3 dB width) — 1.3° with Beam sharpening mode on:6 ft model: 1.2°+/-10% (-3 dB width) — 0.8° with Beam sharpening mode on Beam width Vertical 25° +/-10 % (-3 dB width) Plane of polarization Horizontal polarization Sidelobe level 3 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 4 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 6 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Radar Peak power output 130 W ± 10% under any transmit condition — up to 13% duty cycle max Transmitter Solid state module with no long-term transmitter power degradation Transmitter frequency Synthesized - Upper half of X-Band 9.390 - 9.495 GHz Pulse length 0.04 usec Chirp length 2-64 usec Chirp bandwidth 2-48 MHz. Up to 1 pulse and 4 chirps in a burst with burst repetition rate of 500-3000Hz. Range and mode dependent. Effective pulse compression ratio less than 150 in all modes. Instrumented range 96 nm SART/RACON triggering Yes — trigger distance: about 1nm max — weather, sea state, and SART position dependent Duplexer Circulator and isolator LNA GaAs front-end IF section Center frequency: 31.25 MHz Bandwidth: 50 MHz max.* A/D; 16 bit 125 MSPS *Narrower bandwidths defined by signal processing Noise figure 5 dB (Min) at antenna input Compass safe distance; Pedestal STD. 1.0 m (3.3 ft), Steer 0.5 m (1.6 ft) Compass safe distance; RI-50 1.0 m (3.3 ft) Other Communication ports Ethernet 10/100 Base-T RJ-45 for radar data and control Transmit synchronization RS-422 output Remote power on yes Antenna park hold Yes (while radar is unpowered) Motor Brushless with solid state commutation with electromagnetic braking for parking What's in the Box: Halo 300x Pedestal RI-50 Power Supply 10m Power and Ethernet cable Normalized SKU: 00015948001

Simrad 000-15947-001 Radar SystemsSimrad Halo 200x 50w Pulse Compression Radar System without AntennaModel: 000-15947-001 HALO 2000 - 50W power for longer range (from 6m to up to 72nm) and higher-resolution target detection Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation Easy operation with Harbour, Offshore, Weather, and Bird modes Track up to 50 targets per defined area with ZoneTrack (two areas can be defined) VelocityTrack Doppler technology for collision avoidance Dangerous Target Alerts for radar and AIS targets Ready instantly from standby, and in 16-25 seconds from power-on Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power — equivalent to a 12 kW magnetron radar — delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and — more importantly — schools of fish at a distance.Specifications Environmental Operating temperature -25°C to +55°C (-13°F to +131°F) Relative humidity IEC60945 Exposed product Vibration IEC60945 Exposed product UV IEC60945 Exposed product Waterproofing IPX6 for the pedestal and antenna, IPX5 for the RI-50 interface module Relative wind velocity HALO 2000 and HALO 3000 radars with 3 ft, 4 ft or 6 ft antenna have a wind rating of 80 knots at 48 rpm in both 24V and 12V systems. Power Power consumption 235 W (peak, 12V) at maximum wind velocity, 380 W (peak, 24V) at maximum wind velocity, 45-60 W (average) at zero wind velocity, 11 W (average) in standby mode. Refers to RI-50 input terminals DC Input Radar system input 12 OR 24 V DC into the RI-50: 12 V Systems 10.8 - 15 V DC, 24 V Systems 20 - 31.2 V DC. Pedestal voltage input is 50 V DC nominal generated by RI-50 Power up time 30-40 seconds from POWER OFF to TRANSMIT Physical Height 429 mm (16.88") with antenna mounted Antenna swing circle diameter 3 ft model: 3.75 ft / 1142 mm / 44.96": 4 ft model: 4.73 ft / 1443 mm / 56.81": 6 ft model: 6.72 ft / 2047 mm / 80.59" Pedestal weight 20.3 Kg (44.8lb) RI-50 weight 1.6 Kg (3.5 lb) 10 m (33 ft) cable weight 1.6 Kg (3.5 lb) Antenna (Sold Separately) Rotation speed 16 to 48 rpm depending on operating mode Beam width 3 ft model: 2.4°+/-10% (-3 dB width) — 1.7° with Beam sharpening mode on: 4 ft model: 1.8°+/-10% (-3 dB width) — 1.3° with Beam sharpening mode on:6 ft model: 1.2°+/-10% (-3 dB width) — 0.8° with Beam sharpening mode on Beam width Vertical 25° +/-10 % (-3 dB width) Plane of polarization Horizontal polarization Sidelobe level 3 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 4 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 6 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Radar Peak power output 50 W ± 10% under any transmit condition — up to 10% duty cycle max Transmitter Solid state module with no long-term transmitter power degradation Transmitter frequency Synthesized - Upper half of X-Band 9.390 - 9.495 GHz Pulse length 0.04 usec Chirp length 2-64 usec Chirp bandwidth 2-48 MHz. Up to 1 pulse and 4 chirps in a burst with burst repetition rate of 500-3000Hz. Range and mode dependent. Effective pulse compression ratio less than 150 in all modes. Instrumented range 72 nm SART/RACON triggering Yes — trigger distance: about 1nm max — weather, sea state, and SART position dependent Duplexer Circulator and isolator LNA GaAs front-end IF section Center frequency: 31.25 MHz Bandwidth: 50 MHz max.* A/D; 16 bit 125 MSPS *Narrower bandwidths defined by signal processing Noise figure 5 dB (Min) at antenna input Compass safe distance; Pedestal STD. 1.0 m (3.3 ft), Steer 0.5 m (1.6 ft) Compass safe distance; RI-50 1.0 m (3.3 ft) Other Communication ports Ethernet 10/100 Base-T RJ-45 for radar data and control Transmit synchronization RS-422 output Remote power on yes Antenna park hold Yes (while radar is unpowered) Motor Brushless with solid state commutation with electromagnetic braking for parking What's in the Box: Halo 200x Pedestal RI-50 Power Supply 10m Power and Ethernet cable Normalized SKU: 00015947001

Simrad 000-15765-001 Radar SystemsSimrad Halo 300x 130w Pulse Compression Radar System without AntennaModel: 000-15765-001 HALO 3000 - 130W power for longer range (from 6m to up to 96nm) and higher-resolution target detection Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation Easy operation with Harbour, Offshore, Weather, and Bird modes Track up to 50 targets per defined area with ZoneTrack (two areas can be defined) VelocityTrack Doppler technology for collision avoidance Dangerous Target Alerts for radar and AIS targets Ready instantly from standby, and in 16-25 seconds from power-on The HALO® 3000 array radar offers a premium experience on the water. An impressive 130 W of power — equivalent to a 25 kW magnetron radar — delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.The HALO 3000-series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and — more importantly — schools of fish at a distance.Designed with an intuitive interface, HALO 3000 has smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simplified approach also extends to fishing, with HALO 3000’s powerful Bird+ mode — a must-have tool for sportfishing enthusiasts. Bird+ mode allows you to focus the full 130W of HALO 3000’s power on bird finding, enabling boaters to find schools of fish up to 8nm away.Specifications Environmental Operating temperature -25°C to +55°C (-13°F to +131°F) Relative humidity IEC60945 Exposed product Vibration IEC60945 Exposed product UV IEC60945 Exposed product Waterproofing IPX6 for the pedestal and antenna, IPX5 for the RI-50 interface module Relative wind velocity HALO 2000 and HALO 3000 radars with 3 ft, 4 ft or 6 ft antenna have a wind rating of 80 knots at 48 rpm in both 24V and 12V systems. Power Power consumption 250 W (peak, 12V) at maximum wind velocity 395 W (peak, 24V) at maximum wind velocity 45-75 W (average) at zero wind velocity 11 W (average) in standby mode. Refers to RI-50 input terminals Power up time 30-40 seconds from POWER OFF to TRANSMIT Physical Height 429 mm (16.88") with antenna mounted Antenna swing circle diameter 3 ft model: 3.75 ft / 1142 mm / 44.96": 4 ft model: 4.73 ft / 1443 mm / 56.81": 6 ft model: 6.72 ft / 2047 mm / 80.59" Pedestal weight 20.3 Kg (44.8lb) RI-50 weight 1.6 Kg (3.5 lb) 10 m (33 ft) cable weight 1.6 Kg (3.5 lb) Antenna (Sold Separately) Rotation speed 16 to 48 rpm depending on operating mode Beam width 3 ft model: 2.4°+/-10% (-3 dB width) — 1.7° with Beam sharpening mode on: 4 ft model: 1.8°+/-10% (-3 dB width) — 1.3° with Beam sharpening mode on:6 ft model: 1.2°+/-10% (-3 dB width) — 0.8° with Beam sharpening mode on Beam width Vertical 25° +/-10 % (-3 dB width) Plane of polarization Horizontal polarization Sidelobe level 3 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 4 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 6 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Radar Peak power output 130 W ± 10% under any transmit condition — up to 13% duty cycle max Transmitter Solid state module with no long-term transmitter power degradation Transmitter frequency Synthesized - Upper half of X-Band 9.390 - 9.495 GHz Pulse length 0.04 usec Chirp length 2-64 usec Chirp bandwidth 2-48 MHz. Up to 1 pulse and 4 chirps in a burst with burst repetition rate of 500-3000Hz. Range and mode dependent. Effective pulse compression ratio less than 150 in all modes. Instrumented range 96 nm SART/RACON triggering Yes — trigger distance: about 1nm max — weather, sea state, and SART position dependent Duplexer Circulator and isolator LNA GaAs front-end IF section Center frequency: 31.25 MHz Bandwidth: 50 MHz max.* A/D; 16 bit 125 MSPS *Narrower bandwidths defined by signal processing Noise figure 5 dB (Min) at antenna input Compass safe distance; Pedestal STD. 1.0 m (3.3 ft), Steer 0.5 m (1.6 ft) Compass safe distance; RI-50 1.0 m (3.3 ft) Other Communication ports Ethernet 10/100 Base-T RJ-45 for radar data and control Transmit synchronization RS-422 output Remote power on yes Antenna park hold Yes (while radar is unpowered) Motor Brushless with solid state commutation with electromagnetic braking for parking What's in the Box: Halo 300x Pedestal RI-50 Power Supply 20m Power and Ethernet cable Normalized SKU: 00015765001

Simrad 000-15761-001 Radar SystemsSimrad Halo 200x 50w Pulse Compression Radar System without AntennaModel: 000-15961-001 HALO 2000 - 50W power for longer range (from 6m to up to 72nm) and higher-resolution target detection Advanced pulse compression technology with beam sharpening Simultaneous Dual Range operation Easy operation with Harbour, Offshore, Weather, and Bird modes Track up to 50 targets per defined area with ZoneTrack (two areas can be defined) VelocityTrack Doppler technology for collision avoidance Dangerous Target Alerts for radar and AIS targets Ready instantly from standby, and in 16-25 seconds from power-on Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.The HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power — equivalent to a 12 kW magnetron radar — delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.The HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.The next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Designed with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning — just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and — more importantly — schools of fish at a distance.Specifications Environmental Operating temperature -25°C to +55°C (-13°F to +131°F) Relative humidity IEC60945 Exposed product Vibration IEC60945 Exposed product UV IEC60945 Exposed product Waterproofing IPX6 for the pedestal and antenna, IPX5 for the RI-50 interface module Relative wind velocity HALO 2000 and HALO 3000 radars with 3 ft, 4 ft or 6 ft antenna have a wind rating of 80 knots at 48 rpm in both 24V and 12V systems. Power Power consumption 235 W (peak, 12V) at maximum wind velocity, 380 W (peak, 24V) at maximum wind velocity, 45-60 W (average) at zero wind velocity, 11 W (average) in standby mode. Refers to RI-50 input terminals DC Input Radar system input 12 OR 24 V DC into the RI-50: 12 V Systems 10.8 - 15 V DC, 24 V Systems 20 - 31.2 V DC. Pedestal voltage input is 50 V DC nominal generated by RI-50 Power up time 30-40 seconds from POWER OFF to TRANSMIT Physical Height 429 mm (16.88") with antenna mounted Antenna swing circle diameter 3 ft model: 3.75 ft / 1142 mm / 44.96": 4 ft model: 4.73 ft / 1443 mm / 56.81": 6 ft model: 6.72 ft / 2047 mm / 80.59" Pedestal weight 20.3 Kg (44.8lb) RI-50 weight 1.6 Kg (3.5 lb) 10 m (33 ft) cable weight 1.6 Kg (3.5 lb) Antenna (Sold Separately) Rotation speed 16 to 48 rpm depending on operating mode Beam width 3 ft model: 2.4°+/-10% (-3 dB width) — 1.7° with Beam sharpening mode on: 4 ft model: 1.8°+/-10% (-3 dB width) — 1.3° with Beam sharpening mode on:6 ft model: 1.2°+/-10% (-3 dB width) — 0.8° with Beam sharpening mode on Beam width Vertical 25° +/-10 % (-3 dB width) Plane of polarization Horizontal polarization Sidelobe level 3 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 4 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Side lobe level 6 ft Below -23 dB max. (within ±10°), Below -30 dB max. (outside ±10°) Radar Peak power output 50 W ± 10% under any transmit condition — up to 10% duty cycle max Transmitter Solid state module with no long-term transmitter power degradation Transmitter frequency Synthesized - Upper half of X-Band 9.390 - 9.495 GHz Pulse length 0.04 usec Chirp length 2-64 usec Chirp bandwidth 2-48 MHz. Up to 1 pulse and 4 chirps in a burst with burst repetition rate of 500-3000Hz. Range and mode dependent. Effective pulse compression ratio less than 150 in all modes. Instrumented range 72 nm SART/RACON triggering Yes — trigger distance: about 1nm max — weather, sea state, and SART position dependent Duplexer Circulator and isolator LNA GaAs front-end IF section Center frequency: 31.25 MHz Bandwidth: 50 MHz max.* A/D; 16 bit 125 MSPS *Narrower bandwidths defined by signal processing Noise figure 5 dB (Min) at antenna input Compass safe distance; Pedestal STD. 1.0 m (3.3 ft), Steer 0.5 m (1.6 ft) Compass safe distance; RI-50 1.0 m (3.3 ft) Other Communication ports Ethernet 10/100 Base-T RJ-45 for radar data and control Transmit synchronization RS-422 output Remote power on yes Antenna park hold Yes (while radar is unpowered) Motor Brushless with solid state commutation with electromagnetic braking for parking What's in the Box: Halo 200x Pedestal RI-50 Power Supply 20m Power and Ethernet cable Normalized SKU: 00015761001
