SI-TEX
SI-TEX 8.5" Color LCD Radar with 4kw Output 1/16 48nm Range #T-940A-3
$5,774.13
$6,467.02
SI-TEX T-940A-3 Radar Array8.5" Color LCD Radar with 4kW Output 1/16-48NM Range - 3.5' Open Array AntennaSI-TEX's T-940-3 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.Features:
Display: 8.4" TFT Color LCD
Includes 3.5' Open Array, Output: 4 kW
Power: 12 / 24 Volt DC, Consumption: 70 Watts
In the Box:
Display Unit MRD-103 with hardcover
Connecting Cable 242J158055A -10 M with 2 connectors
DC Power Cable CW265-2M 2m
CCD Camera Cable CW-405-0.3M
Operation manual, Quick reference
Fuse (8A)
Additional Features:It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targetsRadome:
4kW
48NM
3-1/2' Open Array
Display:
Brilliant 8.4" color LCD daylight viewable display
480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
True-color radar feature displays echoes in different colors depending on signal strength
The real-time presentation offers smooth movement as bearing changes
The T-940 has two-speed antenna rotation for tracking quick-moving, close-in targets:
48 RPM
24 RPM (Requires 24 Volt DC input)
Selectable range scales from 1/16 NM
Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
RGB output for connecting (2) optional external monitors
Easy access to all system functions with a simply arranged keypad, programmable function keys, comprehensive menus, and dedicated rotary knobs for instant control of Gain and STC
The built-in flush mounting system makes installation easy
All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
The Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneouslyMonitor a nearby buoy and a far off island at the same time
True Trail function clearly identifies moving targets from stationary targets
The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
Accepts CCD camera input, to display split-screen Radar and CameraAllows you to monitor important areas of your vessel while shill keeping watch of your surroundings
Optional ATA (Automatic Tracking Aid) allows you to track up to 50 user designated targets
Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitterThis information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention
Specifications:Antenna Unit:
Scanner 3-1/2' Open Array
Peak Power Output 4kW
Output Frequency 9410 + 30MHz
Beam Width:
Horizontal 2.5°
Vertical 22°
Rotation 24 or 48 rpm (48 rpm; 24V DC or more
Pulse Width .08, 0.15, 0.3, 0.5, 1 use
IF Frequency 60 MHz
Range Accuracy Better than 8m
Min. Detecting Distance: Within 25m
Display Unit:
Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels)
Off Centering Max 66%
Display Modes Heads up, North up*, Course up* WPT up**, True motion*
Indication System PPI, PPI/PPI, PPI/NAV
Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48)
Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
Bearing Accuracy Better than + 1°
Video Level 8 colors
Distant Unit (VRM unit) NM, SM, KM
Alarms Entry or Breakaway (In and Out)
Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
AIS Interface Option (100 targets)
ATA Option (Auto/Manual, 50 targets)
Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
Output Data Format TTM, TLL
Power Requirements 10.8 - 31.2 Volt DC
Power Consumption 70 Watt or less
Water Protection
Display: IPX 5
Antenna CFR 46 IPX
*Requires heading, speed, and/or position signal input from external equipment including GPS Compass depending on the application of the user.**Requires waypoint data input Normalized SKU: T940A3
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin

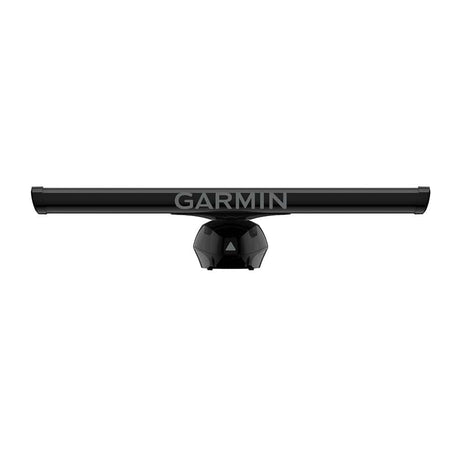

Garmin GMR Fantom 56 Radar Black #K10-00012-31
$6,999.99
$7,671.43
Garmin K10-00012-31 Radar ArrayGMR Fantom™ 56 Radar - BlackThis open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection — even in fog or rain.Features:
Know what’s coming. MotionScope™ technology shows targets in color as they move closer or away
GMR Fantom brings the power (50 watts of it)
Get high resolution without wasting energy, thanks to pulse compression
Add even more detail to maps with radar overlay — even in a split-screen view
High-Powered RadarThis 50-watt radar has a range from 20’ to 72 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.High-Resolution RadarThe 1.25-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Intuitive OperationThis radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.Target SizeAdjust the size of objects on the radar image.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be found.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Dual Range A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long ranges.Dual-Radar SupportUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Dynamic Sea FilterGain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Radar OverlayOverlay radar images onto the chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.MARPA Target TrackingMini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping users keep track of other vessels and avoid collisions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.VRM & EBL Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.General Specifications:
Dimension: Pedestal: 16.6" x 14.3" x 10.7"Pedestal: 42.1 x 36.4 x 27.1 cm; Full assembly: 15.9" height x 75.2" diameter; Full assembly: 40.3 cm height x 190.9 cm diameter
Weight: Array: 16 lb (7.3 kg); Pedestal: 34.7 lb (15.7 kg)
Waterproof: IPX6
Max Wind Load: 80KT
Antenna Length: 72” (182.9 CM)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.25° Horizontal, 23° Vertical
Maximum Range: 72 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 50 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 56 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: K100001231UPC Code: 753759331412
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 54 Radar Black #K10-00012-30
$6,499.99
$7,123.47
Garmin K10-00012-30 Radar ArrayGMR Fantom™ 54 Radar - BlackThis open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection — even in fog or rain.Features:
Know what’s coming. MotionScope™ technology shows targets in color as they move closer or away
GMR Fantom brings the power (50 watts of it)
Get high resolution without wasting energy, thanks to pulse compression
Add even more detail to maps with radar overlay — even in a split-screen view
High-Powered RadarThis 50-watt radar has a range from 20’ to 72 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.High-Resolution RadarThe 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Intuitive OperationThis radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.Target SizeAdjust the size of objects on the radar image.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be found.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Dual Range A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long range.Dual-Radar SupportUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Dynamic Sea FilterGain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Radar OverlayOverlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.MARPA Target TrackingMini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping users keep track of other vessels and avoid collisions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.VRM & EBL Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.General Specifications:
Dimension: Pedestal: 16.6” x 14.3” x 10.7”; Pedestal: 42.1 x 36.4 x 27.1 cm; Full Assembly: 15.9” Height x 51.8” Diameter; Full Assembly: 40.3 CM Height x 131.4 CM Diameter
Weight: Array: 11.4 LB (5.2 KG); Pedestal: 34.7 LB (15.7 KG)
Waterproof: IPX6
Max Wind Load: 80KT
Antenna Length: 48” (121.92 CM)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.8° Horizontal, 23° Vertical
Maximum Range: 72 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 50 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 54 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: K100001230UPC Code: 753759331405
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 5X Pedestal Only Black #010-01364-40
$5,299.99
$5,935.99
Garmin 010-01364-40 Radar ArrayGMR Fantom™ 5X Pedestal Only - BlackPair this GMR Fantom™ Pedestal with a GMR Fantom™ 4' or 6' array for a better view of the open waters around. Features:
Black pedestal
Use with the GMR Fantom™ 4 or GMR Fantom™ 6
50 watts
*Pedestal only, array not includedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100136440UPC Code: 753759331399
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 256 Radar Black #K10-00012-35
$11,999.99
$13,151.03
Garmin K10-00012-35 Radar ArrayGMR Fantom™ 256 Radar - BlackGMR Fantom™ 256 is the most powerful 6’ consumer solid-state radar.Features:
MotionScope™ highlights everything that moves so there are no surprises
GMR Fantom brings the power (250 watts of it)
Know the long and short of it with a detection range of 20’ to 96 nautical miles
The more the merrier with MARPA. Keep track of up to 30 moving targets
Clear the clutter with scan-to-scan averaging
Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Automatic AcquisitionNew mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones, or MotionScope.Clear the WayScan-to-scan averaging aids in the reduction of sea clutter and interference, so users have a clear view of what’s out there.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be foundPulse CompressionThis feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Radar OverlayOverlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.Dynamic Sea FilterDynamic Sea Filter automatically adjusts gain to calm, medium, and rough sea conditions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.General Specifications:
Dimension: Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm); Full assembly: 15.9" height x 75.2" diameter (40.3 cm x 190.9 cm)
Weight: Array: 16.0 lb (7.3 kg); Pedestal: 34.7 lb (15.7 kg)
Waterproof: IPX6
Max Wind Load: 80KT
Antenna Length: 72" (182.9 cm)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.25° horizontal, 23° vertical
Maximum Range: 96 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 250 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 256 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Voltage converter
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: K100001235UPC Code: 753759331474
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 254 Radar Black #K10-00012-34
$11,499.99
$12,603.07
Garmin K10-00012-34 Radar ArrayGMR Fantom™ 254 Radar - BlackGMR Fantom™ 254 is the most powerful 4’ consumer solid-state radar.Features:
MotionScope™ highlights everything that moves so there are no surprises
GMR Fantom brings the power (250 watts of it)
Know the long and short of it with a detection range of 20’ to 96 nautical miles
The more the merrier with MARPA. Keep track of up to 30 moving targets
Clear the clutter with scan-to-scan averaging
Automatic AcquisitionNew mini-automatic radar plotting aid (MARPA) automatic acquisition allows for triggering and tracking of up to 30 targets with no user prompting on all returns, boundary zones, guard zones, or MotionScope.Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Clear the WayScan-to-scan averaging aids in the reduction of sea clutter and interference, so users have a clear view of what’s out there.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be foundPulse CompressionThis feature provides high-resolution imaging while maximizing energy to enhance target detection and identification.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Radar OverlayOverlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.Dynamic Sea FilterDynamic Sea Filter automatically adjusts gain to calm, medium, and rough sea conditions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.General Specifications:
Dimension: Pedestal: 16.6" x 14.3" x 10.7" (42.1 x 36.4 x 27.1 cm)Full assembly: 15.9" height x 51.8" diameter (40.3 cm x 131.4 cm)
Weight: Array: 11.4 LB (5.2 KG); Pedestal: 34.7 LB (15.7 KG)
Waterproof: IPX6
Max Wind Load: 80KT
Antenna Length: 48” (121.92 CM)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.8° Horizontal, 23° Vertical
Maximum Range: 96 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 250 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 254 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Voltage converter
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: K100001234UPC Code: 753759331467
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 126 Radar Black #K10-00012-33
$8,999.99
$9,863.27
Garmin K10-00012-33 Radar ArrayGMR Fantom™ 126 Radar - BlackThis open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection — even in fog or rain.Features:
Know what’s coming. MotionScope™ technology shows targets in color as they move closer or away
GMR Fantom brings the power (120 watts of it)
Get high resolution without wasting energy, thanks to pulse compression
Add even more detail to maps with radar overlay — even in a split-screen view
High-Powered RadarThis 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.High-Resolution RadarThe 1.25-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Intuitive OperationThis radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.Target SizeAdjust the size of objects on the radar image.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be found.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Dual Range A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long ranges.Dual-Radar SupportUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Dynamic Sea FilterGain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Radar OverlayOverlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.MARPA Target TrackingMini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping users keep track of other vessels and avoid collisions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.VRM & EBL Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.General Specifications:
Dimension: 16.6" x 14.3" x 10.7"Pedestal: 42.1 x 36.4 x 27.1 cm; Full assembly: 15.9" height x 75.2" diameter; Full assembly: 40.3 cm height x 190.9 cm diameter
Weight: Array: 16 lb (7.3 kg); Pedestal: 34.7 lb (15.7 kg)
Waterproof: IPX6
Max Wind Load: 80KT
Antenna Length: 72" (182.9 cm)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.25° horizontal, 23° vertical
Maximum Range: 96 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 120 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 126 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Voltage converter
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: K100001233UPC Code: 753759331443
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin

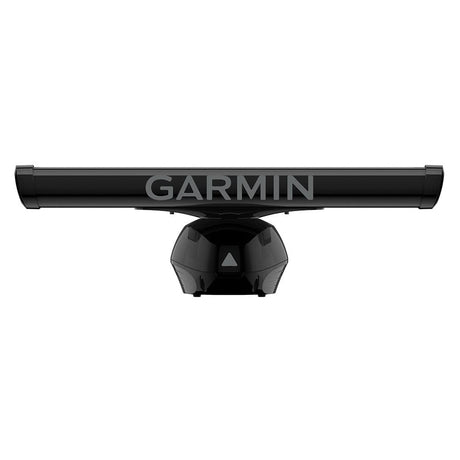

Garmin GMR Fantom 124 Radar Black #K10-00012-32
$8,499.99
$9,315.31
Garmin K10-00012-32 Radar ArrayGMR Fantom™ 124 Radar - BlackThis open-array radar highlights moving targets in color and gives users excellent close- and long-range target detection — even in fog or rain.Features:
Know what’s coming. MotionScope™ technology shows targets in color as they move closer or away
GMR Fantom brings the power (120 watts of it)
Get high resolution without wasting energy, thanks to pulse compression
Add even more detail to maps with radar overlay — even in a split-screen view
High-Powered RadarThis 120-watt solid-state radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.High-Resolution RadarThe 1.8-degree horizontal beamwidth provides a high-resolution image and high antenna gain to pick out even weak targets at a distance.Motionscope TechnologyMotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so users can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.Intuitive OperationThis radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.Target SizeAdjust the size of objects on the radar image.Auto Bird GainLocate flocks of birds at the water’s surface where baitfish are also likely to be found.Echo TrailsA historical “trail” is left on the screen to help users quickly and easily identify moving targets and potential collision threats.Dual Range A single radar antenna is capable of providing split-screen images on the chartplotter for both close and long ranges.Dual-Radar SupportUsing dual radar provides redundancy and allows each display unit on the boat to pull data from one of two different radar sources.Dynamic Auto GainGain automatically adjusts levels to optimum settings for harbors, near shore, and offshore in open waters.Dynamic Sea FilterGain automatically adjusts sea clutter for calm, medium, and rough sea conditions.Radar OverlayOverlay radar images onto a chart plotter’s map page. Users can add an optional autopilot or heading sensor (sold separately) for best results.MARPA Target TrackingMini-automatic radar plotting aid (MARPA) tracks up to 30 selected targets, helping users keep track of other vessels and avoid collisions.Guard ZoneSet the safety zone, and receive an alarm when an object enters the zone.VRM & EBL Variable range markers (VRM) and electronic bearing lines (EBL) allow rapid measurements of distance and bearing to vessels and land.General Specifications:
Dimension: 16.6" x 14.3" x 10.7" Pedestal: 42.1 x 36.4 x 27.1 cm; Full assembly: 15.9" height x 51.8" diameter; Full assembly: 40.3 cm height x 131.4 cm diameter
Weight: Array: 11.4 LB (5.2 KG); Pedestal: 34.7 LB (15.7 KG)
Waterproof: IPX6
Max Wind Load: 80KT
Antenna Length: 48” (121.92 CM)
Rotation Speed (RPM): 24 and 48 RPM (high speed only available in single range mode with motion scope disabled and on range settings of 12 NM or lower)
Beam Width: 1.8° Horizontal, 23° Vertical
Maximum Range: 96 NM
Minimum Range: 6 Meters
Radar Type: Open-Array
Electrical Specifications:
Power Input: 10-32 V DC
Transmit Power: 120 W
Radar Specifications:
Dual Range: Yes
Overlay: Yes
Dual Radar Support: Yes
Auto Bird Gain: Yes
Auto Gain: Dynamic
Marpa Target Tracking: Yes (requires heading sensor, sold separately)
Echo Trails: Yes
Motionscope: Yes
Programmable Antenna Parking: Yes
Target Size: Yes
Scan Averaging: Yes
In the Box:
Black GMR Fantom 124 antenna and pedestal
Mounting hardware kit and template
Right-angle power cable (15 meters)
Right-angle network cable (15 meters)
Voltage converter
Documentation
WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: K100001232UPC Code: 753759331436
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 6' Antenna Array Only Black #010-01366-10
$1,699.99
$1,971.99
Garmin 010-01366-10 Radar ArrayGMR Fantom™ 6' Antenna Array Only - BlackPair this GMR Fantom™ 6' Antenna Array with a GMR Fantom™ Pedestal for a better view of the open waters around. Use with the GMR Fantom™ 6Features:
Black Array
Use with the GMR Fantom™ 6
*Array only, pedestal not includedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100136610UPC Code: 753759331498
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 4' Antenna Array Only Black #010-01365-10
$1,199.99
$1,439.99
Garmin 010-01365-10 Radar ArrayGMR Fantom™ 4' Antenna Array Only - BlackPair this GMR Fantom™ 4' Antenna Array with a GMR Fantom™ Pedestal for a better view of the open waters around. Use with the GMR Fantom™ 4Features:
Black Array
Use with the GMR Fantom™ 4
*Array only, pedestal not includedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100136510UPC Code: 753759331481
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR Fantom 25X Pedestal Only Black #010-01364-60
$10,299.99
$11,535.99
Garmin 010-01364-60 Radar ArrayGMR Fantom™ 25X Pedestal Only - BlackPair this GMR Fantom™ Pedestal with a GMR Fantom™ 4' or 6' array for a better view of the open waters around. Features:
Black pedestal
Use with the GMR Fantom™ 4 or GMR Fantom™ 6
250 watts
*Pedestal only, array not includedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100136460UPC Code: 753759331450
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin

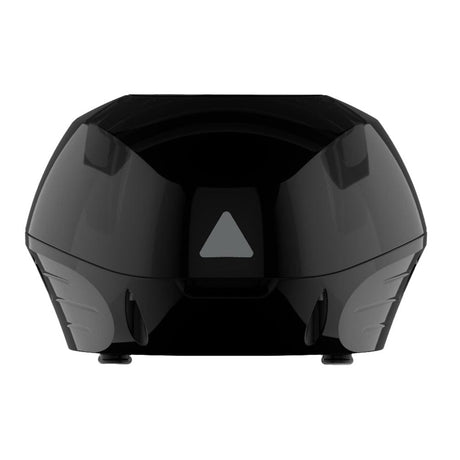

Garmin GMR Fantom 12X Pedestal Only Black #010-01364-50
$7,299.99
$8,175.99
Garmin 010-01364-50 Radar ArrayGMR Fantom™ 12X Pedestal Only - BlackPair this GMR Fantom™ Pedestal with a GMR Fantom™ 4' or 6' array for a better view of the open waters around. Features:
Black pedestal
Use with the GMR Fantom™ 4 or GMR Fantom™ 6
120 watts
*Pedestal only, array not includedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100136450UPC Code: 753759331429
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR XHD3 25kw Pedestal #010-02779-20
$7,999.99
$8,959.99
Garmin 010-02779-20 Radar ArrayGMR xHD3 25kW Pedestal OnlyPair this GMR xHD3 25kW Pedestal with a GMR XHD3 for a better view of the open waters around you.*Pedestal Only, Array Not IncludedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100277920UPC Code: 753759309916
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR XHD3 6' Antenna #010-02780-10
$1,699.99
$1,971.99
Garmin 010-02780-10 Radar ArrayGMR xHD3 6" AntennaPair this xHD3 6" Antenna with a GMR XHD3 for a better view of the open waters around you.*Array Only, Pedestal Not IncludedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100278010UPC Code: 753759309930
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR XHD3 12kw Pedestal #010-02779-10
$5,599.99
$6,271.99
Garmin 010-02779-10 Radar ArrayGMR xHD3 12kW Pedestal OnlyPair this GMR xHD3 12kW Pedestal with a GMR XHD3 for a better view of the open waters around you.*Pedestal Only, Array Not IncludedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100277910UPC Code: 753759309909
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin
Garmin GMR XHD3 4' Antenna #010-02780-00
$921.59
$1,115.98
Garmin 010-02780-00 Radar ArrayGMR xHD3 4" AntennaPair this xHD3 4" Antenna with a GMR XHD3 for a better view of the open waters around you.*Array Only, Pedestal Not IncludedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100278000UPC Code: 753759309923
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Garmin

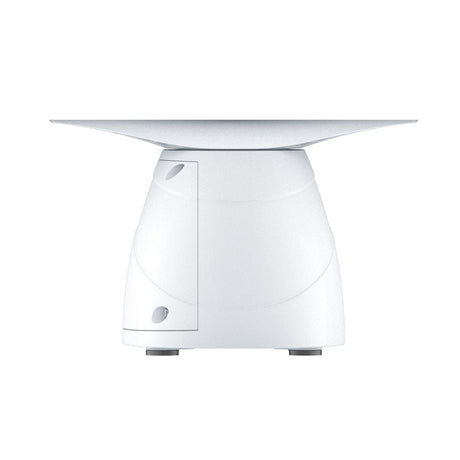

Garmin GMR XHD3 4kw Pedestal #010-02779-00
$3,799.99
$4,255.99
Garmin 010-02779-00 Radar ArrayGMR xHD3 4kW Pedestal OnlyPair this GMR xHD3 4kW Pedestal with a GMR XHD3 for a better view of the open waters around you.*Pedestal Only, Array Not IncludedWARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100277900UPC Code: 753759309893
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Simrad
Simrad Halo 3004 130w Radar System 4' Array #000-15763-001
$8,924.00
$9,994.88
Simrad 000-15763-001 Radar ArrayHALO® 3004 Radar with 4' Open Array & 20M CableFeatures:
HALO® 3000 - 130W power for a longer range (from 6m to up to 96nm) and higher-resolution target detection
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation
Easy operation with Harbour, Offshore, Weather, and Bird modes
Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
VelocityTrack Doppler technology for collision avoidance
Dangerous Target Alerts for radar and AIS targets
Ready instantly from standby, and in 16-25 seconds from power-on
4' Open Array
More Power MattersThe HALO® 3000 array radar offers a premium experience on the water. An impressive 130 W of power – equivalent to a 25 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.Safer NavigationThe HALO 3000-series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.Building on the HALO LegacyThe next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Easier OperationDesigned with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.HALO 3000 with Bird + ModeDesigned with an intuitive interface, HALO 3000 has smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simplified approach also extends to fishing, with HALO 3000’s powerful Bird+ mode – a must-have tool for sportfishing enthusiasts. Bird+ mode allows you to focus the full 130W of HALO 3000’s power on bird finding, enabling boaters to find schools of fish up to 8nm away.What's Included:
000-11465-001 HALO Antenna - 4ft
000-15766-001 HALO 300X Pedestal
000-15768-001 20M Cable
000-15757-001 RI-50 Power Supply
Normalized SKU: 00015763001
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Simrad
Simrad Halo 3006 130w Radar System 6' Open Array #000-15764-001
$9,449.00
$10,582.88
Simrad 000-15764-001 Radar ArrayHALO® 3006 Radar with 6' Open Array & 20M CableFeatures:
HALO® 3000 - 130W power for a longer range (from 6m to up to 96nm) and higher-resolution target detection
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation
Easy operation with Harbour, Offshore, Weather, and Bird modes
Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
VelocityTrack Doppler technology for collision avoidance
Dangerous Target Alerts for radar and AIS targets
Ready instantly from standby, and in 16-25 seconds from power-on
6' Open Array
More Power MattersThe HALO® 3000 array radar offers a premium experience on the water. An impressive 130 W of power – equivalent to a 25 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 96 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.Safer NavigationThe HALO 3000-series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.Building on the HALO LegacyThe next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Easier OperationDesigned with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.HALO 3000 with Bird + ModeDesigned with an intuitive interface, HALO 3000 has smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simplified approach also extends to fishing, with HALO 3000’s powerful Bird+ mode – a must-have tool for sportfishing enthusiasts. Bird+ mode allows you to focus the full 130W of HALO 3000’s power on bird finding, enabling boaters to find schools of fish up to 8nm away.What's Included:
000-11466-001 HALO Antenna - 6ft
000-15766-001 HALO 300X Pedestal
000-15768-001 20M Cable
000-15757-001 RI-50 Power Supply
Normalized SKU: 00015764001
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Simrad
Simrad Halo 2006 50w Radar System 6' Array #000-15760-001
$7,874.00
$8,818.88
Simrad 000-15760-001 Radar ArrayHALO® 2006 Radar with 6' Open Array & 20M CableFeatures:
HALO® 2000 - 50W power for a longer range (from 6m to up to 72nm) and higher-resolution target detection
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation
Easy operation with Harbour, Offshore, Weather, and Bird modes
Track up to 50 targets per defined area with ZoneTrack (two areas can be defined)
VelocityTrack Doppler technology for collision avoidance
Dangerous Target Alerts for radar and AIS targets
Ready instantly from standby, and in 16-25 seconds from power-on
6' Open Array Antenna
Benefit from safer navigation and unmatched ease of use with the new HALO® 2000 and 3000 Open Array radars. Advanced Pulse Compression technology allows you to detect birds, hazards, and storms with superior precision across both short and long distances. While the range of Preset Modes and enhanced power provide constant peace of mind.More Power MattersThe HALO® 2000 radar offers a premium experience on the water. An impressive 50 W of power – equivalent to a 12 kW magnetron radar – delivers an unrivaled combination of short- and long-range coverage that enables you to see targets from six meters (20 feet) out to 72 nautical miles with exceptional clarity. Pulse Compression technology powers confident navigation through marinas, and superior storm and hazard detection across a greater distance. The HALO® array series not only increase situational awareness and collision avoidance but also offer higher-resolution target detection you won’t find in lower-powered radars.Safer NavigationThe HALO 2000 series boast an array of new features that make navigation safer and offer peace of mind. ZoneTrack™ brings the best of professional boating technology to recreational users, allowing them to track up to 50 vessels within a defined area, automatically detecting their course and speed. HALO’s Dangerous Target Alerts highlight range, graphical bearing, and heading of other vessels relative to yours. Meanwhile, VelocityTrack™ uses Doppler technology to show targets color-coded so you can identify potential threats at a glance. Because, when it comes to safety, situational awareness is everything.Building on the HALO LegacyThe next generation of pulse compression radars, HALO 2000 and 3000 build on the features that have made HALO an established choice for boaters across the globe. The solid-state technology gets you up and running quickly, and HALO’s low-power pulsed transmissions make it safe to run in harbors and marinas. Dual Range mode allows you to keep an eye on distant weather cells while monitoring channel markers and high-speed watercraft up close. Advanced digital signal processing gives you a clearer view of targets, helping eliminate sea clutter, while Beam Sharpening provides enhanced separation between small or distant targets. Finally, HALO 2000 and 3000 have the same footprint as their predecessors, making it easy to upgrade your current system. It’s also compatible with a range of Simrad® chart plotters, including NSS™, NSX™, NSO™, and GO™.Easier OperationDesigned with an intuitive interface HALO arrays make operation easier with smart features like Harbour, Offshore, Bird, and Weather modes. These Preset Modes require no manual tuning – just select your chosen mode and go. This simple approach also extends to fishing, with HALO’s powerful bird-finding capability which enables boaters to find flocks of birds and – more importantly – schools of fish at a distance.What's Included:
000-11466-001 HALO Antenna - 6ft
000-15762-001 HALO 200X Pedestal
000-15768-001 20M Cable
000-15757-001 RI-50 Power Supply
Normalized SKU: 00015760001
Frequently Asked Questions
First Choice Marine is an online marine retailer carrying a diverse line of marine parts and accessories and related items from industry-respected and demanded manufacturers and suppliers. Through our diverse distributor network, we are able to access over 150,000 items, including our current site inventory, new products being added, and special order items. If you need it on your boat... we are your one-stop shop!
Yes, we offer FREE Shipping on most orders over $149 to US-48*.
Each product displays a shipping status message, just above the item price. Below is the meaning for each of these codes.
- Qualifies for Free Shipping: This item qualifies for free shipping when the order is $149+
- Qualifies for Free Ground Shipping: This item qualifies for free ground shipping when the order is $149+.
- Oversized - Not Qualified for Free Shipping: This item is too large/heavy to qualify for free shipping
- Hazardous Item - Not Qualified for Free Shipping: This item is hazardous and does not qualify for free shipping
- Truck Freight - Not Qualified for Free Shipping: This item has to be shipped via truck freight. Please contact us for a quote
- In-Store Pickup Only: This item can only be picked up in our Grain Valley, MO retail store
Below the price of the item, on the product page, there is a message indicating the availability of the product.
The quantity on hand is updated as inventory events happen and matches what we have available. If you have urgent needs and we are close to what you need, contact us, and we can confirm stock.
We offer a hassle-free return policy. If you're not completely satisfied with your purchase, you can return it within 30 days for a full refund or exchange.
If you need to return an item, please follow the guidelines here so we can process a prompt refund and assist you in finding the correct item.
Free Shipping
On most orders $149+ to the continental 48 US states.Secure Shopping
Fast, secure checkout with a variety of payment methods.Shop with confidence
25+ years serving the marine industry.Support center
Need help? Contact us via live chat, phone, or email.
