Download LiteratureVictron Energy ORI244840120 Isolation TransformerOrion-TR Smart 24/48 8.5A (400W) Isolated DC-DC ChargerThe Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.This is for use in dual battery systems in vehicles or on boats, the alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch.The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.VictronConnectVictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built-in, or are connected to a VE.Direct Bluetooth Smart Dongle.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI244840120UPC Code: 8719076065579Victron Energy ORI244840120 Literature Download Quick Reference Guide

ASEA Power Systems 634103 Isolation Transformer12 kVA Isolation TransformerASEA’s Isolation Transformer is a drop-in replacement for Charles IsoG2, designed to protect vessel under-fittings from galvanic corrosion and to shield onboard electronics from reverse polarity and shore power fluctuations. It also ensures safety by preventing the boat from sending unintended electric currents into the surrounding water.Features: Ignition-protected, safe for gasoline-powered vessels Complete Electrical Isolation prevents dockside ELCI breaker trips Maintains a safer marine environment by mitigating the risk of ESD Ensures clean and stable AC power for on-board equipment Reduces galvanic corrosion Meets the latest NEC 555.35 marina code that ensures GFPE limits are not exceeded Specifications: Input Voltage: 120 VAC Input Current: 30 A Output Voltage: 120 VAC Output Current: 30 A Output Frequency: 60 Hz Weight: 55 lbs Height: 21.6 cm / 8.5 in Width: 21.6 cm / 8.5 in Width (with flange): 27.4 cm / 10.8 in Depth: 26.7 cm / 10.5 in Certifications: ABYC E-11 Compliant ABYC C-1500 (for ignition protection) UL 1500 (for ignition protection) UL 1561 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 634103

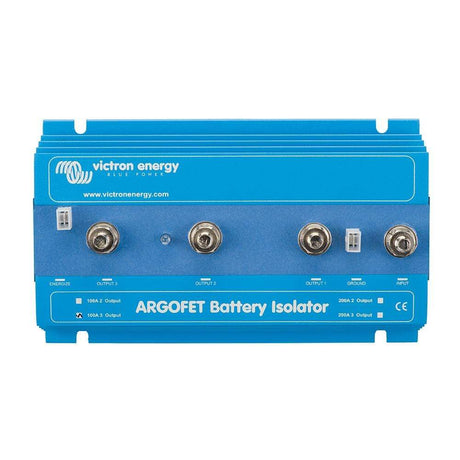

Victron Energy ARG200301020R Isolation Transformer FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. Unlike diode battery isolators, FET isolators have virtually no voltage loss.  When using ARGO FET Battery Isolators, there is no need to also increase the output voltage of the alternator. Care should taken however, to keep cable lengths short and of sufficient cross-section. Argo FET Battery Isolator 200 Amp maximum charge and alternator currents Supports up to 3 battery banks Normalized SKU: ARG200301020RUPC Code: 8719076019169

Download LiteratureVictron Energy ITR000100052 Isolation TransformerAutotransformer 120/240 VAC 50AAn Autotransformer can be used for step-up, step-down, and split-phase output balancing purposes. While the step-up and step-down functions are fairly straightforward, split-phase output balancing may require some more attention.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ITR000100052UPC Code: 8719076066071Victron Energy ITR000100052 Literature Download Owners Manual Product Brochure

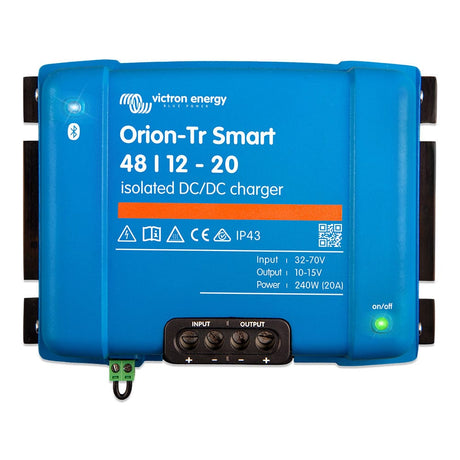

Victron Energy ORI481224120 Isolation TransformerOrion-Tr Smart DC-DC Charger Isolated 48/12 20A (240W)The Orion-Tr Smart DC-DC charger is an adaptive 3-stage charger (bulk – absorption – float) designed for dual-battery systems, such as in vehicles or on boats, where the starter battery (hence the alternator) is used to charge the service battery. The name "Smart" originates from its built-in Bluetooth connection, which allows the charger to be monitored and configured remotely via Bluetooth. It also features a remote on/off switch and an engine running detection mechanism. This isolated model allows the input and output to have separate chassis grounds.The Orion-Tr Smart charger can be used in 12V, 24V, or 48V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W, and unlimited multiple units can be connected in parallel to increase output power.Suitable for high temperatures up to 55°C with a full rated output up to 40°C.Features: Remote on/off terminal - The remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low-power switch, or, for example, the engine run/stop switch. All models are short-circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel. High temperature protected - The output current will reduce at high ambient temperature. IP43 protection - When installed with the screw terminals oriented downwards. Screw terminals - No special tools are needed for installation. Input fuse (not replaceable) - On 12 V and 24 V input models only. Adjustable output voltage - Not intended for battery charging. Please consider using an Orion-Tr Smart for battery charging. Normalized SKU: ORI481224120UPC Code: 8719076066149

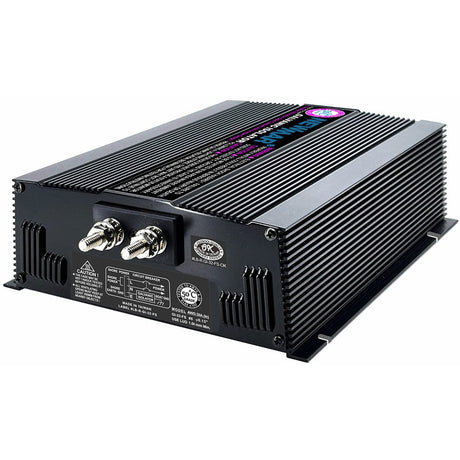

Download LiteratureNewmar GI-30-FS Isolation TransformerGI-30-FS Galvanic Isolator 30A Fail SafeInstalling the Galvanic Isolator between the AC safety ground and DC bonding system blocks most of the low-voltage currents and corrosive action seen on the vital metallic components in the saltwater. With the low voltage current blocked, the galvanic corrosion effect on the sacrificial anodes is significantly reduced, while the integrity of the critical safety ground path is maintained. This means a significant saving in boat haul-out fees and zinc replacement costs. For additional safety, all units feature a large capacitor, providing a secondary low-impedance path for sending AC current to the ground.Newmar’s latest galvanic isolator meets the latest ABYC A-28 2019 requirements, including being a failsafe. This design can meet the strictest temperature and current tests to create a robust solution for galvanic protection.Features: Protects against corrosion Maintains a safe environment Certified to the UL1500 standard for Ignition Protection Tested to a 50 degrees C ambient temperature The 30A fail-safe feature ensures ground maintenance Connection in the event of isolator failure Specifications: Shore Power Voltage: 115–230V    Maximum Short Circuit: 5000 Amps Stray Current Protection: Up to 1.4 VDC Dimensions (LxWxH): 200 x 189 x 68.5 mm This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: GI30FSNewmar GI-30-FS Literature Download Quick Reference Guide

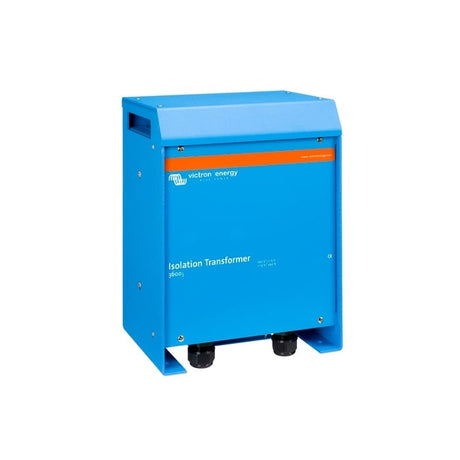

Victron Energy ITR040362041 Isolation Transformer Safety and prevention of galvanic corrosion The Isolation Transformer eliminates any electrical continuity between AC shore power and the boat It is essential for safety and eliminates the need for galvanic isolators and polarity alarms Safety is taken for granted in case of a normal on-shore installation A fuse will blow or a GFCI (Ground Fault Current Interrupter) will trip in case of a short circuit or current leakage to ground Connecting the ground wire of the shore-side supply to the metal parts of the boat will result in galvanic corrosion Bringing only the live and neutral wire on board results in an unsafe situation because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat Galvanic corrosion occurs when two dissimilar metals in electrical contact are simultaneously exposed to an electrically conducting fluid Seawater and, to a lesser extent, fresh water is such fluids In general, the more active alloy of the couple corrodes preferentially while the less active (more noble) material is cathodically protected The rate of galvanic corrosion is a function of several variables including area ratios, the conductivity of the fluid, temperature, the nature of the materials, etc It is a misunderstanding that galvanic corrosion occurs only in metal and aluminum hulls In fact, it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with the water Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller, and other metal parts in contact with water as soon as the boat is connected to the shore-side supply It might therefore be tempting not to connect the ground conductor: this is however extremely dangerous because GFCIs will not work nor will a fuse blow in case of a short circuit to a metal part on the boat The best solution to avoid galvanic corrosion and at the same time prevent any unsafe situation is to install an Isolation Transformer to connect to the shore-side supply The Isolation Transformer eliminates any electrical continuity between shore power and the boat The shore power is fed to the primary side of the transformer and the ship is connected to the secondary The Isolation Transformer completely isolates the boat from the shore ground By connecting all metal parts to the neutral output on the secondary side of the transformer, a GFCI will trip or a fuse will blow in case of a short circuit Soft start is a standard feature of a Victron Energy isolation transformer It will prevent the shore power fuse from blowing due to the inrush current of the transformer, which would otherwise occur It is also recommended, for optimal safety, to connect the secondary neutral of the transformer to the ground when the boat is out of the water Normalized SKU: ITR040362041

MMD Powerline 57336 Isolation TransformerMMD Powerline Governor #57336Normalized SKU: 57336

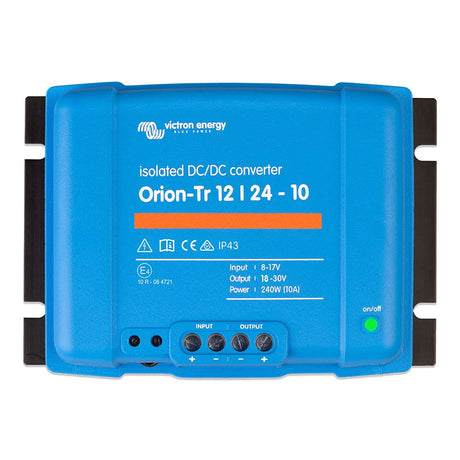

Victron Energy ORI122424110 Isolation TransformerOrion-TR DC Converter 12/24-10A (240W) Isolated with Galvanic Isolation12-volt input, 24-volt output this is a "step-up" voltage converter. 10 Amps output rating, Compact size, Stable output with high efficiencyFeatures: Input voltage range 9-18 Volts  Output voltage factory set to 26.4 volts but user adjustable to 20-30 Volts  10 Amps output rating  Compact size  Stable output with high efficiency provides power conditioning for sensitive equipment Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI122424110UPC Code: 8719076035244

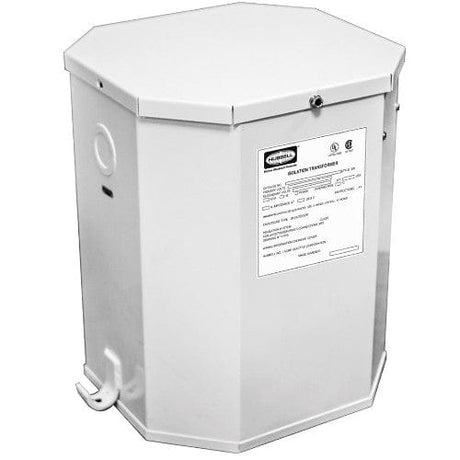

Hubbell HBL50AITSS Isolation TransformerHubbell 15 KVA Isolation Transformer 60hz 316 SS #HBL50AITSSNormalized SKU: HBL50AITSSUPC Code: 783585567297

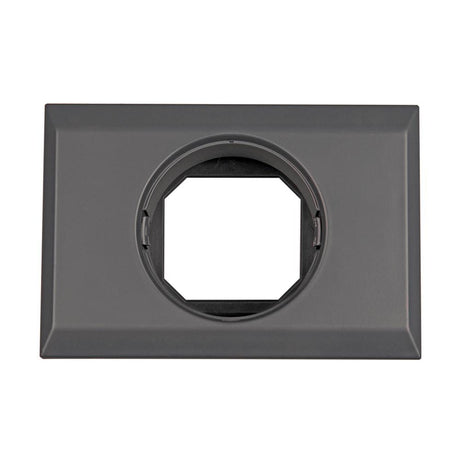

Victron Energy ASS050500000 Isolation TransformerWall Surface Mount for BMV or MPPT ControlsWall mount enclosure for BMV or MPPT Control.Warranty Info Normalized SKU: ASS050500000UPC Code: 8719076016465

Victron Energy ARG200301020 Isolation TransformerArgo FET Battery Isolator 200-3 3 Batteries - 200AMPSimilarly to diode battery isolators, FET isolators allow simultaneous charging of two or more batteries from one alternator (or a single output battery charger), without connecting the batteries together. In contrast with diode battery isolators, FET isolators have virtually no voltage loss. Voltage drop is less than 0,02 Volt at low current and averages 0,1 Volt at higher currents.Warranty Info Normalized SKU: ARG200301020UPC Code: 8719076019152
