Lowrance 000-16488-001 GPS SoundersActiveTarget 2 XL Sonar with TransducerWith surface-to-surface 180° views, meet the world’s clearest and most complete live sonar.Best-In-Class ResolutionOur live sonar resolution was already best in class. Well, now it’s even sharper. The new XL transducer delivers the clearest possible view of fish and bait movement in real time.The Largest Field of VisionLeave nothing unseen with a full 180° live view across Forward, Down, and Scout views – all from a single transducer. Surface-to-surface views utilize the whole display, so you never miss a thing, from the moment your lure drops to the bite itself.Quick-Switch ViewsWhy waste time adjusting your gear? A redesigned transducer lets you switch instantly between Forward and Down views from your display. No need to go fishing for your transducer. Just select your preferred view, and fish.A new bracket – which can be shaft- or motor-mounted* – also makes it quicker and easier to switch into Scout Mode. Once you’re there, quick-reference markers help you choose the right angle for deep or shallow water. With simple tricks like these, it makes it easier to switch between sonar views. *RECON™ Trolling Motors only, sold separatelyEasy UpgradeActiveTarget 2 XL is a one-and-done upgrade, with all views available from a single transducer. Anglers can even use their existing ActiveTarget 2 sonar module, reducing the amount of gear required. Simply mount the new XL transducer and cast.Double-Up with Two XLsCombining two systems unlocks an industry-first 360° live Scout view around your entire boat*. This truly comprehensive live view means you can select the perfect place to cast without even having to move your boat. Using multiple transducers also allows anglers to run Forward/Down or 180 and Scout views simultaneously, with no need to lift your trolling motor to switch between views. *HDS® Pro onlyFeatures: Best-in-class resolution Surface-to-surface 180° live view 360° live view in Scout (Requires dual systems. HDS® Pro only) 180 (Front-to-back), Forward XL, Down XL, and Scout XL Views Switch between Forward XL and Down XL views on your display. Improved switching to Scout views Quick-reference markers for deep and shallow water (Scout Mode) Shaft mount or Motor-mount* (*exclusive to RECON™) Compatible with the existing ActiveTarget 2 sonar module Compatible with HDS® Pro, HDS® Live, HDS® Carbon & Elite FS® Technical Specifications: Module Storage Temperature - -30°C to 70°C (-22°F to 158°F) Module Operating Temperature - -15°C to 55°C (5°F to 131°F) Module IP Rating - IP67 Power Supply - 12/24VDC Operating Voltage - 10.8VDC - 31.2VDC Current Drain (Max) - 1.5A to 13.8V Fuse Rating - 5A Transducer Storage Temperature - -22°F to 158°F (-30°C to 70°C) Transducer Operating Temperature - 32°F to 95°F (0°C to 35°C) Transducer Dimensions - 7.08" x 4.47" x 2.68" Cable Length - 25' Normalized SKU: 00016488001UPC Code: 9420064138951

Simrad 000-15918-001 GPS SoundersSimrad S3100 Sonar Module #000-15918-001Normalized SKU: 00015918001

Download LiteratureHumminbird 411730-1 GPS SoundersICE HELIX 5 CHIRP GPS G3 - Sonar/GPS Combo The ICE HELIX 5 CHIRP GPS G3 will not only help you catch the fish but will also help you find where to catch them. Take advantage of outstanding features like Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap, and compatibility with both LakeMaster(r) or Navionics(r) maps for precision fishing. Additional features designed specifically for the ICE angler, including AutoChart Live ICE, Jig Charge Mode, and split-screen views separate this unit from all others on the ICE. Take it all in on an ultra-bright 5" full-color HD LCD display. Features: Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on 2D sonar view. Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks. Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes. AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight, and Water Level Offset. MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings, and waypoints from your ICE HELIX. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management. Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts. What’s Included: ICE HELIX 5 CHIRP GPS G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and portable bag. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 5" Display Pixel Matrix: 800H x 480V Sonar-Standard: Dual Spectrum CHIRP Sonar-Coverage: 15° & 21° @ -3dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/80/200 kHz Depth-Sonar: 400 ft Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice Memory Card Slot: Single Micro SD Power Draw: 615 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Included GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum + Compatibility: Yes Platinum Compatibility: Yes Heading Sensor GPS Compatibility: Yes Upgradable Software: Yes View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 256 Color Speed: Included Temperature: Built-In Temperature Alarm: Yes Temperature Graph: No Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: No Normalized SKU: 4117301UPC Code: 082324056703Humminbird 411730-1 Literature Download Quick Reference Guide

Download LiteratureHumminbird 411800-1 GPS SoundersICE HELIX 9 MSI+ GPS G4N MEGA Live BundleWatch fish, structure and your lure in real-time, powered by the unmatched detail of MEGA Imaging®, on a full color 9" HD LCD display. And take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster(r) or Navionics(r) maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 20Ah lithium battery separate this unit from all others on the ICE. Features: MEGA Live Imaging: See fish, bait and structure in real-time with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view. Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view. Internal Precision GPS Built-in: Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back with GPS tracks. Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes. AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset. MicroSD Card Reader: Dual card reader slots used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear screen with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover. Year-Round Capable: The ICE HELIX 9 G4N works with all compatible HELIX 9 G4N transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts. What’s Included: ICE HELIX 9 MSI+ GPS G4N fish finder, MEGA Live transducer, ICE Adapter Kit - MEGA Live, Dual Spectrum CHIRP ICE transducer, 20Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, quick-connect SAE power cables, and silicone screen cover 2-Year Limited Warranty Specifications: Display Size - Diagonal: 9" Display Pixel Matrix: 1024H x 600V Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+ Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) CHIRP - Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz) Depth-Down Imaging: 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz) Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA & 800 kHz), 400 ft (MEGA) Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice, MEGA Live Imaging, MEGA Imaging+, Bluetooth Memory Card Slot: Dual Micro SD Compatible With: AIS, AutoPilot, MEGA 360, MEGA Live, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, NMEA 2000, One-Boat Network, Radar Power Draw: 2.4 Amps Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 8000 Watts Power Output RMS: 1000 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Included GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum + Compatibility: Yes Platinum Compatibility: Yes Heading Sensor GPS Compatibility: Yes Upgradable Software: Yes View Preset Keys: Yes X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 16-Bit Speed: Included Temperature: Built-In Temperature Alarm: Yes Temperature Graph: Yes Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: Yes Normalized SKU: 4118001UPC Code: 082324056796Humminbird 411800-1 Literature Download Quick Reference Guide

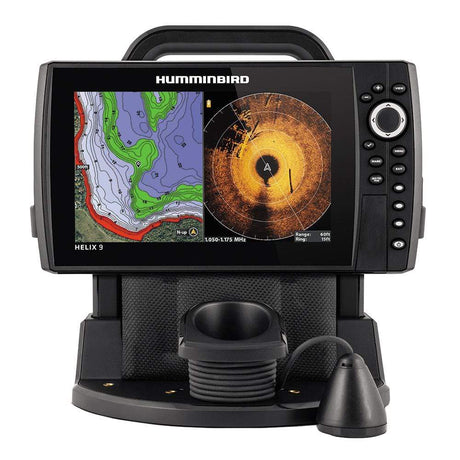

Download LiteratureHumminbird 411790-1 GPS SoundersICE HELIX 9 MSI+ GPS G4N MEGA 360 BundleSee structure, the bottom and fish up to 125’ in every direction around your hole, powered by the unmatched detail of MEGA Imaging®+, on a full color 9" HD LCD display. And take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster(r) or Navionics(r) maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 20Ah lithium battery separate this unit from all others on the ICE. Features: MEGA 360 Imaging: Eliminate the guesswork and quickly find structure and fish without drilling as many holes, track schools of fish as they move, and know which direction the fish are headed. Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view. Internal Precision GPS Built-in: Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back with GPS tracks. Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with confidence. Identify buoys, daymarkers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes. AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset. MicroSD Card Reader: Dual card reader slots used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear screen with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover. Year-Round Capable: The ICE HELIX 9 G4N works with all compatible HELIX 9 G4N transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts. What’s Included: ICE HELIX 9 MSI+ GPS G4N fish finder, MEGA 360 transducer, ICE Adapter Kit - MEGA 360, Heading Sensor GPS Puck, Dual Spectrum CHIRP ICE transducer, 20Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, quick-connect SAE power cables, and silicone screen cover 2-Year Limited Warranty Specifications: Display Size - Diagonal: 9" Display Pixel Matrix: 1024H x 600V Sonar-Standard: Dual Spectrum CHIRP, MEGA Down Imaging+, MEGA Side Imaging+ Sonar-Coverage: 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz Depth-Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz) CHIRP - Imaging-Frequencies Supported: 455 kHz DI+ (435-535 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 800 kHz SI+ (780-840 kHz), MEGA DI+ (1100-1200 kHz), MEGA SI+ (1050-1175 kHz) Depth-Down Imaging: 125 ft (800 kHz), 200 ft (MEGA), 400 ft (455 kHz) Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA & 800 kHz), 400 ft (MEGA) Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice, MEGA Live Imaging, MEGA Imaging+, Bluetooth Memory Card Slot: Dual Micro SD Compatible With: AIS, AutoPilot, MEGA 360, MEGA Live, Minn Kota Built-In MEGA DI, Minn Kota Built-In MEGA SI, Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, Minn Kota US2 Sonar, NMEA 2000, One-Boat Network, Radar Power Draw: 2.4 Amps Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 8000 Watts Power Output RMS: 1000 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Included GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum + Compatibility: Yes Platinum Compatibility: Yes Heading Sensor GPS Compatibility: Yes Upgradable Software: Yes View Preset Keys: Yes X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 16-Bit Display Size: 8" - 10" Speed: Included Temperature: Built-In Temperature Alarm: Yes Temperature Graph: Yes Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: Yes Normalized SKU: 4117901UPC Code: 082324056789Humminbird 411790-1 Literature Download Quick Reference Guide

Download Literature Humminbird 411760-1 GPS Sounders ICE HELIX 7 CHIRP GPS G4 - Combo All-Season The ICE HELIX 7 CHIRP GPS G4 All-Season has more fish-finding power than one season can handle. Take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster(r) or Navionics(r) maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 15Ah lithium battery separate this unit from all others on the ICE. And you'll be set once the ICE thaws, because ICE HELIX 7 CHIRP GPS G4 All-Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full-color, 7" HD LCD display.  Features: Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view. Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks. Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes. AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset. MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover. all season Ready: This ICE HELIX fish finder comes with everything you need to use on both ICE and on your boat or portable applications in the summer. What’s Included: ICE HELIX 7 CHIRP GPS G4 fishfinder, Dual Spectrum CHIRP ICE transducer, 15Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, quick-connect SAE power cables, silicone screen cover, and all necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount and power cord). 1-Year Limited Warranty Specifications: Display Size - Diagonal: 7" Display Pixel Matrix: 1024H x 600V Sonar-Standard: Dual Spectrum CHIRP Sonar-Coverage: 15° & 21° @ -3dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/80/200 kHz Depth-Sonar: 400 ft Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice, MEGA Live Imaging Memory Card Slot: Single Micro SD Compatible With: AIS, AutoPilot Power Draw: 800 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snapshot: Included Sonar Recording: Included Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Included GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum + Compatibility: Yes Platinum Compatibility: Yes Heading Sensor GPS Compatibility: Yes Upgradable Software: Yes View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 16-Bit Speed: Included Temperature: Built-In Temperature Alarm: Yes Temperature Graph: No Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: No What's in the Box: ICE HELIX 7 CHIRP GPS G4 fishfinder Dual Spectrum CHIRP ICE transducer XI 9 1521 15Ah lithium battery with 2 USB ports and a battery life indicator, charger ICE shuttle Hardware quick-connect SAE power cables silicone screen cover All necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount, and power cord) Normalized SKU: 4117601UPC Code: 082324056758 Humminbird 411760-1 Literature Download Quick Reference Guide

Download LiteratureHumminbird 411750-1 GPS SoundersICE HELIX 7 CHIRP GPS G4 - Sonar/GPS ComboThe ICE HELIX 7 CHIRP GPS G4 will not only help you catch the fish, it will help you find where to catch them. Take advantage of outstanding features like Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster(r) or Navionics(r) maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 15Ah lithium battery separate this unit from all others on the ICE. Take it all in on an ultra-bright 7" full-color LCD display. Features: Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view. Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks. Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes. AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset. MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover. Year-Round Capable: The ICE HELIX 7 CHIRP GPS G4 works with all compatible HELIX 7 CHIRP GPS G4 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts. What’s Included: ICE HELIX 7 CHIRP GPS G4 fishfinder, Dual Spectrum CHIRP ICE transducer, 15Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, quick-connect SAE power cables, and silicone screen cover. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 7" Display Pixel Matrix: 1024H x 600V Sonar-Standard: Dual Spectrum CHIRP Sonar-Coverage: 15° & 21° @ -3dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/80/200 kHz Depth-Sonar: 400 ft Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice, MEGA Live Imaging Memory Card Slot: Single Micro SD Compatible With: AIS, AutoPilot Power Draw: 800 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Included GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum + Compatibility: Yes Platinum Compatibility: Yes Heading Sensor GPS Compatibility: Yes Upgradable Software: Yes View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 16-Bit Speed: Included Temperature: Built-In Temperature Alarm: Yes Temperature Graph: No Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: No Normalized SKU: 4117501UPC Code: 082324056741Humminbird 411750-1 Literature Download Quick Reference Guide

Download LiteratureHumminbird 411740-1 GPS SoundersICE HELIX 5 CHIRP GPS G3 - Sonar/GPS All-SeasonThe ICE HELIX 5 CHIRP GPS G3 All-Season brings you the most fish-finding power and technology that can fit in a 5-gallon bucket. Take advantage of crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode and unprecedented viewing options specifically for the ICE angler. And you'll be set once the ICE thaws, because the ICE HELIX 5 CHIRP GPS G3 All-Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full-color, 5" HD LCD display. Features: Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view. Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks. Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, daymarkers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes. AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset. MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management. all season Ready: This ICE HELIX fish finder comes with everything you need to use on both ICE and on your boat or portable applications in the summer. What’s Included: ICE HELIX 5 CHIRP GPS G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, portable bag and all necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount and power cord). 1-Year Limited Warranty Specifications: Display Size - Diagonal: 5" Display Pixel Matrix: 800H x 480V Sonar-Standard: Dual Spectrum CHIRP Sonar-Coverage: 15° & 21° @ -3dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/80/200 kHz Depth-Sonar: 400 ft Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice Memory Card Slot: Single Micro SD Power Draw: 615 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snap Shot: Included Sonar Recording: Included Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Included GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: Yes Navionics Gold/HotMaps Compatibility: Yes Navionics Platinum + Compatibility: Yes Platinum Compatibility: Yes Heading Sensor GPS Compatibility: Yes Upgradable Software: Yes View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 256 Color Speed: Included Temperature: Built-In Temperature Alarm: Yes Temperature Graph: No Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: No Normalized SKU: 4117401UPC Code: 082324056734Humminbird 411740-1 Literature Download Quick Reference Guide

Download LiteratureHumminbird 411720-1 GPS SoundersICE HELIX 5 CHIRP G3 - Sonar OnlyThe ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode, and unprecedented viewing options specifically for the ICE angler. You'll watch it all take shape on a full-color, 5" HD LCD display.Features: Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4". CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes. Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on 2D sonar view. Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time. Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly. Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management. Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts. What’s Included: ICE HELIX 5 CHIRP G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and portable bag. 1-Year Limited Warranty Specifications: Display Size - Diagonal: 5" Display Pixel Matrix: 800H x 480V Sonar-Standard: Dual Spectrum CHIRP Sonar-Coverage: 15° & 21° @ -3dB Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz) Sonar-Frequencies Supported: 50/80/200 kHz Depth-Sonar: 400 ft Interface: Keypad Control Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable Memory Card Slot: None Power Draw: 615 mA Power Input: 10.8-20 VDC Power Output Peak-to-Peak: 4000 Watts Power Output RMS: 500 Watts Screen Snap Shot: Not Supported Sonar Recording: Not Supported Mount-Standard: Portable Transducer Mount Location: Portable GPS Chartplotting: Not Supported GPS Trackplotting: Included LakeMaster Compatibility: Yes Coast Master Compatibility: No Navionics Gold/HotMaps Compatibility: No Navionics Platinum + Compatibility: No Platinum Compatibility: No Heading Sensor GPS Compatibility: Yes Upgradable Software: No View Preset Keys: No X-Press Menu System: Yes Custom Digital Readout: Yes Custom View Selections: Yes Display Colors Grayscale: 256 Color Speed: Not Supported Temperature: Not Supported Temperature Alarm: Yes Temperature Graph: No Transducer Included: XI 9 1521 HDMI Compatible: No MEGA Live Compatibility: No Normalized SKU: 4117201UPC Code: 082324056710Humminbird 411720-1 Literature Download Quick Reference Guide

Raymarine E70511R GPS SoundersRaymarine RVX1000 High Performance 3D CHIRP Sonar Module - RemanufacturedModel: E70511R RealVision 3D CHIRP SideVision CHIRP DownVision Low-power, high-frequency CHIRP 1kW high-powered CHIRP Sonar (Low, Medium, High CHIRP, 50/80/100/160/200kHz) The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar. Sonar Scroll Back - rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints. TruZoom™ magnification reveals extra target detail without loss of resolution.RealVision 3D™ sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.The RVX1000’s dedicated quad core processor allows previous generation MFD’s to run multiple sonar channels simultaneously without any compromise in performance.Specifications Sonar RealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP Sonar Depth High Frequency CHIRP = 900 feet, DownVision = 600 feet, SideVision = 300 feet Port and Starboard, 1kw = 5,000 feet Connections 1x RVX Port = 25 pin RealVision connector, 1x 1kw Port = 11 pin 1kW connector, 1x Power connection, 1x Raynet connection Waterproof Rating IPX6/IPX7 Operating Temperature -25 C (-13 F) to +55 C (+131 F) Storage Temperature -30 C (-22 F) to +70 C (+158 F) Display Compatibility Axiom / Axiom Pro (LH3.4.xx or later) Compatible with full feature set eS Series / gS Series (LH3.4.xx or later) Compatible with full feature set Transducer Compatability REALVISION 25-PIN TRANSDUCER OPTIONS RealVision™ Transducers Direct connect to 25-pin port CPT-S Transducers Adapter A80490 to connect to 25-pin port DownVision™ Transducers Adapter A80490 to connect to 25-pin port 1KW 11-PIN TRANSDUCER OPTIONS Airmar CHIRP Direct connect to 11-pin port. When using only one half of an Airmar transducer pair (e.g. B175) use the A80328 Adapter. Airmar 50/200kHz CP370 Connector Adapter A80496 to connect to 11-pin port Airmar 50/200kHz Embedded Connector Not supported on RVX1000. Airmar transducers with the embedded connector are non-differential and therefore, do not align with the pin configuration of the RVX1000 1kW port. NOTE: Axiom Y-Cables are not supported on the RVX1000 Input Voltage 10.8 V to 31.2 V DC Input Draw 10.4 W (Maximum) What's in the Box: RVX1000 Sonar Module - Remanufactured Power Cable, 1.5M Fixing Screws, #8 (4) Documentation Pack (1) RayNet Network Cable, 2M (1) Normalized SKU: E70511R

Furuno FCV588-TM GPS SoundersFuruno FCV588 8.4" Color Fishfinder with 525T-PWD Transom TransducerModel: FCV588-TM Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology Bottom Discrimination Analyzes bottom structure. Provides an at-a-glance recognition of bottom composition with four types of graphical displays - Rocks/Sand/Gravel/Mud - when connected to a supported thru-hull or transom mount transducer White Line feature - Discriminate fish lying near the bottom. The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish Configurable Alarm function (depth, fish echoes, etc.) FURUNO’s TLL (Target Lat/Lon) output allows you to interface the FCV588 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type) * Requires a chart plotter Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range) The 8.4" FCV588 uses revolutionary new RezBoost™ technology that increases resolution and improves target separation utilizing a compact, narrowband transducer.RezBoost™ is a revolutionary new signal processing technology developed by FURUNO that improves resolution and target separation when using conventional narrowband transducers. Spot individual game fish surrounding bait balls, as well as fish close to the seabed. With RezBoost™, not only can you expect higher resolution and crisper visuals, but also improvements in the ACCU-FISH™ function.With RezBoost™ the capabilities of conventional narrowband transducers can be dramatically improved. Compared to conventional signal processing techniques (FDF), a RezBoost™ fish finder produces an image that is up to 8 times clearer. What can be done with a conventional narrowband transducer, just like the one you might have installed on your vessel, is truly impressive.cWith RezBoost™ technology, the resolution is increased, leading to sharper and more defined echoes. Thanks to this increase in resolution, the accuracy of the ACCU-FISH™ function is also improved. ACCU-FISH™ is very useful when you need to determine fish size, but also has the added benefit of making fish echoes more visible when viewed from a distance. With ACCU-FISH™ you can spot individual fish echoes even from the deck on your vessel.Recognize individual or multiple fish instantaneously! ACCU-FISH™ is a fish size assessment function of FCV588 that is proprietary to FURUNO. In order to assess individual fish size, echo returns are evaluated based on strength and turned into fish size display on screen. ACCU-FISH™ can detect fish size from 10 to 199 cm, in depths of 2 to 100 m.The fish mark can be utilized to display individual fish echoes when they are detected. It helps beginners to identify fish echoes for a more engaging fishing experience. Fish marks are selectable from either a circle or square, as well as, two fish symbols. The fish symbols, displayed in two different sizes (Large: over 50 cm, Small: 10 to 49 cm), are a great help for anglers when identifying individual fish. The circle and square symbols identify individual fish without hiding the underlying echo.FCV588’s Bottom Discrimination function enables the fish finder to indicate whether the bottom is composed mainly of rocks, gravel, sand or mud. The Bottom Discrimination function provides you with valuable information that helps you locate rich fishing grounds, and boost your catch of the day. The White Line function distinguishes fish from the seabed. This function is useful for discriminating bottom fish as well as judging fish school density.With the FCV588’s Fish Alarm function, when fish echoes appear in an area preset by the user, the FCV588 will sound a loud alarm and display an alarm icon on-screen. The integrated alarm can also be set to be triggered by specific conditions for water depth, target depth, water temperature, bottom type and more. You never have to miss a target again!Specifications Display Size 8.4" Display Type Color LCD Range 1200m Power output 600w or 1kW Frequency 50 and 200kHz Input voltage 12 or 24 vDC What's in the Box: FCV588 Mounting Bracket Mounting Lock Knob Power Cable LCD Cleaning Cloth Documentation Hardware 525T-PWD Transducer Normalized SKU: FCV588TM

Furuno FCV628-TM GPS SoundersFuruno FCV628 5.7" Color Fishfinder with 525T-PWD transom TransducerModel: FCV628-TM Improved clarity and resolution that was previously impossible with conventional narrowband transducers has been made possible thanks to the new RezBoost™ technology ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology Bottom Discrimination Analyzes bottom structure. Provides an at-a-glance recognition of bottom composition with four types of graphical displays - Rocks/Sand/Gravel/Mud - when connected to a supported thru-hull or transom mount transducer White Line feature - Discriminate fish lying near the bottom. The top edge of the bottom echo is displayed in white to clearly show bottom structures. This feature helps to discriminate between weeds and bottom fish FURUNO’s TLL (Target Lat/Lon) output allows you to interface the FCV628 with your FURUNO chart plotter so that you can mark fishing grounds with various information (L/L, Depth, Water Temp, Fish size and Bottom type) * Requires a chart plotter Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range) The 5.7" FCV628 uses revolutionary new RezBoost™ technology that increases resolution and improves target separation utilizing a compact, narrowband transducer.RezBoost™ is a revolutionary new signal processing technology developed by FURUNO that improves resolution and target separation when using conventional narrowband transducers. Spot individual game fish surrounding bait balls, as well as fish close to the seabed. With RezBoost™, not only can you expect higher resolution and crisper visuals, but also improvements in the ACCU-FISH™ function.With RezBoost™ the capabilities of conventional narrowband transducers can be dramatically improved. Compared to conventional signal processing techniques (FDF), a RezBoost™ fish finder produces an image that is up to 8 times clearer. What can be done with a conventional narrowband transducer, just like the one you might have installed on your vessel, is truly impressive.With RezBoost™ technology, the resolution is increased, leading to sharper and more defined echoes. Thanks to this increase in resolution, the accuracy of the ACCU-FISH™ function is also improved. ACCU-FISH™ is very useful when you need to determine fish size, but also has the added benefit of making fish echoes more visible when viewed from a distance. With ACCU-FISH™ you can spot individual fish echoes even from the deck on your vessel.Recognize individual or multiple fish instantaneously! ACCU-FISH™ is a fish size assessment function of FCV628 that is proprietary to FURUNO. In order to assess individual fish size, echo returns are evaluated based on strength and turned into fish size display on screen. ACCU-FISH™ can detect fish size from 10 to 199 cm, in depths of 2 to 100 m.The fish mark can be utilized to display individual fish echoes when they are detected. It helps beginners to identify fish echoes for a more engaging fishing experience. Fish marks are selectable from either a circle or square, as well as, two fish symbols. The fish symbols, displayed in two different sizes (Large: over 50 cm, Small: 10 to 49 cm), are a great help for anglers when identifying individual fish. The circle and square symbols identify individual fish without hiding the underlying echo.FCV628’s Bottom Discrimination function enables the fish finder to indicate whether the bottom is composed mainly of rocks, gravel, sand or mud. The Bottom Discrimination function provides you with valuable information that helps you locate rich fishing grounds, and boost your catch of the day. The White Line function distinguishes fish from the seabed. This function is useful for discriminating bottom fish as well as judging fish school density.With the FCV628’s Fish Alarm function, when fish echoes appear in an area preset by the user, the FCV628 will sound a loud alarm and display an alarm icon on-screen. The integrated alarm can also be set to be triggered by specific conditions for water depth, target depth, water temperature, bottom type and more. You never have to miss a target again!Specifications Display size 5.7" Display type Color LCD Range 1200m Power output 600 watts Frequency 50/200kHz Power Input 12-24 vDC What's in the Box: FCV628 Swivel Mount Power Cable Bracket Knob Documentation LCD Cleaning Cloth 525T-PWD Normalized SKU: FCV628TM

Garmin 010-01864-00 GPS SoundersPanoptix LiveScope™ SystemWe Took Scanning Sonar and Made It Panoptix™Features: See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat See incredibly sharp real-time scanning sonar images up to 200’ down and away Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter Clearly, this is the most amazing sonar technology ever. You have never fished like this before. Panoptix LiveScope is live, real-time scanning sonar. You can actually see easy-to-interpret live scanning sonar images of fish swimming near clearly defined structure. You can even see your lure as you retrieve it. And your boat doesn’t need to be moving. These images are so clear and precise that with a little practice, you might be able to distinguish between species of fish!Two Modes in One TransducerYou get both LiveScope™ Down and LiveScope™ Forward modes in one transducer. It’s easy to adjust the transducer mode to fit your fishing techniques; use LiveScope Forward to see remarkably clear images of structure and swimming fish around your boat, and use LiveScope Down to see directly below your boat. The view automatically updates on your compatible Garmin chartplotter. AHRS stabilization keeps your sonar view steady, even in rough conditions.Panoptix LiveScope DownLiveScope Down mode allows you to see live, easy-to-interpret scanning sonar images of structure and swimming fish in incredible detail below your boat —up to 200’ — even while your boat is stationary. Panoptix LiveScope ForwardLiveScope Forward mode is an excellent tool for scouting and fishing out ahead of your cast. You’re looking at live, highly detailed and easy-to-interpret scanning sonar images of structure and fish swimming all around your boat — up to 200’ — even while your boat is stationary.The Panoptix LiveScope scanning sonar system includes a compact GLS 10 sonar black box with LVS32 transducer and simple plug-and-play Garmin Marine Network connector, making it easy to install and seamlessly integrate with your compatible Garmin chartplotter. Use the transducer as a supplemental traditional and ClearVü sonar source to see a historical representation of structure and fish below your boat.Specificataions:Physical dimensions:  GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS32 transducer: 5.4” x 3.8” x 1.8” (13.7 x 9.7 x 4.6 cm) Weight:  GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS32 trasnducer: 1.9 lbs (0.9 kg) Water rating:   IPX7 Garmin Marine Network™ ports: 1 (small connector) Temperature range:  Operating: -15 C to 70 C; Non-operating: -40 C to 85 C Sonar Features & Specifications Frequencies supported: 530 - 1,100 kHz Transmit power: 500W Maximum depth: Down and Forward: 200’ (61.0M) Electrical Power input: 10-32 V Power usage:  21 W typical, 58 W max Fuse: 7.5 A Whats' In The Box? LiveScope GLS 10 sonar black box Panoptix LVS32 transducer Trolling motor barrel mount Trolling motor shaft mount Transom mount Power cable 2 meter Garmin marine network cable, small connector Network adapter cable Mounting hardware Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100186400UPC Code: 753759182724

Lowrance 000-11304-001 GPS SoundersSonarHub™ Sounder Module is the all-in-one solution that provides both fish and structure-finding technologies PLUS the new Lowrance SpotlightScan™ Sonar view for HDS Gen2 models. Three built-in ethernet ports allow for quick and convenient networking without the need for an extra ethernet networking module. Includes SpotlightScan transducer.Normalized SKU: 00011304001UPC Code: 9420024128459

  Download Literature  Watch VideoFuruno DFF1-UHD GPS SoundersDFF1-UHDFish Might Call It "The Triple Threat"!Designed to operate over a wide range of frequencies utilizing a broadband transducer, the new TruEcho CHIRP-enabled network sounder DFF1-UHD delivers significant advancements in signal clarity and target definition. The clear presentation of the DFF1-UHD marks individual game fish and bait fish, even when tightly schooled together or very near the sea floor.Benefits of CHIRP sounders:Standard, non-CHIRP Fish Finders operate at one or two individual frequencies and are generally capable of detecting targets and displaying them only within those narrow frequency bands. CHIRP Fish Finders transmit pulses across a wide range of frequencies, allowing Furuno's superior digital signal processing (DSP) to display fish and structure targets with unparalleled clarity, accuracy and resolution.Typical Non-CHIRP Fish Finders operate with a maximum duty cycle of 1% - meaning they transmit a voltage to the transducer no more than 1% of the time. Consequently the transmit pulse can be high power but very short duration, limiting the total energy that is transmitted into the water column.The DFF1-UHD uses a precise sweep pattern across 90 frequencies (50 kHz +/- 20 kHz, 200 kHz +/- 25 kHz) within a long-duration transmission. The equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional Fish Finder, resulting in more energy on target. The results are up to 5x greater resolution and depth capability than comparably powered, standard Fish Finders due to the advanced signal processing of the return echo. Specifications:Frequency = NONE Included Transducer = NONE Load Equivalence # (LEN) = NONE Resolution (VxH) = NONE Screen Size = NONE Speed/Temp = NONE Transducer Type = NONE Waterproof Rating = NONE Watts RMS - Max = NONENormalized SKU: DFF1UHDUPC Code: 611679351074Furuno DFF1-UHD Literature Download  Quick Reference Guide  Owners Manual  Product BrochureFuruno DFF1-UHD Video
