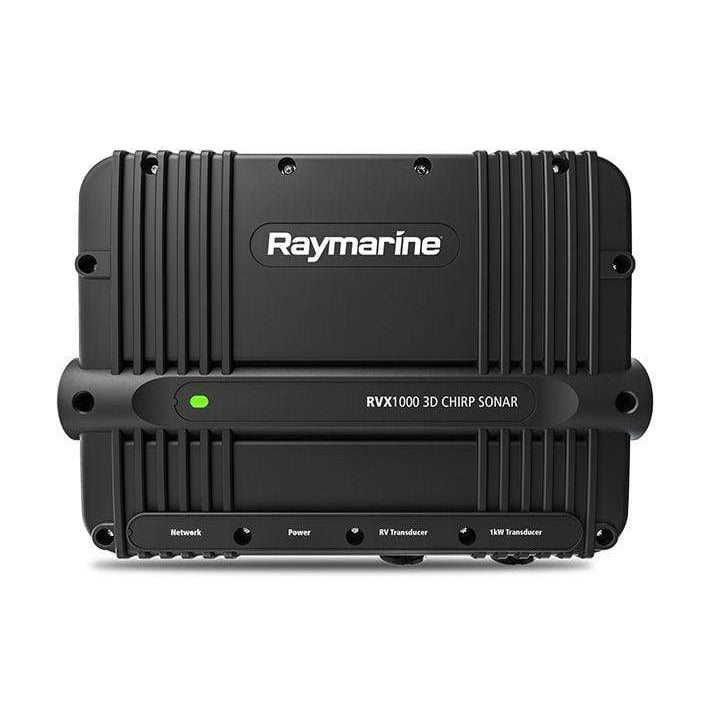

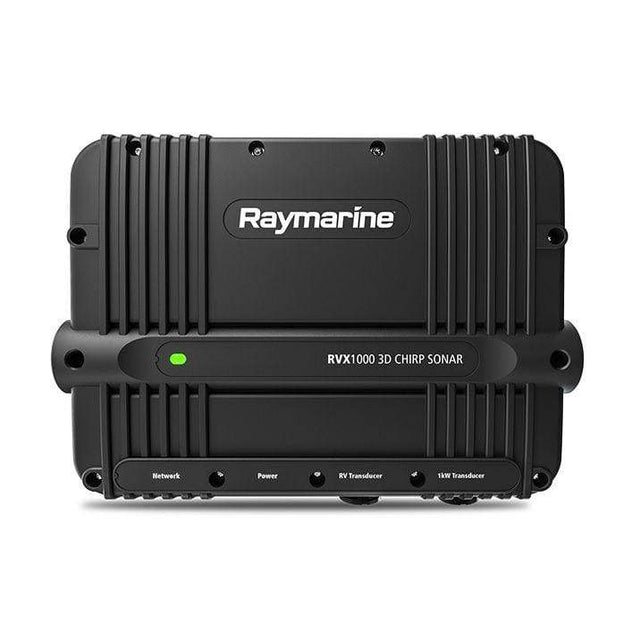

Raymarine RVX1000 High Performance 3D CHIRP Sonar Module - RemanufacturedModel: E70511R
The RVX1000 offers all of the sonar performance and features of Raymarine Axiom Pro in a remotely mounted black box sonar module. With Raymarine’s award winning RealVision 3D sonar technology, CHIRP Side and DownVision, plus a high powered 1kW dual channel CHIRP sonar, the RVX1000 is a versatile sonar solution for both inshore and offshore fishing.
Easily identify structure and locate fish with the life-like clarity of RealVision 3D sonar. Sonar Scroll Back - rewind, pause and playback up to 10 minutes recorded sonar history to take a closer look at fish and structure, and easily plot waypoints. TruZoom™ magnification reveals extra target detail without loss of resolution.
RealVision 3D™ sonar with GPS Track feature uses precision GPS to construct the most accurate 3D model of the underwater world, in real-time.
Powerful 3D sonar upgrade solution for Raymarine eS and gS Series line of multifunction displays.
The RVX1000’s dedicated quad core processor allows previous generation MFD’s to run multiple sonar channels simultaneously without any compromise in performance.Specifications
|Sonar||RealVision 3D (CHIRP Side and DownVision, High Frequency CHIRP, 3D Sonar) + 1kW High Power CHIRP|
|Sonar Depth||High Frequency CHIRP = 900 feet, DownVision = 600 feet, SideVision = 300 feet Port and Starboard, 1kw = 5,000 feet|
|Connections||1x RVX Port = 25 pin RealVision connector, 1x 1kw Port = 11 pin 1kW connector, 1x Power connection, 1x Raynet connection|
|Operating Temperature||-25 C (-13 F) to +55 C (+131 F)|
|Storage Temperature||-30 C (-22 F) to +70 C (+158 F)|
|Axiom / Axiom Pro (LH3.4.xx or later)||Compatible with full feature set|
|eS Series / gS Series (LH3.4.xx or later)||Compatible with full feature set|
|REALVISION 25-PIN TRANSDUCER OPTIONS|
|RealVision™ Transducers||Direct connect to 25-pin port|
|CPT-S Transducers||Adapter A80490 to connect to 25-pin port|
|DownVision™ Transducers||Adapter A80490 to connect to 25-pin port|
|1KW 11-PIN TRANSDUCER OPTIONS|
|Airmar CHIRP||Direct connect to 11-pin port. When using only one half of an Airmar transducer pair (e.g. B175) use the A80328 Adapter.|
|Airmar 50/200kHz CP370 Connector||Adapter A80496 to connect to 11-pin port|
|Airmar 50/200kHz Embedded Connector||Not supported on RVX1000. Airmar transducers with the embedded connector are non-differential and therefore, do not align with the pin configuration of the RVX1000 1kW port.|
|NOTE: Axiom Y-Cables are not supported on the RVX1000|
|Input Voltage||10.8 V to 31.2 V DC|
|Input Draw||10.4 W (Maximum)|
