Webasto 2510141C Air ConditioningWebasto 10K BTU Bluecool S10 Air Conditioner 115v #2510141CNormalized SKU: 2510141C

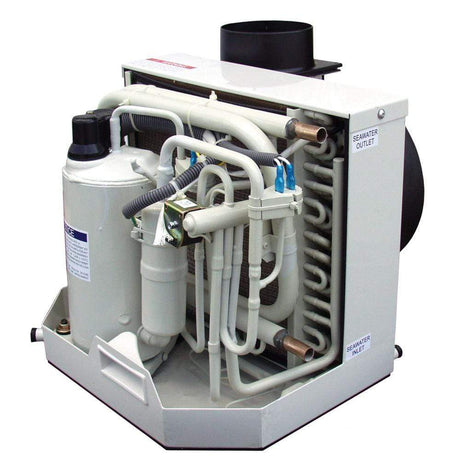

Download LiteratureWebasto FCF0012000GS Air ConditioningFCF 12,000 Unit w/Control Panel & Electrical Control BoxThe quietest and most versatile A/C system on the marketFCF innovation starts with a more balanced system for noise elimination. The compressor has been carefully mounted to greatly reduce unwanted vibration and noises that can transfer into the cabin interrupting your sleep. Unlike competitive systems, FCF stands for quality. Including a long-lasting, baked-on enamel finish, a robust blower that can handle multiple vents and FCF is the only A/C system that comes standard with a digital control panel.Features: Comes with Control Panel & Electrical Control Box High-efficiency components for superior performance Extra low compressor vibration and noise Corrosion-free stainless steel condensation tray High-velocity 3-speed blower, 360° rotatable Replaceable air filter for cleaner air Multi-inlet port evaporator Air Conditioning: AC SystemNormalized SKU: FCF0012000GSUPC Code: 729440876296Webasto FCF0012000GS Literature Download Quick Reference Guide Product Brochure

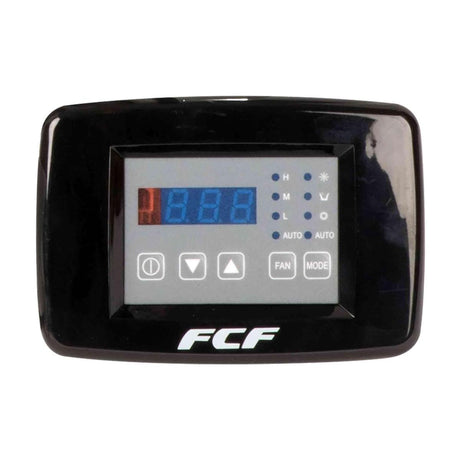

Webasto FCF0012023G Air Conditioning FCF Classic Series Self-Contained Air Conditioner with Reverse Cycle Heat 12,000 BTU/hr Cooling Capacity 13,000 BTU/hr Heating Capacity 230V Operation at 50/60Hz Suggested Breaker 15A Rated Current 4.6A at 50/Hz, 5.6A AT 60/Hz Starting Current 29A at 50Hz, 25A at 60Hz Comp. LRA 27A Duct Ring 5 in. Rotatable Blower Return Air Grille must be a minimum of 100 sq. in. Minimum Seawater flow at the AC unit is 3.96GPM 1000GPH Continuous Duty Pump Suggested(sold separately) Seawater Inlet/Outlet .75 in. O.D. Drain Pan Outlet .625 in. O.D.> Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) AC unit dimensions(per manual*): 13 in. High(H*) X 15 in. Wide(P*) X 17.3 in. Deep(L*) Electric Box dimensions(per manual) : 11.42 in. X 7.88 in. 2.95 in. R410A Refrigerant Quiet operation with more power than other self-contained A/C systems on the market today Compressor has been carefully mounted to greatly reduce unwanted vibration and noises Epoxy painted stainless drain pan Digital display with control panel, cable, and wireless remote are included Backed by a limited 2-year warranty on parts and labor Normalized SKU: FCF0012023GUPC Code: 729440876371

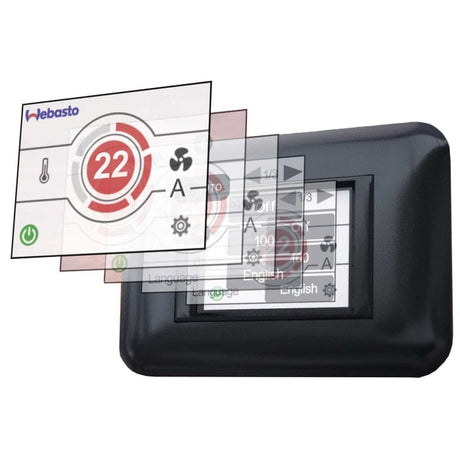

Webasto 2510142C Air ConditioningWebasto 13K BTU Bluecool S13 Air Conditioner 115v #2510142CNormalized SKU: 2510142C

Webasto WBCL120003F Air ConditioningWebasto 13K BTU Bluecool S13 Air Conditioner 230v #WBCL120003FNormalized SKU: WBCL120003F

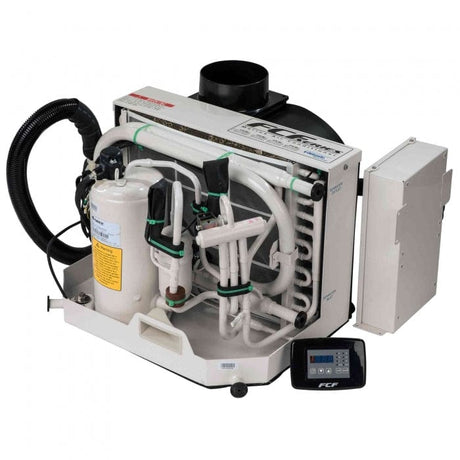

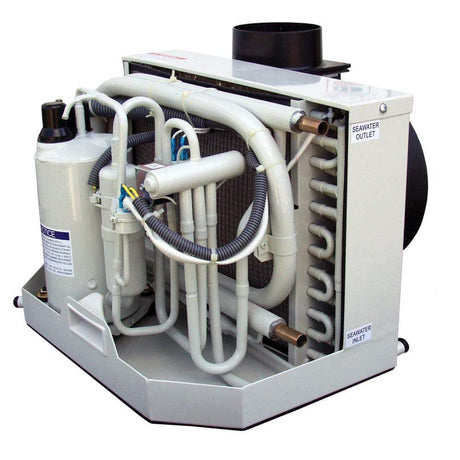

Download LiteratureWebasto FCF0016000GS Air ConditioningFCF 16,000 Unit with Control Panel & Electrical Control BoxThe quietest and most versatile A/C system on the marketFCF innovation starts with a more balanced system for noise elimination. The compressor has been carefully mounted to greatly reduce unwanted vibration and noises that can transfer into the cabin interrupting your sleep. Unlike competitive systems, FCF stands for quality. Including a long-lasting, baked-on enamel finish, a robust blower that can handle multiple vents and FCF is the only A/C system that comes standard with a digital control panel.Features: Comes with Control Panel & Electrical Control Box High-efficiency components for superior performance Extra low compressor vibration and noise Corrosion-free stainless steel condensation tray High-velocity 3-speed blower, 360° rotatable Replaceable air filter for cleaner air Multi-inlet port evaporator Air Conditioning: AC SystemNormalized SKU: FCF0016000GSUPC Code: 729440876319Webasto FCF0016000GS Literature Download Quick Reference Guide Product Brochure

Webasto FCFSP0002A Air Conditioning FCF Classic Series Self-Contained Air Conditioner with Reverse Cycle Heat 16,000 BTU/hr Cooling Capacity 16,000 BTU/hr Heating Capacity 230V Operation at 50/60Hz Suggested Breaker 20A Rated Current 6.2A at 50/Hz, 8.4A AT 60/Hz Starting Current 25.5A at 50Hz, 26.5A at 60Hz Comp. LRA 35A Duct Ring 5 in. Rotatable Blower Return Air Grille must be a minimum of 140 sq. in. The minimum Seawater flow at the AC unit is 5.016GPM 1,000 GPH Continuous Duty Pump Suggested (sold separately) Seawater Inlet/Outlet .75 in. O.D. Drain Pan Outlet .625 in. O.D. Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) AC unit dimensions(per manual*): 13 in.High(H*) X 17.7 in.Wide(P*) X 17.9 in.Deep(L*) Electric Box dimensions: 11.42 in. X 7.88 in. 2.95 in. R410A Refrigerant Quiet operation with more power than other self-contained A/C systems on the market today The compressor has been carefully mounted to greatly reduce unwanted vibration and noises Epoxy-painted stainless drain pan A digital display with a control panel, cable, and wireless remote is included Backed by a limited 2-year warranty on parts and labor Contact us for a shipping quote. Normalized SKU: FCFSP0002A

Webasto WBCL1203067B Circuit Breakers 25 amp Circuit Breaker for V50 M/V64 T/V77 T  Normalized SKU: WBCL1203067B

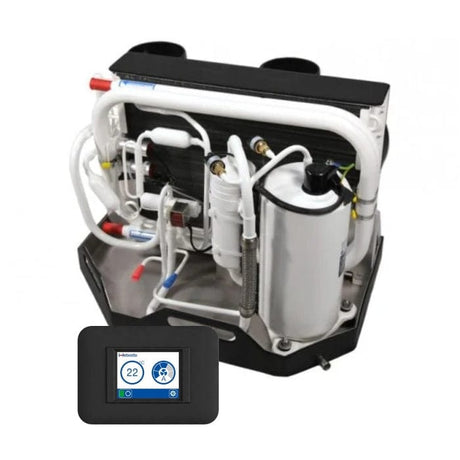

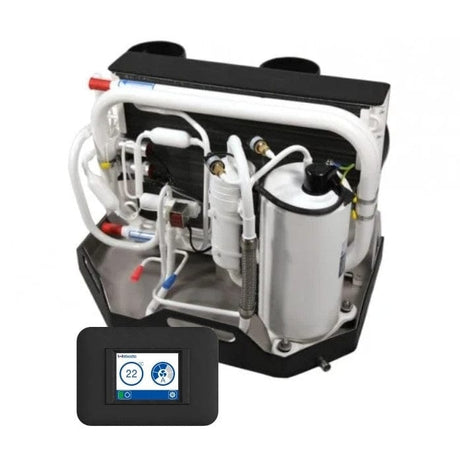

Webasto WBCL120006G Air Conditioning The compact BlueCool S-Series self-contained air conditioner features a highly efficient compressor, requiring little energy. This unit ships complete with premium MyTouch control and features a USB interface that aids in more precise troubleshooting for qualified technicians. Compatible with the optional BlueCool Connect system. BlueCool S Series Self-Contained Air Conditioner with Reverse Cycle Heat and MyTouch Control 27,000 BTU/hour cooling capacity 27,000 BTU/hour heating capacity 230-volt operation at 50/60 Hz Suggested breaker 16 amps Rated current at 60 Hz: 8.5-13.7 amps at 60 Hz (moderate-tropical conditions) Effective value of current consumption (RMS) for the first 40 ms at 60 Hz: 44 amps Effective value of current consumption (RMS) for the first 300 ms at 60 Hz: 41 amps Max starting current at 60 Hz: 69 amps Optional EasyStart can deliver 65-75% start current reduction: MICROAIR-ASY-368-X48-BLUE Comp. LRA 37 amps Duct ring 5 inch (quantity of 2) This unit features two rotatable blowers This unit offers whisper-quiet performance 5 Fan Speeds. Each individual fan speed setting can be customized via the BlueCool Expert Tool Return air grille (air inlet grille) must be a minimum of 630 square inches Minimum seawater flow at the AC unit is 5.6 GPM 1,000 GPH continuous duty pump suggested (sold separately) Seawater inlet/outlet .75 inches O.D. Drain pan outlet .625 inches O.D. Installation of a seawater strainer is mandatory between the seacock and the pump (sold separately) AC unit dimensions: 15.94 inches (405mm) high x 22.44 inches (570mm) width x 20.08 inches (510mm) depth Electric box dimensions: 12.2 inches (310mm) x 10 inches (254mm) x 3.27 inches (83mm) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. MyTouch touch screen display with control panel and display cable included MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect allows you to integrate multiple BlueCool units into one interface that can be operated via the BlueCool app and controlled via your MFD or remotely via the BlueCool Connect application: WEBASTO-2510219B No minimum run time. BlueCool S-Series units will shut off when the set point temperature is reached. When the compressor shuts off after running, it is programmed to stay off for 4.5 minutes to prevent short cycling R410A Refrigerant (670 grams) This unit is equipped with high-pressure and low-pressure service ports Epoxy-painted stainless steel drain pan Backed by a limited 2-year warranty on parts and labor Replaces Webasto WBCL120006F Normalized SKU: WBCL120006G

Webasto WBCL151003B Air Conditioning Webasto electronic 3-way flow control valve for Compact A-Series air handlers. If the optional valve is installed on your air handler, the fan speed must be set to "continuous" for the fan(s) to remain on after the temperature set point is reached. Compatible with the following A-Series air handlers WBCL1209009A WBCL1209010A WBCL1209011A WBCL1209012A WBCL1209013A WBCL1209014A WBCL1209015A Normalized SKU: WBCL151003B

Webasto WBCL151004B Air Conditioning Webasto electronic 3-way flow control valve for Slimline and Low Profile A-Series air handlers. If the optional valve is installed on your air handler, the fan speed on the control must be set to continuous if the user wants the fan(s) to remain on after the temperature set point is reached.     Normalized SKU: WBCL151004B

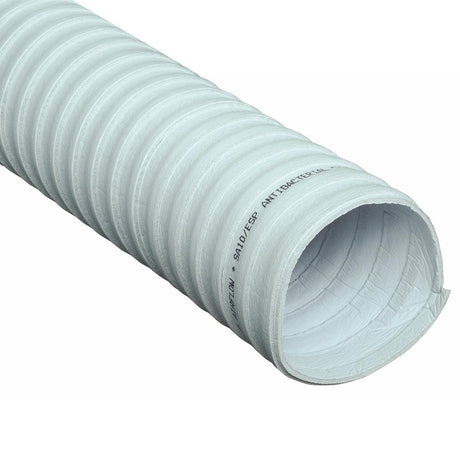

Webasto 5013433B Air Conditioning 4-inch Insulated Flexible Air Duct, 32.8 feet  Replaces Webasto 5013433A Normalized SKU: 5013433B
