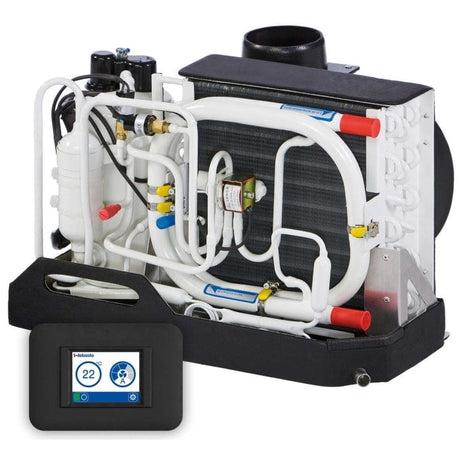

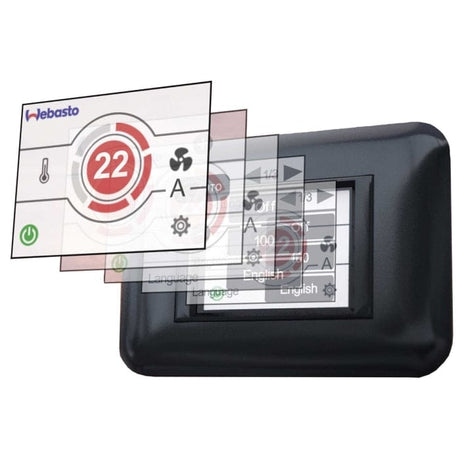

Webasto WBCL120000C Air Conditioning The compact BlueCool S-Series self-contained air conditioner features a highly efficient compressor, requiring little energy. This unit ships complete with premium MyTouch control and features a USB interface which aides in more precise trouble-shooting for qualified technicians. Compatible with optional BlueCool Connect system. BlueCool S Series Self-Contained Air Conditioner with Reverse Cycle Heat and MyTouch Control 6,000 BTU/hr cooling capacity 6,000 BTU/hr heating capacity 230-volt operation at 50/60 Hz Suggested breaker 16 amp Rated current at 60 Hz: 2.4-2.9 amp (moderate-tropical conditions) Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 5 amp Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 3 amp Maximum starting current at 60Hz: 15 amp Optional EasyStart can deliver 65-75% start current reduction: MICROAIR-ASY-364-X07-BLUE Comp. LRA 12 amp Duct ring 4 inch Rotatable blower This unit offers whisper-quiet performance 5 Fan Speeds. Each individual fan speed setting can be customizable via the BlueCool Expert Tool Return air grille (air inlet grille) must be a minimum of 130 square inches Minimum seawater flow at the AC unit is 1.6 GPM 500 GPH Continuous Duty Pump Suggested (sold separately) Seawater inlet/outlet .75 inch OD Drain pan outlet .625 inch OD Installation of a seawater strainer is mandatory between the seacock and pump (sold Separately) AC unit dimensions: 11.81 inch (300mm) high x 15.94 inch (405mm) width x 12.6 inch (320mm) depth Electric box dimensions: 12.2 inch (310mm) x 10 inch (254mm) x 3.27 inch (83mm) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. MyTouch touchscreen display with control panel and display cable included MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect allows you to integrate multiple BlueCool units into one interface that can be operated via the BlueCool app and controlled via your MFD or remotely via the BlueCool Connect application: WEBASTO-2510219B No minimum run time. BlueCool S-series units will shut off when the set point temperature is reached. When the compressor shuts off after running it is programmed to stay off for 4.5 minutes to prevent short cycling R410A Refrigerant (450 grams) This unit is equipped with high-pressure and low-pressure service ports Epoxy-painted stainless drain pan Backed by a limited 2-year warranty on parts and labor Backed by a limited 2-year warranty on parts and labor Replaces Webasto WBCL120000B Normalized SKU: WBCL120000C

Webasto 3399094A Hatch Lifts Webasto 80 Series Sunroof Motor Slave #3399094ANormalized SKU: 3399094A

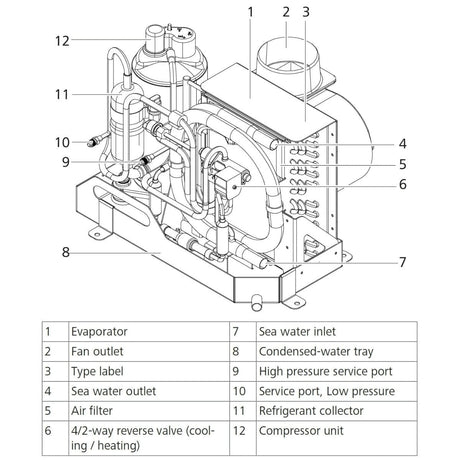

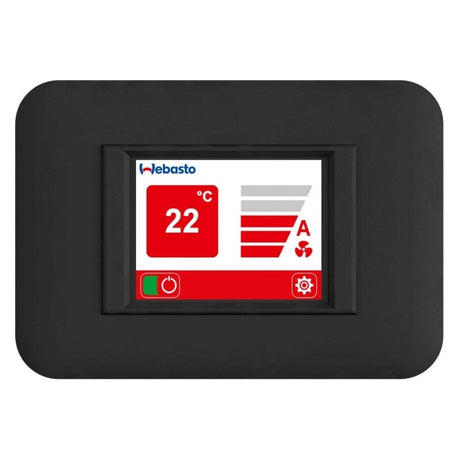

Webasto 2510140C Air Conditioning The compact BlueCool S-Series self-contained air conditioner features a highly efficient compressor, requiring little energy. This unit ships complete with premium MyTouch control and features a USB-interface which aides in more precise trouble-shooting for qualified technicians. Compatible with optional BlueCool Connect system. BlueCool S Series Self-Contained Air Conditioner with Reverse Cycle Heat and MyTouch Control 8,000 BTU/hr cooling capacity 8,000 BTU/hr heating capacity 115 volt operation at 60Hz Suggested breaker 16 amp Rated current 4.5-6.1 amp(moderate-tropical conditions) Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 35 amp Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 20 amp Max starting current 54 amp Optional EasyStart can deliver 65-75% start current reduction: MICROAIR-ASY-364-T36 Compressor LRA 34 amp Duct ring 4 inch Rotatable blower This unit offers whisper-quiet performance 5 fan speeds - each individual fan speed setting can be customizable via the BlueCool Expert Tool Return air grille (air inlet grille) must be a minimum of 193 square inches Minimum seawater flow at the AC unit is 2.11 GPM 500 GPH continuous duty pump suggested (sold separately) Seawater inlet/outlet .75 inch O.D. Drain pan outlet .625 inch O.D. Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) AC unit dimensions: 12 inch(305mm) High x 15.94 inch(405mm) Width x 12.6 inch(320mm) Depth Electric Box dimensions: 12.2 inch (310mm) x 10 inch (254mm) x 3.27 inch (83mm) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. MyTouch touchscreen display with control panel and display cable included MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect allows you to integrate multiple BlueCool units into one interface that can be operated via the BlueCool app and controlled via your MFD or remotely via the BlueCool Connect application No minimum run time. BlueCool S-Series units will shut off when the set point temperature is reached. When the compressor shuts off after running it is programmed to stay off for 4.5 minutes to prevent short cycling R410A refrigerant (260 grams) This unit is equipped with High Pressure and Low-Pressure Service ports Epoxy-painted stainless drain pan Backed by a limited 2-year warranty on parts and labor Replaces Webasto 2510140A, 2510140B Normalized SKU: 2510140C

Webasto WBCL1203066B Air Conditioning AC Choke  Normalized SKU: WBCL1203066B

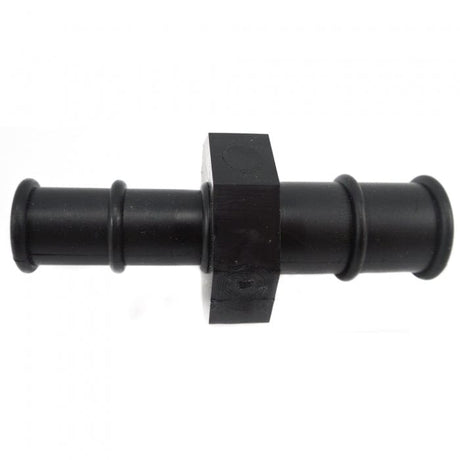

Webasto 5011432A Air Conditioning Webasto 5/8 in. to 3/4 in. Hose Adapter Normalized SKU: 5011432A

Webasto FCFSP0031A Air Conditioning Air Filter 16000 BTU 115v & 230v Units Normalized SKU: FCFSP0031A

Webasto FCFSP0027A Air Conditioning Air Filter for FCF Classic 12K Normalized SKU: FCFSP0027A

Webasto FCFSP0081A Air Conditioning Air Filter 16000 BTU 115V and 230V Unit Replacement Air Filter for 16K FCF Classic Item #35 in schematic Normalized SKU: FCFSP0081A

Webasto 5012455A Air Conditioning Air Filter for FCF Platinum 12K Normalized SKU: 5012455A

Webasto WBCL000924A Air Conditioning Air Filter SC16-R410A Normalized SKU: WBCL000924A

Webasto 5013921B Heaters Diesel Powered 12-volt Air Top 2000 STC marine air heater with complete installation kit. This installation kit includes the SmarTemp 3.0 Bluetooth control and everything else needed for most applications. Diesel Powered Air Heater with SmarTemp 3.0 Bluetooth control and complete installation kit Heat output: 3,100 - 7,000 BTU per hour (0.9 - 2kW) Diesel Fuel consumption: 0.03 – 0.06 gallons per hour 12-volt DC operation Air Outlet Diameter: 60mm Air Flow: 55 cubic feet per minute (93 m3/h) Length: 12.25 inches (311mm) Width: 4.78 inches (120mm) Height: 4.85 in inches (121mm) Kit includes; Air Top 2000 STC Heater, SmarTemp 3.0 Bluetooth Control, Cold Air Inlet, Hot Air Outlet/Ducting, Combustion Air Inlet, Exhaust Outlet, Fuel Metering Pump, Fuel Filter, Fuel Standpipe Fuel Metering Pump is a self-priming Hot Air Outlet Ducting Included in this kit: 60mm Ducting x 5M(1), 60mm Ducting x 3M(1), 60mm Ducting x 1.5M, 60mm 45-degree Air Outlet(1), 60mm 90-degree Air Outlet(1), 60mm closeable Air Outlet(1), Union Nuts(3), 45 Degree Branch Piece 60mm/60mm/60mm(1), Bag of Duct Clamps(1)   Replaces Webasto 5012554A Normalized SKU: 5013921B
