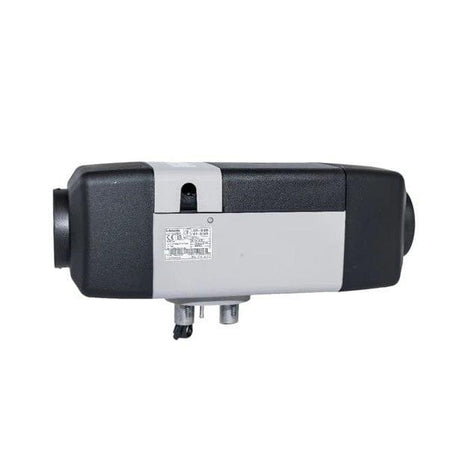

Webasto 9039727B Heaters Diesel-powered 12-volt Air Top 40 Evo base heater. The kit includes the base heater only. The replacement base gasket and fuel pump are sold separately. Air Top Evo 40 Diesel Marine Heater Only 12-volt DC operation Replacement base gasket: 1310580A Replacement Fuel Pump: 1324533A Replacement Fuel Filter: 50487171A Replaces Webasto 9027980B and 9039727A Normalized SKU: 9039727B

Webasto WBCL120004G Air Conditioning The compact BlueCool S-Series self-contained air conditioner features a highly efficient compressor, requiring little energy. This unit ships complete with premium MyTouch control and features a USB-interface which aides in more precise troubleshooting for qualified technicians. Compatible with the optional BlueCool Connect system. Type/Model: S16 -R-230V-REV -R410a BlueCool S Series Self-Contained Air Conditioner with Reverse Cycle Heat and MyTouch Control 16,000 BTU/hr Cooling Capacity 16,000 BTU/hr Heating Capacity 230V Operation at 50/60Hz Suggested Breaker 16A Rated Current at 60Hz: 6-8.7A(moderate-tropical conditions) Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 30A Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 20A Max Starting Current 47A Optional EasyStart can deliver 65-75% Start Current Reduction: MICROAIR-ASY-364-X36-BLUE Comp. LRA 37A Duct Ring 5 inch Rotatable Blower This unit offers whisper-quiet performance 5 Fan Speeds. Each individual fan speed setting can be customized via the BlueCool Expert Tool Return Air Grille(air inlet grille) must be a minimum of 315 square inches Minimum Seawater flow at the AC unit is 3.7 GPM 1,000 GPH Continuous Duty Pump Suggested(sold separately) Seawater Inlet/Outlet .75 inch O.D. Drain Pan Outlet .625 inch O.D. Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) AC unit dimensions: 13.39 inch(340mm) High x 21.26 inch(540mm) Width x 13.9 inch(353mm) Depth Electric Box dimensions: 12.2 inch (310mm) x 10 inch (254mm) x 3.27 inch (83mm) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. MyTouch touch screen display with control panel and display cable included MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect allows you to integrate multiple BlueCool units into one interface that can be operated via the BlueCool app and controlled via your MFD or remotely via the BlueCool Cnnect application: WEBASTO-2510219B No minimum run time. BlueCool S-Series units will shut off when the set point temperature is reached. When the compressor shuts off after running it is programmed to stay off for 4.5 minutes to prevent short cycling R410A Refrigerant(550 grams) This unit is equipped with High Pressure and Low Pressure Service ports Epoxy painted stainless drain pan Backed by a limited 2-year warranty on parts and labor Replaces Webasto WBCL120004F Normalized SKU: WBCL120004G

Webasto 2510143C Air Conditioning BlueCool S-Series 16K 115v Rev R410a Normalized SKU: 2510143C

Webasto WBCL120002F Air Conditioning BlueCool S10 Air Conditioner 10K BTU 230v Normalized SKU: WBCL120002F

Webasto WBCL120003E Air Conditioning The compact BlueCool S-Series self-contained air conditioner features a highly efficient compressor, requiring little energy. This unit ships complete with premium MyTouch control and features a USB interface which aides in more precise trouble-shooting for qualified technicians. Compatible with optional BlueCool Connect system. BlueCool S Series Self-Contained Air Conditioner with Reverse Cycle Heat and MyTouch Control 13,000 BTU/hr Cooling Capacity 13,000 BTU/hr Heating Capacity 230V Operation at 50/60Hz Suggested Breaker 16A Rated Current at 60Hz: 4.5-7.7A(moderate-tropical conditions) Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 21A Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 12A Max Starting Current 34A Optional EasyStart can deliver 65-75% Start Current Reduction: MICROAIR-ASY-364-X36-BLUE Comp. LRA 24A Duct Ring 4 inch Rotatable Blower This unit offers whisper-quiet performance 5 Fan Speeds. Each individual fan speed setting can be customized via the BlueCool Expert Tool Return Air Grille(air inlet grille) must be a minimum of 217 square inches Minimum Seawater flow at the AC unit is 3.17 GPM 1,000 GPH Continuous Duty Pump Suggested(sold separately) Seawater Inlet/Outlet .75 inch O.D. Drain Pan Outlet .625 inch O.D. Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) AC unit dimensions: 12.8 inch(325mm) High x 20.47 inch(520mm) Width x 13.58 inch(345mm) Depth Electric Box dimensions: 12.2 inch (310mm) x 10 inch (254mm) x 3.27 inch (83mm) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. MyTouch touchscreen display with control panel and display cable included MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect allows you to integrate multiple BlueCool units into one interface that can be operated via the BlueCool app and controlled via your MFD or remotely via the BlueCool Connect application: WEBASTO-2510219B No minimum run time. BlueCool S-Series units will shut off when the set point temperature is reached. When the compressor shuts off after running it is programmed to stay off for 4.5 minutes to prevent short cycling R410A Refrigerant(420 grams) This unit is equipped with High Pressure and Low-Pressure Service ports Epoxy-painted stainless drain pan Backed by a limited 2-year warranty on parts and labor Normalized SKU: WBCL120003E
