Download LiteratureVictron Energy ORI241210260 ConvertersOrion IP67 24/12-10A (120W)Completely encapsulated: waterproof, shockproof, and ignition protected. Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin. Normalized SKU: ORI241210260UPC Code: 8719076048435Victron Energy ORI241210260 Literature Download Quick Reference Guide Product Brochure

Download LiteratureVictron Energy ORI241205200R ConvertersOrion-Tr 24/12-5 (60W) DC-DCFeatures: High efficiency - Using synchronous rectification, full load efficiency exceeds 95% IP43 protection - When installed with the screw terminals oriented downwards Screw terminals - No special tools are needed for the installation Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI241205200RUPC Code: 8719076022855Victron Energy ORI241205200R Literature Download Quick Reference Guide Product Brochure

Progressive Dynamics 9380V Converters We now offer the ability to charge common battery types with out having to replace your converter. A simple procedure allows you to select between; Flooded Lead Acid (FLA), Absorbed Glass Material(AGM) Lithium Iron Phosphate (LiFePO4) Or you can select a fixed output of 13.6 VDC A visual indicator will confirm the setting. Your selection is stored inmemory, guarantying the correct charging profile every time you power up.The fully automatic advanced multi-stage charging of our “Total Charge Management System” (TCMS) ensures an optimal charging profile for the battery type you’ve selected. The accessory port will accept the PD92201 “Charge Wizard” remote pendant for manual control of the charger when needed.  Normalized SKU: 9380V

Isotherm SEH00018HA ConvertersIsotherm AC/DC Converter #SEH00018HANormalized SKU: SEH00018HA

Download LiteratureVictron Energy ORI124838110 ConvertersOrion-TR 12/48-8A (380W) Isolated DC-DC ConverterRemote On/Off TerminalThe remote on/off terminal eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or for example the engine run/stop switch. All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output CurrentAn unlimited number of units can be connected in parallel.  High Temperature Protected The output current will reduce at high ambient temperatures.  IP43 Protection When installed with the screw terminals oriented downward.  Screw Terminals No special tools are needed for installation.  Input Fuse (not replaceable) On 12 V and 24 V input models only.  Adjustable Output Voltage Not intended for battery charging (consider using an Orion-Tr Smart for battery charging).Specifications: Input Voltage Range: 10-17 V Under Voltage Shut Down: 7 V Under Voltage Restart: 7.5 V Nominal Output Voltage: 48.2 V Output Voltage Adjust Range: 40-60 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 8 A Maximum Output Current (10 S) at Nominal Output Voltage minus 20%: 15 A Short Circuit Output Current: 25 A Cont. Output Power at 25 Degrees C: 430 W Cont. Output Power at 40 Degrees C: 380 W Efficiency: 89 % No Load Input Current (2): < 220 mA  Current Consumption: < 200uA when disabled via its remote port Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1.8 kg (4 lb) Dimensions (H x W x D): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI124838110UPC Code: 8719076063650Victron Energy ORI124838110 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download Literature Watch VideoVictron Energy ORI242440140 ConvertersOrion-TR Smart Non-Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMPThe Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.   Fully Programmable: Battery charge algorithm (configurable) or fixed output.  Smart alternator compatibility: engine running detection mechanism.   Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen.   Remote On/Off:A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:An unlimited number of units can be connected in parallel.High Temperature Protected:The output current will reduce at high ambient temperatures.  IP43 Protection:When installed with the screw terminals oriented downward.  Screw Terminals:No special tools are needed for installation.  Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): < 80 mA  Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Normalized SKU: ORI242440140UPC Code: 8719076048985Victron Energy ORI242440140 Literature Download Quick Reference Guide Owners Manual Product BrochureVictron Energy ORI242440140 Video

Download Literature Watch VideoVictron Energy ORI242440120 ConvertersOrion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMPThe Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.Bluetooth Smart Enabled: Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available. Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.   Fully Programmable: Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.   Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float: For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged. For lithium batteries, the absorption time is fixed (the default is 2 hours). Alternatively, a fixed output voltage can be chosen.   Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines):The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details).  Remote On/Off:A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).  All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:An unlimited number of units can be connected in parallel.High Temperature Protected:The output current will reduce at high ambient temperatures.  IP43 Protection:When installed with the screw terminals oriented downward.  Screw Terminals:No special tools are needed for installation.  Input fuse (not replaceable) Specifications: Input Voltage Range: 20-35 V Under Voltage Shut Down: 14 V Under Voltage Restart: 15 V Nominal Output Voltage: 24.2 V Output Voltage Adjust Range: 20-30 V Output Voltage Tolerance: +/- 0,2 V Output Noise: 2 mV rms Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A Maximum Output Current (10 S) at Nominal Output Voltage: 25 A Short Circuit Output Current: 40A Cont. Output Power at 25 Degrees C: 480 W Cont. Output Power at 40 Degrees C: 400 W Efficiency: 89% No Load Input Current (2): < 80 mA  Standby Current: Less than 1 mA Galvanic Isolation: 200 VDC between input, output, and case Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C) Humidity: Max. 95 % non-condensing DC Connection: Screw terminals Maximum Cable Cross-Section: 16 mm² AWG6 Weight: 1,6 kg (3.5 lb) Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch) Protection Category: IP43 (electronic components), IP22 (connection area) Safety Standards: EN 60950 Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2 Automotive Directive Standards: ECE R10-5 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI242440120UPC Code: 8719076047728Victron Energy ORI242440120 Literature Download Quick Reference Guide Owners Manual Product BrochureVictron Energy ORI242440120 Video

Progressive Dynamics PD9345V ConvertersProgressive Dynamics 9300 Series Converter 45a #PD9345VNormalized SKU: PD9345V

Progressive Dynamics PD9330V ConvertersProgressive Dynamics 9300 Series Converter 30a #PD9330VNormalized SKU: PD9330V

Download LiteratureVictron Energy ORI241270030 ConvertersOrion 24/12-70A DC-DC Converter with Binding Posts - IP20Remote On-Off ConnectorThe remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be.operated with a low-power switch or by the engine run/stop switch (see manual).All Models with Adjustable Output Can Also Be Used as a Battery ChargerFor example, charge a 12 Volt starter or accessory battery in an otherwise 24V system.All Models with Adjustable Output Can Be Paralleled to Increase Output CurrentUp to five units can be connected in parallel.Easy to InstallDelivery includes four Insulated Fastons Female Crimp 6.3mm.Specifications: Input Voltage Range (V): 18-35 Under Voltage Shutdown (V): 14 Under Voltage Restart (V): 18 Output Voltage Adjustable with Potentiometer: Yes Output Voltage (V): Adjustable, 10–15V, F set 13,2V Efficiency (%): 92 Suitable to Buffer-Charge a Battery: Yes Can Be Connected in Parallel: Yes Continuous Output Current (A): 70 Max. Output Current (A): 85 Fan-Assisted Cooling (Temp. Controlled): Yes Galvanic Isolation: No Off Load Current: < 20mA Remote On-off: Yes  Operating Temperature Range (Derate 3% Per °C above 40°C): -20 to +55°C DC Connection: M6 bolts Weight: 0,9 kg / 2.0 lbs Dimensions (H x W x D): (mm) 65 x 88 x 195 / (inch) 2.6” x 3.5” x 7.7”  Safety Standards: EN 60950  Emission Standards: EN 61000-6-3, EN 55014-1  Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2  Automotive Directive Standards: ECE R10-4 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI241270030UPC Code: 8719076023050Victron Energy ORI241270030 Literature Download Quick Reference Guide

Download LiteratureVictron Energy ORI122421226 ConvertersOrion IP67 DC-DC Converter 12/24-50A - 1200WCompletely encapsulated: waterproof, shockproof, and ignition-protected. Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin.Completely encapsulated: waterproof, shockproof, and ignition protected Water, oil, or dirt will not damage the Orion IP67 DC-DC Converter. The casing is made of cast aluminum and the electronics are molded in resin. Extra-long input and output cables Thanks to the cables of 1.8 meters in length, intermediate cable interconnections to increase length even more will in most cases not be needed. This is an important reliability-increasing feature in an area where an IP67 protection grade is needed. Wide input voltage range With a 15 to 40 Volts input range, a stable output is ensured during surges or sags due to other equipment connected to the same battery. Protected against overheating It can be used in a hot environment such as a machine room.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ORI122421226UPC Code: 8719076048534Victron Energy ORI122421226 Literature Download Product Brochure

Victron Energy CYR010400000 Converters Victron Energy's Cyrix Battery Combiner does more than connect or disconnect based only on battery voltage using a time delay. The Cyrix-i verifies the general voltage trend increase or decrease and then inverts the previous action if the trend has also inverted during that same period of time. The time delay is based on the voltage deviation from the trend. Microprocessor-controlled heavy-duty relay LED status indicator light Automatic voltage detection for 12 or 24 Volt systems Start to assist feature forces a combine for 30 seconds and requires a push-button switch (not included) Prioritizes the starter battery over the accessory battery Automatically connects batteries in parallel when one of them has reached a preset voltage Disconnects when the voltage decreases below the float level Virtually no voltage loss so the output voltage of alternators or battery chargers does not need to be increased Provides bidirectional voltage sensing and power supply from both batteries Allows for parallel connection in case of emergency Not suitable for wet locations Rating 400 Amp continuous rating, 2000 Amps for one second Dimensions 3.1 in. x 4.0 in. x 4.4 in. Normalized SKU: CYR010400000UPC Code: 8719076022251

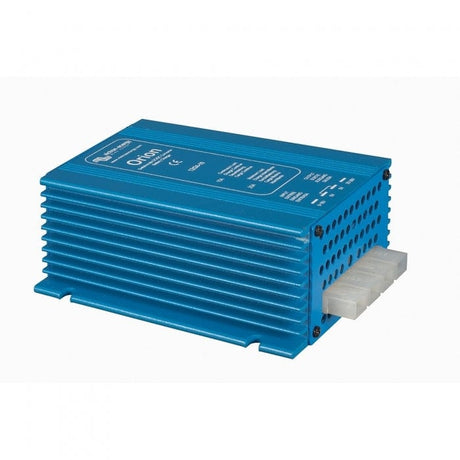

Victron Energy ORI122410020 Converters Input voltage range 9-18 Volt Undervoltage shutdown 8 volt Output voltage 20-30 Volt Parallel Capability Continuous output current 10 Amp Normalized SKU: ORI122410020

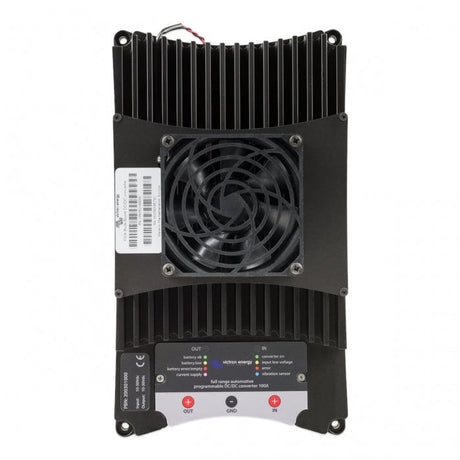

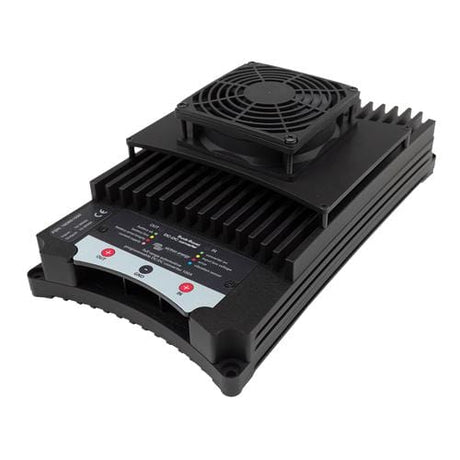

Victron Energy ORI303100000 Converters 100A Buck-Boost DC/DC Converter Normalized SKU: ORI303100000

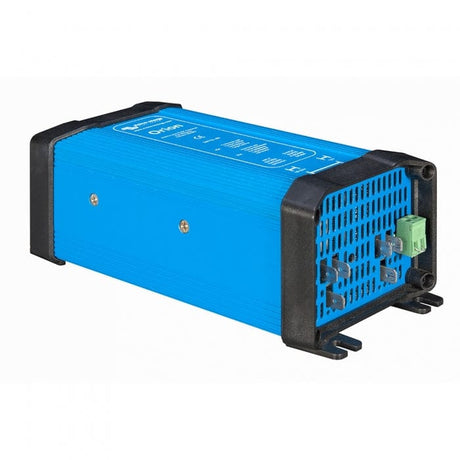

Victron Energy ORI241240021 Converters 24 to 12 volt DC 40 amp Non-Isolated Replaces Victron ORI24123000, ORI241240020 Normalized SKU: ORI241240021

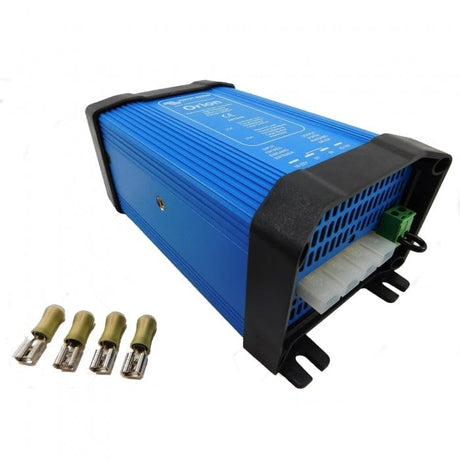

Victron Energy ORI241225020 Converters Input voltage range 18-35 Volt Undervoltage shutdown 14 volt Output voltage 10-15 Volt Parallel Capability Continuous output current 25 Amp Normalized SKU: ORI241225020
