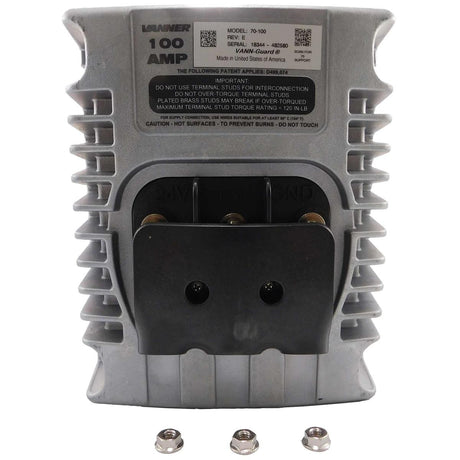

Vanner 70-100 Converters The Vanner VANN-Guard Battery Equalizer is an efficient and reliable method of obtaining a 12-volt DC power source from a 24-volt DC electrical system. In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends the life of your battery bank. Vanner 100 Amp Equalizer reliable method of obtaining a 12 volt DC power source from a 24 volt DC electrical system In addition to providing regulated 12 volt power, the system ensures that battery voltages remain equal which significantly extends battery life This equalization ensures extended battery life and provides a stable 12 volt supply for operating accessories With the Vanner Vann-Gard battery equalizer, you can run 12 volt loads from your 24 volt battery system Perfect for transit buses, private coaches, tour charter buses, heavy trucks, off-highway equipment and alternative energy applications 12 Volt DC Power from Your 24 Volt DC System With Vanner Vann-Guard battery equalizers, you can have an abundance of 12 volt DC power from your 24 volt battery system Our equalizers allow operation of more reliable and less costly 12 volt lighting and equipment on 24 volt electrical systems, saving you time and money Extend the Life of Your Batteries With Vanner Vann-Guard battery equalizers, the voltage between each 12 volt battery is balanced in a 24 volt series connected battery array This arrangement equalizes the 24 volt battery system and avoids the over/under charge problems associated with other approaches to providing 12 volts of power A Simple, More Reliable 24/12 Volt System With Vanner Vann-Guard battery equalizers, you can avoid the reliability problems associated with complicated and space consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems Sizes for Any Application Need Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs Input Voltage20 to 32 VDC Efficiency;gt;96% Max Input Current (24Vdc)53 Amps Output Voltage(Input Voltage/2) +/- 2% - 50 Mv Output Current (12Vdc)0-100 Amps Operating Temperature-40C to +75C Standby Mode Current @28.4V17 Milliamps nominal Storage Temperature-54C to +95C UL RecognizedYes User ServiceableNo Environmental Considerations Aluminum enclosure provides protection against salt, fungus, dust, water, fuel vapors and all fluids associated with commercial and off-highway vehicle operations. Exposure to splashes and spills is expected, but continuous exposure should be avoided Mounting LocationMounting location should be a flat surface close to the batteries to allow short battery cable runs. The location should be protected from as many adverse environmental conditions as possible, including battery fumes. Vertical mounting with terminals down is recommended Weight6.5 lbs Dimensions (HWD in inches) 10.6 x 8.5 x 3.6 Normalized SKU: 70100

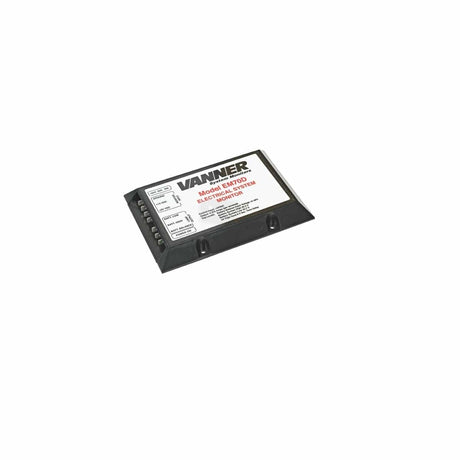

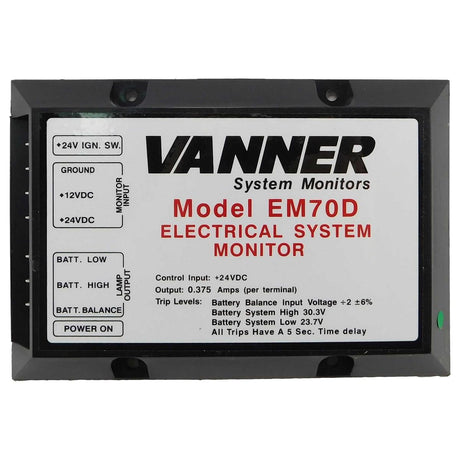

Vanner EM70D Converters Monitors electrical system voltages in a 24/12Vdc system. Provides outputs for battery high, battery low, and battery balance fault conditions. Continually monitors vehicle’s electrical system Designed for dual 12-volt batteries operating at 24 Vdc Detects battery high/low voltage and battery balance conditions Takes the guesswork out of battery operation Operates status/warning lamps, control relays or alarms Dimensions HxWxD: .75 in. x 4.5 in. x 6.625 in. Weight: 0.84 lbs. Normalized SKU: EM70D

Vanner 60-10B Battery Accessories The Vanner VoltMaster Battery Equalizer is an efficient and highly reliable method of obtaining a 12-volt DC power source from a 24-volt DC electrical system. The equalizer makes the batteries look like they are in series and parallel at the same time. In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends battery life. In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends battery life This equalization ensures extended battery life and provides a stable 12-volt supply for operating accessories With the Vanner VoltMaster battery equalizer, you can run 12-volt loads from your 24-volt battery system With Vanner VoltMaster battery equalizers, you can have an abundance of 12-volt DC power from your 24-volt battery system Perfect for transit buses, private coaches, tour charter buses, heavy trucks, off-highway equipment, and alternative energy applications This arrangement equalizes the 24-volt battery system and avoids the over-/under-charge problems associated with other approaches to providing 12 volts of power A Simple, More Reliable 24/12 Volt System With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space-consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems Dimensions: 8.5 in. x 3.25 in. x 3.25 in. Weighs: 2.3 lbs. Normalized SKU: 6010B

 Vanner 66-60 Converters Vanner VoltMaster battery equalizers allow you to run 12-volt loads from your 24-volt battery system. Perfect for transit buses, private coaches, tour & charter buses, heavy trucks, off-highway equipment, and alternative energy applications. Vanner 60 Amp Equalizer is a reliable method of obtaining a 12-volt DC power source from a 24-volt DC electrical system In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends battery life This equalization ensures extended battery life and provides a stable 12-volt supply for operating accessories With the Vanner VoltMaster battery equalizer, you can run 12-volt loads from your 24-volt battery system Perfect for transit buses, private coaches, tour charter buses, heavy trucks, off-highway equipment, and alternative energy applications 12 Volt DC Power from Your 24 Volt DC System With Vanner VoltMaster battery equalizers, you can have an abundance of 12-volt DC power from your 24-volt battery system Our equalizers allow operation of more reliable and less costly 12-volt lighting and equipment on 24-volt electrical systems, saving you time and money Extend the Life of Your Batteries With Vanner VoltMaster battery equalizers, the voltage between each 12-volt battery is balanced in a 24-volt series-connected battery array This arrangement equalizes the 24-volt battery system and avoids the over-/under-charge problems associated with other approaches to providing 12 volts of power A Simple, More Reliable 24/12 Volt System With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space-consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems Sizes for Any Application Need Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs Input Voltage: 20 to 32 VDC Efficiency: >96% Max Input Current (24Vdc):  32 Amps Output Voltage(Input Voltage/2) +/- 2% - 50 Mv Output Current (12Vdc): 0-60 Amps Operating Temperature: -40C to +75C Standby Mode Current @28.4V: 17 Milliamps nominal Storage Temperature: -54C to +95C UL Recognized: Yes User Serviceable: No Environmental Considerations: Anodized aluminum enclosure protects against salt, fungus, dust, water, fuel vapors, and all fluids associated with commercial and off-highway vehicle operations. Exposure to splashes and spills is expected, but continuous exposure should be avoided Mounting Location: The mounting location should be a flat surface close to the batteries, allowing short battery cable runs. The location should be protected from as many adverse environmental conditions as possible, including battery fumes. Vertical mounting with terminals down is recommended Weight: 6.0 lbs Dimensions:  (HWD in inches) 9.8 x 8.5 x 2.5 Normalized SKU: 6660

Vanner 66-80 Converters Vanner VoltMaster battery equalizers allow you to run 12-volt loads from your 24-volt battery system. Perfect for transit buses, private coaches, tour & charter buses, heavy trucks, off-highway equipment, and alternative energy applications. Vanner 80 Amp Equalizer is a reliable method of obtaining a 12-volt DC power source from a 24-volt DC electrical system In addition to providing regulated 12-volt power, the system ensures that battery voltages remain equal, which significantly extends battery life This equalization ensures extended battery life and provides a stable 12-volt supply for operating accessories With the Vanner VoltMaster battery equalizer, you can run 12-volt loads from your 24-volt battery system Perfect for transit buses, private coaches, tour charter buses, heavy trucks, off-highway equipment, and alternative energy applications 12 Volt DC Power from Your 24 Volt DC System With Vanner VoltMaster battery equalizers, you can have an abundance of 12-volt DC power from your 24-volt battery system Our equalizers allow operation of more reliable and less costly 12-volt lighting and equipment on 24-volt electrical systems, saving you time and money Extend the Life of Your Batteries With Vanner VoltMaster battery equalizers, the voltage between each 12-volt battery is balanced in a 24-volt series-connected battery array This arrangement equalizes the 24-volt battery system and avoids the over-/under-charge problems associated with other approaches to providing 12 volts of power A Simple, More Reliable 24/12 Volt System With Vanner VoltMaster battery equalizers, you can avoid the reliability problems associated with complicated and space-consuming dual alternators on vehicles, or multiple battery chargers on renewable energy systems Sizes for Any Application Need Whether you need just 10 amps to operate a two-way radio or 200 amps to support a fully loaded tour bus, Vanner has the right size equalizer to meet your application needs Input Voltage: 20 to 32 VDC Efficiency: >96% Max Input Current (24Vdc) 43: Amps Output Voltage: (Input Voltage/2) +/- 2% - 50 Mv Output Current (12Vdc): 0-80 Amps Operating Temperature: -40C to +75C Standby Mode Current @28.4V: 17 Milliamps nominal Storage Temperature: -54C to +95C UL Recognized: Yes User Serviceable: No Environmental Considerations: Anodized aluminum enclosure protects against salt, fungus, dust, water, fuel vapors, and all fluids associated with commercial and off-highway vehicle operations. Exposure to splashes and spills is expected, but continuous exposure should be avoided Mounting Location: Mounting location should be a flat surface close to the batteries, allowing short battery cable runs. The location should be protected from as many adverse environmental conditions as possible, including battery fumes. Vertical mounting with terminals down is recommended Weight: 6.3 lbs Dimensions: (HWD in inches) 9.8 x 8.5 x 2.5 Normalized SKU: 6680

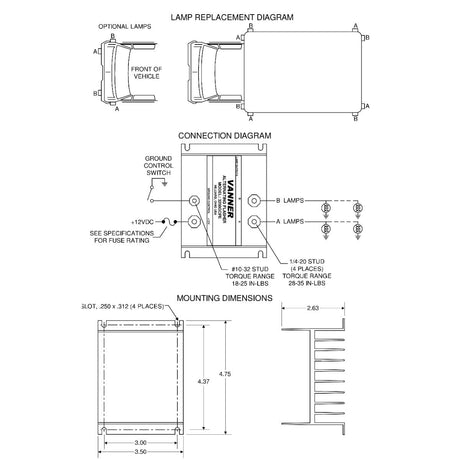

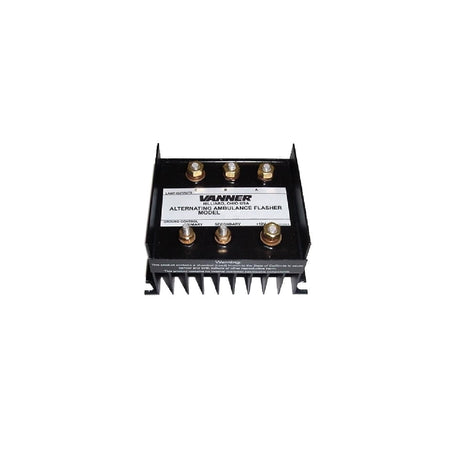

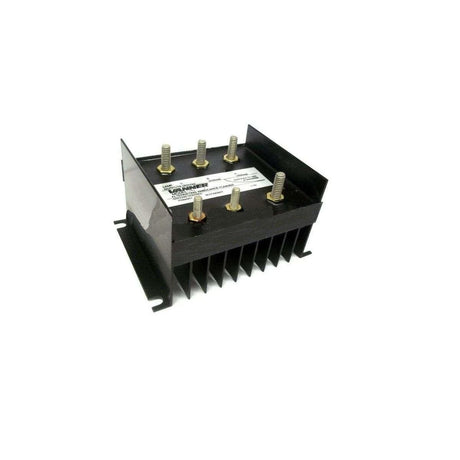

Vanner 3840GCPE Converters Vanner manufactures a wide variety of flashers for every type of vehicle. Their flashers are designed to produce a variety of lighting patterns and sequences with a broad range of available amperage ratings. LifeStar Electronic Duo-Mode Flasher - 3 Output Terminals / 30 Amp Totally electronic for extended life Hermetically sealed for total protection against the elements Shock and vibration resistant for reliability Interference-free from radio electronic warnings, P.A. or medical diagnostic equipment Equipped with a Ground Control terminal, eliminating the need for solenoids and/or high amp ON/OFF switches Designed for systems that must perform to Federal Specification for Ambulances KKK-A-1822C Operated in two modes - Primary and Secondary Normalized SKU: 3840GCPE

Vanner 91-45 Converters The Vanner 12-volt to 24-volt DC-to-DC converter is an efficient and highly reliable method of obtaining 24-volt DC power from a 12-volt DC electrical system.  Vanner converters have low ripple, regulated DC outputs, making them compatible with a wide variety of electrical loads.  DC to DC Converter 12 to 24 volt - 45 Amp Low ripple, regulated DC outputs Corrosion-resistant anodized aluminum case Large threaded terminals for easy wiring An accessible case allows for the repair of the solid-state circuit Replaces Vanner 91-10A Normalized SKU: 9145

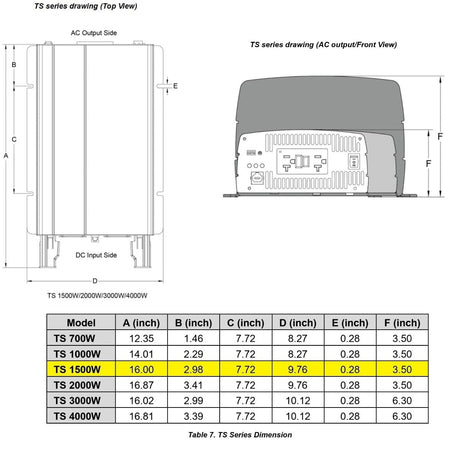

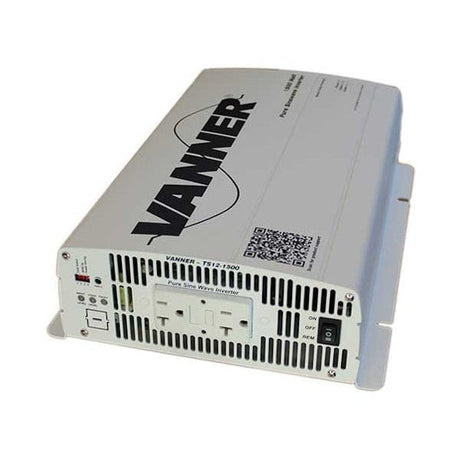

Vanner TS12-1500 Inverters Vanner’s rugged, reliable, and safe TS Series AC power inverters are designed to operate and protect equipment in the most extreme conditions. The proprietary TruWave Technology generates a Pure Sine Wave signal that delivers safe AC power to operate the most demanding power tools and sensitive electronic equipment while working seamlessly with today’s sophisticated OEM electrical systems. TS Series TruWave Sine Wave Inverter Continuous watts Surge Watts 2250 Surge amps 16.7 True Sine Wave output AC output voltage 120V/60hz DC Input Voltage 11.0-16.0 Dimensions (HxWxD): 3.5 in. x 9.8 in. x 16.2 in. Weight: 9.5 lbs. Replaces Vanner VLT12-1500 Normalized SKU: TS121500

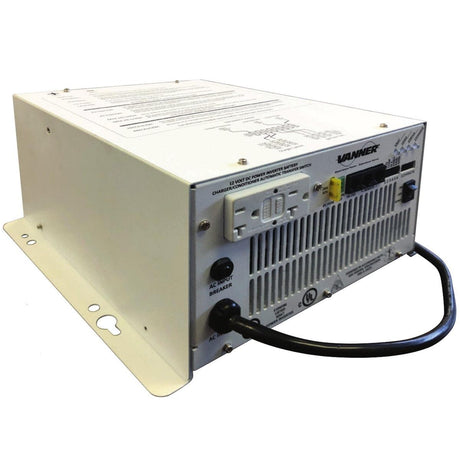

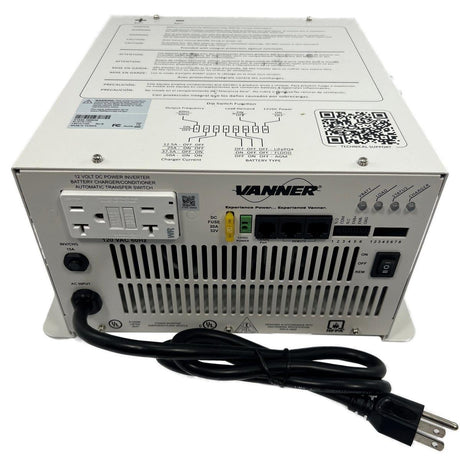

Vanner LSC12-1100 Inverters The Vanner LifeSine (LSC12-1100) has replaced the LifeStar (20-1050CUL-DC). LifeSine provides the same footprint and bolt template as the LifeStar, eliminating the need for OEMs to change the existing location or sheet metal drill templates to upgrade to the LifeSine. LifeSine is forward/backward compatible with the LifeStar, allowing ambulance fleets to upgrade to LifeSine if their loads change and sinewave is required. Vanner LifeSine Sinewave Ambulance Power Module 1100 watts of pure sine wave power 2100 watt surge capacity for 3 seconds 12 Vdc, nominal, 10.5 Vdc minimum, and 16.5 Vdc maximum input voltage 3-stage, 55 Amp battery charger Integrated 20 Amp power supply Clean connect DC receptacle UL certified to meet or exceed GSA, NFPA, AMD, and CAAS GVS specifications and testing standards Same compact footprint and bolt template as the Vanner LifeStar and earlier Vanner inverters Works with existing LifeStar remote panels Lightweight weighs only 9.20 pounds Replaces the Vanner LifeStar 20-1050CUL-DC Dimensions (WxHxD): 11.57 in. x 5.94 in. x 11.5 in. Normalized SKU: LSC121100

Vanner 52-75 Battery Isolators Vanner battery isolator separates two battery banks during discharge and combines both banks when charging. Emergency Vehicle Application Schottky 1-leg medical isolator 75A Max Amperage 1.5 lbs 2.5" x 4.5" 3" Vanner battery isolators allow dual batteries to be charged from a single power source, such as an alternator or battery charger. Due to the isolator's ability to pass current in only one direction, your first battery can be discharged without draining power from the second battery. For example, a typical vehicle system may use one battery dedicated to the engine (starter, ignition, etc.) And the other battery is dedicated to a DC to AC inverter. With the engine running, the alternator will supply charging current to both batteries. With the engine off, the DC to AC inverter could continue to operate, discharging the second battery. With a battery isolator operating in the system, the power would not be taken from the engine's battery, keeping it fully charged. Vanner manufactures both silicon and Schottky-type battery isolators. Both types utilize a special heat sink design for excellent heat dissipation and heavy-duty wiring terminals. Schottky battery isolators are designed to reduce the voltage drop across the isolator's terminals, allowing a higher voltage, or charge, to be delivered to the battery. This is desirable in many vehicles where more power is required, and is mandated on ambulances that must meet the GSA's specification KKK-1822-D. Vanner battery isolators operate on both 12 and 24 volt DC electrical systems. As current passes through an isolator, the diode type affects the voltage loss across it. A Schottky diode reduces the loss by one-half of a typical silicon diode To prevent voltage spikes and surges caused by turning the battery switch off while the engine is running, please follow the GSA-recommended wiring diagram on the reverse side. Vanner model 52-75 has been designed to meet the requirements for the 12 Vdc medical outlets stated in section 3.7.7.3 of the GSA specification KKK-A-1822D. Normalized SKU: 5275

Vanner IT12-2200S-01 Inverters Unlike other sine-wave inverters available today, the Vanner IT Series is an industrial-grade, heavy-duty inverter incorporating the advantages of high-frequency power switching technology with the durability and reliability of MOSFET coupled transformer technology. The waveform is not distorted under any load and will operate the most sensitive instruments as reliably as utility power. Liberty Industrial Tru-Sinewave Inverter 2200 watt / 120 VAC continuous output Virtually maintenance-free, compared to engine-type generators The automatic throttle control maximizes power and run time when your vehicle is equipped with a Vanner automatic throttle system Listed to UL 458 for land mobile vehicles 10.5-16.6 VDC input voltage Weight: 57 pounds (105.6 kg) Replaces Vanner Inc IT12-2200S Normalized SKU: IT122200S01

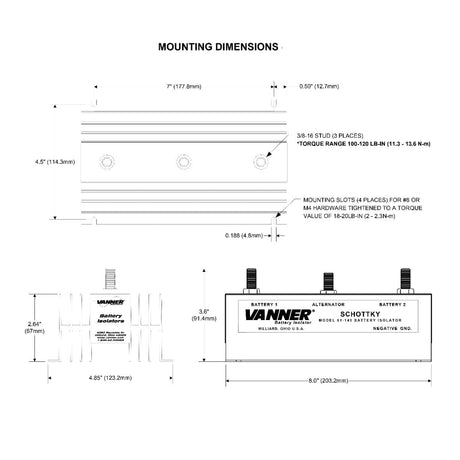

Vanner 51-140 Battery Isolators Vanner's battery isolators allow dual batteries to be charged from a single power source such as an alternator or battery charger. It separates two battery banks during discharge and combines both banks when charging. 1 Alternator 2 Bank 250A Max Alternator 200 Amps Max per Leg 2.5" x 4.5" 8" Vanner battery isolators allow dual batteries to be charged from a single power source such as an alternator or battery charger. Due to the isolator's ability to pass current in only one direction, your first battery can be discharged without draining power from the second battery. For example, a typical vehicle system may use one battery dedicated to the engine (starter, ignition, etc.) And the other battery dedicated to a DC to AC inverter. With the engine running, the alternator will supply charging current to both batteries. With the engine off, the DC to AC inverter could continue to operate, discharging the second battery. With a battery isolator operating in the system, the power would not be taken from the engine's battery, keeping it fully charged. Vanner manufactures both silicon and Schottky type battery isolators. Both types utilize a special heat sink design for excellent heat dissipation and heavy-duty wiring terminals. Schottky battery isolators are designed to reduce the voltage drop across the isolator's terminals, allowing a higher voltage, or charge, to be delivered to the battery. This is desirable in many vehicles where more power is required, and is mandated on ambulances that must meet the GSA'™s specification KKK-1822-D. Vanner battery isolators operate on both 12 and 24 volt DC electrical systems. As current passes through an isolator, the diode type affects the voltage loss across it. A Schottky diode reduces the loss by one-half of a typical silicon diode To prevent voltage spikes and surges caused by turning the battery switch off while the engine is running, please follow the GSA recommended wiring diagram on the reverse side. Vanner model 52-75 has been designed to meet the requirements for the 12 Vdc medical outlets stated in section 3.7.7.3 of the GSA specification KKK-A-1822D. Normalized SKU: 51140

Vanner TS12-2000 Inverters Vanner’s rugged, reliable, and safe TS Series AC power inverters are designed to operate and protect equipment in the most extreme conditions. The proprietary TruWave Technology generates a Pure Sine Wave signal that delivers safe AC power to operate the most demanding power tools and sensitive electronic equipment while working seamlessly with today’s sophisticated OEM electrical systems. Vanner TS12-2000 TS Series TruWave Sine Wave Inverter Efficiency rating of 90-93% DC input range of 10.5 VDC - 16.5 VDC Operating temperature range of -20c to +40c Three seconds of surge capacity (3000 watts) All-metal case Dimensions (LxWxH): 17.1  x 9.8 x 3.5 inches Weight: 12.0 pounds Normalized SKU: TS122000

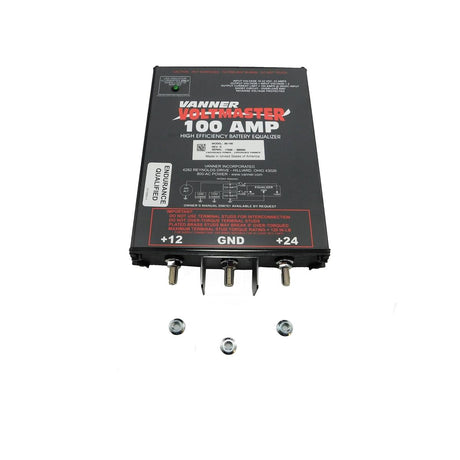

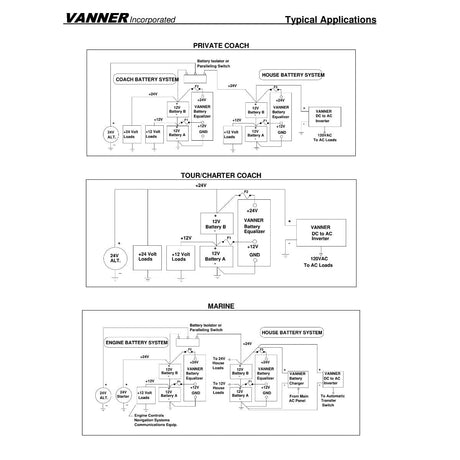

Vanner 66-100 Converters Vanner VoltMaster battery equalizers allow you to run 12-volt loads from your 24-volt battery system. Perfect for transit buses, private coaches, tour & charter buses, heavy trucks, off-highway equipment, and alternative energy applications. Vanner 100 Amp Equalizer Highly reliable method of obtaining a 12 voltDC power source from a 24 volt DC electrical system In addition to providing regulated 12 volt power the systemensures that battery voltages remain equal which significantly extends battery life This equalization ensures extended battery life and provides a stable 12volt supply for operating accessories Dimensions (HWD in inches) 9.8 x 8.5 x 2.5 Normalized SKU: 66100
