Echonautics ST1801KW TransducersST1801kW Thru-Hull Stainless Steel Transducer - 50/200 kHzFeatures: Type - CW Dual Frequency - 50/200 kHz Power - 1kW Tilt - 0 degree Housing - Stainless Steel Thread Diameter - 30mm/1.18" Normalized SKU: ST1801KWUPC Code: 010407360010

Download Literature Watch VideoAirmar UDST800B-N2 TransducersUDST800 Smart, N2K, Bronze HSG, DSTAirmar’s patented UDST800 just turned your maintenance time into more cruising time—and made your boat smarter too. Get ultrasonic speed, depth, and temperature in a single-thru-hull housing with no moving parts. Say goodbye to paddlewheel maintenance and hello to Smart™ technology, from the company who invented the Smart™ Sensor.Features: Ultrasonic speed, depth, and fast-response water-temperature sensing Single housing with no moving parts—no paddlewheel Precise readings at high speeds are ideal for powerboats, cruising, and sailing Advanced filtering and sampling rates for increased accuracy at all speeds Adapts automatically to boat speed, water depth, and water clarity, keeping speed accuracy consistent 235 kHz frequency prevents interference with other echo sounders on the vessel Retractable plastic insert in a low-profile plastic housing with water valve Also available in a bronze (B617V) or stainless steel (SS617V) housing Retrofits into Airmar’s P617V, B617V or SS617V housing Airmar's Smart™ Sensor technology Specifications: Functions: Depth, Speed, Temperature Mounting Style: Low Profile Thru-Hull Power Rating: N/A Protocol Output: NMEA 2000® Housing: Plastic Hull Material: Fiberglass or metal Hole Size: 51 mm (2"), Stainless steel housing in metal hull—57 mm (2-1/4") Retractable housing: Yes Acoustic Window: Urethane Cable-Length: 6 m (20') NMEA 2000® cable Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing Data Rate: Up to 10 times per second Max Depth: 0.6 m (2') to 100 m (330') NMEA 2000 LEN: 8 Retrofits: Retrofits into AIRMAR P617V Speed Range: 0.1 to 50 knots (0.1 to 57 MPH) Temperature Accuracy: ±0.5°C (±1.8°F) Tilted Element: No Usable Shaft Length: 57 mm (2.25") Voltage: 9 to 16 VDC Water Temperature: -10° to 40°C (14° to 104°F) Weight: 1.4 kg (3 lbs) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: UDST800BN2Airmar UDST800B-N2 Literature Download Quick Reference GuideAirmar UDST800B-N2 Video

Lowrance 000-16242-001 TransducersLowrance Active Imaging HD Starboard Thru-Hull Transducer for Dual Transucer KitModel: 000-16242-001 High definition (up to 1.2 MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure Lowrance® CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) and 455/1.2 MHz frequencies Thru-Hull Installation Compatible with Lowrance HDS® PRO or with a S3100 module with HDS® LIVE and Elite FS™ & Simrad® NSSevo3s, NSOevo3s Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD Thru-Hull 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2 MHz) SideScan and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to identify below the boat.Normalized SKU: 00016242001UPC Code: 9420064135011

Lowrance 000-16241-001 TransducersLowrance Active Imaging HD Port Thru-Hull Transducer for Dual Transucer KitModel: 000-16241-001 High definition (up to 1.2 MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure Lowrance® CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) and 455/1.2 MHz frequencies Thru-Hull Installation Compatible with Lowrance HDS® PRO or with a S3100 module with HDS® LIVE and Elite FS™ & Simrad® NSSevo3s, NSOevo 3s Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD Thru-Hull 3-in-1 sonar. Get the clearest images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2 MHz) SideScan and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to identify below the boat.Normalized SKU: 00016241001UPC Code: 9420064135004

Lowrance 000-16240-001 TransducersLowrance Active Imaging HD Dual Thru-Hull TransducersModel: 000-16240-001 High definition (up to 1.2 MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure CHIRP with superb clarity and target separation FishReveal™ DownScan view makes fish identification easy Supports Medium and High CHIRP (83/200kHz) and 455/1.2 MHz frequencies Thru-Hull Installation Compatible with Lowrance HDS® PRO or with a S3100 module with HDS® LIVE and Elite FS™ & Simrad® NSSevo3s, NSOevo 3s Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD Thru-Hull 3-in-1 sonar. Get the clearest images of fish and structure from CHIRP sonar, high-frequency (up to 1.2 MHz) SideScan and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to identify below the boat.Normalized SKU: 00016240001UPC Code: 9420064134991

Download LiteratureAirmar TM260-9N TransducersTM260-9N Transom Mount Transducer 1kW 50/200kHz 9-Pin for NavicoTM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line 1kW transom-mount brings crystal clear imaging to any of today’s fishfinders. The large 200 kHz element and the seven-element 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260’s high-performance mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH). Fishing Applications: Blue-water trolling using 50 kHz Deep-water bottom and wreck fishing up to 800 m (2,625’)  Features: Top-of-the-line narrow-beam transom-mount  Designed for bottom fishing Wide 19° beam at 50 kHz Narrow 6° beam at 200 kHz Interfaces to any 600 W or 1 kW sounder The depth and fast-response water-temperature sensor Kick-up assembly locks in the “up” position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane housing Boat Size: Up to 12 m (40’) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM2609NAirmar TM260-9N Literature Download Quick Reference Guide

Download Literature Airmar TM260-14HB Transducers TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel's transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today's fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation, along with detecting ground fish holding tight to the bottom. The TM260's rugged mounting bracket is easy to install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH). Features: Top-of-the-line narrow-beam transom-mount Designed for bottom fishing Wide 19° beam at 50 kHz Narrow 6° beam at 200 kHz Interfaces to any 600W or 1 kW sounder Depth and fast-response water-temperature sensor Kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane housing Boat Size: Up to 12M (40') Specifications: Weight: 4 kg (8.9 lb) Hull Deadrise: Up to 28° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM26014HB Airmar TM260-14HB Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureAirmar TM258-HB TransducersTM258 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-PinThe re-designed TM258 sports a new look and better high-speed performance. The industry's first, 1kW, transom-mount transducer has an updated, rugged, mounting bracket. The sleek design makes the TM258 easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH).The TM258 will make 600W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. The TM258 packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition.Features: Depth & fast-response water-temperature sensor Elliptical beam covers larger bottom area Fits existing TM256 and TM258 models Bracket kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane transducer housing Boat Size: Up to 12M (40') Specifications: Weight: 3.6kg (7.9lb) Hull Deadrise: Up to 25° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM258HBAirmar TM258-HB Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureAirmar TM-258-14HB TransducersTM258 1kW Transom Mount Transducer w/Humminbird 14-Pin PlugThe re-designed TM258 sports a new look and better high-speed performance. The industry's first, 1kW, transom-mount transducer has an updated, rugged, mounting bracket. The sleek design makes the TM258 easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH).The TM258 will make 600W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. The TM258 packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition.Features: Depth  fast-response water-temperature sensor Elliptical beam covers larger bottom area Fits existing TM256 and TM258 models Bracket kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane transducer housing Boat Size: Up to 12M (40') Specifications: Weight: 3.6kg (7.9lb) Hull Deadrise: Up to 25° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM25814HBAirmar TM-258-14HB Literature Download Quick Reference Guide Owners Manual Product Brochure

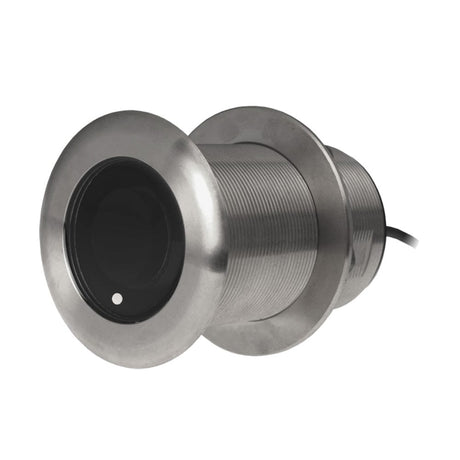

Download LiteratureAirmar SS75C-12-H-9N TransducersSS75 High Chirp 12 Degree Bronze Thru-Hull xSonic TransducerAirmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats, such as center consoles. The high-frequency band has a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. The SS75H transducer, operating at 130 to 210 kHz, delivers up to 80 kHz of total bandwidth in just one installation for outstanding bottom detail and fish-target resolution.This Tilted Element™ transducer has the element fixed at a 12-degree angle within the housing. Because the transducer is installed almost flush with the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.Features: Depth and fast-response water-temperature sensing 600 W of power with a maximum depth of 214 m (700') High frequency (130 to 210 kHz) 15- 9 degree beamwidth High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planning, or displacement hull Stainless steel housing for use in all hull materials Patented Xducer ID® technology Specifications: Brand: Airmar Technology Acoustic Window: Urethane Cable-Length: 10 m (33') Common Use: Fishing, Commercial Fishing Connector: Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin Country of Origin: USA Cross Reference: 000-13912-001 Deadrise Range: 8-15 degrees Display Connector: 9N Frequency Band: High Functions: Depth, Temperature High Frequency: 130-210 kHz High Frequency Beamwidth: 15-9 degrees Hole Size: Fiberglass or wood hull—70 mm or 2-13/16", Metal hull—79 mm or 3-1/8" Hull Material: Compatible w/ all hull materials Material: Stainless Steel Max Deadrise: Up to 24 degrees Max Deadrise Angle: 24 degrees Max Depth: 214 m (700') Max Vessel LOA: Up to 8 m (26') Mix and Match Series: 12-Pin Chirp Mounting Style: Tilted Element Thru-Hull Power Rating: 600 W Retractable housing: No Sensor Connector: MMC Single or Dual Frequency: CHIRP-Ready Single-Band Tilt Angle: 12 degrees Tilted Element: Yes Weight: 1.4 kg (3 lbs.) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: SS75C12H9NAirmar SS75C-12-H-9N Literature Download Product Brochure

Airmar R111C-LM TransducersR111C-LM In-Hull Chirp 2KW TransducerL/M Model -Low Frequency 38-75 kHz, Medium Frequency 80-130 kHzFeatures Depth & fast-response water-temperature sensor Low—CHIRPS from 38 kHz to 75 kHz 19° to 10° beamwidth Medium—CHIRPS from 80 kHz to 130 kHz 13° to 8° beamwidth 87 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 38, 50, 88, and 107 kHz plus everything else in the bandwidth Fishing Profile: Recreational and commercial inshore and offshore fishing (deep-water canyon and sea-mount tracking) Urethane transducer housing Hull Type: Solid fiberglass only Exclusive Xducer ID® technology Specifications Hull Deadrise: 0° to 22° Acoustic Window: Epoxy/urethane All mounting hardware provided, including tank Weight: 19.7 kg (43.4 lb) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: R111CLM

Airmar R109C-LH TransducersR109C-LH 2kW Thru-Hull TransducerCHIRP transducers enable bottom detection down to 3,000M (10,000') with 5 to 10 times greater detail and resolution so precise it's possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 117 kHz of total bandwidth in just one installation, saving customers time and money.As the HARD CORE model in the CHIRP Thru-Hull product line, the R109 LH/LM CHIRPS across the following bandwidths:LH Model - Low Frequency 38-75 kHz/High Frequency 130-210 kHzFeatures: Depth & fast-response water-temperature sensor Low: CHIRPS from 38 kHz to 75 kHz 19° to 10° port-starboard beamwidth (10° to 5° fore-aft beamwidth) High: CHIRPS from 130 kHz to 210 kHz 8° to 4° beamwidth 117 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 38, 50, and 200 kHz plus everything else in the bandwidth Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking) Urethane transducer housing with High-Performance FairingBoat Size: 12M (40') and above Hull Type: Fiberglass, wood, or metal This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: R109CLH

Download LiteratureAirmar PM111C-LHW TransducersPM111 LHW CHIRP 2kW Wide-Beam Chirp-Ready Pocket/Keel Mount - No ConnectorGet more coverage under your boat with Airmar’s unique wide-beam, high-frequency, Chirp-ready transducer. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high-frequency band results in superior resolution. The constantly wide beam provides twice the coverage and excellent fish arches on the display compared to most high-frequency, narrow-beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essentially down to 152 m (500').The low-frequency band and 2 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s dual-frequency, Chirp-ready transducer with wide-beam coverage.Features: The depth and fast-response water-temperature sensor 2 kW of power for great deep-water performance from the low frequency 2 kW low frequency: 38 to 75 kHz 19° to 10° port-starboard beamwidth 10° to 5° fore-aft beamwidth Maximum depth of 1,829 m (6,000') 1 kW high frequency: 150 to 250 kHz 25° constant beamwidth Maximum depth of 152 m (500') 137 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 68, and 200 kHz plus everything else in the bandwidth High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation High wide beamwidth yields more coverage for detecting fish in the upper-water column Urethane housing designed for custom mounting in a cavity Also available in an external (R109LHW) mount Exclusive Xducer ID® technology Specifications: Weight: 13.6 kg (30 lb.) Recommended Boat Length: 12 m (40') and above Hull Material: Solid fiberglass only Hull Deadrise: Accommodates any deadrise angle based on custom cavity construction Acoustic Window: Epoxy/urethane Transducer Element: 16 internal broadband ceramic assemblies This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PM111CLHWAirmar PM111C-LHW Literature Download Product Brochure

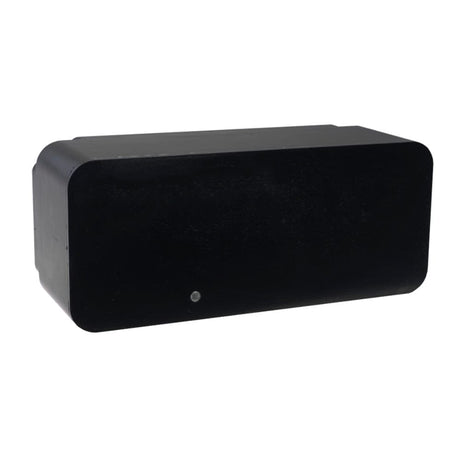

Download LiteratureAirmar PM111C-LH TransducersPM111LH Pocket Mount - Low-High Chirp 2kW - No ConnectorA popular choice for boat builders, pocket mount transducers is installed within a small custom pocket in your vessel’s hull or keel, flush to the surface. Though retrofit installation is possible, these transducers are most commonly used in vessels with a suitable pre-cut pocket.Pocket-mounted transducers provide reliable and accurate sonar performance, with some impact on boat speed and fuel efficiency. As a common alternative, thru-hull transducers with a fairing block deliver comparable sonar performance and vessel impact.Features: Depth & fast-response water-temperature sensor Fiberglass and metal stepped, planing, or displacement hull types Advantages: All the benefits of a thru-hull without the need for a high-performance fairing Can accommodate any deadrise angle Can be used with all propulsion types Specifications:Low (38 kHz to 75 kHz): 19° to 10° port/star 10° to 5° fore-aft beam Maximum depth 6000 ft. High (130 kHz to 210 kHz): 8° to 4° beamwidth Max. depth 1500 ft. Bottom Coverage Relative to Frequency and Depth Depth (50 ft.): 6 ft. Depth (100 ft.): 14 ft. Depth (300 ft.): 42 ft. Depth (600 ft.): 84 ft. Depth (1000 ft.): 140 ft. Depth (1500 ft.): 210 ft. Depth (2000 ft.): Too deep This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PM111CLHAirmar PM111C-LH Literature Download Product Brochure

Download LiteratureAirmar DX900-DST-N2 TransducersDX900+ MultiLog Sensor - Depth, Speed & Temp - NMEA 2000Industry’s First Bluetooth® - Enabled, Multifunctional SensorFeatures:• Measures transverse and longitudinal speed which instantaneously calculates leeway angle and speed through water with no latency• Outputs dual axis speed, depth & water temperature with no moving parts• Offers a lightweight alternative to installing multiple sensors• Retrofits to existing P617V AIRMAR housing• Connects and shares data via AIRMAR’s CAST™ app (Bluetooth®-enabled)• Outputs heel and trim* available as optionDX900+ Benefits:• Retrofitting is easy – retractable insert fits most existing 51mm P617V Airmar thru-hull housings• Low profile housing has minimal drag• Measures reverse speed (which can be helpful for very light wind conditions and quick manuevers on powerboats)• All-in-one housing; no moving partsCAST™ App Features:• Connects to your boat display as well as your smart device (tablet, phone, etc.) via Bluetooth® or via WiFi network• Supports both iOS and Android platforms• Displays all sensor features• Performs speed calibration• Provides diagnostic information for troubleshooting• Offers interface to update firmware• Can easily configure update rate• Easily display data available from other devices on the networkMeasuring Leeway:No matter what type of racing you do, it’s important to get every ounce of speed out of your boat. AIRMAR’s dual axis, electromagnetic multifunction sensor is exactly the advantage you need. The DX900+ measures transverse and longitudinal speed which instantaneously calculates leeway angle and speed through water with no latency. Normalized SKU: DX900DSTN2Airmar DX900-DST-N2 Literature Download Product Brochure
