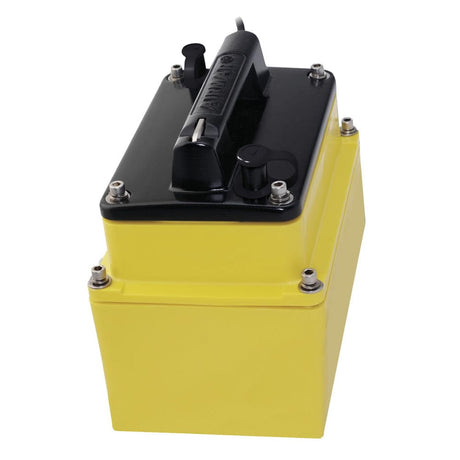

Airmar M265C-LH TransducersM265C-LH Low/High CHIRP In-Hull TransducerThe Airmar M265C-LH is a 1,000W transducer designed to work with chirp sonar systems and utilizes the Low and High Frequency ranges (Frequency Range Below). The M265C has 8 highly sensitive internal broadband ceramic assemblies to accurately mark depth, bait and fish, making it the perfect choice for commercial and recreational fisherman. You will also be able to see increased target detection whether you are fishing inshore or in deep offshore canyons. Designed for boats 8M (25) and above and only compatible with solid fiberglass hulls. *Includes plastic / urethane transducer housing.Features: Low:CHIRPS from 42 kHz to 65 kHz 25° to 16° beamwidth High: CHIRPS from 130 kHz to 210 kHz 16° to 11° beamwidth 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth No Connector Normalized SKU: M265CLH

Airmar SS175C-0-HW-12G TransducersAirmar SS175C-0-HW 0d TiltHigh Wide CHIRP With Garmin 12-PinModel: SS175C-0-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID® technology Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C0HW12G

Airmar SS175C-0-L TransducersAirmar SS175C-0-L 0d TiltLow CHIRP With No ConnectorModel: SS175C-0-L Depth and fast-response water-temperature sensor 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') = 32° to 21° beamwidth Great deep water performance High performance, low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls Exclusive Xducer ID® technology Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") Seven internal broadband ceramic assemblies Normalized SKU: SS175C0L

Airmar SS175C-0-M TransducersAirmar SS175C-0-M 0d TiltMedium CHIRP with No ConnectorModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500') Medium Frequency: 85 kHz to 135 kHz = 16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36') Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID® technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500') and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C0M

Airmar SS175C-0-HW TransducersAirmar SS175C-0-HW 0d TiltHigh Wide CHIRP With No ConnectorModel: SS175C-0-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID® technology Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C0HW

Airmar SS175C-0-L-11R TransducersAirmar SS175C-0-L 0d TiltLow CHIRP With Mix-N-Match PlugModel: SS175C-0-L Depth and fast-response water-temperature sensor 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') = 32° to 21° beamwidth Great deep water performance High performance, low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls Exclusive Xducer ID® technology Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0° to 7° hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8") Seven internal broadband ceramic assemblies Normalized SKU: SS175C0L11R

Airmar SS175C-0-M-12G TransducersAirmar SS175C-0-M 0d TiltMedium CHIRP with Garmin 12-PinModel: SS175C-0-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500') Medium Frequency: 85 kHz to 135 kHz = 16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36') Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID® technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500') and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise 0° to 7° hull deadrise Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C0M12G

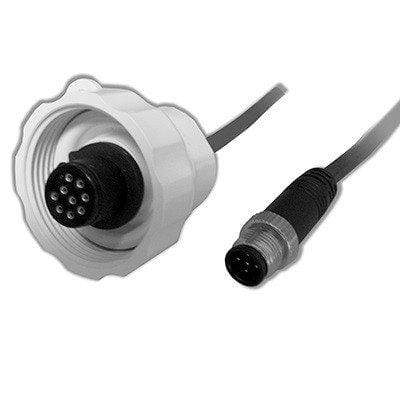

Airmar WS2-C10 Transducers"Use this cable to connect a PB150, PB200, WX100 G2183, H2183 and GH2183 ro a NMEA2000® network."Normalized SKU: WS2C10

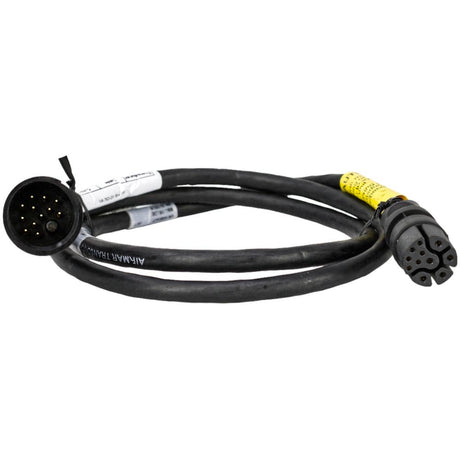

Airmar MMC-11R-LDB Accessories11-Pin Low-Frequency Mix & Match Cable for RaymarineSome CHIRP transducers are now made as Mix and Match models. These versions have a common base transducer with an attached 9-meter cable, plus an interchangeable short (1-meter) brand-specific adapter cable.The permanently-attached 9-meter cable ends in an Airmar 12-pin connector. This cable is run up through the boat to the equipment location. The short adapter cable connects to the transducer cable at one end and to the equipment at the other end.Both parts are needed for an installation. If the user changes equipment brand at some later time, the transducer and its attached cable can be left in place and only the adapter cable needs to be replaced.Note that CHIRP Mix and Match cables cannot be used with conventional 50/200kHz transducers.The same cables are used for all CHIRP transducers irrespective of their power rating. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: MMC11RLDB

Airmar SS175C-12-H TransducersAirmar SS175C-12-H 12d TiltHigh CHIRP with No ConnectorModel: SS175C-12-H Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 304 m (1000') High Frequency: 130 kHz to 210 kHz = 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency provides superior shallow water performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36') Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID® technology Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The High frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs and other structures. High frequency also delivers amazing target separation on baitfish and schooling gamefish. The SS175H delivers up to 80 kHz of total bandwidth in just one installation, and provides superior shallow water performance and bottom detail.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C12H

Airmar SS175C-12-L TransducersAirmar SS175C-12-L 12d TiltLow CHIRP with No ConnectorModel: SS175C-12-L Depth and fast-response water-temperature sensor 1 kW Low Frequency: 40 kHz to 60 kHz with maximum depth performance to 762 m (2500') 32° to 21° beamwidth Great deep water performance High performance, low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls in fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in a bronze housing (B175L) model for use in fiberglass and wood hulls Exclusive Xducer ID® technology Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") Seven internal broadband ceramic assemblies Normalized SKU: SS175C12L

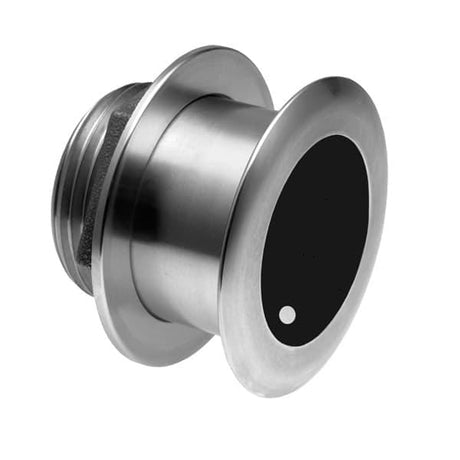

Airmar SS175C-12-M TransducersAirmar SS175C-12-M 12d TiltMedium CHIRP with No ConnectorModel: SS175C-12-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500') Medium Frequency: 85 kHz to 135 kHz = 16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36') Also available in a bronze housing (B175M) Exclusive Xducer ID® technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500') and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C12M

Airmar SS175C-12-HW TransducersAirmar SS175C-12-HW 12d TiltHigh Wide CHIRP with No ConnectorModel: SS175C-12-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID® technology Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C12HW

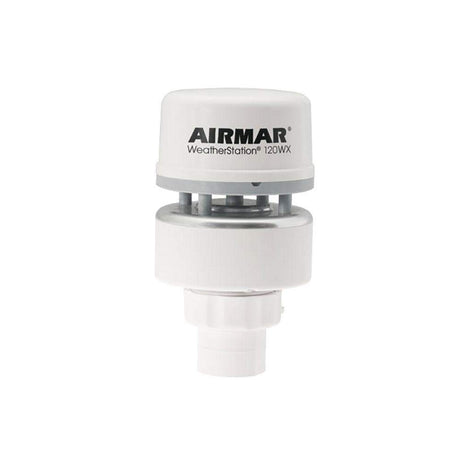

  Download LiteratureAirmar WS-120WX Weather Instruments120wx WeatherStation® InstrumentThe Model 120WX is Airmar’s solution for recreational boating; feature rich, in a Durable, Rugged, Small footprint that is IPX4 or IPX6 rated for this environment.Reliability and performance, along with no moving parts, makes the 120WX an easy and affordable choice for your recreational boating needs. Ultrasonic wind readings Apparent Wind speed & angle Barometric pressure Air temperature Wind chill Optional relative humidity module IPX4 with the RH Option IPX6 without the RH Option Output: Via a single cable (various lengths available)NMEA 0183 protocol over RS422 interface and NMEA 2000 protocol over CAN BUS SpecificationsWind DataWind Speed Range: 0 knots to 78 knots (0 MPH to 90 MPH, 0 m/s to 40 m/s)Wind Speed Resolution:0.1 knot (0.1 MPH, 0.1 m/s)Wind Speed Accuracy @ 0°C to 55°C (32°F to 131°F), no precipitation*:Low Wind Speeds: 0 -10 knots; 1 knot RMS +10% of reading (0 MPH to 11.5 MPH; 1.1MPH + 10% of reading) (0 m/s to 5 m/s; 0.5 m/s + 10% of reading) High Wind Speeds: 10-78 knots; 2 knots RMS or 5%, whichever is greater (11.5 MPH to 90 MPH; 2.3 MPH or 5%, whichever is greater) (5 m/s to 40 m/s; 1 m/s or 5%, whichever is greater) Wind Speed Accuracy in wet conditions**:5 knots RMS (5.7 MPH RMS, 2.5 m/s RMS) Wind Direction Range: 0° to 360° Wind Direction Resolution: 0.1° Wind Direction Accuracy @ 0°C to 55°C (32°F to 131°F), no precipitation*: Low Wind Speeds (5° RMS typical):4 - 10 knots (4.6 MPH to 11.5 MPH, 2 m/s to 5 m/s)High Wind Speeds (2° RMS typical):>10 knots (>11.5 MPH, >5 m/s)Wind Direction Accuracy in wet conditions** (8° RMS Typical):8 knots (>9.2 MPH, >4 m/s)Compass DataCompass Accuracy:1° static heading accuracy; 2° dynamic heading accuracyPitch and Roll DataPitch and Roll Range / Accuracy: ±50° / <1°Air Temperature Data Air Temperature Range***: -40°C to 55°C (-40°F to 131°F) Air Temperature Resolution: 0.1°C (0.1°F) Air Temperature Accuracy: ±1.1°C (±2°F)* @ >4 knots wind (>4.6 MPH wind) (>2 m/s wind) Barometric Pressure Data Barometric Pressure Range: 300 mbar to 1100 mbar (24 inHg to 33 inHg, 800 hPa to 1100 hPa) Barometric Pressure Resolution: 0.1 mbar (0.029 inHg, 0.1 hPa) Barometric Pressure Accuracy: ±1 mbar (±0.029 inHg, ±1 hPa) when altitude correction is available Relative Humidity Data Relative Humidity Range: 10% to 95% RH Relative Humidity Accuracy*: ±5% units RH Operating TemperatureOperating Temperature Range: -25°C to 55°C (-13°F to 131°F)Supply Voltage Supply Voltage: 12 VDC Supply Current (@ 12 VDC): (<85 mA) <1.0W, LEN 2Data Input/OutputOutput: Via a single cable (various lengths available)NMEA 0183 protocol over RS422 interface and NMEA 2000 protocol over CAN BUSOther Specifications Weight: 300 grams (0.8 lb) Mounting Thread Size on Base: Standard 1”-14 UNS (3/4” NPT optional) Certifications and Standards: CE, IPX6 (Relative Humidity/IPX4), RoHS, IEC60945RMS—Root Mean Square, LEN—Load Equivalency Number*When the wind speed is less than 2 m/s (4.6 MPH) and/or air temperature is below 0°C (32°F),wind, temperature, and relative humidity readings will be less accurate.**Wet conditions include moisture, rain, frost, dew, snow, ice and/or sea spray in the wind channel.***Temperature and relative humidity reports invalid during heater operation.****Airmar has made the address claiming modifications to enable compatibility with the ISO 11783communication protocol for the agriculture industry – that is based on the SAE J1939 protocol. Specifications:Barometric Pressure = Yes Barometric Trend = NONE Humidity = Yes Remote Monitoring = Yes Temperature = Yes Wind = Yes Wireless = NoNormalized SKU: WS120WXAirmar WS-120WX Literature Download  Owners Manual  Product Brochure

Download LiteratureAirmar TM258-HB TransducersTM258 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-PinThe re-designed TM258 sports a new look and better high-speed performance. The industry's first, 1kW, transom-mount transducer has an updated, rugged, mounting bracket. The sleek design makes the TM258 easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH).The TM258 will make 600W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. The TM258 packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition.Features: Depth & fast-response water-temperature sensor Elliptical beam covers larger bottom area Fits existing TM256 and TM258 models Bracket kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane transducer housing Boat Size: Up to 12M (40') Specifications: Weight: 3.6kg (7.9lb) Hull Deadrise: Up to 25° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM258HBAirmar TM258-HB Literature Download Quick Reference Guide Owners Manual Product Brochure

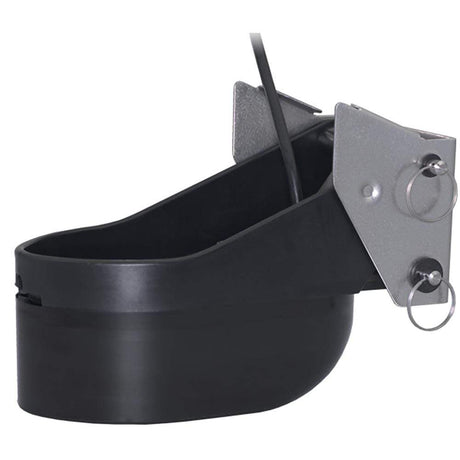

  Download LiteratureAirmar TM260-HB TransducersTM260 1kW Transom Mount Transducer w/Humminbird #9 Plug - 7-PinPowerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel's transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today's fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom. The TM260's rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).Features: Top-of-the-line narrow-beam transom-mount Designed for bottom fishing Wide 19° beam at 50 kHz Narrow 6° beam at 200 kHz Interfaces to any 600W or 1 kW sounder Depth and fast-response water-temperature sensor Kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane housing Boat Size: Up to 12M (40') Specifications: Weight: 4 kg (8.9 lb) Hull Deadrise: Up to 28° Acoustic Window: Urethane Specifications:Beam Width = 3° - 21° Cable Length (Feet) = NONE Fairing Block Included = NONE Frequency = 50/200kHz Load Equivalence # (LEN) = NONE Mounting Style = Transom Pins = NONE Speed Included = NONE Temperature = YesNormalized SKU: TM260HBAirmar TM260-HB Literature Download  Quick Reference Guide  Owners Manual  Product Brochure

Download LiteratureAirmar TM-258-14HB TransducersTM258 1kW Transom Mount Transducer w/Humminbird 14-Pin PlugThe re-designed TM258 sports a new look and better high-speed performance. The industry's first, 1kW, transom-mount transducer has an updated, rugged, mounting bracket. The sleek design makes the TM258 easier to install. And its streamlined shape will give you improved high-speed performance up to 30 knots (35 MPH).The TM258 will make 600W sounders respond like a more-powerful model. Get 16-times the sensitivity compared with a standard transom-mounted transducer. The TM258 packs four, 50 kHz/200 kHz elements to focus narrow beams at both frequencies, so you'll see crisp targets and clear bottom definition.Features: Depth  fast-response water-temperature sensor Elliptical beam covers larger bottom area Fits existing TM256 and TM258 models Bracket kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane transducer housing Boat Size: Up to 12M (40') Specifications: Weight: 3.6kg (7.9lb) Hull Deadrise: Up to 25° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM25814HBAirmar TM-258-14HB Literature Download Quick Reference Guide Owners Manual Product Brochure

Download Literature Airmar TM260-14HB Transducers TM260 1kW Transom Mount Transducer w/Humminbird 14-Pin Plug Powerful, Yet Sensitive! The TM260 takes the legendary performance of the B260 to your vessel's transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today's fishfinders. The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation, along with detecting ground fish holding tight to the bottom. The TM260's rugged mounting bracket is easy to install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH). Features: Top-of-the-line narrow-beam transom-mount Designed for bottom fishing Wide 19° beam at 50 kHz Narrow 6° beam at 200 kHz Interfaces to any 600W or 1 kW sounder Depth and fast-response water-temperature sensor Kick-up assembly locks in the "up" position and will not damage the transom Accommodates transom angles between 3° and 21° Urethane housing Boat Size: Up to 12M (40') Specifications: Weight: 4 kg (8.9 lb) Hull Deadrise: Up to 28° Acoustic Window: Urethane This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: TM26014HB Airmar TM260-14HB Literature Download Quick Reference Guide Owners Manual Product Brochure

Airmar SS175C-20-H TransducersAirmar SS175C-20-H 20d TiltHigh CHIRP With No ConnectorModel: SS175C-20-H Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 304 m (1000') High Frequency: 130 kHz to 210 kHz 10° to 6° beamwidth 80 kHz of total bandwidth from one transducer High frequency provides superior shallow water performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36') Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175H) model Exclusive Xducer ID® technology Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The low frequency band is the deep water performer delivering excellent coverage and tracking in deeper depths. The SS175L transducer delivers up to 20 kHz of total bandwidth in just one installation and delivers tremendous deep water performance.Tilted element transducers have the ceramic element fixed at either a 20°, 12° or 0° angle within the transducer housing. The transducer is installed almost flush to the hull and the tilted element corrects for the hull deadrise by orienting the beam directly down. This assures maximum echo returns to the transducer and more accurate depth readings.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C20H

Airmar SS175C-20-HW TransducersAirmar SS175C-20-HW 20d TiltHigh Wide CHIRP with Garmin 12-PinModel: SS175C-20-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID® technology Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C20HW
