Airmar SS175C-20-HW TransducersAirmar SS175C-20-HW 20d TiltHigh Wide CHIRP with Garmin 12-PinModel: SS175C-20-HW Depth and fast-response water-temperature sensor 1 kW with a maximum depth of 152 m (500') High Frequency: 150 kHz to 250 kHz = Constant 25° beamwidth 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth High frequency provides superior shallow water performance, bottom detail and fish target separation High wide beamwidth provides more coverage under the boat for detecting fish in the upper water column Low-profile thru-hull housing provides good resolution at speed when installed properly Stainless steel housing for use on stepped, planing or displacement hulls made of fiberglass, wood or metal Recommended boat size: Up to 11 m (36') Also available in transom-mount (TM185HW), in-hull (M285HW) and bronze housing (B175HW) models Exclusive Xducer ID® technology Get more coverage under your boat with Airmar’s unique wide beam, high frequency Chirp-ready transducers. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies. The high frequency band results in superior resolution. The constant wide beamwidth provides twice the coverage under the boat and excellent fish arches on the display compared to most high frequency narrow beam transducer options.The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage under the boat are essential down to 500'.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C20HW

Airmar SS175C-20-HW-BL TransducersAirmar 20-Degree Tilt High Wide CHIRP Navico BL #SS175C-20-HW-BLNormalized SKU: SS175C20HWBL

Airmar SS175C-20-HW-0 TransducersAirmar SS175C-20-MThru Hull20 Deg Tilt Medium CHIRPHumminbird 9-PinModel: SS175C-20-M Depth and water-temperature sensor 1 kW with a maximum depth of 457 m (1500') Medium Frequency: 85 kHz to 135 kHz 16° to 11° beamwidth 50 kHz of total bandwidth from one transducer Medium frequency provides excellent shallow to mid-depth performance, bottom detail and fish target separation Recommended boat size: Up to 11 m (36') Stainless steel housing is compatible with all hull types and materials Also available in a bronze housing (B175M) Exclusive Xducer ID® technology Medium frequency delivers the right combination between coverage under the boat, extended depth range and the ability to produce clean and accurate target and structure returns in the mid to deeper water depths. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths (up to 1500') and delivers ultra-clear target resolution.Tilted element transducers have the element fixed at either a 20°, 12° or 0° angle within the transducer housing. Because the transducer is installed almost flush to the hull, when the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.Specifications Weight 2.7 kg (6 lb) Hull Deadrise Up to 24° Acoustic Window Urethane Hole Size 98 mm (3-7/8") One internal ceramic assembly Normalized SKU: SS175C20HW0

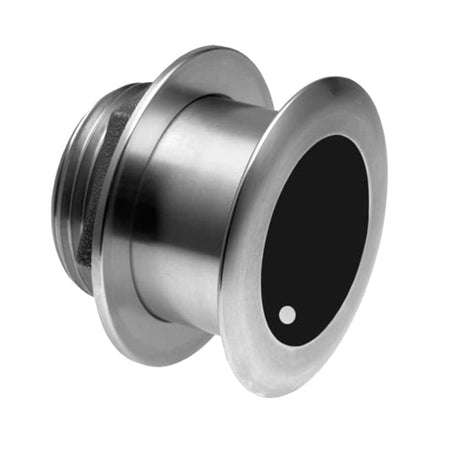

Airmar SS264-20-W2-10F TransducersAirmar SS264 50kHz Wide Beam, 1kW, 20° Tilt, Furuno 10-Pin, Depth and tempModel: SS264-20-W5-10F Depth and fast-response water-temperature sensing SS264N operating at 50 kHz frequency delivers a wide 25° beam 1 kW of power Outstanding performance Low profile design so minimal protrusion below the hull Stainless steel housing for use with all hull materials Patented Xducer ID® technology Fixed 20° tilted version for 16 to 24° hull deadrise angles The legendary B260’s 1 kW performance is now available for fast sport-fishing boats—no fairing required! Airmar has taken the proven B260 and split it apart into a pair of low-profile transducers. One transducer handles 50 kHz while the other operates at 200 kHz. And the ceramic element in each unit has been tilted to offset the deadrise angle of your boat’s hull.Called the SS264N, these transducers are perfect for fast center-console and tailored sport-fishing boats, or any vessel that cannot have a thru-hull with a High-performance Fairing. The narrow-beam, broadband, 200 kHz transducer will give excellent resolution and crisp image detail needed for bottom fishing. This transducer’s low ringing is perfect for finding fish holding tight to the bottom and other structure. The seven-element, 50 kHz transducer is best for deep-water sounding down to 914 m (3000').Normalized SKU: SS26420W210F

Airmar 33-391-01 TransducersAirmar 33-391-01 Fairing Block for B260/265/275 #33-391-01Normalized SKU: 3339101

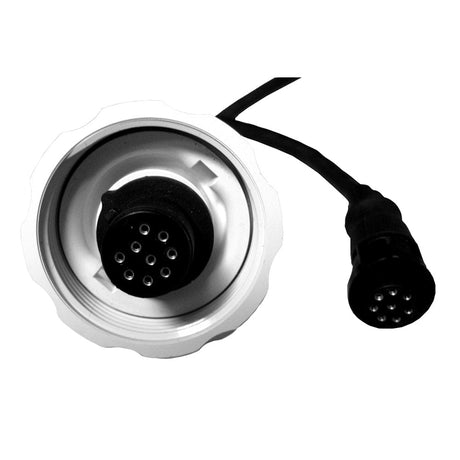

Airmar MM1-DST-8G AccessoriesMM1-DST-8G Mix and Match™ Garmin Blue 8-Pin CableMix and Match 1kW transducers are made as a common base transducer with a short (2m) cable attached, plus an interchangeable longer (8m) brand-specific adapter cable. The short pigtail attached to the transducer ends in an Airmar 9-pin male connector. The adapter cables have a matching Airmar 9-pin female connector at one end and the correct connector for a specific brand of electronics at the other end.Both parts are needed for an installation. If the user changes equipment brand at some later time, the transducer can be left in place and the adapter cable replaced.Note: 1kW Mix and Match cables cannot be used with 600W transducers or CHIRP transducers.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: MM1DST8GUPC Code: 801769003055

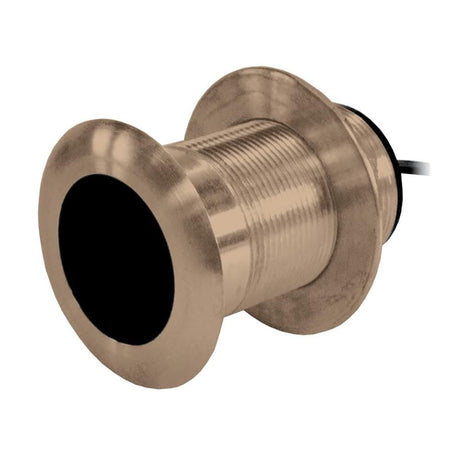

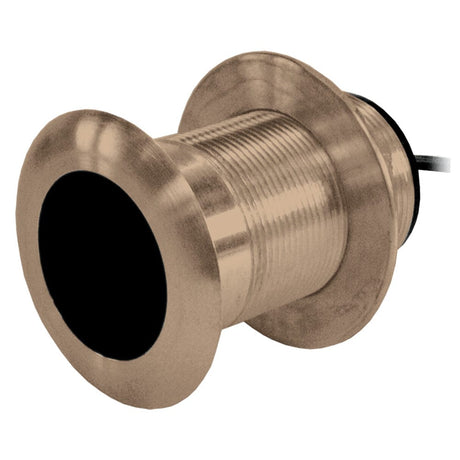

Airmar B117-DT-8G Transducers Airmar B117DT 50/200kHz Low Profile Bronze Thru hull Depth and Temp with Garmin 8-Pin Model: B117DT-8G Depth and temperature 600 W Right-angle cable exit saves space and protects the transducer if stepped on Low-profile, bronze housing has minimal drag The B117 features a 50/200 kHz, dual-frequency, single, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16) extending outside of the hull. SpecificationsWeight 0.9 kg (2.0 lb.) Recommended Boat Length Up to 8 m (25 feet) Hull Material Fiberglass or wood Hull Deadrise Best performance through 7 deg. Can accommodate up to a 12 deg. Acoustic Window Urethane Hole Diameter 51 mm (2 in) Normalized SKU: B117DT8G
