Furuno TM275LHW TransducersAirmar TM275-LHW Transom Mount Low/High Wide CHIRP Transducer with No ConnectorModel: TM275LHW Depth & fast-response water-temperature sensor Low - CHIRPS from 42 kHz to 65 kHz - 25° to 16° beamwidth High - CHIRPS from 150 kHz to 250 kHz - 25° constant beamwidth 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° Beamwidth, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.A unique property of the new high frequency transducers is that the Beamwidth is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.Specifications Hull deadrise up to 28° Acoustic window Urethane What's in the Box: TM-275 LHW Transom Mount Bracket and Hardware 3 - 3deg Shims Normalized SKU: TM275LHWUPC Code: 6116793595518

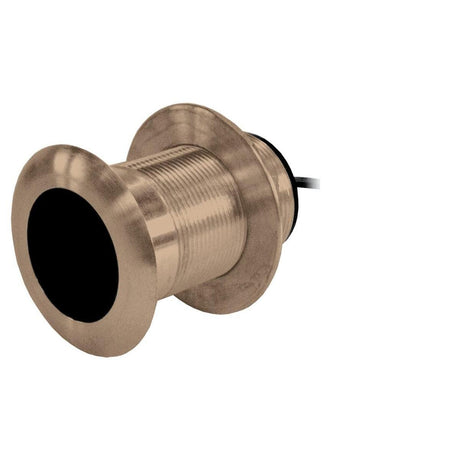

Raymarine A80805 TransducersRaymarine B150M 300 Watt 20Deg Tilt Wide Beam CHIRP Thru HullModel: A80805 Depth and fast-response water-temperature sensing 300 W of power with a maximum depth of 183 m (600') Medium frequency: 95 to 155 kHz - 26° x 17° beamwidth put more energy on targets for great target separation 60 kHz of total bandwidth from one transducer ideal for inshore or coastal fishing Low-profile, thru-hull housing provides good display resolution at speed when installed properly Recommended for stepped, planing, or displacement hull Bronze housing for use in a fiberglass or wood hull Also available as a transom mount (TM150M) Patented Xducer ID® technology Fixed 20° tilted version for 16 to 24° hull deadrise angles Airmar’s B150M delivers a great combination of shallow and mid-depth performance. Operating at a frequency range of 95 to 155 kHz, this transducer reveals fish in shallow waters and deeper depths down to 183 m (600') with ultra-clear target resolution. Narrow beam angles are perfect for detecting fish holding close to structures and suspended fish—ideal for freshwater, inshore, or coastal fishing in shallow to medium depth.Tilted Element™ transducers have the ceramic element fixed at a 20°, 12°, or 0° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise, orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.Specifications Power Rating 300 W Max Deadrise Angle 24° Housing Bronze Functions Depth, Temperature Hull Material Fiberglass or wood Max Vessel LOA Up to 8 m (26') Hole Size 51 mm (2") Usable Shaft Length 66.5 mm (2.62") Mounting Style Tilted Element Thru-Hull Acoustic Window Urethane Common Use Leisure/Yachting, Fishing Max Deadrise Up to 24° Max Depth 183 m (600') Medium Frequency 95-155 kHz Medium Frequency Beamwidth 26°-17° Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element Yes Weight 1.4 kg (3 lb.) Normalized SKU: A80805UPC Code: 723193862520

Raymarine A80804 TransducersRaymarine TM185HW 1Kw Depth and Temperature CHIRP Transom MountModel: A80804 Depth and fast-response water-temperature sensing 1 kW of power High frequency: 150 to 250 kHz - Constant 25° beamwidth - Maximum depth of 152 m (500') 100 kHz of total bandwidth from one transducer Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth Stainless steel bracket for installation on outboard or inboard/outboard powered boats Recommended for use on planing and displacement hulls SEALCAST™, seamless, urethane housing for long life in the water Also available as thru-hull Tilted™ Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts Patented Xducer ID® technology Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').Specifications Power Rating 1 kW Transom Angle 3° to 21° Functions Depth, Temperature Max Vessel LOA Up to 10 m (33') Acoustic Window Urethane Common Use Leisure/Yachting, Fishing Freq Hi Wide 150-250 kHz High-Wide Beamwidth 25° Housing Urethane/Stainless Bracket Hull Material Compatible w/ all hull materials Max Depth 150 m (500') Mounting Style Transom Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element No Weight: 4.2 kg (9.2 lb.) Normalized SKU: A80804UPC Code: 723193862544

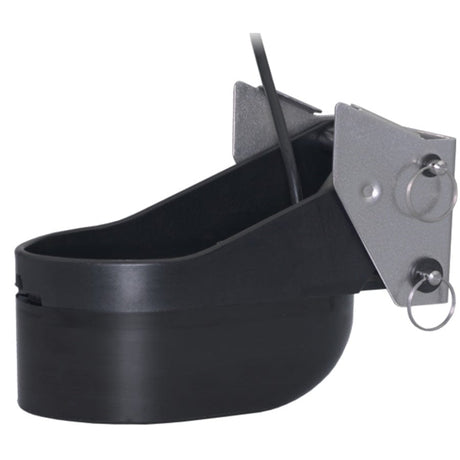

Raymarine A80803 TransducersRaymarine TM185MW 1Kw Depth and Temperature CHIRP Transom MountModel: A80803 Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Simple installation on transom of the boat Great performance at boat speeds below 30 knots Easy maintenance and low-cost replacement Exclusive Xducer ID® technology AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60?100 kHz.The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.Specifications Power Rating 1 kW Transom Angle 2° to 22° Functions Depth, Temperature Acoustic Window Urethane Cable-Length 9 m (30') Common Use Leisure/Yachting, Fishing Country of Origin USA Freq Med Wide 60-100 kHz Housing Urethane/Stainless Bracket Hull Material Compatible w/ all hull materials Max Depth 400 m (1300') Medium Frequency 60-100 kHz Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a Mounting Style Transom Power Rating 1 kW Retractable housing No Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element No Weight 4.2 kg (9.2 lb.) Normalized SKU: A80803UPC Code: 723193862537

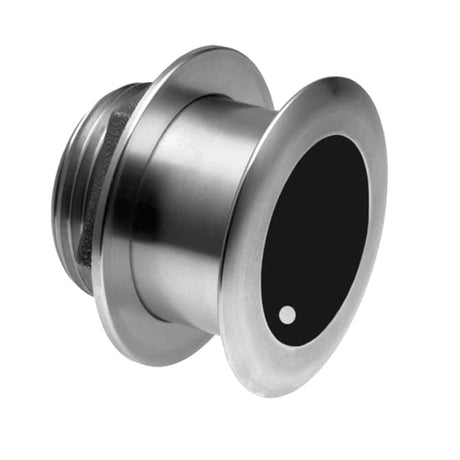

Raymarine A80802 TransducersRaymarine SS75MW 1Kw 20Deg Tilt Wide Beam CHIRP Thru HullModel: A80802 Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300ft) Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water columnAirmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Specifications Power Rating 1 kW Max Deadrise Angle 24° Housing Stainless Steel Functions Depth, Temperature Hull Material All hull materials Max Vessel LOA Up to 11 m (36') Hole Size 95 mm (3-3/4") Mounting Style Tilted Element Thru-Hull Acoustic Window Urethane Cable-Length 9 m (30') Common Use Fishing Max Depth 400 m (1300') Medium Frequency 60-100 kHz Medium Frequency Beamwidth 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a Power Rating 1 kW Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element Yes Water Temperature -10° to 40°C (14° to 104°F) Weight 2.7 kg (6 lb.) Normalized SKU: A80802UPC Code: 723193862520

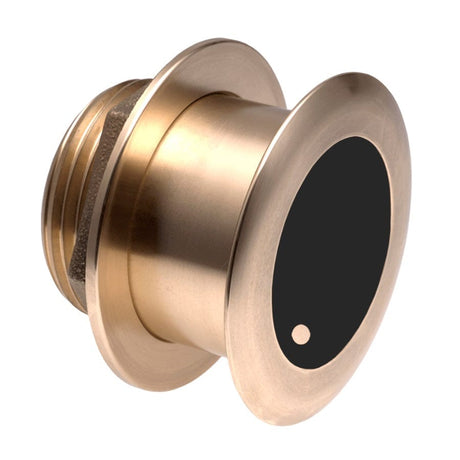

Raymarine A80801 TransducersRaymarine B175MW 1Kw 20Deg Tilt Wide Beam CHIRP Thru HullModel: A80801 Depth and fast-response water-temperature sensor 1 kW with depth tracking down to 400 m (1,300') Medium frequency: 60-100 kHz - 57° to 73° beamwidth (port/starboard) - 16° average fore/aft 40 kHz of total bandwidth from one transducer Medium frequency for superior mid-depth performance and excellent fish-target separation Bronze housing for use on stepped, planing or displacement hull Low-profile, thru-hull housing yields good resolution at speed when installed properly Exclusive Xducer ID® technology AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.Specifications Power Rating 1 kW Max Deadrise Angle 24° Housing Bronze Functions Depth, Temperature Hull Material Fiberglass or wood Max Vessel LOA Up to 11 m (36') Hole Size 95 mm (3-3/4") Mounting Style Tilted Element Thru-Hull Acoustic Window Urethane Cable-Length 9 m (30') Common Use Fishing Max Depth 400 m (1300') Medium Frequency 60-100 kHz Medium Frequency Beamwidth 57° to 73° (Port/Starboard) X 16° average (Fore/Aft) Medium-Wide Beamwidth 57° to 73° beam p/s 16° average f/a Power Rating 1 kW Single or Dual Frequency CHIRP-Ready Single-Band Tilted Element Yes Water Temperature -10° to 40°C (14° to 104°F) Weight 2.7 kg (6 lb.) Normalized SKU: A80801UPC Code: 723193862513
