Airmar M265C-LH-MM Transducers

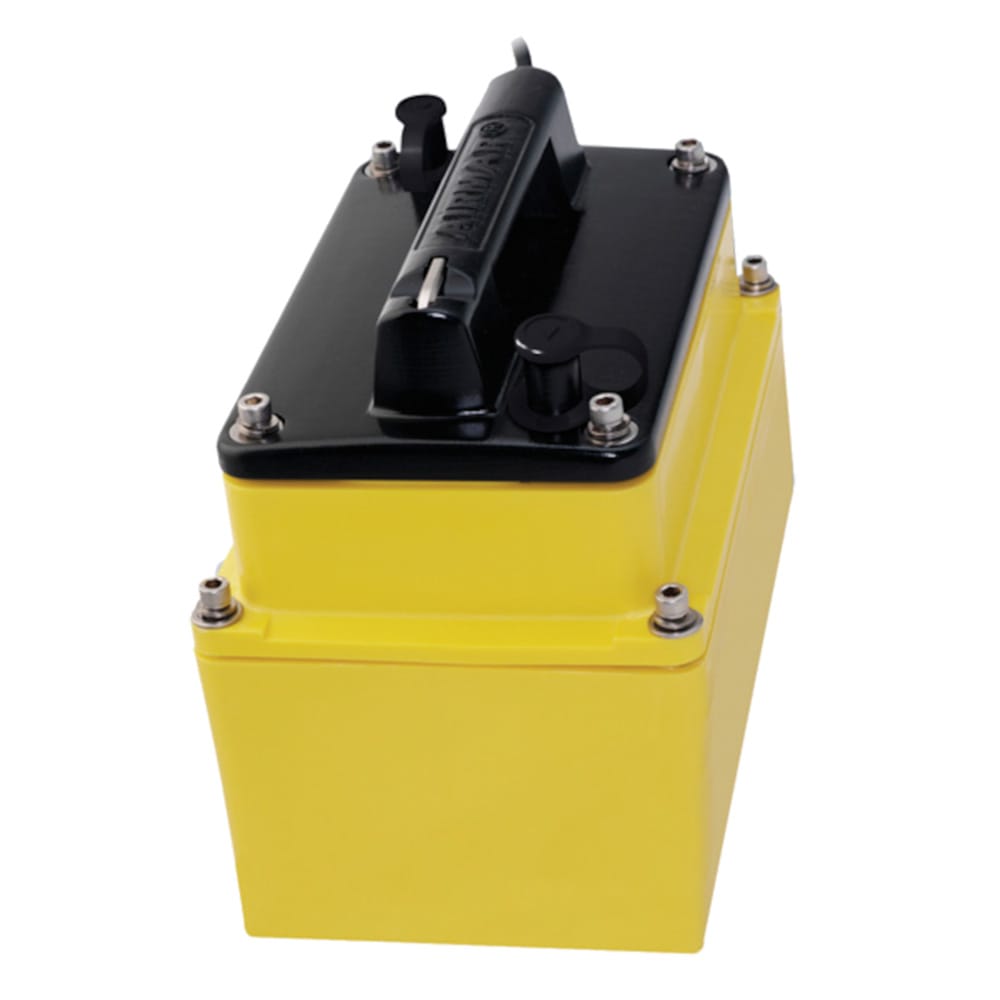

M265 Low-High Chirp 1KW In Hull Transducer

*Requires Mix & Match Cable*

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The transducer is installed in the included tank, which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

Features:

  • Depth only
  • 1 kW of power for great deep-water performance
  • Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')
  • High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')
  • 103 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz, plus everything else in the bandwidth
  • Plastic transducer housing and mounting tank
  • Patented Xducer ID® technology

Specifications:

  • Mounting Style: In-Hull
  • Frequency Band: Low-High
  • Max Deadrise Angle: 30°
  • Material: Plastic
  • Functions: Depth
  • Max Deadrise: Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull
  • Power Rating: 1 kW
  • Deadrise Range: 0° to 22°
  • Max Vessel LOA: Up to 11 m (36')
  • Display Connector: Mix and Match Cable Optional
  • Hull Material: Solid fiberglass only
  • Sensor Connector: MMC
  • High Frequency: 130-210 kHz
  • Low Frequency Beamwidth: 25°-16°
  • Low Frequency: 42-65 kHz
  • Acoustic Window: Urethane
  • High Frequency Beamwidth: 10°-6°
  • Single or Dual Frequency: CHIRP-Ready Dual-Band
  • Country of Origin: USA
  • Cable-Length: 9 m (30')
  • Weight: 5.2 kg (11.5 lb.)
  • Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')

Normalized SKU: M265CLHMM
UPC Code: 801769006018

Airmar M265C-LH-MM Literature Download

Product Brochure
