Quick Comparison: Best Marine Chartplotter for Small Boats in 2026
Finding the best marine chartplotter for small boats comes down to matching screen size to helm space, sonar to how you fish, and chart coverage to where you actually run. This guide from First Choice Marine breaks down six units we recommend for compact consoles.
Small boats punish oversized electronics. A crowded dash, a single battery, and a bracket mount that flexes in chop all limit what a marine chartplotter can realistically do. The units below were selected on four criteria: physical footprint, sunlight readability, sonar and chart value, and whether the wiring will fit a small-boat electrical system.
| Model | Sonar | Preloaded Charts | Price |
|---|---|---|---|
| Garmin ECHOMAP 74cv UHD2 | CHIRP + ClearVü | BlueChart g3 coastal | $703.46 |
| Garmin ECHOMAP 54cv UHD2 | CHIRP + ClearVü | BlueChart g3 coastal | $462.65 |
| Garmin ECHOMAP UHD2 63sv | CHIRP + ClearVü + SideVü | Navionics+ inland | $854.19 |
| Lowrance Elite-7 Ti2 | Active Imaging 3-in-1 | C-MAP US Inland | $828.04 |
| Simrad GO9 XSE | CHIRP + DownScan + SideScan | C-MAP Discover | $830.96 |
| Garmin GPSMAP 723xsv | Built-in SideVü/ClearVü/CHIRP | Worldwide basemap | $1,299.99 |
How We Picked These Small-Boat Chartplotters
We screened for units that physically fit a small console and run on a 12 V system without a major electrical upgrade. Screen size came first, because a 9-inch display rarely fits a center console dash without blocking gauges.
Sonar type drove the second cut. Anglers need a chartplotter with fishfinder capability built in; cruisers can often skip it and save money. We also weighed chart coverage, since preloaded coastal versus inland mapping changes the real cost of ownership once you add a card or subscription.
Our team at First Choice Marine stocks these units because they hold up to spray, sun, and vibration. The National Marine Manufacturers Association boating statistics confirm what we see at the counter: recreational boat ownership stays strong, and electronics upgrades are one of the first projects owners take on.
1. Garmin ECHOMAP 74cv UHD2: Best Overall Marine Chartplotter for Coastal Small Boats
The 74cv UHD2 pairs a 7-inch keyed display with BlueChart g3 coastal charts and a GT20-TM transducer in the box. At $703.46, it covers navigation and fishfinding without a second purchase.
Keyed buttons matter more than buyers expect. In chop, a physical key is faster and more reliable than a wet touchscreen, and the 74cv keeps that control scheme while still offering Wi-Fi for waypoint and route sharing between compatible ECHOMAP UHD2 units.
Where it falls short: the coastal chart set is wasted if you fish inland lakes, and the 4-pin transducer port limits you to Garmin's own transducer range. If your boating is mostly freshwater, buy the 63sv or 73cv instead.
Garmin's official ECHOMAP UHD2 product documentation
2. Garmin ECHOMAP 54cv UHD2: Best Budget Marine Chartplotter for Small Boats
At $462.65, the 54cv UHD2 is a cost-effective way to get a marine chartplotter on a small boat. It ships without a transducer, which is the trade-off: you supply your own.
The 5-inch keyed display is small, and that is the point. It fits a kayak, a tiller-steer skiff, or a cramped side console where nothing larger will mount. You still get CHIRP traditional and ClearVü sonar support, BlueChart g3 coastal charts built in, and Wi-Fi sharing with other ECHOMAP UHD2 units on the boat.
The honest limitation is screen real estate. Split-screen sonar and chart views get tight on a 5-inch panel, and reading depth numbers at speed takes a glance longer than it does on a 7-inch unit.
3. Garmin ECHOMAP UHD2 63sv: Best Chartplotter with Fishfinder for Inland Anglers
Inland anglers should start here. The 63sv bundles three sonar types, CHIRP traditional, ClearVü, and SideVü, with Garmin Navionics+ inland cartography and a GT54 transducer for $854.19. SideVü is the differentiator: it scans to the sides of the boat, which is how you find structure you would otherwise motor straight past.
The 6-inch touchscreen includes a keyed assist, so you get touch convenience with hardware backup. Multi-band GPS improves position accuracy where signals bounce off bluffs or bridge pilings, and the unit supports LiveScope live-scanning sonar if you upgrade later. It also wirelessly connects to a Garmin Force trolling motor for route following and speed control.
The catch is the 12-pin transducer port and NMEA 2000 plus Garmin Marine Network connections. That is more wiring than a simple skiff needs, and the $854.19 price reflects capability you may not use.
4. Lowrance Elite-7 Ti2: Best Compact Unit for Tight Console Space
The Elite-7 Ti2 is suitable for limited console space. It measures 8.6 inches wide by 5.6 inches tall, and the 7-inch SolarMAX display delivers 800 x 480 resolution with Active Imaging 2-in-1 sonar and a mid/high skimmer transducer included at $828.04.
Two features stand out for small-boat owners. Genesis Live creates half-foot contour maps on screen in real time, which is genuinely useful on water that has never been surveyed well. FishReveal overlays CHIRP fish targets onto DownScan imagery, so you see fish and bottom detail in one view instead of switching panels.
The limitation is the older processor and screen technology. Colors and target separation trail the newer Garmin units, and the 9-pin transducer connection needs an adapter for some third-party transducers.
5. Simrad GO9 XSE: Best Touchscreen Marine Chartplotter for Fast Boats
The GO9 XSE runs a built-in 10 Hz GPS antenna that updates position ten times per second. The 9-inch multi-touch display pushes 1,200 nits of brightness, bright enough to stay readable in direct sun.
Garmin ECHOMAP 74cv UHD2 with GT20 Transducer #010-02595-51 →
It ships with a transom-mount 83/200 kHz skimmer transducer and C-MAP Discover charts for $830.96. The built-in echosounder handles CHIRP, ForwardScan, Sidescan, and Downscan imaging with the right transducer, and there is a radar port for a Simrad solid-state radar plus NMEA 2000 control of autopilot, audio, and engine data.
Read the specs carefully before buying. The 480 x 800 screen resolution is low for a 9-inch panel, and ForwardScan and StructureScan require transducers sold separately. On a small boat, a 9-inch display also eats dash space fast.
6. Garmin GPSMAP 723xsv: Best Networked MFD for Small Boats That Plan to Grow
The GPSMAP 723xsv is a multifunction display with built-in Ultra High-Definition SideVü, ClearVü, and 1 kW CHIRP traditional sonar, plus a Garmin Marine Network port and NMEA 2000 for radar, autopilot, AIS, and Fusion-Link audio. It lists at $1,299.99.
The 7-inch display carries 60% more pixels than the previous generation, with edge-to-edge glass and a smaller footprint that retrofits into tighter dash cutouts. It also supports Panoptix LiveScope when you add the transducer. The worldwide basemap means no preloaded regional charts, so plan on buying Garmin Navionics+ or BlueChart g3 separately.
That is the honest drawback. This is the most expensive unit here, it needs a chart purchase to be useful locally, and most of its networking value only appears once you add other devices.
NOAA Office of Coast Survey navigation chart resources

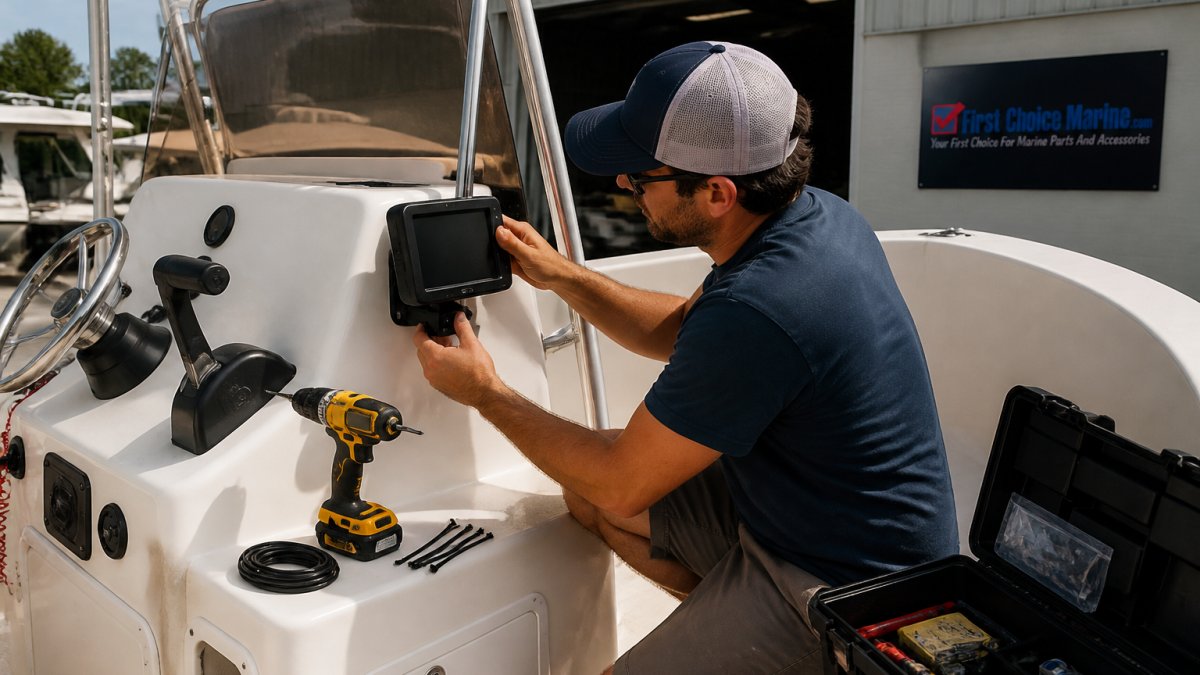

Chartplotter Installation on a Small Boat: Space, Power, and Mounting
Installation on a small boat is a three-part problem: find the dash space, confirm the power budget, and mount the unit so it survives vibration.
Work through this checklist before you drill anything:
- Measure the cutout and confirm at least 2 inches of clearance behind the dash for cables
- Check the mount type: bail, flush, or flat, and pick what your dash actually supports
- Verify the transducer location clears the propeller and stays submerged at speed
- Confirm the unit's voltage range against your system, typically 10-17 V DC
- Trace power to a switched circuit, not a constant live feed, to avoid a dead battery
- Seal every through-hull and cable entry point
- Test the GPS lock and sonar reading before final tightening
For a GPS plotter vs chartplotter decision: a plotter shows position and basic navigation, while a chartplotter adds detailed charts, waypoints, routes, and often sonar. On a small boat, buy the chartplotter. The price gap has closed enough that the extra capability is worth it.
Waterproofing and sunlight readability decide whether a unit lasts. Look for an IPX7 water rating and a display rated for bright conditions, and plan an offline backup. Keep paper charts or a second device with downloaded charts, because a single failed unit should not end your day on the water.
U.S. Coast Guard boating safety and navigation guidance
Frequently Asked Questions
What is the best chartplotter for a small boat?
For most small boats, a 7-inch unit with preloaded coastal or inland charts and built-in sonar covers the widest range of use. The Garmin ECHOMAP 74cv UHD2 at $703.46 is a strong all-round pick: it includes US coastal maps, CHIRP traditional and ClearVü sonar, a GT20 transducer, and Wi-Fi sharing between compatible ECHOMAP UHD2 units. If you fish inland lakes, the ECHOMAP 73cv UHD2 at $653.21 swaps coastal charts for US inland maps at a lower price.
What screen size is best for a small-boat chartplotter?
A 5-inch display suits kayaks, tiller-steered skiffs, and boats with almost no dash space. A 7-inch screen is the practical sweet spot for most small boats: large enough for split chart and sonar views, small enough to fit a bracket or flush mount. Step to 9 inches only if you have a real dash footprint and steady 12V power, since a 9-inch unit like the Simrad GO9 XSE draws more current and takes noticeably more room.
What is the difference between a GPS plotter and a chartplotter?
A GPS plotter shows your position, speed, and heading, and lets you mark waypoints. A chartplotter adds detailed navigation charts underneath that position, so you see depth contours, channels, navaids, and hazards on screen. In practice, GPS plotter vs chartplotter is mostly a naming convention: nearly every unit sold today combines a GPS receiver with chart support. The real question is which charts are preloaded and whether you can add more later via a chart card.
Do I need a fishfinder built into my chartplotter?
Only if you fish. A chartplotter with fishfinder built in, like the Garmin ECHOMAP 63sv at $854.19, gives you traditional, ClearVü, and SideVü sonar on the same screen as your charts, which saves dash space and one power feed. If you cruise or sail and rarely fish, a standalone chartplotter such as the Garmin GPSMAP 723 at $1,427.01 keeps the install simpler and lets you add sonar later through a black box.
Can I use a tablet as a marine chartplotter?
A tablet can show charts and your position, but it is not a replacement for a mounted marine chartplotter. Consumer tablets are not built to IPX7 water ratings, their screens wash out in direct sun, and they depend on a charged battery and a cellular or Wi-Fi connection. A dedicated unit runs off your boat's 12V system, holds GPS accuracy with a high-sensitivity receiver, and keeps working when your phone has no signal.
How much does a small-boat chartplotter cost in total?
Plan for the display plus the parts around it. Displays in this roundup run from $462.65 for the Garmin ECHOMAP 54cv UHD2 (no transducer included) to $1,427.01 for the Garmin GPSMAP 723. Add a transducer if your unit does not include one, a mount or flush-mount kit, NMEA 2000 cabling if you network devices, and any premium chart card. All items listed here qualify for free shipping, which removes one line from the total.
Choosing the right marine chartplotter for a small boat comes down to three decisions: how much dash space you have, whether you need sonar, and which waters you run. Get one of those wrong and you either overspend or run out of screen.
