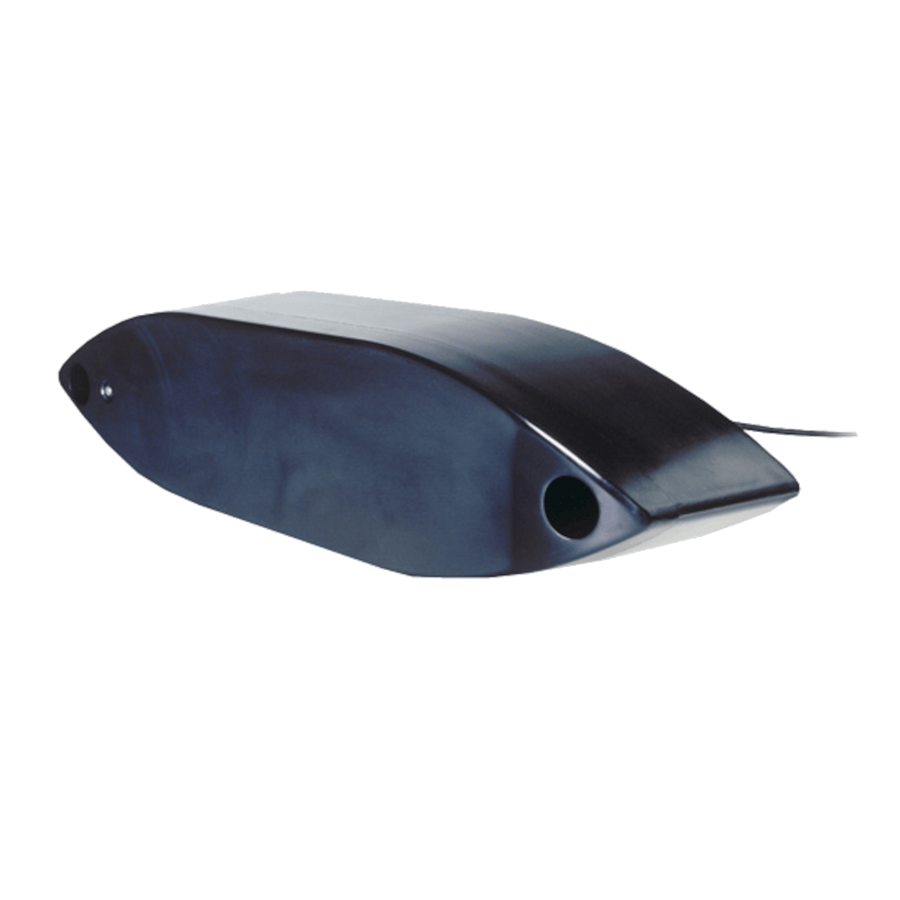

Airmar R109C-LM Transducers

Airmar R109LM Low/Medium CHIRP 2kW Thru-Hull Transducer, No Connector
Model: R109C-LM (MFG# 41-471-1-01)

  • Depth and fast-response water-temperature sensing
  • 2 kW of power for outstanding deep-water performance
  • Low frequency: 38 to 75 kHz, 19° to 10° port-starboard beamwidth, 10° to 5° fore-aft beamwidth, maximum depth of 1829 m (6000')
  • Medium frequency: 80 to 130 kHz, 13° to 8° beamwidth, maximum depth of 914 m (3000')
  • 87 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 38, 50, 88 and 107 kHz plus everything else in the bandwidth
  • Urethane housing with fairing for optimal performance
  • Also available as in-hull (R111LM) and pocket/keel/welded-tank (PM111LM) mounts
  • Patented Xducer ID® technology

Having the right tool for the job makes the job easier and gives better results. The right tool for covering deep-water haunts of swordfish, tuna and other species is a 2 kW, low and medium-frequency transducer. The Chirp-ready R109LM delivers the deep-water performance of the low frequency down to 1829 m (6000') plus the detailed returns produced by the narrower beams of the medium band.

Chirp technology shows 5 to 10 times greater detail and resolution than conventional frequencies. The R109LM Chirps across the low-frequency bandwidth of 38 to 75 kHz and operates in the medium-frequency range of 80 to 130 kHz. This transducer delivers up to 87 kHz of total bandwidth in a single installation.

Specifications
General
Brand Airmar Technology
Single or dual frequency CHIRP-Ready Dual-Band
Frequency band Low-Medium
Power rating 2 kW
Functions Depth, Temperature
Common use Fishing, Commercial Fishing
Country of origin USA
Frequency and Beamwidth
Low frequency 38-75 kHz
Low frequency beamwidth 19°-10°
Medium frequency 80-130 kHz
Medium frequency beamwidth 13°-8°
Tilted element No
Max depth Low frequency - 1829 m (6000'); Medium frequency - 914 m (3000')
Construction
Material Urethane
Acoustic window Epoxy/urethane
Cable length 15 m (49')
Weight 15.1 kg (33.3 lb.)
Connector Bare Wire
Installation
Mounting style Thru-Hull
Hull material Compatible w/ all hull materials
Max vessel LOA 12 m (40') and above
Max deadrise Up to 22°
Deadrise range Up to 25° with fairing
Cross Reference
Garmin part number 010-12809-20

Normalized SKU: R109CLM
