Airmar B175C-20-MW-12G Transducers

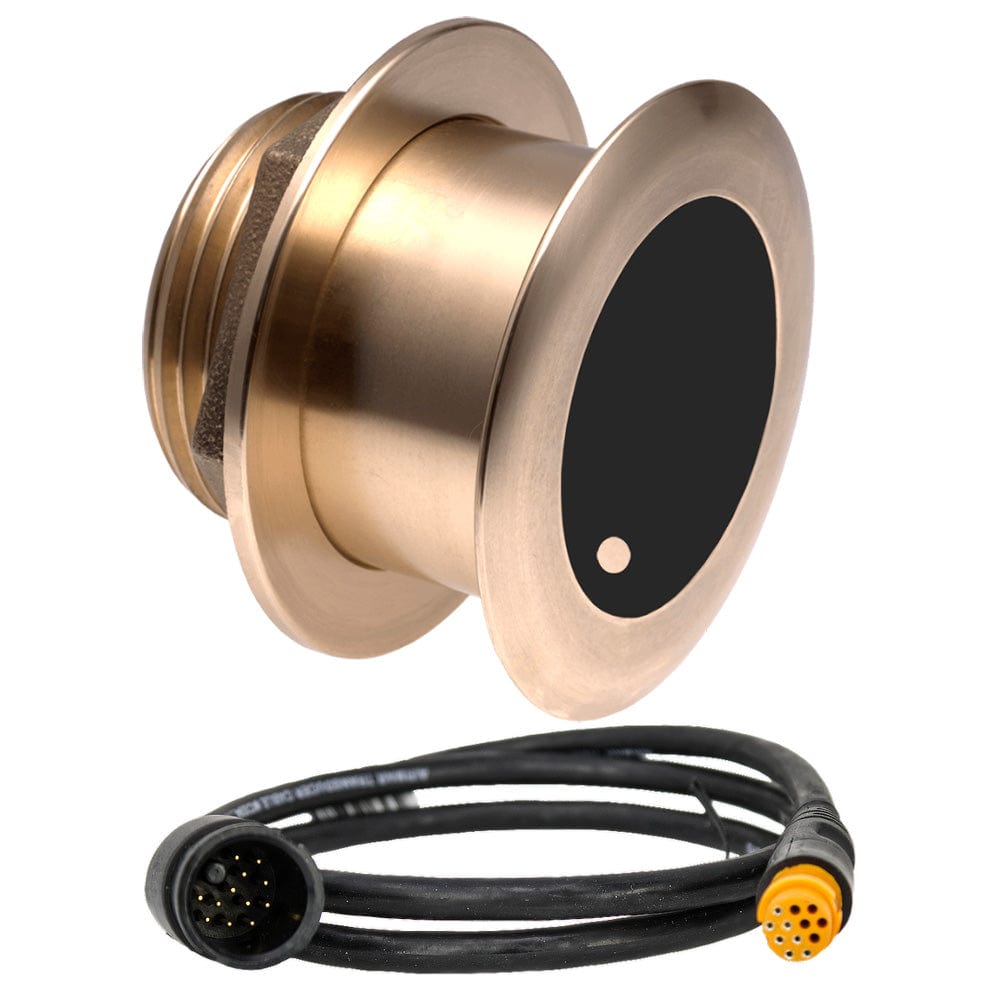

B175MW Med Ultra Wide 1kW, 20° Chirp Thru-Hull Transducer f/12-Pin Garmin175MW Med Ultra Wide 20 Degree, 1KW Chirp Thru-hull Transducer with 12 Pin Connector for Garmin

Airmar's innovative transducer designs have revolutionized the fishing world, and they continue to do so with the Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The B175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20° angle. Because the transducer is installed almost flush with the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Features:

  • Fixed 20° tilted version for 16° to 24° hull deadrise
  • 12 Pin Connector for Garmin FishFinders
  • Depth and fast-response water-temperature sensor
  • 1 kW with depth tracking down to 400 m (1,300#39;)
  • Medium frequency: 60-100 kHz
  • 57° to 73° beamwidth (port/starboard)
  • 16° average fore/aft
  • 40 kHz of total bandwidth from one transducer
  • Medium frequency for superior mid-depth performance and excellent fish-target separation
  • Bronze housing for use on stepped, planing, or displacement hull
  • Low-profile, thru-hull housing yields good resolution at speed when installed properly
  • Exclusive Xducer ID® technology

Specifications:

  • Brand: Airmar Technology
  • Acoustic Window: Urethane
  • Cable-Length: 9 m (30'), 10 m (33')
  • Common Use: Fishing
  • Connector: Garmin 12-Pin
  • Country of Origin: USA
  • Display Connector: 12G
  • Functions: Depth, Temperature
  • Hole Size: 95 mm (3-3/4")
  • Hull Material: Fiberglass or wood
  • Material: Bronze
  • Max Deadrise Angle: 24°
  • Max Depth: 400 m (1300')
  • Max Vessel LOA: Up to 11 m (36')
  • Medium Frequency: 60-100 kHz
  • Medium Frequency Beamwidth: 57° to 73° (Port/Starboard) X 16° average (Fore/Aft)
  • Medium-Wide Beamwidth: 57° to 73° beam p/s 16° average f/a
  • Mounting Style: Tilted Element Thru-Hull
  • Power Rating: 1 kW
  • Single or Dual Frequency: Single
  • Tilt Angle: 20°
  • Tilted Element: Yes
  • Water Temperature: -10° to 40°C (14° to 104°F)
  • Weight: 2.7 kg (6 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Normalized SKU: B175C20MW12G

Airmar B175C-20-MW-12G Literature Download
