Airmar Qualifies for Free Shipping Airmar B175C-0-H 0d Tilt with Humminbird 7-Pin MM Cabl #B175C-0-H-HB

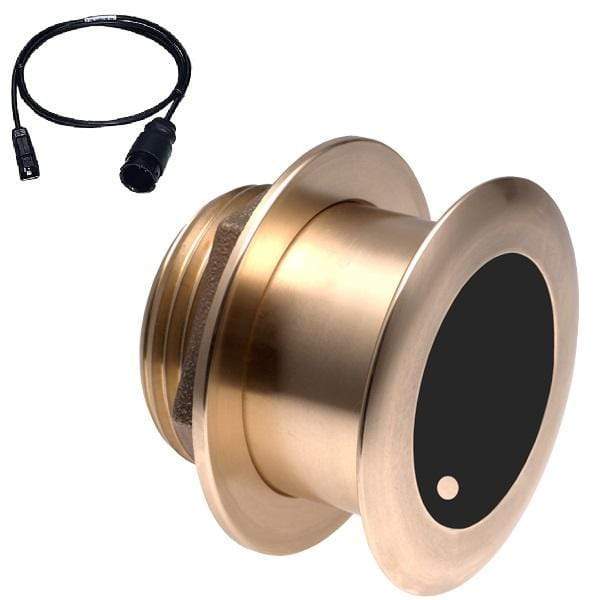

Airmar B175C-0-H 0d Tilt with Humminbird 7-Pin MM Cabl #B175C-0-H-HB

$1,399.99 $1,607.75 -13% OFF

Airmar B175C-0-H 0d Tilt with Humminbird 7-Pin MM Cabl #B175C-0-H-HB

$1,399.99 $1,607.75 -13% OFF

Airmar B175C-0-H 0d Tilt with Humminbird 7-Pin MM Cabl #B175C-0-H-HB

$1,399.99 $1,607.75 -13% OFF
Brand: Airmar

SKU: ARM-B175C-0-H-HB

Category: Transducers

More about this item

Airmar B175C-0-H-HB Transducers

Airmar B175 CHIRP High Frequency 0d Tilted Element With Humminbird 9-Pin Mix-N-Match Cable

Model: B175C-0-H-HB
  • Depth & fast-response water-temperature sensor
  • High—CHIRPS from 150 kHz to 210 kHz
  • Boat Size: 8 m (25’) and above
  • 80 kHz of total bandwidth from one transducer
  • Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
  • Hull Type: Fiberglass or wood

The transducer’s ceramic elements are permanently tilted inside the housing to compensate for the hull deadrise. This ensures the beam is aimed straight down, resulting in maximum echo returns and eliminating the need for a fairing

Flush/tilted transducers mount through a hole drilled in any fiberglass, metal or wooden hull, with the outside of the fitting flush against the exterior hull surface. Inside the fitting, the transducer’s active elements are permanently tilted to an angle to compensate for the hull deadrise, ensuring the sonar beam is aimed straight down.

High Frequency = Greater Detail (ex. 130-210 kHz) - More sensitive to small targets and will send back detailed information which will display as crisp, high-resolution images on the echosounder screen. Best for shallower water and popular with anglers fishing at depths less than 1500 feet

Specifications
Deadrise 0° to 7°
Acoustic Window Urethane
Power rating 1 kW @ 1% duty cycle
Frequency 130 to 210 kHz-A (Broadband)
Beam 10° to 6° beam
Max Depth 1000ft

What's in the Box:
  • B175C-0-H-MM Transducer
  • MMC-HB Mix and Match Cable

  • Normalized SKU: B175C0HHB
