Actisense USG-2 Isolated USB to Serial Gateway NMEA 0183 RS422 RS232 #USG-2

Actisense USG-2 Isolated USB to Serial Gateway NMEA 0183 RS422 RS232 #USG-2

$192.95 $245.06 -22% OFF

Actisense USG-2 Isolated USB to Serial Gateway NMEA 0183 RS422 RS232 #USG-2

$192.95 $245.06 -22% OFF

Actisense USG-2 Isolated USB to Serial Gateway NMEA 0183 RS422 RS232 #USG-2

$192.95 $245.06 -22% OFF

SKU: ATS-USG-2

Category: Accessories

More about this item


Actisense USG-2 Accessories

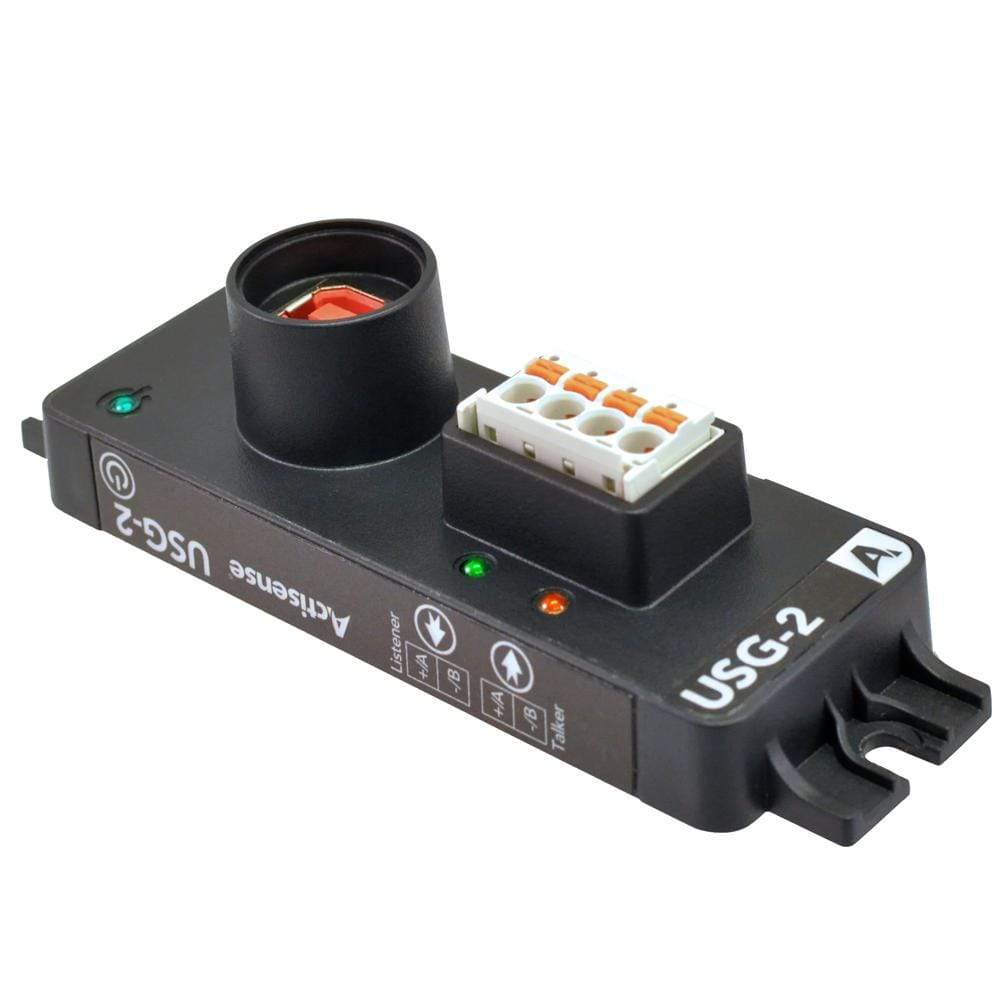

USG-2 Isolated USB To Serial Gateway for use with NMEA0183, RS422, and RS232

The USG-2 converts a USB port into a bi-directional serial port suitable for
connecting to a marine standard NMEA 0183 data bus.

It provides a much safer connection than standard USB-to-serial converters. Electrical isolation is provided by the ISO-Drive output and OPTO-isolated input, making installation simple and free from ground loops.

The input uses the Actisense OPTO-isolation circuitry to protect any connected equipment from the most common system faults. The input can receive very low-level signals that are often too small to be received by a PC serial port.

The high-quality, shielded USB lead included with the USG-2 makes connection to a PC simple while providing a high level of water protection when connected to the custom-designed USB socket. The pluggable screwless connector makes installation quick and easy, and the specifically designed DIN rail mount option ensures a reliable, secure bulkhead mount for the USG-2. Multiple LEDs make diagnosing connection issues quick and easy. The blue power LED illuminates solid blue when the USB driver has successfully loaded, and the USG-2 is powered, while a green (receive) LED and an orange (transmit) LED indicate whether data is present.

Features:

  • NMEA 0183, RS422
  • RS232 compatible
  • ISO-Drive technology
  • Isolated input (2500V)
  • Isolated output (1500V)
  • Encapsulated electronics
  • High retention USB socket
  • Diagnostic LEDs
  • Baud rates from 300 to 230400 bps
  • Bulkhead mount, with optional DIN rail mount kit
  • Pluggable screwless connector with locking latch & strain

Specifications:

Data Interface = NMEA 0183
