Download LiteratureActisense PRO-NDC-1E2K Network AccessoriesIntelligent Type Approved NMEA 0183 Multiplexer/NMEA 2000 GatewayInterconnectivity, reimagined! The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence-level filtering.Managing and routing your NMEA data is straightforward forward, hassle-free using the PRO-NDC-1E2K: Auto-switching between inputs to allow for a primary, secondary, or tertiary priority input. Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer. Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption. Easy to configure using the web-based UI, no need to manually enter and edit strings of text. RINA-type approved device means the multiplexer is fit for leisure, commercial, and class/type installations. Multiple LEDs allow for ‘quick glance’ diagnostics to ensure everything is operating correctly. Certified NMEA 2000 device connectivity allows for the conversion and output of data onto the NMEA 2000 network. Bi-directional conversion to and from the N2K Network allows for seamless integration between legacy and new equipment. NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems. NMEA 2000 data streaming over Ethernet. 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs protect all connected instruments. Multiplexers are typically used to combine multiple instruments’ data output into a smaller number of outputs. As you can’t connect two talkers to one listener directly, a multiplexer allows for the data to be output through one talker connection.An example of this could be on a commercial vessel with multiple NMEA 0183 GPS, wind, AIS, and depth instruments. To get all of this data combined and sent to an NMEA 0183 display, the multiple talker inputs can be combined into one output on the PRO-NDC-1E2K. If the data is needed on an NMEA 2000 network, the 1E2K can convert and output this data onto a connected N2K network thanks to the conversion matrix within the product and the incorporated NMEA2000 connectivity.  With the PRO-NDC-1E2K, the data can be filtered, passed or blocked and monitored, giving greater flexibility and control over all instrument data. The device also carries the ability to stream NMEA data in various formats over Ethernet, meaning it can connect to other existing Ethernet Systems and share vessel data to connected applications or third-party devices.Features: Type-approved (RINA). NMEA 0183 Ethernet streaming NMEA 2000 Ethernet streaming NMEA 2000 output via M12 5x Configurable Opto-isolated NMEA 0183 inputs. 2x Configurable ISO-Drive isolated NMEA 0183 outputs. 1x Bi-directional, configurable, isolated serial port. Automatic baud rate matching on inputs. Advanced data filtering/routing. Free firmware updates make the device future-proof. Diagnostic LEDs on all inputs and outputs. Bi-colour status LED. Panel mountable. Stainless Steel housing for added durability Benefits: Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates make the device future-proof Specifications: Ethernet port – for configuration, diagnostics, and sharing NMEA 0183 and NMEA 2000 data. 6 OPTO-Isolated NMEA 0183 inputs (including the serial port) 3 ISO-Drive NMEA 0183 outputs (including serial port) Bi-directional conversion and sharing of NMEA 2000 data Advanced-Data Filtering/Routing Configurable Input and output baud rates Autoswitch mode available to offer system redundancy Serial port – for configuration, diagnostics, or as an additional NMEA 0183 input/output Free firmware updates make the device future-proof Power LED to indicate the operational state Rx LED to indicate data on inputs Status LED (bi-color) to indicate output Data Overload or a range of other states DIN rail or Panel mountable Pluggable screw terminal connectors for quick and easy installation Normalized SKU: PRONDC1E2KUPC Code: 5060998710751Actisense PRO-NDC-1E2K Literature Download Quick Reference Guide

Actisense DB9-F Network Accessories9-Pin, D-Type Molded Cable Assembly - Female9-pin, D-type molded cable assembly.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: DB9FUPC Code: 5060998710614

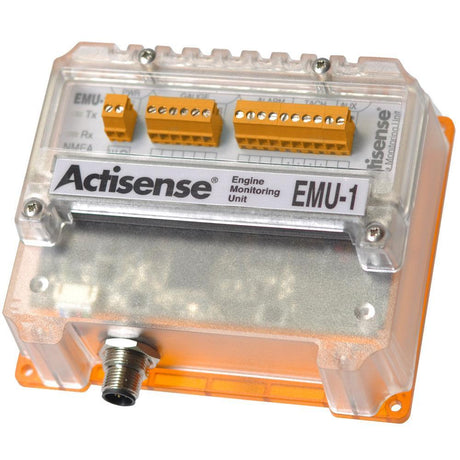

Download Literature Actisense EMU-1 Accessories Engine Management Unit Analog - NMEA2000Share engine information on the NMEA 2000® bus...The Actisense EMU-1 is a specialized analogue to NMEA 2000 Gateway, which converts data from analogue engine senders into NMEA 2000. The EMU-1 enables NMEA 2000 display devices to monitor the engine on a vessel.The EMU-1 has a PC based configuration tool that allows the settings inside the EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models. Capable of measuring a wide range of engine parameters, the EMU-1 reports how the engine is operating and shares the information across the network.Designed to simplify the conversion of analogue engine parameters (e.g., Temperature, pressure, and RPM) into NMEA 2000 engine PGNs, the EMU-1 simplifies processes and reduces the number of input/output wires required at each engine. Additionally, the EMU-1 also supports the conversion of analogue transmission parameters and battery status to the associated NMEA 2000 PGNs.The two-part screw terminal connection system allows for an easy pluggable connection to an engine wiring harness.Multiple engines are supported by setting the engine instance using the EMU-1 configuration tool. Currently, one EMU-1 per engine is supported. Support for multiple engines on a single EMU-1 is currently planned as a future firmware update.The customised case ensures that the electronics are sealed while allowing quick access to the electrical connections.It is recommended that an Actisense NGT-1 NMEA 2000 PC Interface be available for every EMU-1 installation. The NGT-1 can be used to update the Firmware, connect the Configuration Tool, and display data on a PC for diagnostic and information purposes, using NMEA Reader. Please visit the NGT-1 page for product details.Features: 6-gauge inputs 4 alarm inputs 2 tacho inputs Logs total engine time using the tacho inputs 2 auxiliary inputs for additional flexibility Simple single wire gauge connections; common ground referenced Manual measurements are not required when configuring Firmware can be updated over NMEA 2000 network Easy customisation for different installations (requires an NGT-1 and PC software) Waterproof electronics and splash-proof connections Pluggable connectors for quick and easy installation An optional DIN rail mounting kit is available Specifications: Data Interface = NMEA 2000 Normalized SKU: EMU1 Actisense EMU-1 Literature Download Owners Manual Product Brochure

Actisense A2K-4WD-1 Network AccessoriesMicro 4-Way Instrument DropThe Actisense 4-way drop makes it easier to reach up to four devices with a single cable.Typically, when four devices need to be connected to an NMEA 2000 backbone, a T-piece and individual cable is required for each one. This can either mean excessive cabling demands or moving the backbone closer to your devices.The 4-way drop makes it possible to shorten the length of each cable needed before reaching a T-piece. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: A2K4WD1

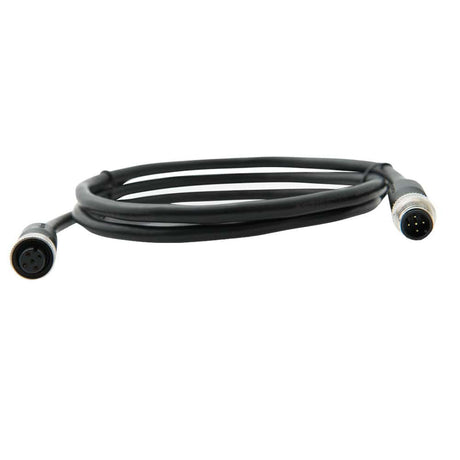

Download LiteratureActisense A2K-TDC-10M Network AccessoriesA2K-TDC-10M NMEA2000 Micro Cable Assembly - 10MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  688g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KTDC10MActisense A2K-TDC-10M Literature Download Owners Manual Product Brochure

Download LiteratureActisense A2K-TDC-1M Network AccessoriesA2K-TDC-1M NMEA2000 Micro Cable Assembly - 1MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  105g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KTDC1MActisense A2K-TDC-1M Literature Download Owners Manual Product Brochure

Download LiteratureActisense A2K-TDC-6M Network AccessoriesA2K-TDC-6M NMEA2000 Micro Cable Assembly - 6MAvailable in various lengths, the cable assemblies can be used as either drop cable from a NMEA 2000 backbone or to extend the length of the backbone cable.Actisense Lite cable assemblies allow quick installation and come with quality reassurance as only the Actisense UL-certified cable is used.NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications: Rated Current - 3A Rated Voltage - 60VDC Male Contact - Brass, gold-plated Female Contact - Phosphor bronze, gold plated Contact Carrier - PBT, black Contact Polarization - Standard M12 -“A”- polarization Mating Thread - M12 Screw Cap - Brass, nickel plated O-Ring Seal - Rubber, black Housing - PVC, black Power Pair - 22 AWG (19-strand tinned copper) Data Pair - 24 AWG (19-strand tinned copper) Drain - 22 AWG (19-strand tinned copper) Braid - 37 AWG (tinned copper) Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Weight -  430g Protection - IP67 (when mated) Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KTDC6MActisense A2K-TDC-6M Literature Download Owners Manual Product Brochure

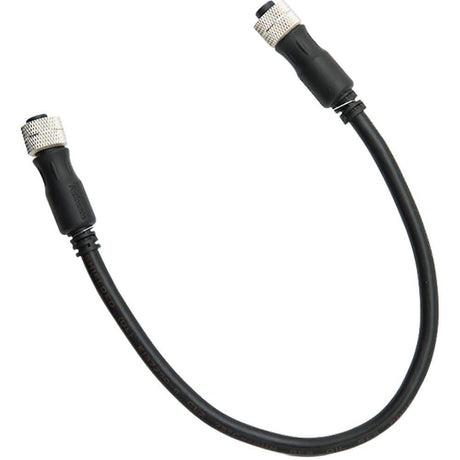

Actisense A2K-GCF-0.25M AccessoriesN2K Female/Female Gender Changer - 0.25MUse between two cable connectors of the same type and gender. Overcomes the problem of connecting two devices or cables which have the same gender of connector on an NMEA 2000® backbone.Female to Female - 0.25M Specifications:Cable Length (Feet) = 1' Connection Gender = Female-FemaleNormalized SKU: A2KGCF025M

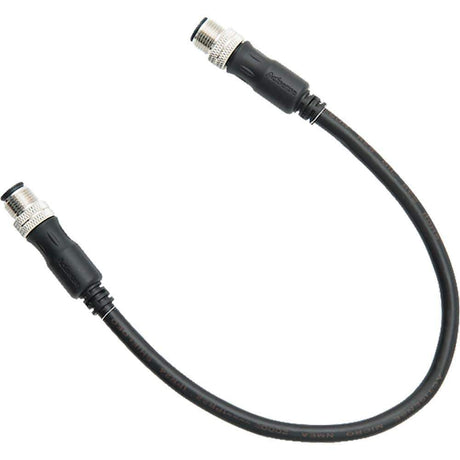

Actisense A2K-GCM-0.25M AccessoriesN2K Male/Male Gender Changer - 0.25MUse between two cable connectors of the same type and gender. Overcomes the problem of connecting two devices or cables which have the same gender of connector on an NMEA 2000® backbone.Male to Male - 0.25M Specifications:Cable Length (Feet) = 1' Connection Gender = Male-Male Data Interface = NMEA 2000Normalized SKU: A2KGCM025M

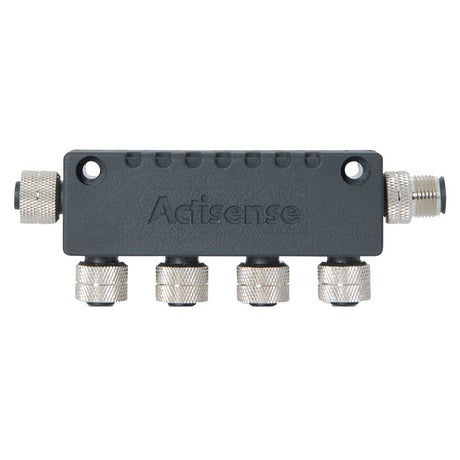

Download Literature Watch VideoActisense A2K-4WT AccessoriesN2K Micro 4 Way T-PieceThe Actisense 4 Way T-Piece is for use where multiple drops or ‘ports’ are required from the NMEA 2000 backbone. It’s as quick and easy to install as a single T-Piece, uses less space than two individual T-pieces, and costs less than four.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Features: NMEA 2000 Approved RoHS Compliant Specifications: Rated Current: 4A Rated Voltage: 60V DC Male Contact: Brass, gold plated Female Contact: Phosphor bronze, gold plated Contact Carrier: PA66 (30% Glass filled), black Contact Polarization: Standard M12 -“A”- polarization Mating Thread: M12 Screw Cap: Brass, nickel plated O-Ring Seal: Rubber, Black Housing: TPU, flame retardant to UL94V-0, Halogen Free Internal Housing Shield: Copper Foil Weight: 105g Protection: IP67 (when mated) Operating Temperature: -20°C to +70°C Storage Temperature: -40°C to +85°C Normalized SKU: A2K4WTActisense A2K-4WT Literature Download Quick Reference GuideActisense A2K-4WT Video

Download LiteratureActisense PRO-MUX-2 Network AccessoriesPRO NMEA 0183 MultiplexerEight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.Features: 8 OPTO-isolated NMEA 0183 inputs 6 ISO-Drive NMEA 0183 outputs Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output) 0183 streaming via Ethernet Alarm output (N/O and N/C contacts) Designed for 12- and 24-Volt supply Isolation to battery supply Configurable input and output baud rates for rate conversion Data combining from any input to any output 2 independent Autoswitch virtual inputs with priority Advanced sentence-based filtering / routing Diagnostic LEDs on all inputs and outputs Alarm, mode and Bi-colour Status LED’s 2-part pluggable connector system supports both screw and screwless terminals DIN rail or Panel mountable Advanced statistics are available via a Web Browser Quick and easy to install Configuration using standard web browser, no PC operating system compatibility issues Advanced features solve NMEA 0183 data routing problems Fully isolated with ISO-Drive technology for peace of mind Easy firmware updates makes the device future-proof Technical Specifications:Power Supply Input Supply Voltage - 9 to 35 V DC Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads) Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection Power Indicator - LED, Blue – indicates unit is functioning correctly Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG) NMEA 0183 Port – Listener & Talker Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 38400 bps Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm Talker Output Current Drive - 20 mA maximum per output Talker Output Protection - Short circuit and ESD Talker Data Indicator - LED, Orange (Flashes at data rate) Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Listener Data Indicator - LED, Green (Flashes to indicate valid input) Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Serial Port Compatibility - RS422 & RS232 compatible. RS485 Listener compatible Speed / baud rate - 4800 to 115200 bps Output Voltage Drive - >= 2.1V (differential) into 100 ohm Output Current Drive - 20 mA max. Output Protection - Short circuit and ESD Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second) Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection Data Indicators - LED’s: Green = Receive, Orange = Transmit Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Ethernet Port Host Interface - 10/100BaseT, automatic polarity detection Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms Indicators - Green = Link/Activity, Yellow = 100 Mbps Connector - RJ45 Isolation NMEA 0183 Listener - OPTO-Isolated, Hi-Pot tested to 1000V NMEA 0183 Talker - Uses IsoDrive™, Hi-Pot tested to 1000V Serial Port - Uses IsoDrive™, Hi-Pot tested to 1000V Alarm Relay - Hi-Pot tested to 1000V Ethernet Port - 2kV for 60s Mode Inputs Input Voltage Range - 0 to 35V DC Protection - Transient overvoltage and ESD protection Connectors - Pluggable 2-way screw terminals, 5.08mm pitch (12 to 30 AWG) Alarm Output Contacts - Common, Normally Open and Normally Closed Alarm Indicator - LED, Red indicates a valid alarm condition Contact Ratings - 35VAC / 50VDC Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG) Mechanical Housing Material - 316 Stainless Steel Dimensions - 210mm (W) x 128mm (H) x 27mm (D) Weight - 540g Mounting - Bulkhead mount or DIN rail mount (DIN kit 1) Approvals and Certifications Compass Safe Distance - 175mm Type Approval Certificate - RINA Operating Temperature - -25 to +70°C Storage Temperature - -40 to +85°C Relative Humidity (RH) - 95% @ 55°C Environmental Protection - IP40 Guarantee - 5 Years This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: PROMUX2UPC Code: 5060998710584Actisense PRO-MUX-2 Literature Download Quick Reference Guide
