Download LiteratureAirmar WS-120WX Weather Instruments120wx WeatherStation® InstrumentThe Model 120WX is Airmar’s solution for recreational boating; feature rich, in a Durable, Rugged, Small footprint that is IPX4 or IPX6 rated for this environment.Reliability and performance, along with no moving parts, makes the 120WX an easy and affordable choice for your recreational boating needs. Ultrasonic wind readings Apparent Wind speed & angle Barometric pressure Air temperature Wind chill Optional relative humidity module IPX4 with the RH Option IPX6 without the RH Option Output: Via a single cable (various lengths available)NMEA 0183 protocol over RS422 interface and NMEA 2000 protocol over CAN BUS SpecificationsWind DataWind Speed Range: 0 knots to 78 knots (0 MPH to 90 MPH, 0 m/s to 40 m/s)Wind Speed Resolution:0.1 knot (0.1 MPH, 0.1 m/s)Wind Speed Accuracy @ 0°C to 55°C (32°F to 131°F), no precipitation*:Low Wind Speeds: 0 -10 knots; 1 knot RMS +10% of reading (0 MPH to 11.5 MPH; 1.1MPH + 10% of reading) (0 m/s to 5 m/s; 0.5 m/s + 10% of reading) High Wind Speeds: 10-78 knots; 2 knots RMS or 5%, whichever is greater (11.5 MPH to 90 MPH; 2.3 MPH or 5%, whichever is greater) (5 m/s to 40 m/s; 1 m/s or 5%, whichever is greater) Wind Speed Accuracy in wet conditions**:5 knots RMS (5.7 MPH RMS, 2.5 m/s RMS) Wind Direction Range: 0° to 360° Wind Direction Resolution: 0.1° Wind Direction Accuracy @ 0°C to 55°C (32°F to 131°F), no precipitation*: Low Wind Speeds (5° RMS typical):4 - 10 knots (4.6 MPH to 11.5 MPH, 2 m/s to 5 m/s)High Wind Speeds (2° RMS typical):>10 knots (>11.5 MPH, >5 m/s)Wind Direction Accuracy in wet conditions** (8° RMS Typical):8 knots (>9.2 MPH, >4 m/s)Compass DataCompass Accuracy:1° static heading accuracy; 2° dynamic heading accuracyPitch and Roll DataPitch and Roll Range / Accuracy: ±50° / <1°Air Temperature Data Air Temperature Range***: -40°C to 55°C (-40°F to 131°F) Air Temperature Resolution: 0.1°C (0.1°F) Air Temperature Accuracy: ±1.1°C (±2°F)* @ >4 knots wind (>4.6 MPH wind) (>2 m/s wind) Barometric Pressure Data Barometric Pressure Range: 300 mbar to 1100 mbar (24 inHg to 33 inHg, 800 hPa to 1100 hPa) Barometric Pressure Resolution: 0.1 mbar (0.029 inHg, 0.1 hPa) Barometric Pressure Accuracy: ±1 mbar (±0.029 inHg, ±1 hPa) when altitude correction is available Relative Humidity Data Relative Humidity Range: 10% to 95% RH Relative Humidity Accuracy*: ±5% units RH Operating TemperatureOperating Temperature Range: -25°C to 55°C (-13°F to 131°F)Supply Voltage Supply Voltage: 12 VDC Supply Current (@ 12 VDC): (<85 mA) <1.0W, LEN 2Data Input/OutputOutput: Via a single cable (various lengths available)NMEA 0183 protocol over RS422 interface and NMEA 2000 protocol over CAN BUSOther Specifications Weight: 300 grams (0.8 lb) Mounting Thread Size on Base: Standard 1”-14 UNS (3/4” NPT optional) Certifications and Standards: CE, IPX6 (Relative Humidity/IPX4), RoHS, IEC60945RMS—Root Mean Square, LEN—Load Equivalency Number*When the wind speed is less than 2 m/s (4.6 MPH) and/or air temperature is below 0°C (32°F),wind, temperature, and relative humidity readings will be less accurate.**Wet conditions include moisture, rain, frost, dew, snow, ice and/or sea spray in the wind channel.***Temperature and relative humidity reports invalid during heater operation.****Airmar has made the address claiming modifications to enable compatibility with the ISO 11783communication protocol for the agriculture industry – that is based on the SAE J1939 protocol. Specifications:Barometric Pressure = Yes Barometric Trend = NONE Humidity = Yes Remote Monitoring = Yes Temperature = Yes Wind = Yes Wireless = NoNormalized SKU: WS120WXAirmar WS-120WX Literature Download  Owners Manual  Product Brochure

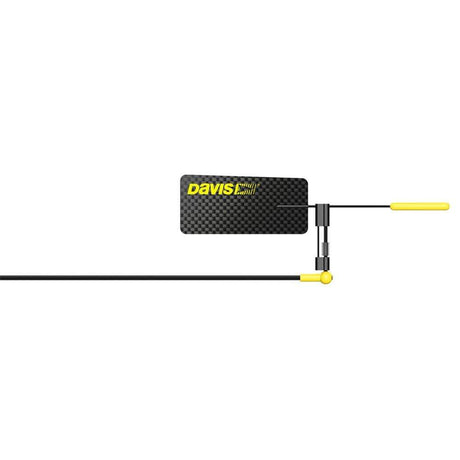

Davis Instruments 3188 Weather InstrumentsBlacksmith Horizontal Carbon Fiber Wind VaneBring your sailing experience to a new level Davis Instruments introduces Blacksmith Wind Vanes, made from super lightweight 3D carbon fiber and duraluminum to withstand the rigors of hard racing.Horizontal is a dinghy race pro gooseneck wind vane for Laser, Finn, Banshee, Sunfish, Optimist, El Toro and Sabot. Feature precise balance – effective and efficient in 0.8 knot up to 40 knots wind conditions.Features: Handmade dinghy carbon gooseneck wind vane 12×7.8 in / 30×20 cm 0.8 oz / 25 g 3D carbon & duraluminum Adjustable mast clam Specifications:Temperature = NONE Remote Monitoring = NONE Humidity = NONE Barometric Trend = NONE Barometric Pressure = NONE Wind = NONE Wireless = NONENormalized SKU: 3188UPC Code: 011698013210

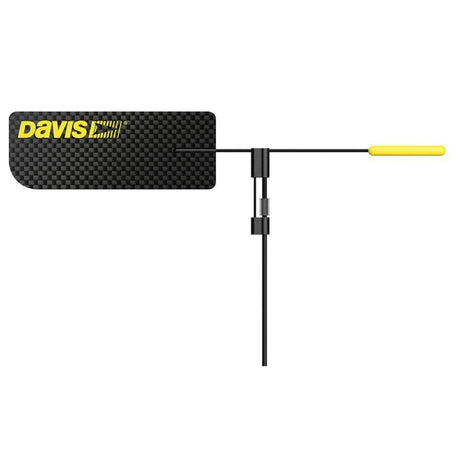

Davis Instruments 3186 Weather InstrumentsBlacksmith Sport Boat Carbon Fiber Wind VaneBring your sailing experience to a new level Davis Instruments introduces Blacksmith Wind Vanes, made from super lightweight 3D carbon fiber and duraluminum to withstand the rigors of hard racing.Features: Handmade carbon masthead wind vane for 16-28 ft boats 9×10 in / 23×25 cm 0.7 oz / 20 g 3D carbon & duraluminum J-base for side, top, or front mounting Specifications:Wireless = NONE Wind = NONE Temperature = NONE Remote Monitoring = NONE Humidity = NONE Barometric Trend = NONE Barometric Pressure = NONENormalized SKU: 3186UPC Code: 011698013197

Davis Instruments 3184 Weather InstrumentsBlacksmith Olympic Boat Carbon Fiber Wind VaneBring your sailing experience to a new level Davis Instruments introduces Blacksmith Wind Vanes, made from super lightweight 3D carbon fiber and duraluminum to withstand the rigors of hard racing.Feature precise balance – Olympic Boat Carbon Fiber Wind Vane is effective and efficient in 0.8 knot up to 40 knots wind conditions.Features: Handmade carbon masthead wind vane for boats up to 20 ft 9×9 in / 23×23 cm 0.5 oz / 13.9 g 3D carbon & duraluminum J-base for side, top, or front mounting Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 3184UPC Code: 011698013180

Davis Instruments 6627 Weather InstrumentsUSB Power Cord f/Vantage Vue®, Vantage Pro2™ & Weather EnvoyFor Use With: Vantage Vue® Vantage Pro2™ Weather Envoy Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6627UPC Code: 011698013012

Davis Instruments 7721 Weather InstrumentsRain Collector Cone & Heater f/AeroCone - *Not For Use With Classic Rain ConeRain collector cone and heater replacement kit Vantage Pro2 rain collectors with AeroCone. Heats ice and snow to keep your rain collector from freezing.All Vantage Pro2 stations come with the AeroCone. Unfortunately, the heater will not fit inside the AeroCone. This kit includes the heater and the larger old style cone to replace the AeroCone for those freezing winters that bring snow and ice.Keep snow from filling your Vantage Pro2 rain collector with this heater. Great for use in cold climates to measure freezing rain or the moisture content of snowfall.The heater warms the inside of the cone during cold weather. A thermostat switch turns the power off when temperatures rise and back on when they fall.Note: The heater must be plugged into an electrical outlet. Heater is not compatible with AeroCone; it is only compatible with the old style, larger rain cones.Specifications: Capable of melting liquid snow at a rate of 1/4" (6mm) of liquid precipitation per hour Warms only the inside of the rain collector and the cone itself Off/On switch allows you to turn heater on when you expect freezing conditions, and turn it off again when weather warms When turned on, the themostat switch turns power off if temperature reaches 110°F (43°C), and turns it back on with temperature drops to about 85°F (30°C) Cable length can be extended to 120' (36M) with two-twisted pair wire; further with single pair cable Replacement kit for stations with AeroCone rain cones Includes: Old style rain cone, bird spikes, and debris screen 24W, 24V Thermal cut-off switch Control unit Insulating reflective blanket AC-power adapter 50' (15M) cable Requires: Vantage Pro2 sensor suite or compatible stand-alone rain collector Must be plugged into an electrical outlet Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 7721UPC Code: 011698012855

Garmin 010-01734-00 Weather InstrumentsGXM™ 53 SiriusXM® Weather ModuleGain Access to current weather conditions and forecasts.Features: Garmin's best integrated weather receiver and antenna Easy to install, easy to use Delivers highly detailed weather information directly to your compatible Garmin chartplotter Provides access to the most current weather conditions and forecasts Ethernet connection to Garmin Marine Network network provides high bandwidth data transfer and power over a single cable The GXM 53 SiriusXM® weather antenna lets you enjoy added confidence and peace of mind on the water by always having access to the most current weather conditions and forecasts. Easy-to-install and easy-to-use integrated weather receiver and antenna connects to the Garmin Marine Network to deliver highly detailed weather information directly to your compatible Garmin chartplotter. It accesses current weather information, including NEXRAD, lightning, water temperatures, wind and wave current conditions and forecast data - all of which can be viewed from your chartplotter screen. And it also provides access to SiriusXM audio stations. Additional features and upgrades are made available as Sirius XM capabilities are added.GXM 53 also recalls valid weather forecasts after a power cycle. Excellent antenna signal performance ensures you will maintain the best possible reception, even when on the fringes of SiriusXM weather coverage. Ethernet connection provides high bandwidth data transfer and power over a single cable. Provides an easy upgrade from the GXM 52 weather antenna since it uses the same mount.Full compatibility with GPSMAP® 8400/8600, GPSMAP 8000, GPSMAP 7400/7600, GPSMAP 7x2/9x2 and GPSMAP 10x2/12x2 chartplotters and chartplotter/sonar combos.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100173400UPC Code: 753759167547

Davis Instruments 6465 Weather InstrumentsAeroCone® Rain Collector w/Pole Mountable Base The AeroCone rain collector reduces wind-induced errors by providing a more aerodynamic path around the collector. Its contours are designed to streamline the airflow and reduce flow distortions. The design improves rain data accuracy in high wind situations where the horizontal wind velocity can cause under reporting. The enhanced design features don't stop with the outer shape: the inside of the rain collector is equally well designed, keeping intact the carefully engineered interior walls that reduce splash out during high rain conditions. The debris screen locks into place, ensuring that it remains in place during high winds and heavy rainfall events. Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6465UPC Code: 011698013074

Davis Instruments 6463 Weather InstrumentsAeroCone® Rain Collector - Flat Base The AeroCone rain collector reduces wind-induced errors by providing a more aerodynamic path around the collector. Its contours are designed to streamline the airflow and reduce flow distortions. The design improves rain data accuracy in high wind situations where the horizontal wind velocity can cause under reporting. The enhanced design features don't stop with the outer shape: the inside of the rain collector is equally well designed, keeping intact the carefully engineered interior walls that reduce splash out during high rain conditions. The debris screen locks into place, ensuring that it remains in place during high winds and heavy rainfall events. Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6463UPC Code: 011698013050

  Download LiteratureFuruno 220WX Weather InstrumentsUltrasonic Weather StationThe 220WX Ultrasonic Weather Station detects instantaneous changes in the weather and provides essential weather readings with no moving parts, offering continuous operation even in adverse weather conditions. This all-in-one weather sensor measures apparent and true wind speed, and direction, air temperature and wind chill temperature. The 220WX also incorporates a 3-Axis solid-state compass and 3-Axis Rate Gyro for best-in-class compass and pitch/roll accuracy.The 220WX supports both CanBUS/NMEA2000® and NMEA 0183 and incorporates an NMEA 2000® port, and can be directly connected to a NavNet TZtouch/NavNet 3D DRS Radar sensor. Power for the 220WX is supplied from an NMEA 2000® bus. This unique feature allows for flexible installation of multiple NMEA 2000® sensors without the need to run cables all the way to the main processor unit. NMEA 2000r data is converted and distributed throughout the NavNet TZtouch/NavNet 3D Ethernet network.Standard 1" mount accommodates existing mounted hardware.The UV stabilized, compact housing is fully waterproof and resistant to both chemicals and sunlight.Features: Ultrasonic Weather Station detects instantaneous changes in the weather Provides essential weather readings with no moving parts Continuous operation in adverse weather conditions Standard 1" mount accommodates existing mounted hardware Supports both CanBUS/NMEA2000 and NMEA 0183 Sensor Functions: Apparent wind speed True wind speed Apparent wind direction True wind direction Calculated Wind Chill Rate of Turn Best-in-class Pitch and Roll accuracy GPS and three-axis, solid-state compass Three-axis Rate Gyro Barometric pressure Wind chill temperature Air temperature CanBUS/NMEA2000 and NMEA0183 OutputPower Requirements:9 VDC - 40 VDC Specifications: Barometric Pressure = Yes Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = Yes Wind = Yes Wireless = NONE Normalized SKU: 220WXUPC Code: 6116793635726Furuno 220WX Literature Download   Owners Manual  Product Brochure

Davis Instruments 6832 Weather InstrumentsTemperature/Humidity Sensor with 24-Hour Fan Aspirated Radiation ShieldFeatures both temperature and humidity sensors inside the 24-hour fan-aspirated radiation shield, which protects the sensors from solar radiation and other sources of radiated and reflected heat.This model includes a solar panel to power the motor-driven fan. Includes hardware for mounting on a fence post or pole and 25' (7,6M) cable.Features: Temperature and humidity sensors are inside a protective radiation shield that protects against solar radiation and other sources of radiated and reflected heat Wireless transmitter and battery are inside a weather-resistant shelter Updates every 2.5 seconds Frequency-hopping spread spectrum radio for continuous data transmission Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6832UPC Code: 011698012442

Garmin 010-01248-40 Weather InstrumentsgWind™ Wireless Transducer BundlesThe gWind Wireless transducer, featuring twin-fin technology and design for more accurate TWS and TWA, can be purchased in 2 separate bundles or as a standalone device. The bundles include a gWind Wireless transducer, GMI™ 20 marine instrument color display, GND 10 black box bridge and DST800 thru-hull smart transducer. One bundle also includes a GNX™ 20 marine instrument display.The gWind Wireless transducer not only provides incredibly accurate wind speed and direction, but it also has a barometric altimeter. This wireless transducer is an easy-to-install solution that eliminates running wires down the mast. Dedicated radio signals are sent through the included WSI connection box and GND 10 black box bridge that allows shared communication of critical NMEA 2000 data between the Nexus Network and Garmin compatible chartplotters.Now Garmin chartplotter owners can enjoy the advantages of Nexus sail equipment and vice versa. The transducer features renowned Nexus twin-fin technology with 3-bladed propeller providing more accurate TWS in lighter air and more stable TWA. Optic reading provides superior accuracy and excellent linearity. The solar panel integrated on the transducer arm with internal solar-charged batteries lasts 3 years and are easily replaced. Easy plug-and-play installation between Nexus, Garmin chartplotters, NMEA 2000 and USB.Features: An easy-to-install solution that eliminates running internal cables through a mast Includes a WSI connection box that receives dedicated radio signals from the transducer and a GND™ 10 black box bridge that allows shared communication of critical NMEA 2000® data between the Nexus Network and Garmin compatible chartplotters Three-bladed propeller for more accurate True Wind Speed (TWS) in lighter air Twin-fin design gives a more stable True Wind Angle (TWA) Available as 2 bundles; one with a GNX 20 and one without this marine instrument display Specifications: Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm) Weight: 350 g Cable Length: N/A Waterproof: Yes (IPX6*) Temp Range: From 5°F to 158°F (-15°C to 70°C) Storage Temperature: From -4°F to 176°F (-20°C to 80°C) Voltage Range: N/A Power Usage: Solar powered Typical Current Draw at 12 VDC: N/A Compass Safe Distance: N/A Accuracy Angle: Better than +/-1.5° Speed: Better than +/-3% Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s) NMEA 2000® Load Equivalency Number (LEN): N/A Wireless Connectivity: Yes WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100124840UPC Code: 753759135973

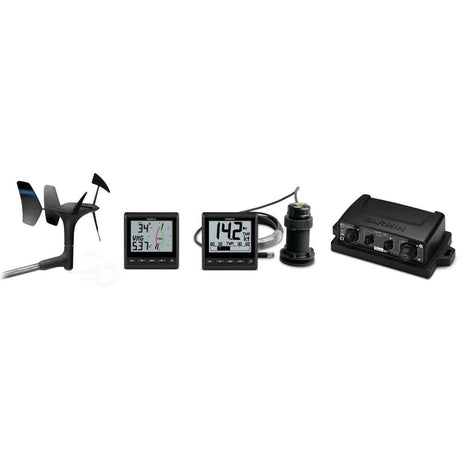

Garmin 010-01248-30 Weather InstrumentsGMI™/GNX™ Wired Sail Pack 52 gWind™ Transducer Bundle w/GMI™ 20, GNX™ 20, GND 10, gWind™ & DST800The Information You Need to Make Confident Decisions Includes GMI™ 20 and GNX™ 20 marine instruments and gWind™ and DST800 transducer GMI 20 instrument has a highly visible bright 4” color glass-bonded lens display with anti-glare finish GNX 20 instrument has highly visible monochrome LCD displays gWind transducer features 3-bladed propeller and twin-fin design DST800 52 mm thru-hull smart transducer provides water depth, water speed and water temperature data Know the Wind and WaterWith a GMI/GNX Wired Sail Pack 52, you’ll have all the equipment you need to know what’s going on with the wind and water.GMI 20 Marine InstrumentThe GMI 20 digital marine instrument display is perfectly designed for both power and sail. Designed to clearly show depth, speed, wind and 100-plus marine and vessel parameters, its large, bright 4” color display with extra-large digits is easy to read at a distance and 170-degree viewing angle.A glass-bonded finish lens on GMI 20 prevents fogging and increases contrast. Daylight readability is enhanced with a high-contrast color scheme. For enhanced night visibility, you have a choice of red/black, green/black or the normal night mode color scheme along with a dimmer control. Screens can be set to auto-scroll — cycling between pages automatically without you having to do a thing. This is especially advantageous for sailors as it allows you to install the unit(s) in a greater variety of locations on the vessel. Default profiles can be customized for powerboat, sailboat, fishing, engine/fuel plus several other user-specified profiles. Power is supplied by the NMEA 2000® network.GNX 20 Marine InstrumentThe easy-to-read GNX 20 marine instrument display has black digits on a white or color background. It clearly shows water depth, boat speed through the water, water temperature and 50-plus marine and boat parameters. Its glass-bonded display with anti-glare lens coating provides excellent daytime and nighttime readability with high-contrast digits scalable up to 36 mm.gWind TransducergWind transducer features twin-fin technology with 3-bladed propeller for more accurate True Wind Speed (TWS) in lighter air while the twin-fin design gives a more stable True Wind Angle (TWA). The 3-bladed propeller, unlike a cups design, is always efficient. Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.DST800 Thru-hull Smart TransducerDST800 provides water depth, water speed and water temperature data to the NMEA 2000 network. This 100 W transducer can read depths up to 330’, and it has an operating frequency of 235 kHz and a beamwidth of 10x44 degrees.In The Box gWind transducer GMI 20 GNX 20 GND 10 DST800 thru-hull smart transducer NMEA 2000 drop cable (2 m) NMEA 2000 T-connector Mast cable with female connector (25 m) Nexus network cable (5 m; straight connector) Nexus female field installable connector Mast bracket Mounting hardware Documentation WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100124830UPC Code: 753759135966

Davis Instruments 6327C Weather InstrumentsCabled Vantage Pro2™ Plus ISSFor use with Vantage Connect for Cabled Systems, Vantage Pro2 cabled consoles, cabled Weather Envoy and WeatherLink.Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, and anemometer into one package - making setup easier than ever and improving performance and reliability.For improved accuracy, temperature and humidty sensors are housed inside a radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.Compatible with cabled Vantage Pro2 and Vantage Connect for Cabled Systems. Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6327CUPC Code: 011698007820

Davis Instruments 6328 Weather InstrumentsWireless Vantage Pro2™ Plus ISS with 24-Hr Fan-Aspirated Radiation ShieldWireless Integrated Sensor Suite (ISS) is for use with Vantage Connect, Vantage Pro2 and Vantage Vue consoles, Weather Envoy and WeatherLink. Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, anemometer, solar radiation sensor, UV sensor, sensor mounting shelf, and solar panel into one package - making setup easier than ever and improving performance and reliability.For improved accuracy, temperature and humidty sensors are housed inside our solar-powered, 24-hour fan-aspirated radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.Compatible with Vantage Pro2, Vantage Vue and Vantage Connect Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6328UPC Code: 011698007844

Davis Instruments 6323 Weather InstrumentsWireless Vantage Pro2™ ISS with 24-Hr Fan Aspirated Radiation ShieldWireless Integrated Sensor Suite (ISS) for use with Vantage Connect, Vantage Pro2 and Vantage Vue consoles, Weather Envoy and WeatherLink. Our innovative integrated sensor suite combines our rain collector, temperature and humidity sensors, and anemometer into one package - making setup easier than ever and improving performance and reliability.For improved accuracy, temperature and humidty sensors are housed inside our solar-powered, 24-hour fan-aspirated radiation shield. The shield protects against solar radiation and other sources of radiated and reflected heat.Compatible with Vantage Pro2, Vantage Vue and Vantage Connect. Specifications:Barometric Pressure = NONE Barometric Trend = NONE Humidity = NONE Remote Monitoring = NONE Temperature = NONE Wind = NONE Wireless = NONENormalized SKU: 6323UPC Code: 011698007790
