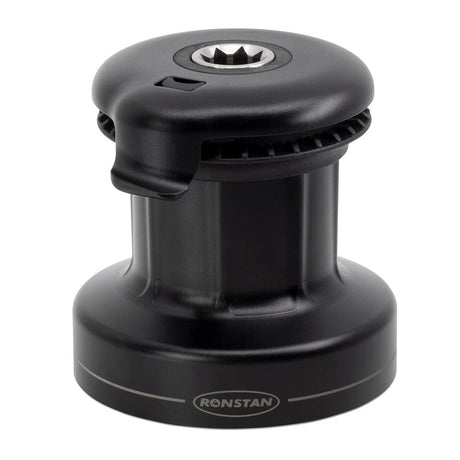

Download Literature Watch VideoRonstan RA6201 Sailing Accessories20ST Orbit Winch 1 SpeedRonstan’s Orbit Winches™ are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches™ weigh significantly less and offer lower line entry heights than any other winch in their class. Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs™ that many sailors will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.Power Ribs™The exceptional grip provided by the Power Ribs™ offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.No Tools RequiredFull disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem. When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.Features: Lightweight machined aluminum drum Distinctive Power Ribs™ ensures a controlled grip at all times, whether tensioning or easing Proven Andersen winch gearing configuration No tools are required for configuration and servicing Sprung self-tailing jaws to accept 6-10mm line Materials: Hard anodized aluminum drum and center stem, aluminum self-tailing arm Grade 316 stainless steel shaft and pawls Grade 2205 stainless steel axle pins Aluminum bronze gears Glass-filled nylon self tailer Self-lubricating acetal bearings Specifications: Weight (kilogram): 1.7kg Power Ratio: 18.3:1 Base Diameter (millimeters): 120mm Maximum Pulling Load (kilogram): 550kg Drum Diameter (millimeters): 75mm Base Diameter (millimeters): 120mm Height (millimeters): 124mm Line Entry L (millimeters): 42mm Line Size (millimeters): 6-10mm Gear Ratio 1st Speed: 2.7:1 Power Ratio 1st Speed: 18.3:1 Normalized SKU: RA6201UPC Code: 9316800602148Ronstan RA6201 Literature Download Quick Reference Guide Owners ManualRonstan RA6201 Video

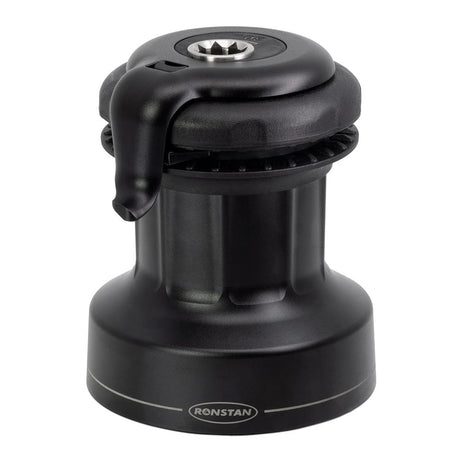

Download Literature Watch VideoRonstan RA6302 Sailing Accessories30QT Orbit Winch with Quick TrimRonstan’s Orbit Winches™ are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches™ weigh significantly less and offer lower line entry heights than any other winch in their class. Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs™ that many sailors will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.Power Ribs™The exceptional grip provided by the Power Ribs™ offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.No Tools RequiredFull disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem. When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.Orbit Winches™ sizes 30QT and 40QT are equipped with the unique, patented QuickTrim™ self-tailer. What is QuickTrim™?QuickTrim™ allows sailors to conveniently and safely ease the line without removing the winch handle or taking the line out of the self-tailer.A small anti-clockwise rotation of the self-tailing cover allows the self-tailer to turn beneath it like a sheave as the rope is eased, with confident grip and control assured by the drum’s smooth surface and Power Ribs™.Letting the top cover spring back into place locks the self-tailer again to resume normal use.Features: Lightweight machined aluminum drum Distinctive Power Ribs™ ensures a controlled grip at all times, whether tensioning or easing Proven Andersen winch gearing configuration No tools are required for configuration and servicing Sprung self-tailing jaws to accept 6-10mm line QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment (30QT & 40QT only) Materials: Hard anodized aluminum drum and center stem, aluminum self-tailing arm Grade 316 stainless steel shaft and pawls Grade 2205 stainless steel axle pins Aluminum bronze gears Glass-filled nylon self tailer Self-lubricating acetal bearings Specifications: Weight (kilogram): 3.1kg Power Ratio: 30.2:1 Base Diameter (millimeters): 136mm Maximum Pulling Load (kilogram): 700kg Drum Diameter (millimeters): 86mm Base Diameter (millimeters): 136mm Height (millimeters): 166mm Line Entry L (millimeters): 57mm Line Size (millimeters): 7-12mm Gear Ratio 1st Speed: 1.4:1 Gear Ratio 2nd Speed: 5.2:1 Power Ratio 1st Speed: 8.3:1 Power Ratio 2nd Speed: 30.2:1 Normalized SKU: RA6302UPC Code: 9316800602155Ronstan RA6302 Literature Download Quick Reference Guide Owners ManualRonstan RA6302 Video

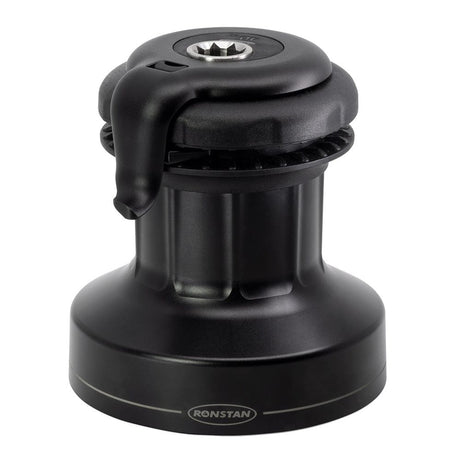

Download Literature Watch VideoRonstan RA6402 Sailing Accessories40QT Orbit Winch with Quick TrimRonstan’s Orbit Winches™ are the new benchmark in high performance alloy winches. With a combination of fresh design thinking and proven manufacturing expertise, Orbit Winches™ weigh significantly less and offer lower line entry heights than any other winch in their class. Remarkably easy to service, they require no tools for disassembly or maintenance. The machined aluminium drums feature the same Power Ribs™ that many sailors will recognize from Andersen Stainless Steel Winches®, well-known for their impressive line grip, smooth control, and minimal rope wear.Power Ribs™The exceptional grip provided by the Power Ribs™ offers a multitude of benefits: requiring fewer wraps around the drum, reducing the load held in the self-tailer, and encouraging the line to slide easily upward on the drum to avoid riding turns. The non-abrasive drum surface extends the service life of running rigging and allows smooth and controlled easing, even under high loads.No Tools RequiredFull disassembly and reassembly can conveniently be performed without the need for any tools. To remove the drum, pull back the spring-loaded release latch, and a slight anti-clockwise rotation will allow the self-tailing arm to be lifted from the winch. From there, the drum can be removed from the winch's center stem. When completing reassembly in reverse order, an audible click confirms positive engagement between the self-tailing arm and bayonet notches on the center stem. These notches allow the self-tailing arm to be locked in one of eight positions at rotational increments of 45 degrees.Orbit Winches™ sizes 30QT and 40QT are equipped with the unique, patented QuickTrim™ self-tailer. What is QuickTrim™?QuickTrim™ allows sailors to conveniently and safely ease the line without removing the winch handle or taking the line out of the self-tailer.A small anti-clockwise rotation of the self-tailing cover allows the self-tailer to turn beneath it like a sheave as the rope is eased, with confident grip and control assured by the drum’s smooth surface and Power Ribs™.Letting the top cover spring back into place locks the self-tailer again to resume normal use.Features: Lightweight machined aluminum drum Distinctive Power Ribs™ ensures a controlled grip at all times, whether tensioning or easing Proven Andersen winch gearing configuration No tools are required for configuration and servicing Sprung self-tailing jaws to accept 6-10mm line QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment (30QT & 40QT only) Materials: Hard anodized aluminum drum and center stem, aluminum self-tailing arm Grade 316 stainless steel shaft and pawls Grade 2205 stainless steel axle pins Aluminum bronze gears Glass-filled nylon self tailer Self-lubricating acetal bearings Specifications: Weight (kilogram): 3.1kg Power Ratio: 39.5:1 Base Diameter (millimeters): 151mm Maximum Pulling Load (kilogram): 850kg Drum Diameter (millimeters): 86mm Base Diameter (millimeters): 151mm Height (millimeters): 166mm Line Entry L (millimeters): 57mm Line Size (millimeters): 7-12mm Gear Ratio 1st Speed: 1.4:1 Gear Ratio 2nd Speed: 6.8:1 Power Ratio 1st Speed: 8.3:1 Power Ratio 2nd Speed: 39.5:1 Normalized SKU: RA6402UPC Code: 9316800602162Ronstan RA6402 Literature Download Quick Reference Guide Owners ManualRonstan RA6402 Video

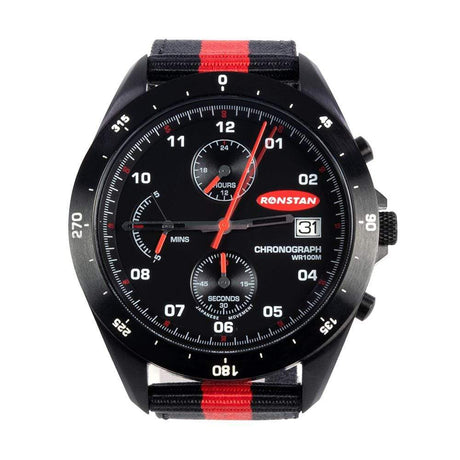

Ronstan RF4056 Sailing AccessoriesRF4056 Clear Start Analogue Watch - 43mmProudly designed in Australia, the RF4056 is a comfortable and reliable daily wearer appropriate for any occasion.Features: High-Quality Japanese Quartz Movement 43mm Chronograph Display Matte Black SS316 Case Water-resistant up to 10ATM 12 and 24 Hour Time and Date 10 Minute Retrograde Countdown Normalized SKU: RF4056UPC Code: 9316800620142

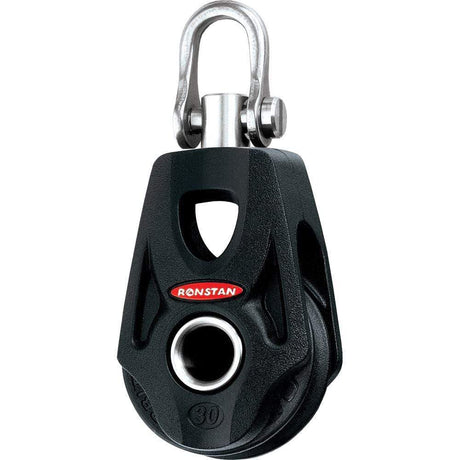

  Download LiteratureRonstan RF35100 Sailing AccessoriesSeries 30 Ball Bearing Orbit Block™ - Single - Becket - Swivel Shackle HeadBall Bearing Orbit Blocks™ boast the highest strength-to-weight ratio available. This is achieved through all-composite reinforced polymer materials and multiple attachment options. Their precision design provides the optimum number of ball bearings for minimum friction while weight reduction is achieved through the use of fiber-reinforced composites in the block head, cleat arms and beckets.Features: Lightweight Highest working load in its class Secure, versatile and secure attachement Low profile and compact Ultra low profile thru-sheave becket Low friction 2-stage ball bearing system provides consistent performance over the full working load range Applications: Mainsheet systems and spinnaker sheets on dinghies to 5M(16') Halyard, vang and backstay applications on boats to 5M(16') Control line applications on larger yachts Materials: Sheave: High compression strength carbon black Acetal Ball Bearings: High compression strength Acetal Frame/Cheeks: Toughened, glass fiber reinforced Nylon Link: UV stabilized, multi-strand impregnated SK75 Dyneema® Specifications:Sheave Ø: 30mm(1-3/16")Max. Rope Ø: 8mm(5/16")M.W.L.: 300kg(660lbs)B. L.: 600kg(1,320lbs)Weight: 32g(1.1oz) Normalized SKU: RF35100UPC Code: 9316800404957Ronstan RF35100 Literature Download  Quick Reference Guide

Ronstan RF3128 Sailing AccessoriesBattlestick Lightweight Alloy - 610mm(24") LongFirm Grip, Precision Control - Ronstan Batlestick™ tiller extensions provide the highest level of control, for quick, decisive helm response in every situation. The Evalon® Grip is a firm non-slip grip material that does not absorb water. End knob for safety and positive hand positioning. Large grip diameter contrasts erganomically with mainsheet diameter to relieve fatigue. Ronstan's unique fluted profile adds extra rigidity to the lightweight alloy section. Tubes have a black anodised finish for corrosion protection. Urethane Universal Joint provides smooth, uniform rotation in all directions and a quick, firm reponse to steering movements.Applications:Dinghy and small catamaransMaterials Evalon® grip Fluted alloy tube Urethane universal joint Normalized SKU: RF3128UPC Code: 9316800119578

Ronstan RF3129 Sailing AccessoriesBattlestick Lightweight Alloy - 840mm(33") LongFirm Grip, Precision Control - Ronstan Batlestick™ tiller extensions provide the highest level of control, for quick, decisive helm response in every situation. The Evalon® Grip is a firm non-slip grip material that does not absorb water. End knob for safety and positive hand positioning. Large grip diameter contrasts erganomically with mainsheet diameter to relieve fatigue. Ronstan's unique fluted profile adds extra rigidity to the lightweight alloy section. Tubes have a black anodised finish for corrosion protection. Urethane Universal Joint provides smooth, uniform rotation in all directions and a quick, firm reponse to steering movements.Applications:Dinghy and small catamaransMaterials Evalon® grip Fluted alloy tube Urethane universal joint Normalized SKU: RF3129UPC Code: 9316800119585

Ronstan RF3132 Sailing AccessoriesBattlestick Telescopic Tiller Extension - 42"-70" (1070mm-1770mm)Firm Grip, Precision Control – Ronstan Battlestick™ tiller extensions provide the highest level of control, for quick, decisive helm response in every situation. The Evalon® Grip is a firm non-slip grip material that does not absorb water. End knob for safety and positive hand positioning. Large grip diameter contrasts ergonomically with main sheet diameter to relieve fatigue. Tubes have a black anodized finish for corrosion protection. Telescopic version are available in four configurations, up to the maximum of of 2490mm (98") long with 960mm (38") of adjustment. Urethane Universal Joint provides smooth, uniform rotation in all directions and a quick, firm response to steering movements.Features: Lightweight, rigid construction Secure, comfortable grip Quick fitting universal joint for accurate helm response Materials: Evalon® grip Alloy tube Urethane universal joint Specifications: Tube Ø: 5/8 + 3/4" Grip Ø: 1-1/4" Length: 60 - 98" Weight: 14.1oz Normalized SKU: RF3132UPC Code: 9316800119615

Ronstan RF3134 Sailing AccessoriesBattlestick Telescopic Lightweight Alloy - Split Grip - 740-1,120mm(29-44") LongFirm Grip, Precision Control - Ronstan Batlestick™ tiller extensions provide the highest level of control, for quick, decisive helm response in every situation. The Evalon® Grip is a firm non-slip grip material that does not absorb water. End knob for safety and positive hand positioning. Large grip diameter contrasts erganomically with mainsheet diameter to relieve fatigue. Tubes have a black anodised finish for corrosion protection. Urethane Universal Joint provides smooth, uniform rotation in all directions and a quick, firm reponse to steering movements.Applications:Dinghy and small catamaransMaterials Evalon® grip Fluted alloy tube Urethane universal joint Normalized SKU: RF3134UPC Code: 9316800213993
