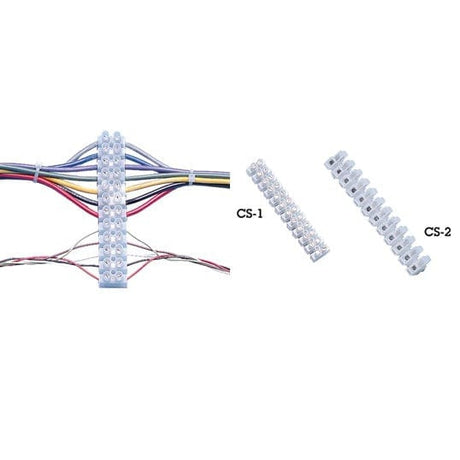

Newmar CS-1 Components" Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger"" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.) Strips are easily cut to meet wiring requirements and space limitations.   Model # of Terminal Pairs Max Wire Gauge Max Amps* Size L X W X H CS-1 12 16 6 3.75"" x .675"" x .5"" CS-2 12 14 10 4.5"" x .75"" x .75"" "Normalized SKU: CS1UPC Code: 007-7001-0

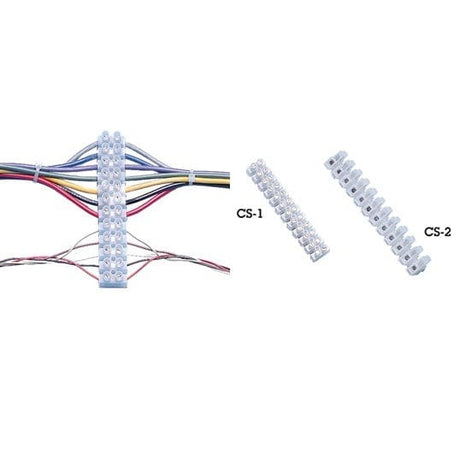

Newmar CS-2 Components" Molded nylon encases 6 or 12 pairs of connectors that use screw compression to secure wires without use of lugs. ideal for electronic installations. Brass barrels capture wires and are held in place with a stainless steel ?finger"" compressed by a screw. The screw does not make contact with the wires, protecting the copper strands from cuts and breakage ? Meets ABYC standards. (Same connector strip used in BX Series boxes.) Strips are easily cut to meet wiring requirements and space limitations.   Model # of Terminal Pairs Max Wire Gauge Max Amps* Size L X W X H CS-1 12 16 6 3.75"" x .675"" x .5"" CS-2 12 14 10 4.5"" x .75"" x .75"" "Normalized SKU: CS2UPC Code: 719441150464

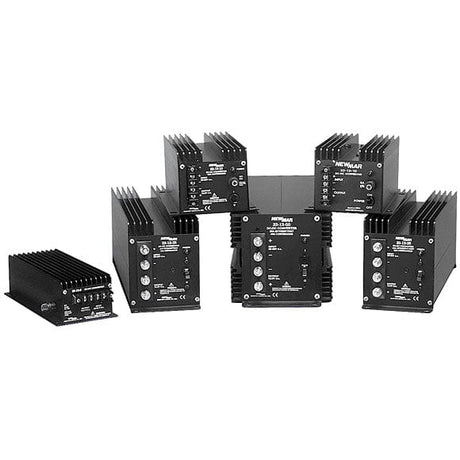

Newmar 32-12-10 InvertersNewmar DC Converter #32-12-10Normalized SKU: 321210

Newmar 32-12-6 InvertersNewmar DC-DC Converter #32-12-6Normalized SKU: 32126

Newmar 48-12-12I Circuit BreakersConvert 20-50 VDC to 12 or 24 VDC output for powering communication/ navigation equipment, on negative ground systems. (see Isolated series, below for positive ground applications.) Ideal for powering voice, data and navigation transceivers in mobile and marine applications. Excellent Regulation: Output voltage maintained within 1% under all line and load conditions within rating. Heat generated by semi-conductors is extracted and dissipated by large heat sink fins that maximize air contact for cool operation and long life of components. Polyurethane conformal coating on PC boards and corrosion-resistant anodized aluminum case with heavy duty shock mounts assure survival in hostile environments. Numerous converter and load protection circuits: Current limiting*; automatic thermal shutdown; short circuit proof*; reverse polarity and overvoltage protection*.  Except 3 Amp. Carries the CE mark Isolated series Same features as Standard Series, but with the additional capability of permitting connection of negative ground gear to positive or floating ground battery systems, or vice-versa. Many models may also be used as 12 or 24 volt stabilizers for highly input voltage sensitive equipment. Input range:10-56 VDC; positive, negative or floating ground. Output: 12 or 24 VDC, 3 to 35 amps. Performance Specifications - Standard & Isolated Series Output: 13.6 VDC (internally adjustable 12.6-14.5) or 24.5 VDC (or specify) Ripple: 150 mV P-P maximum Regulation: Standard: 1% Line/Load Isolated: 2% Line/Load except + 3% Line/Load Duty Cycle Ratings* Intermittent - 20 minutes max on time, 20% duty. Current limit set at approx. 105% of intermittent rating Continuous - 24 hours, 100% duty Idle Current: Standard Series: Less than 100 mA (including power "ON" light ) Isolated Series: approx. 50 mA Operating Temp: 0-50° C, Derate Linearly From 100% @ 40° C To 50% @ 50° C Thermal shutdown @ 70° C Case Temperature Switching Frequency: Standard: 40 Khz** Isolated: 70Khz Efficiency: 85% - Typical.+ Isolation: Output/Chassis; Input/chassis: 250 VDC Input/Output: 250 VDC (Isolated Series only) Certification: Carries the CE mark (Standard Series only) **except 32-12-3 - Linear, Non-Switching +except 32-12-3- 50% @ 24 VDC InputNormalized SKU: 481212I

Newmar DBA+ Electrical Tools"Newmar DBA+ Digital Battery AnalyzerModel: DBA+ Analyzes 12 volt and 6 volt lead-acid batteries of all types: flooded, gel-cell or AGM; deep-cycle or gen/engine start Simple three step test procedure provides a comprehensive analysis of batteries in seconds. No need to recharge batteries prior to testing; accurate results for batteries in any state of charge down to 5.5 volts Uses sophisticated conductance technology; will not harm or discharge batteries Rugged, compact, light-weight case; easy to use even in hard-to-access battery compartment Temperature compensation setting when testing batteries below 32? F (0? C) Handy water resistant carry-case with shoulder strap provided The Digital Battery Analyzer (model DBA+) is an essential tool for all DC system installers, technicians and battery dealers. Simple to use, it performs a complete analysis of battery condition in mere seconds, then displays conclusive data on a large clear LCD readout.The DBA analyzes 12 and 6 volt lead-acid, gel-cell and AGM batteries of all types with ratings from 100-1400 CCA. It provides information on battery voltage, battery condition and available battery power. This gives you empirical data to assure your customers that their batteries are fine, or to support your recommendation that they be replaced.The unit is housed in rugged ABS plastic, yet is light-weight and compact for use in cramped battery compartments and portability in tool kits. It comes equipped with 32? polarity color-coded test leads and quick-connect clamps. The DBA indicates whether the clamps have proper contact with battery posts.Single-battery banks or batteries connected singly in series may be tested without disconnection. Parallel batteries must be disconnected prior to testing."Normalized SKU: DBA+
