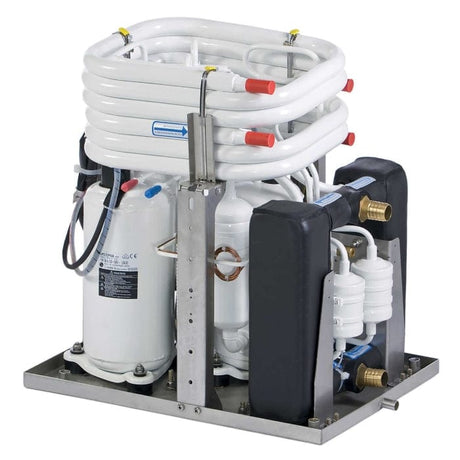

Webasto WBCL1207002D Air Conditioning This BlueCool C40 T twin compressor chiller provides a cooling capacity of 40,000 BTU and is compatible with the optional MyTouch Control Panel and BlueCool Expert tool. BlueCool expert tool allows for remote access to core system operations, parameter settings and troubleshooting from anywhere in the world with a USB cable and Wi-Fi Signal. BlueCool C Series Twin compressor chiller air conditioning system with Reverse Cycle Heat 40,000 BTU/hr Cooling Capacity 40,000 BTU/hr Heating Capacity 230 volt AC operation Frequency 50/60 Hz Suggested Breaker 16A(qty 2) Rated Current: 17-18A Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 43A Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 30A Max Starting Current at 60Hz: 62A Cold Water connections: 1 inch Sea Water connections: 1 inch Minimum cold water flow rate 8.45 gallons per minute(507 GPH) or 32 l/min Minimum sea-water flow rate 8.98 gallons per minute(538.8 GPH) or 34 l/min Consider Webasto WB1500 (1362 GPH) Pump, or one offering similar performance, for the cold water loop Consider Webasto WB1000G or WB1500 (1000-1362 GPH) Pumps, or one offering similar performance, for the sea-water loop Max Permissible ambient temperature: 140 degrees Fahrenheit/60 degrees Celsius Length of wiring harness from chiller to electrical box: 2 meters (6.56 feet) R410A Refrigerant(650 grams x 2) Minimum sea water temperature in heating mode: 42.8 degrees Fahrenheit/6 degrees Celsius Maximum sea water temperature in cooling mode: 95 degrees Fahrenheit/35 degrees Celsius Chiller Unit: 19.69 inch(500mm) Height x 23.23 inch(590mm) Width x 16.14 inch(410mm) Depth Electric Box: 12.01 inch(305mm) Height x 19.77 inch(502mm) Width x 5.39 inch(137mm) Depth Chiller weight: 154.32 lbs/70 kg Installation of a Seawater strainer is mandatory between the seacock and Pump(sold Separately) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. Compatible with MyTouch display and display cable(sold separately): WBCL151002C(display) & WBCL151001A(5m cable) or WBCL151005A(10m cable) MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect System allows for remote operation and monitoring via the BlueCool Connect application: WEBASTO-2510219B This unit is equipped with High Pressure and Low Pressure Service ports Replaces Webasto WBCL1207002C Normalized SKU: WBCL1207002D

Webasto WBCL1207002E Air Conditioning This BlueCool C40 T twin compressor chiller provides a cooling capacity of 40,000 BTU and is compatible with the optional MyTouch Control Panel and BlueCool Expert tool. BlueCool expert tool allows for remote access to core system operations, parameter settings, and troubleshooting from anywhere in the world with a USB cable and Wi-Fi Signal. BlueCool C Series Twin compressor chiller air conditioning system with Reverse Cycle Heat 40,000 BTU/hr Cooling Capacity 40,000 BTU/hr Heating Capacity 230 volt AC operation Frequency 50/60 Hz Suggested Breaker 16A (qty 2) Rated Current: 17-18A Effective value of current consumption (RMS) for the first 40 ms at 60Hz: 43A Effective value of current consumption (RMS) for the first 300 ms at 60Hz: 30A Max Starting Current at 60Hz: 62A Cold Water connections: 1 inch Sea Water connections: 1 inch Minimum cold water flow rate 8.45 gallons per minute (507 GPH) or 32 l/min Minimum sea-water flow rate 8.98 gallons per minute (538.8 GPH) or 34 l/min Consider a Webasto WB1500 (1362 GPH) pump, or one offering similar performance, for the cold water loop Consider Webasto WB1000G or WB1500 (1000-1362 GPH) pumps, or one offering similar performance, for the sea-water loop Max Permissible ambient temperature: 140 degrees Fahrenheit/60 degrees Celsius Length of wiring harness from chiller to electrical box: 2 meters (6.56 feet) R410A Refrigerant (650 grams x 2) Minimum sea water temperature in heating mode: 42.8 degrees Fahrenheit/6 degrees Celsius Maximum sea water temperature in cooling mode: 95 degrees Fahrenheit/35 degrees Celsius Chiller Unit: 19.69 inch (500mm) Height x 23.23 inch (590mm) Width x 16.14 inch (410mm) Depth Electric Box: 12.01 inch (305mm) Height x 19.77 inch (502mm) Width x 5.39 inch (137mm) Depth Chiller weight: 154.32 pounds/70 kg Installation of a Seawater strainer is mandatory between the seacock and Pump (sold separately) Electric box features a USB diagnosis port enabling qualified tech direct access via the unique BlueCool Expert Tool. Expert tool offers access to stored fault codes by hourly runtime which will allow a qualified technician to accurately and efficiently troubleshoot any problems that may arise. Compatible with MyTouch display and display cable (sold separately): WBCL151002C (display) & WBCL151001A (5m cable) or WBCL151005A (10m cable) MyTouch control is compatible with the popular Vimar bezels allowing you to maintain a consistent style throughout your yacht(Vimar Eikon, Eikon EVO, Plana, and Bitcino Axolute) Optional BlueCool Connect System allows for remote operation and monitoring via the BlueCool Connect application: WEBASTO-2510219B This unit is equipped with High Pressure and Low Pressure Service ports Replaces Webasto WBCL1207002C Normalized SKU: WBCL1207002E

Webasto WBCL000017B Air Conditioning Capacitor 2 5mf  Fits 2GRE15120X62 Fan 230 volt Normalized SKU: WBCL000017B

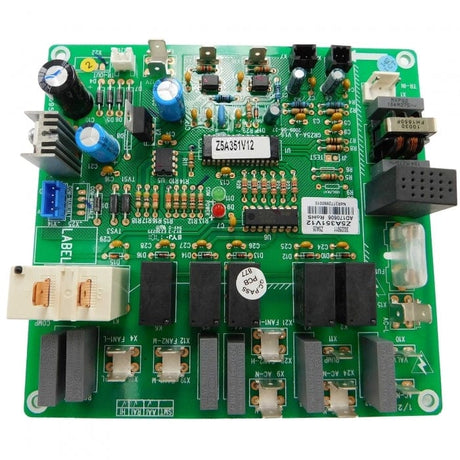

Webasto FCFSP0008A Air Conditioning Circuit Board Air Conditioning: AC Circuit BoardNormalized SKU: FCFSP0008A

Webasto WBCL000165 Air ConditioningWebasto Contactor 2-Pole for V50 M 230v #WBCL000165Normalized SKU: WBCL000165
