Lectrotab T9X18 Trim Tabs The Lectrotab electromechanical trim tab system, a novel replacement for traditional hydraulic systems, includes these sturdy, 12 gauge 304 stainless steel trim tabs. The electric trim tab system has benefits including drastically shorter installation times, little chance of mess or oil leaks, and accurate and prompt functioning and reaction. Systems with Lectrotab trim tabs are maintenance-free and permanently sealed. Continuous rolled and pinned hinges on Lectrotab T9X18 stainless steel trim tabs attach to the transom. These hinges increase the strength and rigidity of the plates and require screwing, as opposed to welding. Because they are stainless steel 304, they provide unparalleled strength and dependability. Key Features: trim tabs made of sturdy 12 gauge 304 stainless steel less time spent installing, less chance of mess or oil leaks, and precise and prompt operation and response. Systems with Lectrotab trim tabs are maintenance-free and permanently sealed. hinges that are continuously rolled and pinned and attached to the transom Product Specifications: SKU: T9X18 Weight: 1.00 LBS Unit Of Measure: PR Manufacturer Part Number (MPN): T9X18 Quantity: 1 Normalized SKU: T9X18

Lectrotab T9X24 Trim Tabs TRIM TAB, STANDARD SST (PAIR) - T9X24 is a metal plate fastened to a boat to the stern's two sides. Trim tab actuators are connected to these plates. The actuators, which help maintain the boat level and even as you go across the water, are controlled either hydraulically or electrically. The actuators press on the plates as you move. Then, the plates press on the water. It will essentially push the boat back up while deflecting water. Therefore, the trim tab pushes back to level if it is leaning to one side along the roll axis. It is positioned on opposite sides so that if the vessel leans back excessively in one direction, the other tab can compensate. Key Features: It is essentially the boat's running angle as it approaches the water. Lowering the bow helps maintain more running area in the water, enhancing the boat's ride in rough waters. It enables lateral adjustments to prevent a sideways list and the ability to trim the hull and the prop. Specifications: Brand: Lectrotab SKU: T9X24 Weight: 1.00 LBS Unit Of Measure: PR Manufacturer Part Number (MPN): T9X24 Normalized SKU: T9X24

Lectrotab T9X9 Trim Tabs The stainless-steel trim tab design from Lectrotab offers unrivaled strength and dependability. A continuous rolled and pinned hinge is for all stainless-steel tabs. Welding is not necessary with this design. The tabs are corrosion-resistant 12-gauge 304 stainless steel and come in three finishes: normal, mirror, and black powder-coated. Key Features: 12-gauge 304 stainless steel is strong and corrosion-resistant. The continuous rolled and pinned hinge adds strength while removing the need for welding. Standard chord lengths are 9" (23cm) and 12" (30cm), with widths ranging from 9" (23cm) to 48" (122cm) (122cm) Custom lengths and widths of chords are also available. There are two actuator mounting options. Available with black powder-coated or mirror finishes. Zinc anodes improve galvanic corrosion resistance. For tabs wider than 24", a bent trailing edge is required. The actuator is mounted to the tab by carriage bolts and nuts. Specifications: SKU: T9X9 Weight: 1.00 LBS Manufacturer Part Number (MPN): T9X9 Normalized SKU: T9X9

Lectrotab TROLL8X8F Trim Tabs Lectrotab Trollbuddy Rocker Switch #TROLL8X8FNormalized SKU: TROLL8X8F

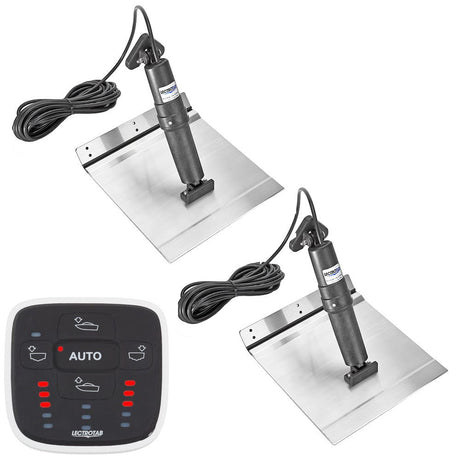

Download LiteratureLectrotab XKASAL12X12A Trim TabsXKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Automatic Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASAL12X12ALectrotab XKASAL12X12A Literature Download Owners Manual Product Brochure

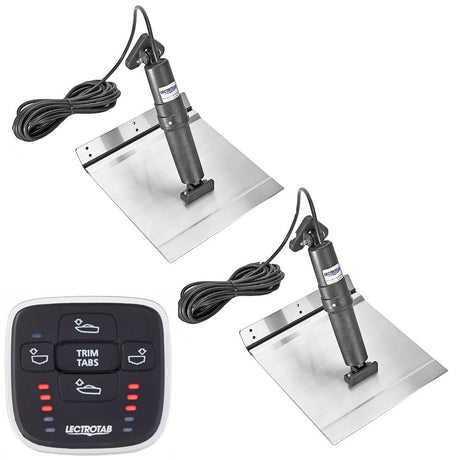

Download LiteratureLectrotab XKASML12X12A Trim TabsXKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Manual Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASML12X12ALectrotab XKASML12X12A Literature Download Owners Manual Product Brochure

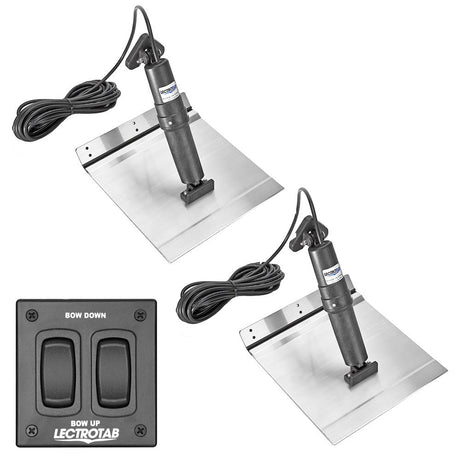

Download LiteratureLectrotab XKAF12X12A Trim TabsXKA Aluminum Alloy Trim Tab Kit with Rocker Switch - 12 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKAF12X12ALectrotab XKAF12X12A Literature Download Owners Manual Product Brochure

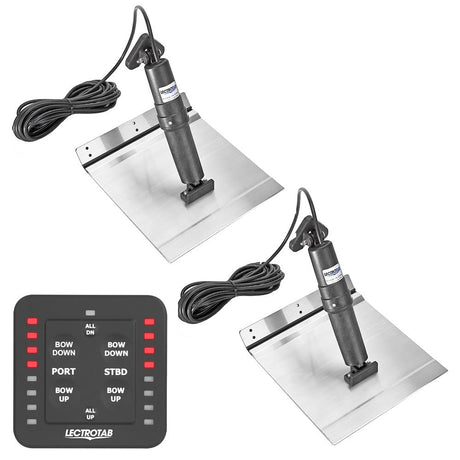

Download LiteratureLectrotab XKASL12X12A Trim TabsXKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 12 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASL12X12ALectrotab XKASL12X12A Literature Download Owners Manual Product Brochure

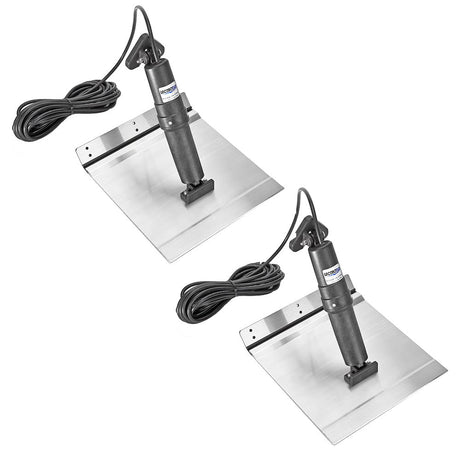

Download LiteratureLectrotab XKA12X12A Trim TabsXKA Aluminum Alloy Trim Tab - 12 x 12The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. *Control switch not included Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) In the Box: Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as an Individual  Normalized SKU: XKA12X12ALectrotab XKA12X12A Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureLectrotab XKASAL12X12 Trim TabsXKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 12 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Automatic Leveling Control Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASAL12X12Lectrotab XKASAL12X12 Literature Download Owners Manual Product Brochure

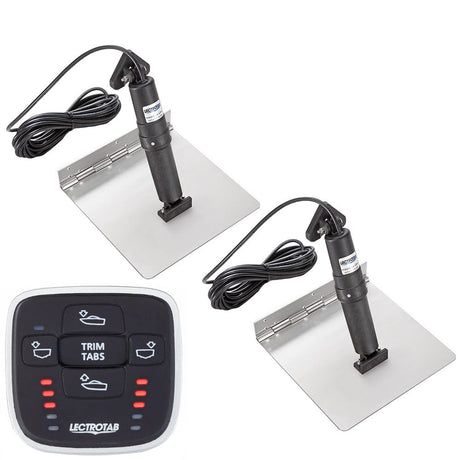

Download LiteratureLectrotab XKASML12X12 Trim TabsXKA Stainless Steel Trim Tab Kit with MLC-1 Control - 12 x 12 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Manual Leveling Control Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASML12X12Lectrotab XKASML12X12 Literature Download Owners Manual Product Brochure

Download LiteratureLectrotab XKAF12X12 Trim TabsXKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 12The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKAF12X12Lectrotab XKAF12X12 Literature Download Owners Manual Product Brochure

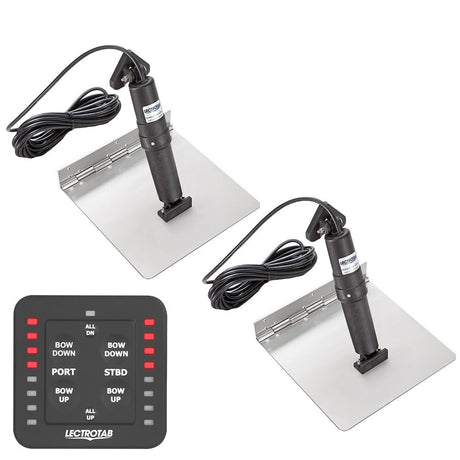

Download LiteratureLectrotab XKASL12X12 Trim TabsXKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 12 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.  Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm) Boat Length - 18' to 32' (5.5 to 9.5 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASL12X12Lectrotab XKASL12X12 Literature Download Owners Manual Product Brochure

Download LiteratureLectrotab XKASAL12X18A Trim TabsXKA Aluminum Alloy Trim Tab Kit with ALC-1 Control - 12 x 18The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Automatic Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASAL12X18ALectrotab XKASAL12X18A Literature Download Owners Manual Product Brochure

Download LiteratureLectrotab XKASML12X18A Trim TabsXKA Aluminum Alloy Trim Tab Kit with MLC-1 Control - 12 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button.  It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Manual Leveling Control Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASML12X18ALectrotab XKASML12X18A Literature Download Owners Manual Product Brochure

Download LiteratureLectrotab XKAF12X18A Trim TabsXKA Aluminum Alloy Trim Tab Kit with Rocker Switch  - 12 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking.  Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run. Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm) Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm) Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) Flat Rocker Switch Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKAF12X18ALectrotab XKAF12X18A Literature Download Owners Manual Product Brochure

Download LiteratureLectrotab XKASL12X18A Trim TabsXKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.   Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)  Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)  Rocker Switch Operating Voltage - 12 or 24 V In the Box: One (1) One-Touch Control  Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit Normalized SKU: XKASL12X18ALectrotab XKASL12X18A Literature Download Owners Manual Product Brochure

Download LiteratureLectrotab XKA12X18A Trim TabsXKA Aluminum Alloy Trim Tab - 12 x 18 The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats.  All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge.  All Aluminum tabs are sealed with a corrosion resistant epoxy coating. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. *Control switch not included Features: All Tabs sealed with a corrosive resistant epoxy coating Equivalent strength to 10 gauge stainless steel "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications: Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) In the Box: Two (2) Aluminum Alloy tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as an Individual  Normalized SKU: XKA12X18ALectrotab XKA12X18A Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureLectrotab XKASAL12X18 Trim TabsXKA Stainless Steel Trim Tab Kit with ALC-1 Control - 12 x 18 The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding. Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket. The Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride. Additionally, the ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.Features: Continuous rolled and pinned hinge provides added strength and eliminates the need for welding Upper ram seal location cannot be damaged due to fouled ram or barnacle growth Utilizes internal pressure equalization system Internal brake system prevents unwanted tab movement when under way or backing down Quiet operation Actuators are fully load tested to push 1000 lbs of force Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water Technical Specifications:  Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm) Boat Length - 20' to 40' (6 to 12 M) Trim Tab Material - 12 gauge, 304 Stainless Steel  Actuator DC Voltage - 12 V Actuator Stroke Length - 2.25" (57 mm) Actuator Cable Length  - 23' (7 M) Actuator Vertical Height - 11.875" (302 mm) Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm) Control Mounting Hole Cutout - 2" (50 mm) Control Operating Voltage - 12 or 24 V In the Box: One (1) Automatic Leveling Control Two (2) Stainless Steel tabs Two (2) actuators w/23' (7 M) cables Instruction Manual  *Sold as a Kit  Normalized SKU: XKASAL12X18Lectrotab XKASAL12X18 Literature Download Owners Manual Product Brochure
