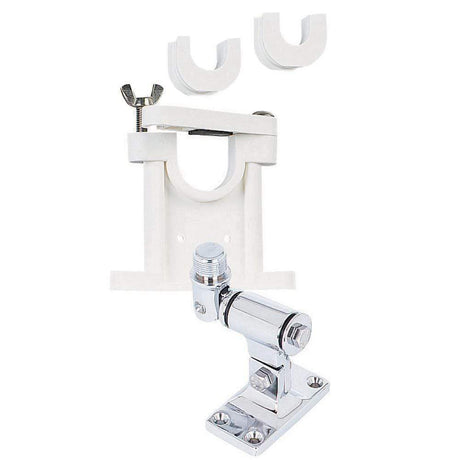

Download LiteratureShakespeare 409-R Mounting HardwareShakespeare Style 409-R Mounting KitCombines the versatile Style 407 Heavy-duty Swivel Mount with the Shakespeare Style 408-R Insulated Stand-off Bracket. The bracket features an insert to accept 1" or 1-1/2" diameter antennas or extension masts. Includes an 1-1/8" insert. The swivel mount is chrome-plated brass construction. Specifications:Mounting Style = NONE Construction = NONESHAKESPEARE 409 MOUNTING KIT INCLUDES 407 & 408Normalized SKU: 409RUPC Code: 719441110802Shakespeare 409-R Literature Download  Quick Reference Guide

Shakespeare HS-40 Hailers & Hailer Horns40W Loud Hailer Horn with Swivel BracketGets your point across with up to 40 watts power handling capacity. This speaker also supports a loud-hailer listen-back function. It is made of high impact white plastic and includes a tilt mount bracket.Features: Measures 7″ wide x l3″ deep 8-ohms, 40 Watts @ 400 Hz Frequency Response: 250 Hz to 8 KHz Operating temperature range: –40 to +176 degrees F (–40 to +80 C) Specifications:Power - Output (Watts) = 40W Shape = RectangularNormalized SKU: HS40UPC Code: 719441111250

Shakespeare HS-5A Hailers & Hailer HornsShakespeare HS-5A 5" 15 Watt 4 Ohm Speaker HornModel: HS-5A Stainless steel hardware Adjustable plastic mounting bracket 10’ cable heavy #20-gauge parallel type Durable weather resistant plastic construction Powerful sound with talkback functionality Specifications Size 5" Power 15 watts Impedance 4 ohms Freq. Resp 500-5500 Hz Normalized SKU: HS5AUPC Code: 719441151171

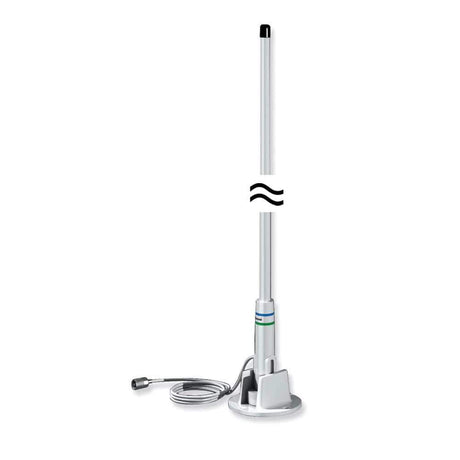

  Download LiteratureShakespeare 420 VHF AntennasStyle 420 VHF 3dBCenter-fed 1/2-wave coaxial sleeveShakespeare's most economical 5' antenna package. The 420 is a great, basic 3dB antenna for day-to-day cruising in calm to moderate seas. The antenna has an integral polycarbonate Lift N Lay mount for deck mounting, and comes with a leveling plate and installation hardware. Use a Style 4000 Angle Bracket (sold separately) for side mounting. Brass and copper elements Includes 15' RG-58 cable and a PL-259 connector Integral deck mount One section Technical Specifications: Frequency: VHF Marine band Bandwidth: (within 2.0:1 SWR): 5MHz SWR: 1.5:1 at 156.8 MHz Impedance: (ohms): 50 Gain: 3 dB Max Input (Watts): 50 DC Ground: NO Termination: 15' RG-58 cable Height (feet): 5 Polarization: Vertical Radiation pattern: Omni-directional Specifications:Antenna Band = VHF Ferrule Type = Nylon Length (Inches) = 5' Cable Length (Feet) = 15' Cable Type = RG-58 Color = White Construction = Fiberglass DB Gain (dB) = 3 dBSHAKESPEARE VHF 5FT 420 3DB Normalized SKU: 420UPC Code: 719441100049Shakespeare 420 Literature Download  Quick Reference Guide

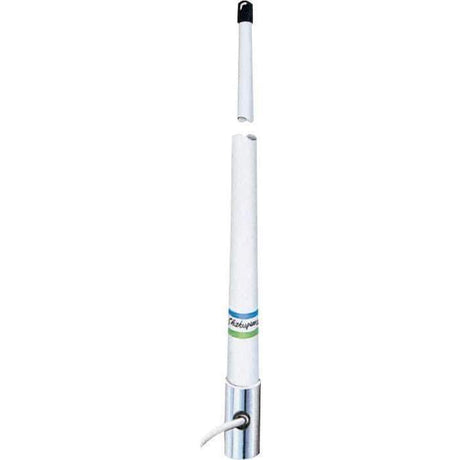

Shakespeare 425-N VHF AntennasAn economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor. 6 dbi gain, 3 MHz. Supplied with 15 ft. RG-58 cable and PL-259 connector. These are white fiberglass antennas with chrome plated brass ferrule, or with a nylon ferrule.Shakespeare 5' VHF Antenna 425-NNormalized SKU: 425NUPC Code: 719441100292

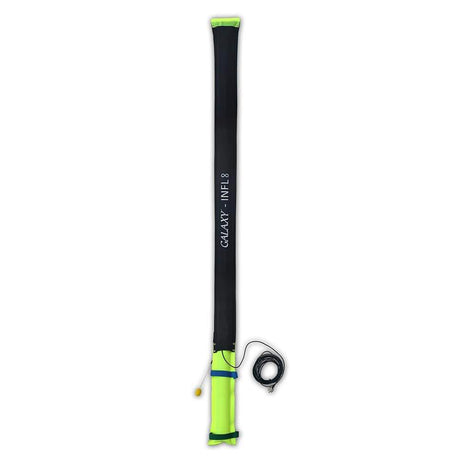

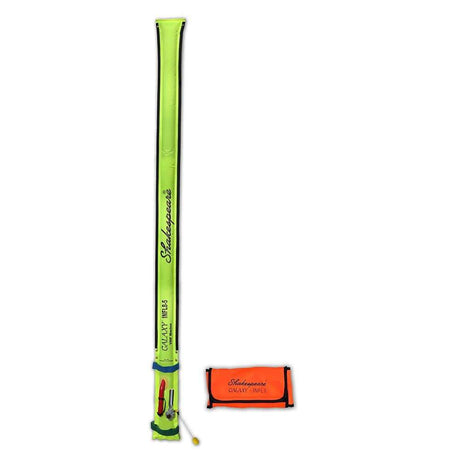

  Download LiteratureShakespeare INFL8-5 VHF Antennas5' VHF Inflatable Emergency Antenna 3dB Galaxy5’, 3dB GALAXY®-INFL8 VHF, Inflatable Emergency and Special Purpose Antenna The GALAXY INFL8-5 by Shakespeare is the world’s first emergency antenna with the performance to earn the GALAXY name. It is an inflatable antenna that can be rapidly deployed via a CO2 cartridge or a manual tube and inflates to 5 ft (1.6 m) to offer a full 3dB antenna with a range of up to three times greater than any existing helical emergency antenna. Thanks to its inflatable design, the antenna can be deflated and stowed away safely in its easy-to-spot storage bag until it is needed again. The antenna can be mounted with its hook and loop straps allowing for quick and easy installation in any weather to stanchions, outriggers or other vertical structures on board. The antenna also features grommets on the top and bottom to facilitate hanging and securing to spreaders, masts, hard tops and other structures even in case the inflatable bladder becomes damaged. The connectors included in the package allow for versatile connection options. The pre-soldered PL-259 connector allows connection to a Fixed VHF directly or a handheld via the included SMA Adaptor.Features: Inflatable to Full 5' with Full 3dB performance in an emergency antenna Rapid & rigid inflation Versatile mounting options through Straps & Grommets along the edges Manually Inflatable* Compatible with most fixed mount and handheld VHF Radios Easily stowable in included bag *When manually inflated, the product does not inflate to be rigid enough to be mounted free standing. Recommended only if antenna can be supported at the bottom and the top. Ideal For: Back Up VHF Antenna Kayaks Jet Skis Inflatables & Displays Specifications:Antenna Band = NONE Cable Length (Feet) = NONE Cable Type = NONE Color = NONE Construction = NONE DB Gain (dB) = NONE Ferrule Type = NONE Length (Inches) = NONENormalized SKU: INFL85UPC Code: 719441111441Shakespeare INFL8-5 Literature Download  Product Brochure

Shakespeare 4078-50 Wiring & SuppliesSHAKESPEARE COAXIAL CABLEThe cable that connects your antenna to your radio can make or break signal quality literally. Shakespeare offers a range of coaxial cables tailored to the needs of marine communications, and to withstand the rigors of the boating environment.4078-50RG-8X CABLE50' RG-8X 50-Ohm low loss coax, white Specifications:Mounting Style = NONE Number of Conductors = NONE Shielded = NONE Tinned = NONE Color = NONE Construction = NONESHAKESPEARE 4078-50 50' RG-8X 50OHM LOW LOSS CABLE WHITENormalized SKU: 407850UPC Code: 719441190163

  Download LiteratureShakespeare 5207 VHF AntennasShakespeare Style 5207 SEA MATE™ CB Marine8' LENGTH, Unity GainCONTINUOUS-LOADED, END-FED 1/2-WAVE CB ANTENNAThis outstanding antenna can be tuned for minimum VSWR and optimum performance. A VSWR meter (sold separately) is required for the tuning process. Needs only 3/8" hole for passage of the coax. Chrome-plated brass ferrule with 1"-14 thread Includes 15' RG-58 cable, which can be cut to length, and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Style 410-R Mounting Kit and a Style 4008 Extension Mast to form a 16' antenna system One section Twin to: Styles 5202, 5302, and 5206-C Shakespeare Limited Warranty: 2 years Technical Specifications: Frequency: 27 MHz CB Marine Band Bandwidth: 440 KHz SWR: 1.5:1 at Channel 19 Impedance: (Ohms) 50 Gain: Unity Max Input (Watts): 25 DC Ground: YES Termination: 15' cable Height (feet): 8 Polarization: Vertical Radiation pattern: Omni-Directional Specifications:Antenna Band = CB Ferrule Type = Chrome Plated Length (Inches) = 8' Cable Length (Feet) = 15' Cable Type = RG-58 Color = White Construction = Fiberglass DB Gain (dB) = UnitySHAKESPEARE CB 8FT 5207 Normalized SKU: 5207UPC Code: 719441800079Shakespeare 5207 Literature Download  Quick Reference Guide

Download LiteratureShakespeare 5237-XT Wi-Fi AntennasShakespeare Galaxy 5237-XT8' Dual Band Cellular 3dB Gain800/900 MHz and 1900 MHz CellularThis antenna covers digital, analog and PCS cell phone bands in an eight-foot radome that coordinates with other Shakespeare Galaxy antennas. Electrical connections are hand soldered for reliability. A brass choking sleeve eliminates pattern distortion due to cable radiation. Use one of Shakespeares CPA Series adapters (sold separately) to connect your portable cell phone. Brass and copper elements to maximize range Stainless steel ferrule w/ standard 1"-14 thread Includes 25' of Shakespeare exclusive Lo-Max® low-loss cable and a "TNC" connector Suggested mount: Shakespeare Style 4187 Ratchet Mount Shakespeare Limited Warranty: 5 years All Galaxy® Dual Band Cellular antennas feature Shakespeares exclusive Lo-Max® Cable. This flexible, UV stable coax provides low-loss characteristics near that of larger RG-8 A/U and RG-213, but without the extra bulk and rigidity.Technical Specifications: Frequency: Dual Band 800-890 MHz and 1800-1900 MHz Bandwidth: 96 MHz within 2.0:1 VSWR (analog band) 140 MHz within 2.0:1 VSWR at (digital band) SWR: nominally less than 1.5:1 at 852.65 MHz; nominally less than 1.5:1 at 1918.7 MHz Gain: 3 dB Height (feet): 8 SHAKESPEARE CELL 8FT 5237-XT Normalized SKU: 5237XTUPC Code: 719441900229Shakespeare 5237-XT Literature Download Quick Reference Guide

Download Literature Watch VideoShakespeare 5102 VHF AntennasShakespeare CENTENNIAL™ Style 51028' LENGTH, VHF Marine 6dBCOLLINEAR PHASED 5/8-WAVEShakespeare started its second century of innovation with the new Centennial™ antennas that bring the most wanted high-end features to mid-priced antennas. The Style 5102 carries on that tradition. Its a 6dB collinear phased 5/8-wave antenna of 8-foot nominal length. The Centennial antennas have a high-gloss, polyurethane finish that wont turn yellow in the sun. Superb value and performance. Brass and copper elements Chrome-plated brass ferrule with standard 1"-14 thread Includes 15' RG-58 cable and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 2 years Technical Specifications: Frequency: VHF Marine Radio Bandwidth: (within 2.0:1 SWR): 5 MHz SWR: 1.5:1 at 156.8 MHz Gain: 6 dB Impedance: (Ohms): 50 Max Input (Watts): 50 DC Ground: YES Termination: 15' RG-58 cable and a PL-259 connector Height (feet): 8 Polarization: Vertical Radiation pattern: Omni - Directional SHAKESPEARE VHF 8FT 5102 6DB Normalized SKU: 5102UPC Code: 719441100582Shakespeare 5102 Literature Download Quick Reference GuideShakespeare 5102 Video
