Shakespeare QC-8 VHF Antennas8' VHF Quick Connect w/Nylon FerruleStemming from the popularity of the quick connecting feature on Shakespeare's high-end Phase III® marine antennas, the new QuickConnect product line brings you the ease of connecting and disconnecting your marine antenna in a series of entry-level antennas.Features QuickConnect™ - Unscrew or screw antenna to disconnect or connect High quality connection - No noise generated due to vibrations Hanging dust protection cap - Protect the connector on the mount when antenna is disconnected Water protection cap - Cap stays fastened to mount to prevent it from getting lost Centerpin PL-259-CP-G Connector - Easy crimp-on type connector Standard mount design - Upgrade to a high-end Shakespeare antenna without purchasing a new mount Specifications Frequency Band:VHF Marine Height:8' (2.43M) Gain:6dB Ferrule:Chrome-Plated Brass VSWR:<1.5:1 at 156.8 MHz Bandwidth:5 MHz within 2.0:1 VSWR Coax Supplied:20' (6.09M) of RG-58 Color:White Polarization:Vertical Impedance:50 Ohms Normalized SKU: QC8UPC Code: 719441173005

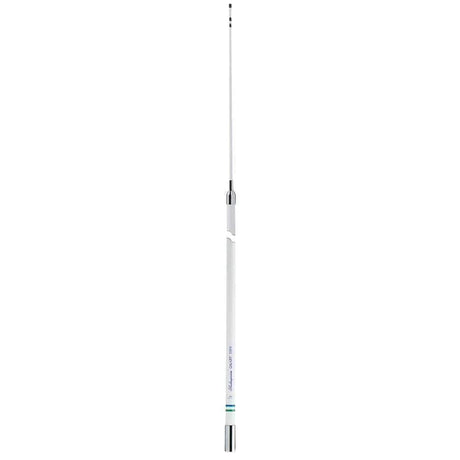

  Download LiteratureShakespeare 5399 VHF AntennasShakespeare Galaxy Style 53999'6" VHF 6dB GainCollinear-phased 5/8 wave with two coaxial chokes to suppress cable radiationEXTRA TOUGH!This professional quality antenna is a performance powerhouse. Its extra strong sturdy enough to be self-supporting, even in high winds and high speeds. Mounting on radar arch or T-top not recommended. Brass and copper elements for maximum range and efficiency Stainless steel ferrule with standard 1"-14 thread 20' RG-8/X low-loss cable plus a PL-259 connector Suggested mount: Use only Shakespeares extra heavy-duty Style 4187-HD Rachet Mount for self-supporting applications, or use a Style 452 mounting kit if an upper support bracket installation is preferred Two sections: Base 75", Tip 39" - UPS shippable Shakespeare Limited Warranty: 5 years Technical Specifications: Frequency: VHF Marine Band Bandwidth: 3 MHz within 2.0:1 VSWR SWR: nominally 1.5:1 at 156.8 MHz Gain: 6 dB Max Input (Watts): 100 watts DC Ground: YES Height (feet): 9'6" Polarization: Vertical Specifications:Antenna Band = VHF Ferrule Type = Stainless Steel Length (Inches) = 9'6" Cable Length (Feet) = 20' Cable Type = RG-8X Color = White Construction = Fiberglass DB Gain (dB) = 6 dBSHAKESPEARE VHF 9.5FT 5399 6DB 2 PIECE Normalized SKU: 5399UPC Code: 719441200213Shakespeare 5399 Literature Download  Quick Reference Guide

Download LiteratureShakespeare 399-1 VHF AntennasStyle 399-1 VHF 6dBCollinear Phased 5/8-wave with two coaxial chokes to suppress cable radiationA professional quality antenna in a compact package. This extra-duty antenna combines strength and performance for use where you really need the efficiency of a large antenna, but don't have room for one. Brass and copper elements Chrome-plated brass ferrule with standard 1"-14 thread Includes 15' RG-58 cable and a PL-259 connector Suggested mount: Style 410-R Mounting Kit for deck or side mounting Two sections: Base 75"; Tip 39" UPS shippable Technical Specifications: Frequency: VHF Marine band Bandwidth: (within 2.0:1 SWR): 5MHz SWR: 1.5:1 at 156.8 MHz Impedance: (ohms): 50 Gain: 6 dB Max Input (Watts): 100 DC Ground: YES Termination: 15' RG-58 cable Height (feet): 9.5 Polarization: Vertical Radiation pattern: Omni-directional SHAKESPEARE VHF 9.5FT 399-1 6DBNormalized SKU: 3991UPC Code: 719441100025Shakespeare 399-1 Literature Download Quick Reference Guide

Shakespeare 4354 VHF AntennasAM/FM Low Profile Stainless Whip - 2' - Black Band: AM-FM Ferrule: L Bracket Color/finish: Black Polarity: Vertical Impedance: 50 Ohms DC Ground: No DC Ground - The antenna will read open on continuity test Shakespeare Limited Warranty: 2 years Specifications:Length (Inches) = NONE Ferrule Type = NONE DB Gain (dB) = NONE Construction = Stainless Steel Color = Black Cable Type = NONE Cable Length (Feet) = NONE Antenna Band = AM/FMNormalized SKU: 4354UPC Code: 719441400163

Shakespeare 4356 VHF AntennasAM/FM Low Profile Stainless Antenna - 25" Band: AM-FM Ferrule: 1" 14 Thread Color/finish: Stainless Steel Polarity: Vertical Impedance: 50 Ohms DC Ground: No DC Ground - The antenna will read open on continuity test Shakespeare Limited Warranty: 2 years Specifications:Length (Inches) = NONE Ferrule Type = NONE DB Gain (dB) = NONE Construction = NONE Color = Stainless Cable Type = NONE Cable Length (Feet) = NONE Antenna Band = AM/FMNormalized SKU: 4356UPC Code: 719441400187

Shakespeare 4355 VHF AntennasAM/FM Low Profile Stainless Antenna - 36" Band: AM-FM Cable Length:15' with connectors Ferrule: L Bracket Color/finish: Stainless Steel Polarity: Vertical Impedance: 50 Ohms DC Ground: No DC Ground - The antenna will read open on continuity test Shakespeare Limited Warranty: 2 years Specifications:Length (Inches) = NONE Ferrule Type = NONE DB Gain (dB) = NONE Construction = NONE Color = Stainless Cable Type = NONE Cable Length (Feet) = NONE Antenna Band = AM/FMNormalized SKU: 4355UPC Code: 719441400170

Shakespeare 6420-R VHF Antennas6420-R 4' AM/FM Phase III Antenna4' (1.2M) AM/FM Entertainment Band 3dB GainThis top-of-the-line, high performance AM/FM antenna brings the entertainment to your vessel. Ideal for hard-tops, T-tops and radar arches, the tested durability of our fiberglass radomes ensures exceptional quality during tough conditions. The high-gloss finish coordinates with other Phase-III™ antennas providing a complete and lasting look of luxury.Features: Silver plated elements Ethafoam spacer system Stainless Steel Mounting Sleeve SO-239 quick connect 12-sided facet 8 year commercial warranty Specifications:Antenna Band = NONE Cable Length (Feet) = 20' Cable Type = RG-62 Color = White Construction = NONE DB Gain (dB) = 3db Ferrule Type = NONE Length (Inches) = 48Normalized SKU: 6420RUPC Code: 719441200695

  Download Literature  Watch VideoShakespeare 6235 VHF AntennasPHASE III 6235 8' AM/FM Antenna Embark upon your next voyage w/ the most technologically advanced antenna we've ever created...Construction Goes High-TechPhase III antennas embody the ultimate in antenna design, construction and performance. We intend them for discerning, tech-conscious boaters who won't settle for less than the best, most versatile and most attractive antennas. For highest electrical efficiency, performance, and longevity, Phase III VHF and Cellular antennas start with silver-plated elements. They also feature Shakespeare's unique low-angle radiation that puts your signal where it matters most. All of our extra heavy-duty Phase III radomes are completely foam-filled. This sophisticated technique, which is no easy feat to manufacture, isolates the radiators from vibration and moisture for long, dependable service. Antenna mounting has also been designed for more versatility. Phase III's newly engineered ferrules accommodate a variety of installation possibilities, including standard 1" - 14 thread mounts, and strapping or clamping to a mast. The ferrule, its coupling ring, and the "N" connector at the base allow the antennas to be quickly and easily installed without re-routing your existing coax.This AM/FM Entertainment Band antenna takes AM/FM reception to new heights, and coordinates with the looks of other 8' Phase III antennas.FeaturesHigh-gloss, high-performance, non-yellowing polyurethane finish Stainless steel mounting sleeve Type "N" connector inside mounting sleeve for easy mounting and dismounting for stowage Includes 20 RG-62 cable with Motorala type plug installed Specifications: Antenna Band = NONE Ferrule Type = NONE Length (Inches) = NONE Cable Length (Feet) = NONE Cable Type = NONE Color = NONE Construction = NONE DB Gain (dB) = NONE SHAKESPEARE AM/FM 8FT 6235 PHASE III ANTENNA NO CABLE Normalized SKU: 6235UPC Code: 719441200411Shakespeare 6235 Literature Download   Quick Reference GuideShakespeare 6235 Video

Shakespeare 4352-20 Connectors & Accessories4352-20 AM/FM Stereo Extension Cable - 20'Features: Comes with male and female Motorola connectors installed Plugs pre-installed 20' length Specifications:Construction = NONE Mounting Style = NONENormalized SKU: 435220UPC Code: 719441111380
