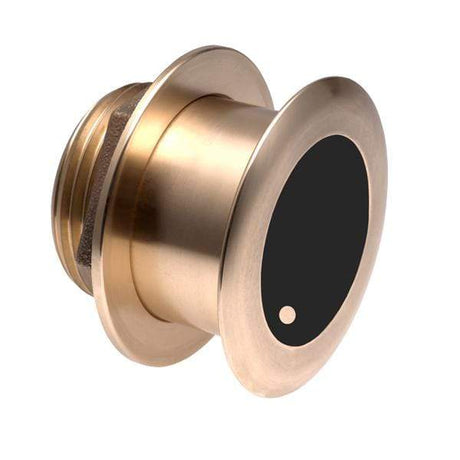

Airmar B265C-LH-0 TransducersAirmar B265C-LH Bronze Thru Hull with Bare Wire Mix-N-Match CableModel: B265LH-0 Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000') High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000') 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 9 m (30') Frequency Band Low-High High Frequency 130-210 kHz High Frequency Beamwidth 10°-6° Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Housing Material Bronze Max Deadrise Up to 20° with fairing Max Depth Low frequency- 914 m (3000'), High frequency- 304 m (1000') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Single or Dual Frequency CHIRP-Ready Dual-Band Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LH-MM Transduer High Speed Fairing Block High Speed Fairing Block Bolt Kit MMC-0 Cable Normalized SKU: B265CLH0

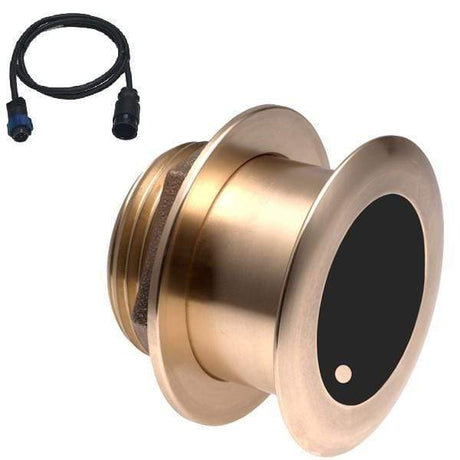

Airmar B265C-LH-BL2 TransducersAirmar B265C-LH Bronze Thru Hull with Navico Blue 7-Pin Mix-N-Match Y-CableModel: B265LH-BL2 Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000') High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000') 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 9 m (30') Frequency Band Low-High High Frequency 130-210 kHz High Frequency Beamwidth 10°-6° Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Housing Material Bronze Max Deadrise Up to 20° with fairing Max Depth Low frequency- 914 m (3000'), High frequency- 304 m (1000') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Single or Dual Frequency CHIRP-Ready Dual-Band Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LH-MM Transduer High Speed Fairing Block High Speed Fairing Block Bolt Kit MMC-BL2 Cable Normalized SKU: B265CLHBL2

Airmar B265C-LH-9N2 TransducersAirmar B265C-LH Bronze TH Low High CHIRPModel: B265C-LH Depth & fast-response water-temperature sensor Low—CHIRPS from 42 kHz to 65 kHz 25° to 16° port-starboard beamwidth High—CHIRPS from 130 kHz to 210 kHz 10° to 6° beamwidth 103 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Fishing Profile: Commercial and recreational inshore and offshore fishing (deep-water canyon and sea-mount tracking) Bronze transducer housing with High-Performance Fairing Boat Size: 8 m (25’) and above Hull Type: Fiberglass or wood Exclusive Xducer ID® technology Imagine knowing what exact frequencies work the best at detecting specific fish species: Bluefin Tuna—60 kHz, Squid—133 kHz, and Cod—175 kHz. Now imagine tuning your fish finder to these frequencies, marking the fish precisely on the screen, then catching them! With the B265 transducer connected to a tunable fish finder, you too can have a log book like a commercial fisherman. This powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The B265LH is packed with a seven-element, low-frequency array that operates at anywhere between 42 kHz and 65 kHz. It has a wide, 25° beam that will adjust by several degrees as the frequency is tuned up or down the band. The single, high-frequency ceramic operates at any frequency between 130 kHz and 210 kHz and has a narrow, 6° beam that is adjustable by several degrees. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.Specifications Hull Deadrise Up to 20° with fairing Acoustic Window Urethane Weight 7.3 kg (16 lb) Normalized SKU: B265CLH9N2

Airmar B265C-LM-0 TransducersAirmar B265C-LM Bronze thru Hull Low Medium CHIRP with Bare Wire Mix-N-Match CableModel: B265C-LM-0 Depth and fast-response water-temperature sensing 1 kW of power for great deep to mid-depth performance Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000') Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology Hull Type: Fiberglass or wood Exclusive Xducer ID® technology The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 10 m (33') Single or Dual Frequency CHIRP-Ready Dual-Band Frequency Band Low-Medium Housing Material Bronze Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16°-11° Max Deadrise Up to 20° with fairing Max Deadrise Angle 20° Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LM-MM Transducer High Speed fairing Block High Speed Fairing Block Bolt Kit MMC-0 Cable Normalized SKU: B265CLM0

Airmar B265C-LM-12F TransducersAirmar B265C-LM Bronze thru Hull Low Medium CHIRP with Furuno 12-Pin Mix-N-Match CableModel: B265C-LM-12F Depth and fast-response water-temperature sensing 1 kW of power for great deep to mid-depth performance Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000') Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology Hull Type: Fiberglass or wood Exclusive Xducer ID® technology The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 10 m (33') Single or Dual Frequency CHIRP-Ready Dual-Band Frequency Band Low-Medium Housing Material Bronze Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16°-11° Max Deadrise Up to 20° with fairing Max Deadrise Angle 20° Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LM-MM Transducer High Speed fairing Block High Speed Fairing Block Bolt Kit MMC-12F Cable Normalized SKU: B265CLM12F

Airmar B265C-LM-12G TransducersAirmar B265C-LM Bronze thru Hull Low Medium CHIRP with Garmin 12-PinMix-N-Match CableModel: B265C-LM-12G Depth and fast-response water-temperature sensing 1 kW of power for great deep to mid-depth performance Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000') Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology Hull Type: Fiberglass or wood Exclusive Xducer ID® technology The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 10 m (33') Single or Dual Frequency CHIRP-Ready Dual-Band Frequency Band Low-Medium Housing Material Bronze Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16°-11° Max Deadrise Up to 20° with fairing Max Deadrise Angle 20° Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LM-MM Transducer High Speed fairing Block High Speed Fairing Block Bolt Kit MMC-12G Cable Normalized SKU: B265CLM12G

Airmar 41-482-2-01 TransducersAirmar B265C-LH Bronze THLow Medium CHIRPModel: 41-482-2-01 Ultrasonic Speed & Temperature in one housing with no moving parts Advanced filtering and sampling rates for increased accuracy at all speeds Data update rate up to 10 x per second Speed Range (0.1 to 50 knots) Adapts automatically to increases in speed so accuracy remains constant Retractable insert in a housing with a water valve Depth & fast-response water-temperature sensor Bronze transducer housing with High-Performance Fairing Boat Size: 8 m (25’) and above Hull Type: Fiberglass, wood, or metal Engine Type: Inboard, Outboard or I/O For use on hulls up to 20° deadrise The B265LM Chirp-ready transducer is the perfect mid-range to deep performing transducer in the Airmar line. Covering a huge bandwidth, the frequency performance on many species delivers crisp, clear target separation. This 1 kW powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.LM Model - Low Frequency 42-65 kHz/Medium Frequency 85-135 kHzSpecifications Hull Deadrise Up to 20° with fairing Acoutis Window Urethane Weight 7.3 kg (16 lb) Low 42 kHz to 65 kHz 25° to 16° beamwidth Maximum depth 3000 ft Medium 85 kHz to 135 kHz 16° to 11° beamwidth Maximum depth 1500 ft 73 kHz of total bandwidth from one transducer Normalized SKU: 41482201

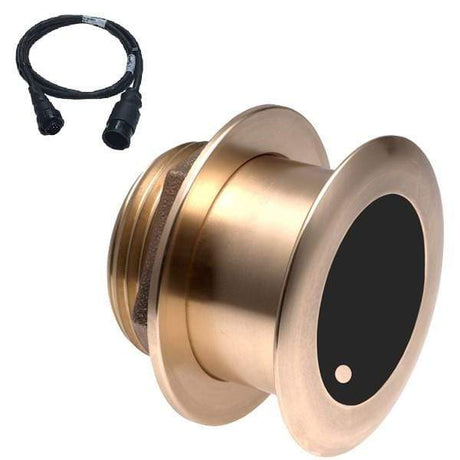

Airmar B265C-LM-9N2 TransducersAirmar B265C-LM Bronze thru Hull Low Medium CHIRP with Navico 9-Pin mix-N-Match CableModel: B265C-LM-9N2 Depth and fast-response water-temperature sensing 1 kW of power for great deep to mid-depth performance Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000') Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology Hull Type: Fiberglass or wood Exclusive Xducer ID® technology The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 10 m (33') Single or Dual Frequency CHIRP-Ready Dual-Band Frequency Band Low-Medium Housing Material Bronze Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16°-11° Max Deadrise Up to 20° with fairing Max Deadrise Angle 20° Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LM-MM Transducer High Speed fairing Block High Speed Fairing Block Bolt Kit MMC-P2N Cable Normalized SKU: B265CLM9N2

Airmar B265C-LM-BL2 TransducersAirmar B265C-LM Bronze thru Hull Low Medium CHIRP with Navico Blue 7-Pin Y- Mix-N-Match CableModel: B265C-LM-BL2 Depth and fast-response water-temperature sensing 1 kW of power for great deep to mid-depth performance Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000') Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology Hull Type: Fiberglass or wood Exclusive Xducer ID® technology The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 10 m (33') Single or Dual Frequency CHIRP-Ready Dual-Band Frequency Band Low-Medium Housing Material Bronze Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16°-11° Max Deadrise Up to 20° with fairing Max Deadrise Angle 20° Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LM-MM Transducer High Speed fairing Block High Speed Fairing Block Bolt Kit MMC-BL2 Cable Normalized SKU: B265CLMBL2

Airmar B265C-LM-11R TransducersAirmar B265C-LM Bronze thru Hull Low Medium CHIRP with Raymarine 11-Pin Mix-N-Match CableModel: B265C-LM-11R Depth and fast-response water-temperature sensing 1 kW of power for great deep to mid-depth performance Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000') Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500') 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze housing with High-performance Fairing for optimal high-speed performance Patented Xducer ID® technology Hull Type: Fiberglass or wood Exclusive Xducer ID® technology The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).Specifications Cable-Length 10 m (33') Single or Dual Frequency CHIRP-Ready Dual-Band Frequency Band Low-Medium Housing Material Bronze Low Frequency 42-65 kHz Low Frequency Beamwidth 25°-16° Medium Frequency 85-135 kHz Medium Frequency Beamwidth 16°-11° Max Deadrise Up to 20° with fairing Max Deadrise Angle 20° Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500') Mounting Style Thru-Hull with Fairing Power Rating 1 kW Transducer Functions Depth, Temperature Usable Shaft Length 121 mm (4.75") What's in the Box: B265C-LM-MM Transducer High Speed fairing Block High Speed Fairing Block Bolt Kit MMC-11RLDB Cable Normalized SKU: B265CLM11R

  Download LiteratureAirmar B265C-LM-MM TransducersB265LM Bronze Chirp Thru-Hull Transducer 1kW with Fairing Block - Mix & Match Cable NeededThe B265LM Chirp-ready transducer is the perfect mid-range to deep performing transducer in the Airmar line. Covering a huge bandwidth, the frequency performance on many species delivers crisp, clear target separation. This 1 kW powerhouse transducer delivers extreme target detail, bottom discrimination, and bait and game fish separation at all depths. The included High-Performance Fairing will give you broadband performance at speeds over 30 knots (34 MPH). We will leave it up to you to discover the rest of the secrets that can be unlocked with tunable, Chirp Broadband Transducer Technology.LM Model - Low Frequency 42-65 kHz/Medium Frequency 85-135 kHz Features: Depth & fast-response water-temperature sensor 1kW power for excellent deep to mid-depth performance Low frequency: 42 kHz to 65 kHz 25° to 16° beamwidth (port-starboard) Maximum depth 3000' (914 m) Medium frequency: 85 kHz to 135 kHz 16° to 11° beamwidth Maximum depth 1500' (457M) 73 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths Bronze transducer housing with High-Performance Fairing for improved high speed performance Recommended boat size: 8 m (25') and above Hull Type: Fiberglass or wood Models also available in Transom Mount (TM265LM), Pocket Mount (PM265LM), Cavity Mount (CM265LM), In-Hull (M265LM) Exclusive Xducer ID® technology Specifications: Hull Deadrise: Up to 20° with fairing Acoustic Window: Urethane Weight: 7.3 kg (16 lb) Specifications:Temperature = NONE Supported Deadrise/Transom Angles = NONE Speed Included = NONE Power = 1 kw Pins = NONE Mounting Style = Thru-Hull Imagining = NONE Frequency = 42-65/85-135 Fairing Block Included = Yes Chirp = Low/Medium Cable Length (Feet) = NONENormalized SKU: B265CLMMMAirmar B265C-LM-MM Literature Download  Owners Manual  Product Brochure

Airmar B275C-MWHW-MM TransducersB275 Medium Ultra-Wide/High Wide Bronze 1KW Chirp Transducer with Fairing Block- Requires Mix & Match CableThe B275MWHW combines medium and high frequencies into a single thru-hull model, advancing transducer design by delivering wider bottom coverage than any other 1 kW transducer available. It combines medium frequencies (60-100 kHz), which deliver ultra-wide beamwidths for maximum coverage under the boat down to 396 m (1300’)… the ultimate scouting tool for anglers targeting species down deep. Together with the very popular, high-frequency bandwidth (150 to 250 kHz), with wide 25° beamwidths, for excellent shallow-water performance with more coverage and excellent fish-target separation in the upper water column. Its wide beam offers twice the coverage of standard high frequencies, for detecting fish in the upper-water column, producing clear fish arches on the display. The B275MWHW is an exceptional choice for both inshore and pelagic fishing, and deepwater species where critical resolution and maximum coverage are required. The B275MWHW sets the standard for efficiently scouting massive areas for target species. Each B275MWHW includes Airmar’s high-performance fairing for exceptional performance at speed on boats over 8m (25’).Features: Depth and fast-response water-temperature sensing 1 kW of power for great deep-water performance from the low frequency Medium frequency: 60 to 100 kHz, 57° to 73° ultra-wide beamwidth 16° average fore/aft, Maximum depth of 396 m (1300') High frequency: 150 to 250 kHz, 25° wide beamwidth, Maximum depth of 152 m (500') 140 kHz of total bandwidth from one transducer Cable Length 30FT Covers popular fishing frequencies of 75 and 200 kHz, plus everything else in the bandwidth Bronze housing with High-performance Fairing for optimal performance at high speeds For boats 8 m (25') and above Patented Xducer ID® technology Max Deadrise Angle: 20° Hull Material: Fiberglass or wood Mounting Style: Thru-Hull with Fairing Max Vessel LOA: 8 m (25') and above Hole Size: 30 mm (1-3/16") Usable Shaft Length: 121 mm (4.75") Normalized SKU: B275CMWHWMM

Airmar B275C-LHW-14HB TransducersAirmar B275C-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer with Humminbird 14-Pin M&M Chirp Cable - 1m Model: B275C-LHW-14HB Depth & fast-response water-temperature sensor 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers. A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered. Specifications Low Frequency CHIRPS from 42 kHz to 65 kHz ?25° to 16° beamwidth High Frequency CHIRPS from 150 kHz to 250 kHz ?25° constant beamwidth Boat size 8 m (25’) and above Hull type Fiberglass or wood Hull deadrise Up to 20° with fairing block Acoustic window Urethane What's in the Box: B275CLHW-MM Fairing block and hardware MMC-14HB - Humminbird 14-Pin M&M Chirp Cable - 1m Normalized SKU: B275CLHW14HB

Airmar B275C-LHW-HB TransducersAirmar B275C-LHW Wide Beam CHIRP Bronze Thru-Hull Transducer with Humminbird 9-Pin M&M Chirp Cable - 1m Model: B275C-LHW-HB Depth & fast-response water-temperature sensor 123 kHz of total bandwidth from one transducer Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25° beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers. A unique property of the new high frequency transducers is that the beam width is a constant 25° angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered. Specifications Low Frequency CHIRPS from 42 kHz to 65 kHz ?25° to 16° beamwidth High Frequency CHIRPS from 150 kHz to 250 kHz ?25° constant beamwidth Boat size 8 m (25’) and above Hull type Fiberglass or wood Hull deadrise Up to 20° with fairing block Acoustic window Urethane What's in the Box: B275CLHW-MM Fairing block and hardware MMC-HB - Humminbird 9-Pin M&M Chirp Cable - 1m Normalized SKU: B275CLHWHB
