Airmar Not Qualified for Free Shipping Furuno Chirp-ready External Mount Transducer #R109LH

Furuno Chirp-ready External Mount Transducer #R109LH

$2,546.78 $2,872.76 -12% OFF

Furuno Chirp-ready External Mount Transducer #R109LH

$2,546.78 $2,872.76 -12% OFF

Furuno Chirp-ready External Mount Transducer #R109LH

$2,546.78 $2,872.76 -12% OFF
Brand: Airmar

SKU: ARM-R109LH

Category: Transducers

More about this item

Airmar R109LH Transducers

Furuno R109LH Chirp-ready External Mount

Model: R109LH
  • Depth and fast-response water-temperature sensor
  • 2 kW
  • Low frequency: 38 to 75 kHz
  • High frequency: 130 to 210 kHz
  • 117 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 60, and 200 kHz plus everything else in the bandwidth
  • Urethane housing with fairing for optimal performance

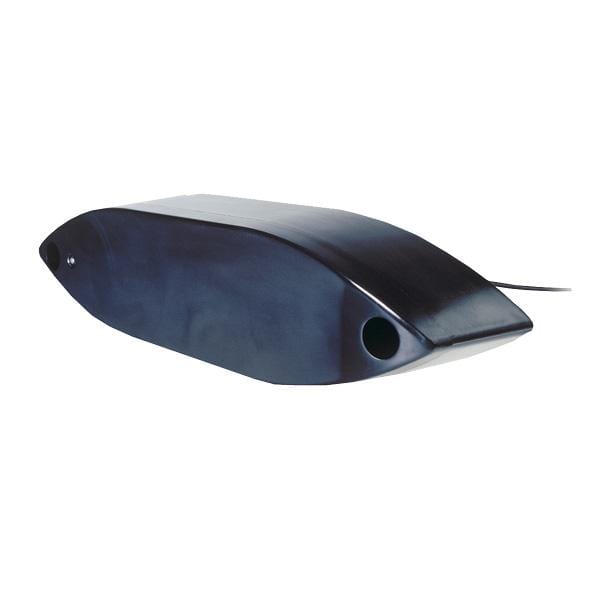

The R109LH is an externally mounted, 2 kW transducer which delivers excellent target resolution, bottom discrimination, and bait and game-fish separation. The R109LH is packed with a fifteen-element, low-frequency array that operates at anywhere between 38 and 75 kHz, delivering great depth capability down to 1,829 m (6,000').

The single, high-frequency ceramic operates at any frequency between 130 and 210 kHz and has a narrow (8° to 4°) beam that provide tremendous bottom detail and fish-target discrimination at depths to 457 m (1,500').

Specifications
Beam Angle Low 19° to 10° port-starboard beamwidth
Beam Angle High 8° to 4° beamwidth
Maximum Depth Low Maximum depth of 1,829 m (6,000')
Maximum Depth high Maximum depth of 1,829 m (6,000')
Hull Material Compatible with all hull materials
Hull Deadrise 0° to 22°

What's in the Box:
  • R109LH Transducer
  • fairing
  • Mounting hardware

  • Normalized SKU: R109LH
