Airmar B275C-MWHW-MM Transducers

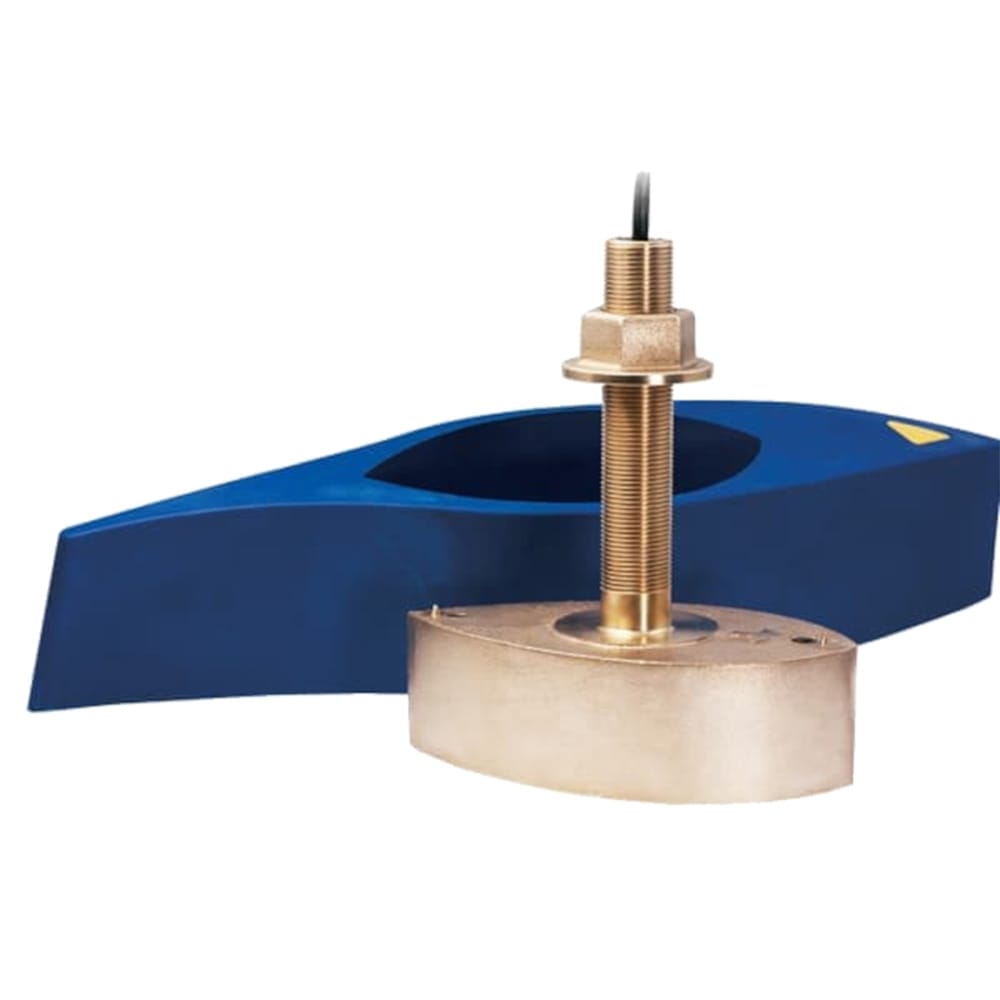

B275 Medium Ultra-Wide/High Wide Bronze 1KW Chirp Transducer with Fairing Block- Requires Mix & Match Cable

The B275MWHW combines medium and high frequencies into a single thru-hull model, advancing transducer design by delivering wider bottom coverage than any other 1 kW transducer available. It combines medium frequencies (60-100 kHz), which deliver ultra-wide beamwidths for maximum coverage under the boat down to 396 m (1300’)… the ultimate scouting tool for anglers targeting species down deep. Together with the very popular, high-frequency bandwidth (150 to 250 kHz), with wide 25° beamwidths, for excellent shallow-water performance with more coverage and excellent fish-target separation in the upper water column. Its wide beam offers twice the coverage of standard high frequencies, for detecting fish in the upper-water column, producing clear fish arches on the display. The B275MWHW is an exceptional choice for both inshore and pelagic fishing, and deepwater species where critical resolution and maximum coverage are required. The B275MWHW sets the standard for efficiently scouting massive areas for target species. Each B275MWHW includes Airmar’s high-performance fairing for exceptional performance at speed on boats over 8m (25’).

Features:

  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep-water performance from the low frequency
  • Medium frequency: 60 to 100 kHz, 57° to 73° ultra-wide beamwidth 16° average fore/aft, Maximum depth of 396 m (1300')
  • High frequency: 150 to 250 kHz, 25° wide beamwidth, Maximum depth of 152 m (500')
  • 140 kHz of total bandwidth from one transducer
  • Cable Length 30FT
  • Covers popular fishing frequencies of 75 and 200 kHz, plus everything else in the bandwidth
  • Bronze housing with High-performance Fairing for optimal performance at high speeds
  • For boats 8 m (25') and above
  • Patented Xducer ID® technology
  • Max Deadrise Angle: 20°
  • Hull Material: Fiberglass or wood
  • Mounting Style: Thru-Hull with Fairing
  • Max Vessel LOA: 8 m (25') and above
  • Hole Size: 30 mm (1-3/16")
  • Usable Shaft Length: 121 mm (4.75")

Normalized SKU: B275CMWHWMM
