Airmar Qualifies for Free Shipping Airmar B265C-LM Bronze TH Low Medium CHIRP Navico 9-Pin Y-Cable #B265C-LM-9N2

Airmar B265C-LM Bronze TH Low Medium CHIRP Navico 9-Pin Y-Cable #B265C-LM-9N2

$2,249.99 $2,589.11 -14% OFF

Airmar B265C-LM Bronze TH Low Medium CHIRP Navico 9-Pin Y-Cable #B265C-LM-9N2

$2,249.99 $2,589.11 -14% OFF

Airmar B265C-LM Bronze TH Low Medium CHIRP Navico 9-Pin Y-Cable #B265C-LM-9N2

$2,249.99 $2,589.11 -14% OFF
Brand: Airmar

SKU: ARM-B265C-LM-9N2

Category: Transducers

More about this item

Airmar B265C-LM-9N2 Transducers

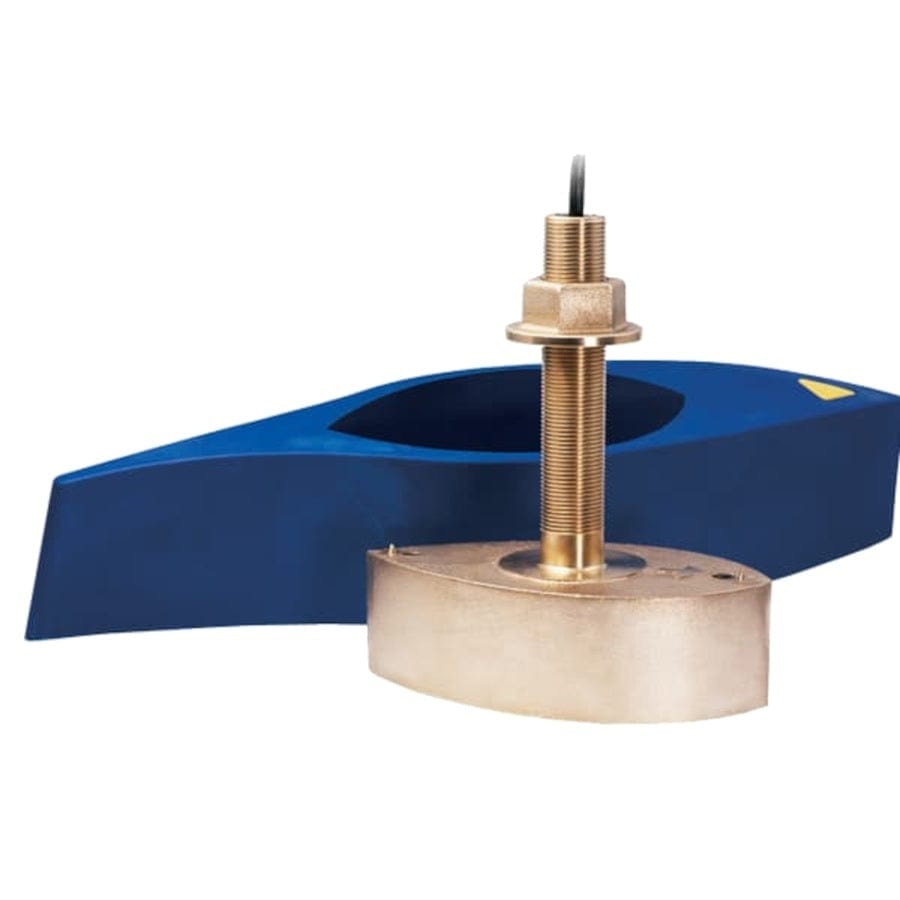

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Navico 9-Pin mix-N-Match Cable

Model: B265C-LM-9N2
  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep to mid-depth performance
  • Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000')
  • Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500')
  • 73 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths
  • Bronze housing with High-performance Fairing for optimal high-speed performance
  • Patented Xducer ID® technology
  • Hull Type: Fiberglass or wood
  • Exclusive Xducer ID® technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Specifications
Cable-Length 10 m (33')
Single or Dual Frequency CHIRP-Ready Dual-Band
Frequency Band Low-Medium
Housing Material Bronze
Low Frequency 42-65 kHz
Low Frequency Beamwidth 25°-16°
Medium Frequency 85-135 kHz
Medium Frequency Beamwidth 16°-11°
Max Deadrise Up to 20° with fairing
Max Deadrise Angle 20°
Max Depth Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')
Mounting Style Thru-Hull with Fairing
Power Rating 1 kW
Transducer Functions Depth, Temperature
Usable Shaft Length 121 mm (4.75")

What's in the Box:
  • B265C-LM-MM Transducer
  • High Speed fairing Block
  • High Speed Fairing Block Bolt Kit
  • MMC-P2N Cable

  • Normalized SKU: B265CLM9N2
