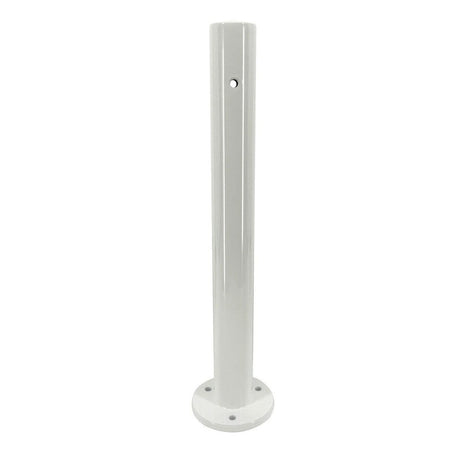

Seaview SVLTP24 Radar MountSeaview 24" Light Post - Requires Light Bar topModel: SVLTP24Seaview's light posts come in various height options to clear any obstructions as needed. These powder coated aluminum light posts are 1.25" in diameter with a 2.75" round base plate.You must then pick a Seaview light bar top. The most common is their LED combination masthead all-round light LTBLED12, but there are many other options to choose from.Normalized SKU: SVLTP24UPC Code: 850047035295

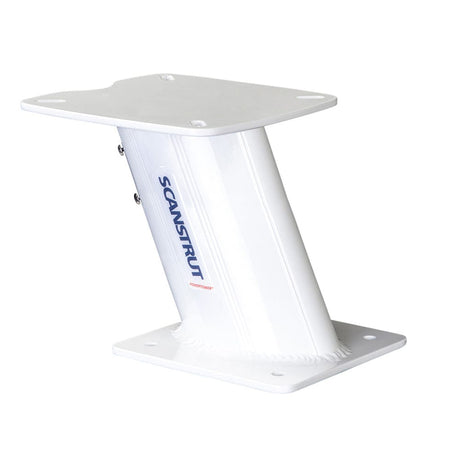

Download LiteratureScanstrut APT-250-02 Radar MountAPT-250-02 - Aluminum PowerTower® Radar Mount - 10" Aft LeaningThe Scanstrut Aluminum PowerTower is engineered for outstanding strength and with an unparalleled surface finish. Manufactured using the best marine grade Aluminium, PowerTower® is molded as a single 'monocoque' structure with no joints, offering unparalleled strength and durability.Designed to install your radar on the roof, T-top, flybridge, or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions. By elevating your antenna clear of obstructions, PowerTower® maximizes the performance of your radar.There is a PowerTower® to fit pretty much every modern radar.Compatible with: Furuno - 1621, 1622, 1623, 1715, 1724, 1734, 1815, 1824, 1832, 1834, 1835, DRS2D, DRS2D-NXT, DRS42DL, DRS42DL+, DRS4D/DRSD4D-NXT, DRS4W, NavNet (18" and 24") radars Humminbird - AS 21 RD4KW radar Intellian - i1 radars Interphase - Mini RE-1, RE-8 radars JRC - 1000, 1000mk2, 1066, 1500, 1500mk2, 1800, 2000, JMA 2343 / 5104 (Radome: NKE-2042) radars Koden - 2kW 12" radar KVH - TracVision M1 and TV1 radars Lowrance - 3G/4G, LRA-1800, RB714A, DX42, LRA-2400 HD radars Majestic - SATMAR32 radar Navman - 8000 Series (8084 and 8120) 18" radars Nobletec - 2kW - 20" radars Northstar - M Series 18" and 24"  8000i radars Raymarine - 33STV radars Seiwa - SWR-1, 8, 9 radars Simrad - 3G/4G, GB40, NX40/45, NSE8/12, RB712A, DX42S, DX64S radars Sitex - MDS-1, 8, 12, NKE-1066 radars Techmarine - T-72.01, 72.02, 72.04 Radars Features: Designed to fit the most up to date radars Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower® No need to cut the radar’s connectors off for installation  Constructed from the best Marine grade Aluminium A range of accessories light bars can be bolted to the back of the PowerTower® Technical Specifications: Radar Type - Dome Material - Aluminium Height - 9.84" (250mm) Mounting Type - Aft leaning - 25° In the Box: Mount Mounting hardware (excluding screws/bolts)  Installation manual *Sold as an Individual Normalized SKU: APT25002UPC Code: 5060114797734Scanstrut APT-250-02 Literature Download Quick Reference Guide

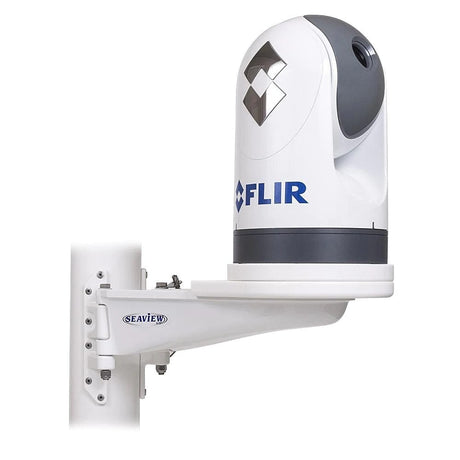

Seaview SM14F2 Radar MountSeaview SM14F2 Mast Mount For Flir M132/232Model: SM14F2Achieve an unobstructed view for your FLIR thermal camera by mounting it on your mast. Made from marine grade aluminum. We now Chem-Film (same process used by Boeing) each high grade aluminum part prior to our standard 3 part epoxy prime and powder coat to ensure the best possible finish and corrosion resistance.Six rivets per foot are used to hold the heavy duty mounting feet to the mast. Solid under-body construction not only greatly improves strength but also hides cables.Normalized SKU: SM14F2UPC Code: 015568080128

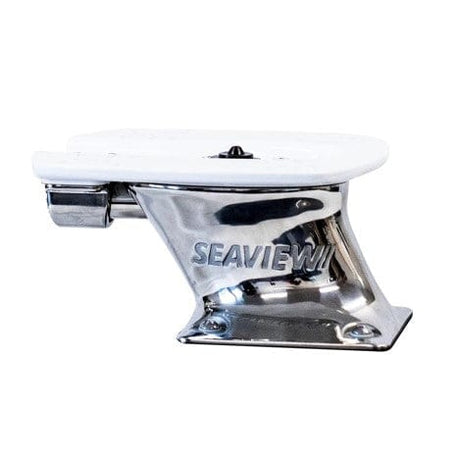

Seaview PMA57LSS Radar MountSeaview PMA57LSS 5" Stainless Steel Modular Radar Mount - Requires PlateModel: PMA57LSSSeaview Stainless Steel Radar Mounts are 5" tall and aft leaning. The 7" x 7" base plate utilizes a small footprint, great for installations where space is limited. The body is made out of 316 stainless steel.This Seaview stainless steel mount is also light bar compatible with Seaview stainless steel light bars. The stainless steel light bars come pre-wired and are USCG approved for boats up to 20 meters (65.6 ft.) in length.Please note that if you intend to mount a open array radar a light bar will not be compatible.STEP 1 Select which type of mount you want, for example radar mount, open array radar mount, satdome mount, camera mount, dual mount etc.STEP 2 Choose which Seaview Top Plate is correct for your marine electronic. A Seaview Top Plate must be used in order to mount your marine electronic to a Seaview Modular Mount, and is sold separately. These Top Plates fit major brands such as Garmin, Raymarine, FLIR, Intellian, KVH, Simrad and more!STEP 3 Pick optional accessories, such as light bars, light bar tops, wedges, hinges and spreader kits.Normalized SKU: PMA57LSSUPC Code: 839662005630

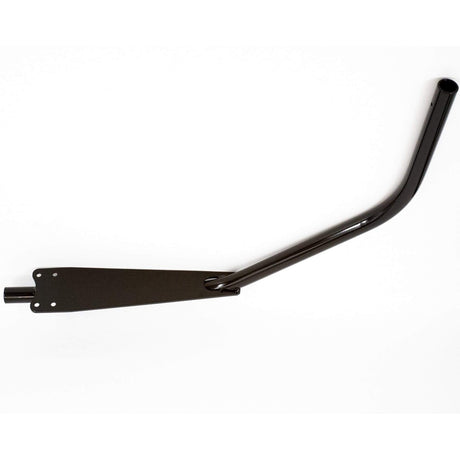

Seaview LTB-OA-BLK Radar MountThis Seaview light bar is 1 1/4" in diameter and is powder coated white. This light bar fits Open Array radars up to 4.5'. Please note that a light bar top is required (sold separately).Normalized SKU: LTBOABLK

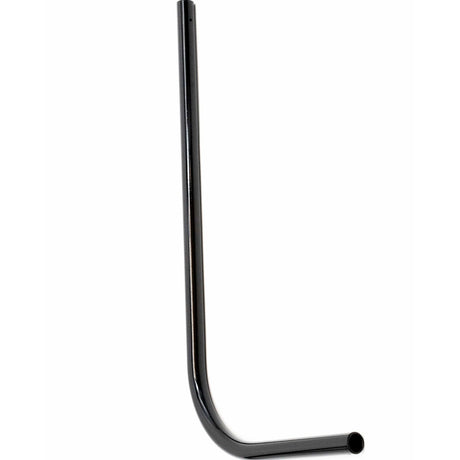

Seaview LTB-S-BLK Radar MountThe new Seaview light bar has a unique design that allows it to fold over 90 degrees. This light bar is 1 1/4" in diameter and is powder coated white. This light bar fits Satdomes that are 18" diameter or smaller. Please note that a light bar top is required (sold separately).Normalized SKU: LTBSBLK

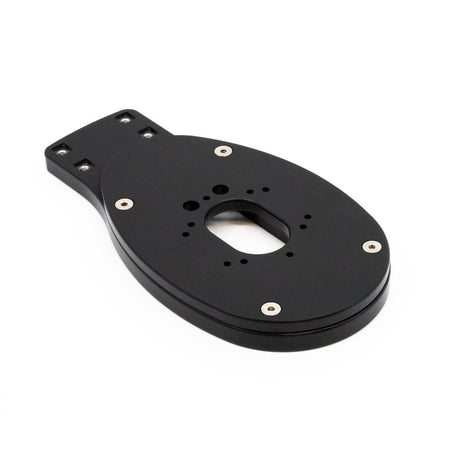

Seaview ADA-F1-BLK Radar MountSeaview?s innovative new modular electronic mounts feature a unique universal plate design that provide a cleaner look and greater installation flexibility. The end result is a nice clean look with no visible holes. This modular Top Plate fits FLIR FLIR M324,625,612L,617CS,M618CS, MD324, MD625 Raymarine T-Series. Features: No more unwanted visible holes in the mounting plate! Easy 3 step modular system. Aft, forward, vertical and dual mount designs.. Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!   Step 1 Select Mount Type this will be the base for the system Closed Dome Radar, Small Satdomes (16" or smaller) & Cameras PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-107-M1 10" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-107-M1 10" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-167-M1 16" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-247-M1 24" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-367-M1 36" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required AM5-M1 5"     Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required AM12-M1 12"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required AM18-M1 18"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required Open Array Radar PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required Large Satdomes (18" - 24") PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-1210-M2 12" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required PMA-1810-M2 18" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required Dual Mount & Arches PMA-DM1-M2 12.5" Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required PMA-DM124-M2 (***) 32.5" Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required PMA-DM2-M2 22.5" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required PMA-DM3-M2 28"    Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required Step 2 Choose Top Plate Radar (closed dome & open array 4'-6') ADA-R1 Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) ADA-R2 Modular plate for 24" JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes Satdome ADA-S1 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14 ADA-S2 Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 ADA-S3 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD ADA-S4 Modular plate for ALL FB150 & FB250 domes ADA-F1 Modular plate for FLIR M or Ray T series thermal cameras Step 3 Choose Optional Accessories Light / GPS Bars (Light bar top accessory required, see below) LTB-R 1 1/4" Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below LTB-OA 1 1/4" Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below LTB-OA6 1 1/4" Light bar for open array radar at 6 ft. / Must pick a LTB TOP below LTB-S 1 1/4" Light bar for 18" or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below LTB-S24 1 1/4" Light bar for 24" satdomes / folds over 90 deg. / Must pick a LTB TOP below LTB-SF (***) 1 1/4" Light bar for FLIR FLIR M324,625,612L,617CS,M618CS, MD324, MD625 Raymarine T-Series thermal camera and light / Must pick a LTB TOP below Light Bar Tops (LTB TOP required with light bars above) LTB-U (LTB TOP) Standard 1-14 thread for GPS or similar LTB-U1A (LTB TOP) Universal Light bar top for mounting your own light and or GPS LTBP-1197 (LTB TOP) Perko 1197 light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length. LTBA-7800 (LTB TOP) Attwood LED 7800 ser. light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft). LTB-BOX (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included) Light Bar Accessories   PM-114LT-DLX Floodlight kit for 1 1/4 in. dia. LTB  (includes 4" X 6" 55-watt 14V quartz halogen floodlight & hardware) PM-114LT-LED (***) Floodlight kit for 1 1/4 in. dia. LTB  (includes LED floodlight & hardware)  PM-U2A Light bar adapter to mount a light and 2 GPS (electronics not included) Base Wedge   PM-W4-7 4 degree wedge/ for 7x7 radar mount base plate PM-W4-8 4 degree wedge/ for 8x8 radar mount base plate Hinge Adapters for base plate   PM-H7 Hinge adapter/ for 7x7 base plate/  (fits most 5 -16 in. tall Radar Mounts) PM-H8 Hinge adapter/ for 8x8 base plate/  (fits most 24 -36 in. tall Radar Mounts) Normalized SKU: ADAF1BLK

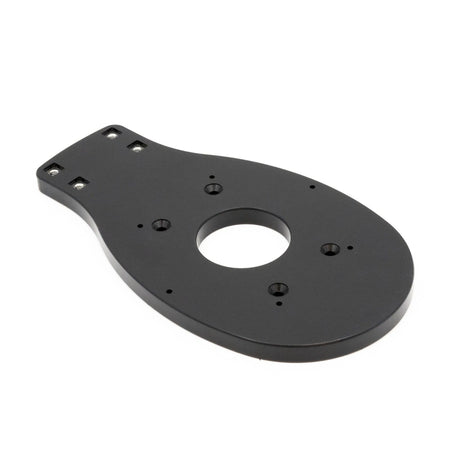

Seaview ADA-F2-BLK Radar MountSeaviw ModularTop Plate For FLIM132 and M232Model: ADAF2BLKSeaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.,Seaviw ModularTop Plate For FLIM132 and M232Model: ADAF2BLKSeaview Modular Top Plates are designed to be mounted onto Seaview Modular Mounts. These Top Plates eliminate the "swiss cheese" look of most other radar and satdome mounts. With Seaview Top Plates the result is only four visible mounting screws to secure electronics.Normalized SKU: ADAF2BLK

Seaview ADA-S1-BLK Radar MountSeaview's innovative new modular electronic mounts feature a unique universal plate design that provides a cleaner look and greater installation flexibility. A pre-drilled anodized aluminum plate is incased inside the UV stable white ABS plastic. There are dimple holes on the top surface of the top plate match up with a drill template allowing you to precisely drill the appropriate holes for your specific radar. The end result is a nice clean look with no unwanted visible holes. This modular Top Plate fits: Intellian i1 (for modular parts ending in M1) / i2 / i3 Glomex 20"-27" Satdomes (for modular parts ending in M1) KVH M1 (for modular parts ending in M1) / M2 / M3 Thrane & Thrane Sailor FB500 / Fleet 55+ Raymarine 33STV (for modular parts ending in M1) / 37STV Sea-King 1500HD Sea-Tel (Cobham) C14 VDO Ocean Line 132 (for modular parts ending in M1) / Ocean Line 337. Features: No more unwanted visible holes in the mounting plate! Easy 3 step modular system. Aft, forward, vertical and dual mount designs.. Easily add on accessories such as lightbars, spreader kits, hinges, wedges and much more!   Step 1 Select Mount Type this will be the base for the system Closed Dome Radar, Small Satdomes (16" or smaller) & Cameras PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-107-M1 10" Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-107-M1 10" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-167-M1 16" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-247-M1 24" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-367-M1 36" Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required AM5-M1 5"     Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required AM12-M1 12"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required AM18-M1 18"   Modular Mnt/ Vertical / 8" Rnd base plate / Light bar compatible / Top plate required Open Array Radar PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMF-57-M1 5"   Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required Large Satdomes (18" - 24") PMA-57-M1 5"   Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required PMA-1210-M2 12" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required PMA-1810-M2 18" Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required Dual Mount & Arches PMA-DM1-M2 12.5" Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required PMA-DM124-M2 (***) 32.5" Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes  / Top plate required PMA-DM2-M2 22.5" Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required PMA-DM3-M2 28"    Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes  / Top plate required Step 2 Choose Top Plate Radar (closed dome & open array 4'-6') ADA-R1 Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) ADA-R2 Modular plate for 24" JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes Satdome ADA-S1 1 Modular plate for KVH M1/M2/M3 , Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14 ADA-S2 Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 ADA-S3 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD ADA-S4 Modular plate for ALL FB150 & FB250 domes ADA-F1 Modular plate for FLIR M or Ray T series thermal cameras Step 3 Choose Optional Accessories Light / GPS Bars (Light bar top accessory required, see below) LTB-R 1 1/4" Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below LTB-OA 1 1/4" Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below LTB-OA6 1 1/4" Light bar for open array radar at 6 ft. / Must pick a LTB TOP below LTB-S 1 1/4" Light bar for 18" or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below LTB-S24 1 1/4" Light bar for 24" satdomes / folds over 90 deg. / Must pick a LTB TOP below LTB-SF (***) 1 1/4" Light bar for FLIR M or Raymarine T series thermal camera and light / Must pick a LTB TOP below Light Bar Tops (LTB TOP required with light bars above) LTB-U (LTB TOP) Standard 1-14 thread for GPS or similar LTB-U1A (LTB TOP) Universal Light bar top for mounting your own light and or GPS LTBP-1197 (LTB TOP) Perko 1197 light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length. LTBA-7800 (LTB TOP) Attwood LED 7800 ser. light with 7' of wire / USCG approved for boats up to 20 meters (65. 6 ft). LTB-BOX (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included) Light Bar Accessories   PM-114LT-DLX Floodlight kit for 1 1/4 in. dia. LTB  (includes 4" X 6" 55-watt 14V quartz halogen floodlight & hardware) PM-114LT-LED (***) Floodlight kit for 1 1/4 in. dia. LTB  (includes LED floodlight & hardware)  PM-U2A Light bar adapter to mount a light and 2 GPS (electronics not included) Base Wedge   PM-W4-7 4 degree wedge/ for 7x7 radar mount base plate PM-W4-8 4 degree wedge/ for 8x8 radar mount base plate Hinge Adapters for base plate   PM-H7 Hinge adapter/ for 7x7 base plate/  (fits most 5 -16 in. tall Radar Mounts) PM-H8 Hinge adapter/ for 8x8 base plate/  (fits most 24 -36 in. tall Radar Mounts) Normalized SKU: ADAS1BLK

Seaview LTB-S24-BLK Radar MountSeaview LTBS24BLK Black LightbarModel: LTBS24BLKThe new Seaview light bar has a unique design that allows it to fold over 90 degrees. This light bar is 1 1/4" in diameter and is powder coated white. This light bar fits Satdomes that are 24" diameter. Please note that a light bar top is required (sold separately).Normalized SKU: LTBS24BLK
