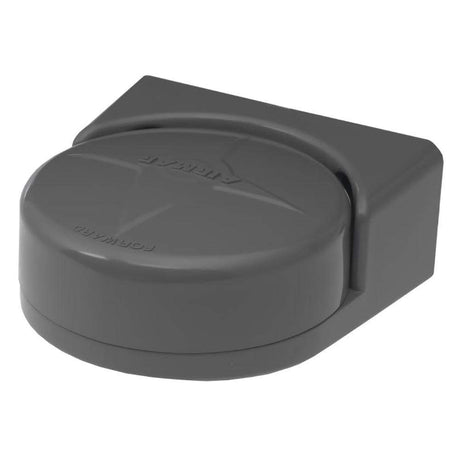

Download LiteratureAirmar H2183-10 Network AccessoriesH2183-10 Solid State Compass with Heading SensorThe Advantage is the Accuracy Whether you are offshore fishing or just enjoying family time on the water, feel confident and comfortable that the H2183 is your reliable source for heading information. The solid-state three-axis compass, combined with Airmar’s additional advanced sensors and software provide unparalleled performance. What sets the H2183 apart from the competition is its ability to maintain 2° of heading accuracy under dynamic motion conditions, such as steep heeling, hard turns, and rough seas. Heading integrated with the three-axis rate gyro and three-axis accelerometer data allows the H2183 to maintain 2° of accuracy even if the vessel is pitching and rolling up to 30°. This level of accuracy is perfect for interfacing with autopilots, chart plotters, and radar systems. The H2183’s innovative circular design easily mounts and aligns on ANY angled bulkhead. Designed for simultaneous use with NMEA 0183 and NMEA 2000® devices, the waterproof, easy-to-install sensor can be wired into both NMEA 0183 and NMEA 2000 networks on the vessel with just a single cable.Features:  Better than 1° heading accuracy in static conditions  Best-in-class 2° heading accuracy in dynamic conditions  Three-axis solid-state compass provides heading data  Three-axis accelerometer provides pitch and roll data  Three-axis rate gyro provides rate-of-turn data  Only recreational heading sensor that uses a three-axis rate gyro  Compass calibration can be easily done on any display or PC  Easily mounts on any angled bulkhead  IPX6 waterproof enclosure  Default 10 Hz update rate for heading (HDG)  Outputs NMEA 0183 and NMEA 2000 data simultaneously Specifications:Load Equivalence # (LEN) = NONENormalized SKU: H218310Airmar H2183-10 Literature Download  Quick Reference Guide  Product Brochure

Humminbird 700059-1 Network AccessoriesDual HELIX Starter KitThis Dual Station Starter Kit allows you to network a Side Imaging unit and another compatible unit at two stations and includes a shoot through the hull transducer plus a splitter cable for high speed readings contains: 1 - XP 9 20 (includes Epoxy Kit) 1 - AS EC 20E - 20 foot Ethernet cable 2 - AC EC QDE - Ethernet Adapter cables 1 - 9 M SIDB Y - Side Imaging Splitter cable This kit is not compatible with SOLIX or ONIX Series.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: 7000591UPC Code: 082324052538

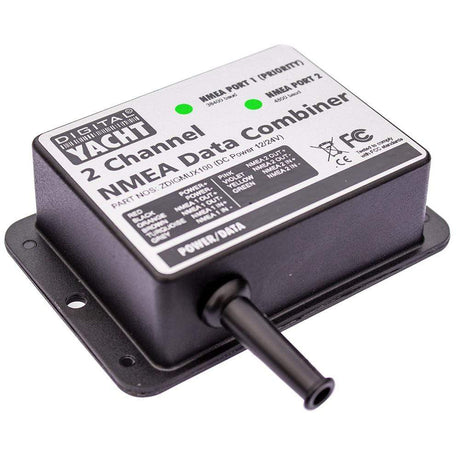

Digital Yacht ZDIGMUX100 Network AccessoriesMUX100 Dual Channel NMEA MultiplexerWith modern AIS receivers and transponders outputting high speed NMEA0183 data at 38400 baud, it is often difficult to connect AIS data and low speed GPS or instrument data at 4800 baud to some chart plotters and/or PCs that have just one NMEA 0183 input. With the MUX100, all data received on the two input ports is multiplexed and transmitted on output 1 at 38400 baud. It Is pre-configured so that Input 1 accepts AIS data at 38400 baud and input 2 accepts GPS/instrument data at 4800 baud.Often low speed GPS data is required to give position information to a DSC VHF, but when an AIS transponder is fitted the GPS data is often only available at 38400 baud which will be ignored by the VHF. The MUX100 intelligently takes the GPS data from the AIS present on input 1 and re-transmits this on output 2 at 4800 baud – which can then be connected to the VHF. As a safety feature, should GPS data on input 1 be invalid or lost, the MUX100 will automatically switch to the GPS data on input 2 and transmit this on output 1 and output 2. To avoid duplicated data confusing other equipment, the MUX100 automatically blocks duplicated data on Port 2.Using intelligent priority switching, the MUX100 gives priority to input 1 but if GPS data is invalid or lost on input 1, it will automatically switch to input 2. When valid position data is received again on input 1, it will automatically revert.Two LEDs on the face of the unit give indication of the data status, with a solid LED showing which port is currently providing GPS position and a flashing light on the other port to show that data is being received. If either LED is not lit of flashing it indicates no NMEA data present.Features: Dual input/output NMEA0183 multiplexer – simplifies NMEA integration and installation Accepts 38400 baud data on input 1 and 4800 baud data on input 2 Combines all received data and transmits this data on output 1 at 38400 baud Extracts the GPS data from the high speed input 1 and re-transmits at low speed on output 2 Important safety feature - gives priority to GPS on input 1 but switches to input 2 if position lost on input 1. Will switch back to input 1 when valid position fix data is received again Easy to install IP54 black box solution Opto isolated inputs and true NMEA differential output capable of driving several devices Normalized SKU: ZDIGMUX100UPC Code: 081159830120

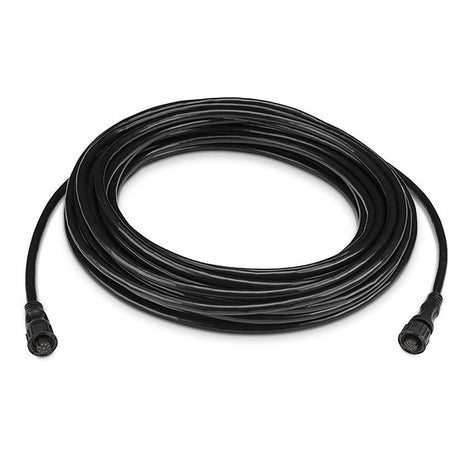

Garmin 010-12528-01 Network AccessoriesMarine Network Cables w/ Small Connector - 6mOur small-connector marine network cables offer additional cable lengths to help with install. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0101252801UPC Code: 753759170608

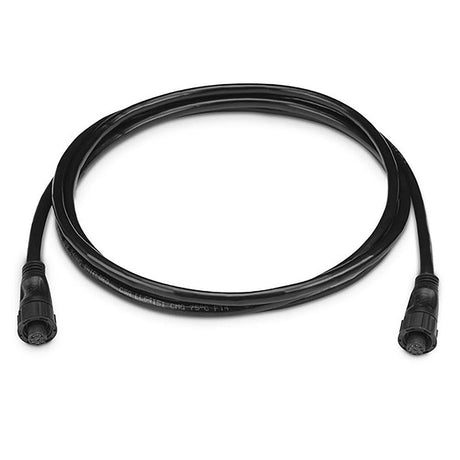

Garmin 010-12528-00 Network AccessoriesMarine Network Cable w/ Small Connector - 2mOur small-connector marine network cables offer additional cable lengths to help with install. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0101252800UPC Code: 753759170592

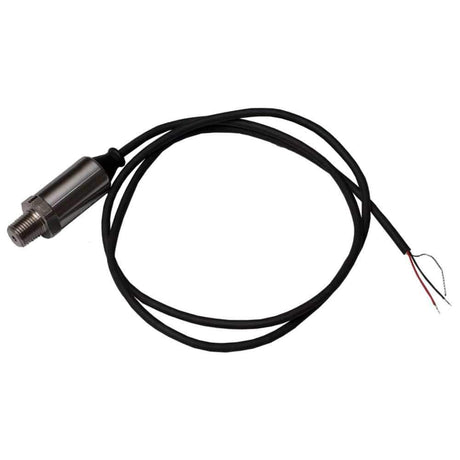

Maretron PT-0-50PSI-01 Network AccessoriesPressure Transducer 0 to 50 PSIAll Maretron pressure transducer assemblies are equipped with a 1/4” NPT male threaded fitting. Install the pressure transducer to a ¼” NPT female fitting on the system or tank to be monitored with a maximum torque of 150 in-lbs (16.95 Nm). If you are monitoring a system where pressure spikes or transients will occur, or where the pressure will exceed the maximum pressure rating of the pressure transducer, install a Pressure Snubber (PT-SNUB-01) onto the system being monitored first, then install the pressure transducer to the female port on the pressure snubber.WARNING: This product can expose you to chemicals including NICKEL (METALLIC) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:Load Equivalence # (LEN) = NONENormalized SKU: PT050PSI01UPC Code: 873804002927

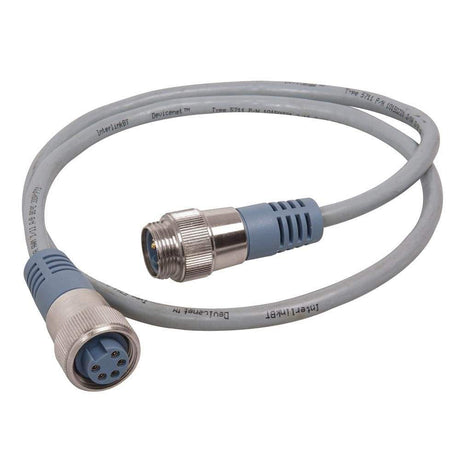

Maretron NM-NG1-NF-00.5 Network AccessoriesMini Double Ended Cordset - Male to Female - 0.5M - GreyDouble-ended cordsets are used for trunk or drop lines and make for a secure connection and simple time saving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge. Rugged, IP68 rated connectors for continued connection integrity in marine environment Various cable lengths to match installation requirements Normalized SKU: NMNG1NF005UPC Code: 873804002033
