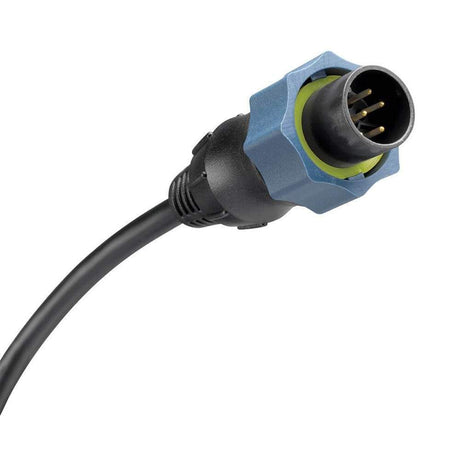

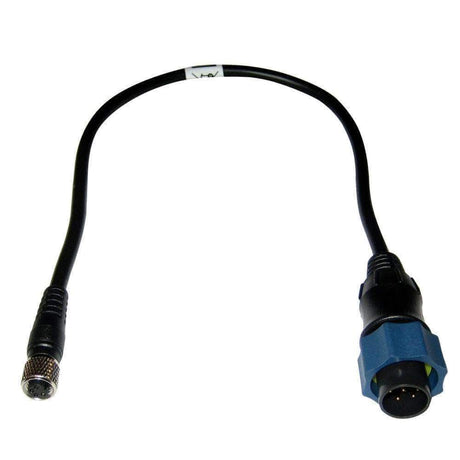

Download LiteratureMinn Kota 1852060 Network AccessoriesMKR-US2-10 Lowrance Adapter CableModel:#1852060Universal Sonar 2 delivers advanced water temperature sensing and DualBeam PLUS technology for the best view of the waters below. These adapters connect your trolling motor to your favorite brand of sonar or fishfinder (200 kHz and 200/83 kHz DualBeam PLUS? compatible). Shielded, IP68-rated waterproof connectors are metal tipped to prevent sonar interference.Compatible ModelsLowrance HDS-5, HDS-7, HDS-8, HDS-10, LCX-20C, LCX-17M, LCX-25C, LCX-26C, LCX-27C, LCX-28C,LCX-37C, LCX-38C, LCX-110C, LCX-111C, LCX-112C, LCX-113C, LMS-330C, LMS-332C, LMS-334C,LMS-335C DF, LMS-337, LMS-339C, LMS-489, LMS-480 DF, LMS-520C, LMS-522C, LMS-525C,LMS-527C, X-52, X-59 DF, X-100C, X-102C, X-105C DF, X-107C DF, X-125, X-126 DF, X-135,X-136 DF, X-510C, X-515C Electrical: CableMINN KOTA MKR-US2-10 LOWRANCE EAGLE BLUE ADAPTER CABLENormalized SKU: 1852060UPC Code: 029402029594Minn Kota 1852060 Literature Download  Product Brochure

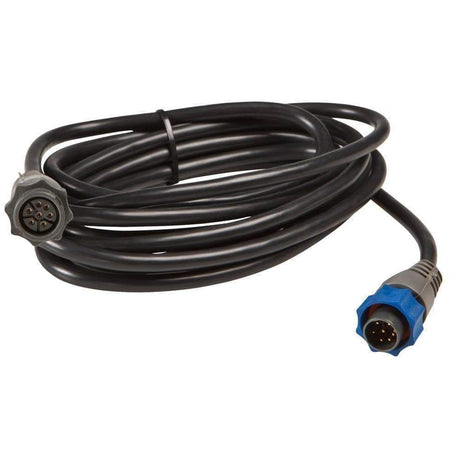

Lowrance 99-93 Network AccessoriesXT-12BL12' transducer extension cable.Works with: LCX-110C, LCX-111C HD, LCX-17M, LCX-20C, LCX-25C, LCX-26C HD, LMS-332C, LMS-334C iGPS, LMS-337C DF, LMS-339C DF iGPS, LMS-480, X102C, X107C DF, X125, X126DF, X135, X136DF, X52, X59DF Electrical: CableLOWRANCE XT-12BL 12' TRANSDUCER EXTENTION CABLENormalized SKU: 9993UPC Code: 042194524238

Garmin 010-10551-00 Network Accessories20' Marine Network Cable, RJ45WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. GARMIN 20' MARINE NETWORK CBL RJ45Normalized SKU: 0101055100UPC Code: 753759046132

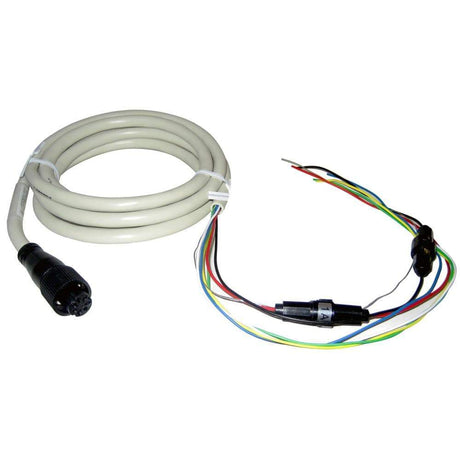

Furuno 000-159-686 Network AccessoriesCombination Power and Data Cable Assembly, 2 MetersWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. FURUNO 000-159-686 PWR/DATA CB F/ GP32 37 LS4100 RD30Normalized SKU: 000159686UPC Code: 00015968610

Download LiteratureActisense A2K-BULK-100MID Network AccessoriesNMEA2000 Mid Bulk Cable Reel - 100MThis cable can be used to create or extend an NMEA 2000® network of flexible lengths to suit any installation. The cable is ideal for use with any of the Actisense A2K Product range for building networks.The cable is LSZH certified to give installers and end users maximum peace of mind and an extra layer of safety.The Actisense range of NMEA 2000® connectors and cables has been designed using our specialist interconnectivity and NMEA knowledge. All Actisense cables and connectors are NMEA 2000® approved.The NMEA 2000® cable includes five wires within a single waterproof cable: power and ground wires, two signal wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000® Mid cable can be used to create a backbone up to 250 meters in length, and offers a current capacity of 4A with Micro connectors, or 8A with Mini connectors.Technical Specifications:Cable Rated Voltage - 60V DC Rated Current - 8A Braid Material - 37 AWG tinned copper Braid Coverage - 65% Nom. Jacket Material - LSZH Purple (RAL4008) Jacket Outer Diameter - 8.2mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10.5mΩ/M) Reel Length - 100m Reel Weight - 13-14kg Power Pair Conductor - 16 AWG (19-strand tinned copper) Insulation - 0.17 mm Nom. LSZH Diameter - 1.85mm Nom. Colors - Red & Black Shield - AL Mylar tape over pair DC Resistance - 4.26Ω / 1000ft (14mΩ/M) Data Pair Conductor - 20 AWG (19-strand tinned copper) Insulation - 0.79 mm Nom. Foam PE Diameter - 2.49mm Nom Colors - Blue & White Shield - AL Mylar tape over pair Impedance - 120Ω ±10% @ 1MHz DC Resistance - 10.9Ω / 1000 ft (35.8mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Conductor - 20 AWG (19-strand tinned copper) DC Resistance - 10.9Ω / 1000ft (35.8mΩ/M) Approvals and Certifications Operating Temperature - -20°C to +70°C Storage Temperature - -40°C to +85°C NMEA 2000 Approved RoHS Compliant UL Certified (E137250), (UL13) LSZH to IEC 60754-1/2 & IEC 61034-1/2 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KBULK100MIDUPC Code: 5060998710812Actisense A2K-BULK-100MID Literature Download Product Brochure

Download LiteratureActisense A2K-BULK-100M Network AccessoriesNMEA2000 Micro Bulk Cable Reel - 100MCreate or extend an NMEA 2000 backbone of flexible lengths to suit any installation.The Actisense NMEA 2000 Bulk Lite cable is available in 100-meter reels and is ideal for use with the Actisense QNB-1 Quick Network Block or Field Fit Connectors (FFC).NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal (data) wires, and a drain wire. The drain wire connects to the cable shield, which protects the signal, power, and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable.NMEA 2000 Lite cable can be used to create a backbone up to 100 meters in length. If the backbone length required exceeds 100 meters, the center of the bus can be extended with an NMEA 2000 mini cable to keep the outer Lite sections to the 100-meter maximum.The maximum permitted length of a drop cable (distance from the backbone) is 6 meters. It is important to limit each drop length to the minimum required, as the total of all drop lengths must not exceed 72 meters. To help with this limitation, Actisense has drop cable assemblies in varying lengths from 0.25 meters to 6 meters.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Cable Specifications: Rated Voltage - 60VDC Rated Current - 3A Braid Material - 37 AWG tinned copper Braid Coverage - 65% minimum Jacket Material - 0.8mm Nom. PVC, black Jacket Outer Diameter - 6.85mm ±0.254mm Overall DCR (braid + tape + drain) - 3.2Ω / 1000ft (10mΩ/M) Reel Length - 100m Reel Weight - 7.7kg/16.9lbs Power Pair Specifications: Conductor - 22 AWG (19-strand tinned copper) Insulation - 0.3 mm Nom. PVC Diameter - 1.43mm ±0.05mm Colors - Red & black Shield - AL Mylar tape over pair DC Resistance - 17.5Ω / 1000ft (57mΩ/M) Data Pair Specifications: Conductor - 24 AWG (19-strand tinned copper) Insulation - 0.65 mm Nom. foam PE Diameter - 2.0mm ±0.05mm Colors - Blue & white Shield - AL Mylar tape over pair Impedance - 120Ω ±10% DC Resistance - 28Ω / 1000 ft (92mΩ/M) Attenuation @ 125 kHz - 0.29dB / 100ft Attenuation @ 500 kHz - 0.50dB / 100ft Attenuation @ 1 MHz - 0.70dB / 100ft Drain Specifications: Conductor - 22 AWG (19-strand tinned copper) DC Resistance - 17.5Ω / 1000ft (57mΩ/M) Technical Specifications: Operating Temperature - -25°C to +75°C Storage Temperature - -40°C to +85°C This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KBULK100MUPC Code: 5060998710027Actisense A2K-BULK-100M Literature Download Owners Manual Product Brochure

Digital Yacht ZDIGENVLINK Network AccessoriesEnvironLINK NMEA 2000 Temperature/HumidityAccurate and reliable weather information is essential for every boater.  While the internet provides a plethora of animated forecasts, there’s actually no substitute for localised pressure trend information from an instrument measuring, most importantly, air pressure, but also temperature and humidity information. Rapid changes in barometric pressure are a sure sign of impending weather changes, and as the expression goes, forewarned is forearmed!Digital Yacht’s EnviroLINK device brings traditional barometric pressure, temperature, and humidity monitoring to the digital age with NMEA 2000 connectivity for your multifunction display (MFD) as well as wireless smartphone and tablet connectivity. MFDs are offering more and more capabilities thanks to NMEA 2000 connectivity, so one display on the boat can become an information hub.EnviroLINK is also easy to install, taking power from the boat’s NMEA 2000 network and feeding data to displays. It just needs one simple cable connection. Most modern electronic multi function displays can display this data, but you can also utilise EnviroLINK’s wireless interface with a tablet or phone and display a 10 minute, 24 hour or 48 hour historical analysis.Trends in temperature and humidity are also recorded. Data is collected and stored locally using a precision sensor so there’s no internet connection needed and no proprietary apps require installing. EnviroLINK operates autonomously on your boat providing the best insight to local weather. Normalized SKU: ZDIGENVLINKUPC Code: 5065025638022

Simrad 000-16168-001 Network AccessoriesRJ45 Male to 5-Pin Male Ethernet Adapter - 6' (1.8M)6' (1.8M) RJ45 male to 5-pin Ethernet adapter cable. Normalized SKU: 00016168001UPC Code: 9420064131907

Actisense A2K-SCREWCAP-10-M Network AccessoriesProtective Screw Cover for NMEA2000 Male Micro Connectors - 10-PackScrew-cap covers for NMEA 2000 Micro connectors.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KSCREWCAP10MUPC Code: 5060998710652

Maretron RKF-001 Network AccessoriesRemote Key FobMaretron's remote key fob allows you to control and monitor certain features of your vessel remotely, such as powering on/off specific systems or switching between different modes like "Sleep Mode". It typically works in conjunction with a Maretron digital switching system and is designed to be easy to use and integrate into a larger monitoring and control setup. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: RKF001

Download LiteratureActisense A2K-PMW-M Network AccessoriesRear Panel Mount NMEA2000 Wired Micro 5-Pin - MalePanel mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KPMWMUPC Code: 5060998710164Actisense A2K-PMW-M Literature Download Owners Manual Product Brochure

Download LiteratureActisense A2K-PMW-F Network AccessoriesRear Panel Mount NMEA2000 Wired Micro 5-Pin - FemalePanel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.Technical Specifications:Electrical Rated Current - 4A Rated Voltage - 60VDC Mechanical Contacts - Brass, gold-plated Contact Carrier - Nylon & GF Contact Polarization - Standard M12-"A"-Polarization Mating Thread - M12 Housing - Brass, nickel-plated Mounting Thread - PG9 Mounting Nut - Brass, nickel plated - PG9 Mounting Hole Diameter - 15.3mm Wires - 18 AWG (stripped and tinned) Wire Jacket - PVC Weight - 20g Approvals and Certifications Protection - IP67 (when mated) Operating Temperature - -25°C to +90°C Connector Specification - Meets IEC61076-2-101 This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: A2KPMWFUPC Code: 5060998710157Actisense A2K-PMW-F Literature Download Owners Manual Product Brochure
