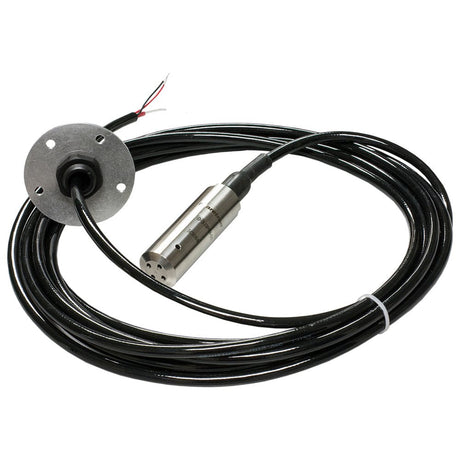

Download LiteratureMaretron PTS-0-3PSI-02 Navigational InstrumentsSubmersible Pressure Transducer 0-3 PSIMaretron’s submersible pressure transducers indicate tank levels and can be installed directly in the tank. Please follow these instructions to mount and connect a submersible pressure transducer to an NMEA 2000® network via a Maretron FPM100 Fluid Pressure Monitor. Maretron recommends one of two methods for mounting a submersible pressure transducer in a tank: 1) without a restraining tube, and 2) with a restraining tube.The submersible pressure transducers are designed for a tank with a 5-hole SAE J1810 fitting at the top. Install the mounting plate with cord grip onto the transducer cable, with the rounded hex section of the cord grip facing away from the transducer.Lower the pressure transducer into the tank such that the transducer lies at the lowest point of the tank and tighten the cord grip to secure the cable. On a tank with a flat bottom, the transducer may slide from side to side with the motion of the vessel but will not rotate due to the stiffness of the cable. It is also possible to mount the pressure transducer inside a restraining or focus tube (sold separately, Maretron part number TFT-5H).Pressure Transducer MountingConnect the two wires of the pressure transducer to a free pressure monitoring channel. Connect the red wire from the pressure transducer to the channel's positive (+) terminal and connect the black wire from the pressure transducer to the negative (-) terminal of the channel. The example in Figure 1 shows the pressure transducer connected to switch channel 0, with the white wire connected to "P0+" and the brown wire connected to "P0-." Submersible pressure transducers have a small plastic vent tube in the connecting cable.Use a Maretron DSM Series Display (firmware 1.4.7 or higher) or a PC running Maretron’s N2KAnalyzer software (version 1.4.19 or higher) to configure the connected channel(s) on the FPM100.Supply power to the NMEA 2000 network and verify that the pressure channel indicates a valid pressure reading.Specifications: Operating Range: 0 to 3 PSI (0.207 bar) Depth Range (Water): 83.1” (2.11 m) Depth Range Diesel (820 kg/m3): 101.3” (2.57 m) Depth Range Gasoline/Petrol (750 kg/m3): 110.8” (2.81 m) Cable Length: 17 ft (5.18 m) Sensor Type: Gauge (Vent Tube) Output: 4 – 20 mA current loop, loop powered Excitation Voltage: 8 VDC to 28 VDC Compatible Fluids / Gases: Diesel, Diesel Exhaust Fluid (DEF), Gasoline/Petrol, Hydraulic Fluid, Kerosene, Motor Oil, Fresh Water, Sea Water, Waste Water Operating Temperature: 14 degrees F to 158 degrees F (-10 degrees C to 80 degrees C) Storage Temperature: -4 degrees F to 176 degrees F (-20 degrees C to 80 degrees C) Accuracy: ±0.3% Full Scale typ. at 25°C Total Error Band (TEB): ±1.0% Full Scale typ. (-10 degrees C to 70 degrees C) Non-Linearity, Hysteresis (NLH): ±0.2% Full-Scale typ. Best Straight Line (BSL) at 25°C Temperature Compensation: 23 degrees F to 122 degrees F (0 degrees C to 50 degrees C) Accuracy: ±1% Full Scale Linearity: 0.5% Full Scale Repeatability: 0.05% Full Scale Full-Scale Thermal Error: 0.04% Full Scale/°F (0.07% Full Scale/degrees C) Long-Term Stability: 0.2% Full Scale/year Response Time: 150ms Proof Pressure: 2 × Full Scale Burst Pressure: 3 × Full Scale Reverse Voltage Protection: ± 30V for 3 minutes Construction: 316L stainless steel body and diaphragm, polyether polyurethane cable, chloroprene boot EMC Compatibility: 10 Volts/meter per EN 61000-4-3 Weight: 24.8oz (703g) Normalized SKU: PTS03PSI02UPC Code: 873804004556Maretron PTS-0-3PSI-02 Literature Download Owners Manual

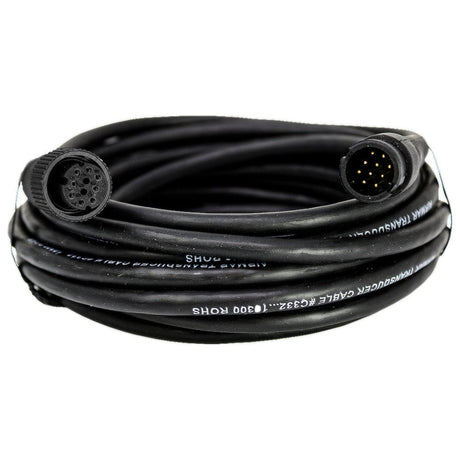

Airmar AIR-033-203-33 Navigational InstrumentsFuruno 33' 10-Pin to 10-Pin Extension CableFeatures: Transducer Extension Cable 10-Pin(M) to 10-Pin(F)  33' This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: AIR03320333

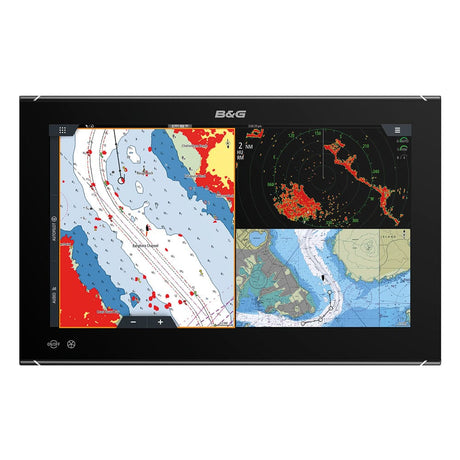

B & G 000-15130-001 Navigational InstrumentsZeus³S 19" Glass Helm System PackIncludes Zeus³S 19" Multifunction display, ZG100 GPS sensor, MI10 card reader and ZC2 controller. The B & G Zeus³S Glass Helm 19 is designed specifically for blue water sailing, multihulls and superyachts. This premium, super-fast, large-screen, multifunction display sits at the heart of your fully integrated navigation system. The Zeus³S Glass Helm provides easy-to-use touchscreen and remote control options. B & G’s unique sailing features including SailSteer and RacePanel all combine with Radar, charting, sonar and much more. View data easily on the all-weather screenThe B & G Zeus³S Glass Helm has an ultra-bright, wide-angle, full HD display combined with all-weather touchscreen. Whether it’s planning a route, checking for obstacles and weather on the Radar* screen, or simply navigating to your next destination; the Zeus³S Glass Helm’s impressive screen enables the user to view the data easily through polaroid lenses, from almost any angle, even in bright sunlight. This low profile, glass design provides a smart solution for any large sailing yacht.Powerful & intuitive all-in-one unitB & G Zeus³S Glass Helm is a premium, large screen multi-function display with powerful quad-core processor and intuitive touchscreen that makes it easy-to-use. The built-in processor also means no separate “black box” is required, simplifying system integration and expansion. The familiar pinch-to-zoom and swipe-to-pan actions to control the many features, make life on the water easier and safer.Dedicated sailing features for cruising and racingWith B & G’s award-winning sailing functions, you can see all of your key sailing data together on one screen, or overlaid on charts for the modern sailor’s ultimate navigation view. Taking accurate data from the B & G instruments and sensors on the network, B & G SailSteer will provide an intuitive graphic display of your Boat Speed, Wind, Heading, Tide, Wind Shift Sectors and Laylines. It’s easy to add waypoints or plot a course; and with B & G SailingTime you’ll see waypoint arrival times based on a sailing course and tidal effects, rather than a straight-line calculation.Features: Easy viewing whatever the conditions, with large, low-profile, full glass display with best-in-class screen Ultra-bright, wide-angle Full HD Display Plan routes, add waypoints, or adjust course and settings using the easy-to-use touchscreen or Zeus Controller (required) Get more from your sailing with B & G’s dedicated sailing features for cruising or racing SailSteer SailingTime RacePanel Laylines Powerful integration with on board systems including Broadband Radar™, ForwardScan™,instruments, B & G autopilots, entertainment and digital switching systems Built-in, powerful processor (no black box required) Integrated Wi-Fi for easy access to charts and software updates Choose from the widest range of charts to suit your area including C-MAP and Navionics® Easy networking and integration with NMEA 2000® Normalized SKU: 00015130001UPC Code: 9420064108480

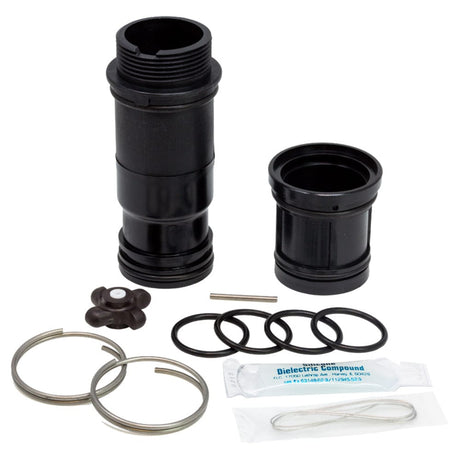

Airmar 33-536-01 Navigational InstrumentsST850 Paddlewheel & Valve KitIncludes: 1 Paddlewheel and Shaft 4 O-rings 1 Valve Sleeve Normalized SKU: 3353601

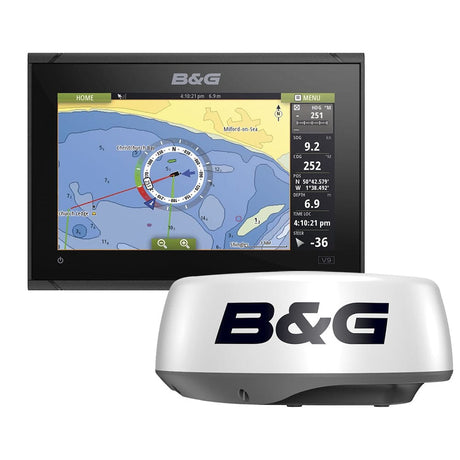

B & G 000-15620-001 Navigational InstrumentsVulcan 9 Radar Bundle with HALO20 RadarB & G's Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether you’re an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.The B & G Vulcan 9 is a great value sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 9-inch multi-touch screen is packed with B & G’s unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.Easy to use touch screenWe’ve designed our Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe, and tap controls let you input waypoints and routes and view chart details with ease.Simple to add Waypoints and RoutesLet Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from auto-routing and let Vulcan’s intelligent software choose the best and safest route to your destination. You can use Vulcan as a simple chartplotter as soon as you connect it to power, or for more advanced features, add to speed, depth, and wind instruments. Let Vulcan take care of the complex calculations – leaving you free to relax and enjoy the sailing.A range of mounting optionsGet up and running quickly: Vulcan chartplotters are optimized for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile ‘glass helm’ look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.Autopilot ControlPut Vulcan at the heart of your boat and take control of your B & G autopilot from your Vulcan’s touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B & G Pilots as good as the best helmsman – all from your Vulcan’s touch screen. Features: Easy to use multi-touch display Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines Easy to integrate – Connect Vulcan to an existing system and add basic sailing components Broadband Radar™ and ForwardScan™ ready Integrated Wi-Fi Control your B & G Pilot Instrument data display Includes HALO20 Radar What's In The Box? Vulcan 9 20M cable for HALO Dome Radar/Nemesis™ HALO20 Radar BRAND-DECAL-BG, HALO20/20+ B & G WARRANTY CARD - SERVICE & SUPPORT HALO20/+ AND MFD KIT BOX HALO18, UNBRANDED DOME KRAFT LABEL, VULCAN 9, HALO20, ROW Normalized SKU: 00015620001UPC Code: 9420064115730

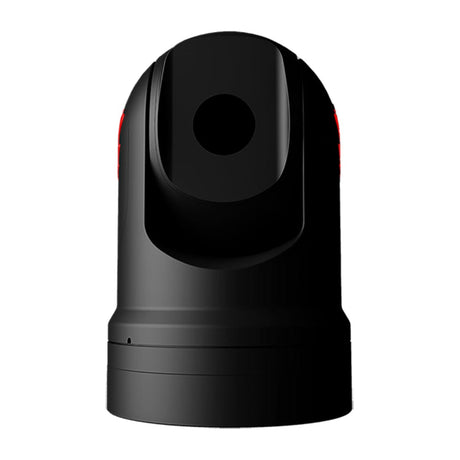

Download Literature Watch VideoOmnisense Systems ULS-M384B Navigational InstrumentsStealth Black Ulysses Micro Marine Thermal Camera The Stealth Black Ulysses Micro is a compact marine thermal camera and night vision system specifically designed for small, fast boat installation.  As with the larger Ulysses Mini family of cameras, the Ulysses Micro features a high-performance sensing package that delivers a high-speed thermal image with superior clarity and sharpness unseen in competing products.  This enhanced performance significantly extends operational safety and confidence at sea in all lighting conditions. Features: Compact and cost-effective Ideal for small, fast boats Clear resolution in any weather conditions Wide display interfacing options Radar Slave and other advanced network functions Rugged/weatherproof construction Wi-Fi connection to smart devices via the Ulysses Remote App  (iOS and Android) Technical Specifications: Thermal Resolution - 384 x 288 pixels Field of View (Horizontal x Vertical) - 29° x 22° Small vessel detection (13' x 5') - Up to .9 miles Dimensions (Width x Height) - 5.5" x 8.7" "  Weight - 5.5 pounds In the Box: Stealth Black Ulysses Micro camera Junction box Camera harness 33' (10 M) Power cable AV Analog cable Mounting template and hardware Instruction manual *Sold as an Individual Normalized SKU: ULSM384BUPC Code: 850040527001Omnisense Systems ULS-M384B Literature Download Quick Reference Guide Owners ManualOmnisense Systems ULS-M384B Video

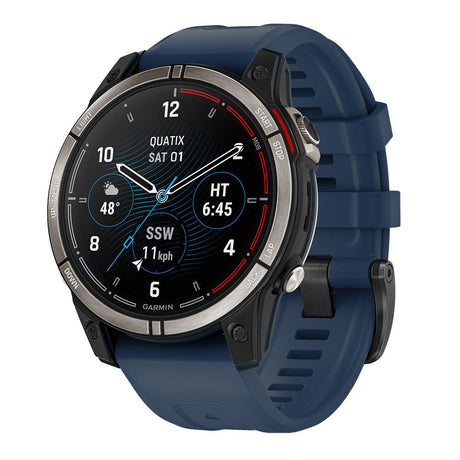

Garmin 010-02582-60 Navigational Instrumentsquatix® 7 - Sapphire Edition Marine GPS Smartwatch with AMOLED DisplayPlot Your Paradise On The Water & BeyondFeatures: With the quatix 7 multisport GPS smartwatch, you’ll get all the features you need on your boat and the ones you want off it. Chargers weigh you down, so don’t take one. Go up to 18 days without needing the plugin. When you own a boat, you want to stay connected. quatix 7 is your answer. Touch or tap, it’s up to you. Use traditional buttons or the new touchscreen interface. No matter where you go, know where you are with coastal charts and inland maps. Kayak or kickbox, SUP or ski, quatix 7 has built-in activity profiles and is made for what you like to do. Off the grid or at your local spot, text messages and smart notifications1 will be able to find you. Battery LifeAn internal, rechargeable lithium battery provides up to 18 days of battery life in smartwatch mode, 57 hours in GPS mode, and up to 60 hours in UltraTrac™ battery saver mode. Performance by DesignThe rugged, sophisticated design features a large 1.3” always-on display and stainless steel bezel. The watch is water-rated to 10 ATMs, which means up to 100 meters. Touchscreen & ButtonsTraditional button controls that work in any environment are matched with a responsive new touchscreen interface for quick access to selections and functions.Comprehensive Connectivityquatix 7 connects with select compatible Garmin chartplotters and remote control of key MFD features, including chart zoom, layout shortcut, Fusion® stereo, autopilot, and more. Autopilot ControlEven when you’re not at the helm, you can control your boat. Access the autopilot app to change heading, engage pattern steering and follow a GPS route. Fusion-Link™ Audio SystemControl your onboard entertainment system from your watch with the built-in Fusion-Link™ Lite app. Stream DataView data — including water depth, engine RPM, wind, custom data, and more — directly on your wrist when you connect your quatix 7 to your boat’s compatible devices. Alerts & AlarmsFor better situational awareness of the water, quatix 7 alerts you to imminent tide changes and anchor drag. Waypoint MarkingNo need to return to the helm to mark each catch. Use your watch to place chartplotter waypoints from anywhere on the boat. Garmin Sailassist™ Feature CapabilitiesWhen it comes to sailing, don’t just time your start — visualize it. Create a virtual starting line to time the perfect start. Also, use tack assists to see whether you are headed or lifted.BlueChart® g3 Chartsquatix 7 supports premier coastal charts featuring integrated Navionics® data.LakeVu g3 MapsThis smartwatch supports freshwater maps of the U.S. featuring integrated Navionics data.Multicontinent Topo MapsDownload TopoActive maps from around the world to keep your explorations on track. Use built-in Wi-Fi® connectivity to easily load and update maps and software without using a computer.Golf Course MapsAccess full-color CourseView maps for more than 42,000 golf courses around the world, and get touch targeting and the PlaysLike Distance feature.SkyView™ MapsTake on the slopes with preloaded SkiView maps, and view run names and difficulty ratings for more than 2,000 ski resorts worldwide.Multi-GNSS SupportAccess multiple global navigation satellite systems (GPS, GLONASS, and Galileo) to track in more challenging environments than GPS alone.Multi-Band Frequency SupportReceive and utilize multiple frequencies sent by navigation satellites, which enable improved user position accuracy specifically in areas where GNSS signals are reflected, weak, or typically do not penetrate.ABC SensorsNavigate your next trail with ABC sensors, including an altimeter for elevation data, a barometer to monitor the weather, and 3-axis electronic compass.Built-in Sports AppsUse preloaded activity profiles for trail running, swimming, running, biking, hiking, rowing, skiing, golfing, surfing, indoor climbing, and more.Surf-Ready FeaturesGet ready to catch some waves. This quatix watch works with the Surfline Sessions™ feature, which creates a video of every wave you ride in front of a Surfline® camera2. So you can watch them later and see how you did with your Surfline Sessions subscription.Performance MetricsView advanced training metrics that include running dynamics, heat- and altitude-adjusted VO2 max, trail running adjustment, recovery advisor, and more.Recovery Time AdvisorAfter each workout, recovery time lets you know when you’ll be ready for another hard workout. It even accounts for training intensity and factors such as stress, daily activity, and sleep.Wrist-Based Heart RateThe watch constantly samples your heart rate3 to help gauge how hard you work during activities — even underwater.Sleep Score & Advanced Sleep MonitoringGet a full breakdown of your light, deep, and REM sleep stages. View it all on a dedicated widget that includes your sleep score and insights3.Health Monitoring ActivityUsing data from the watch’s various body status sensors, this feature helps track your daily biometric and wellness trends at a glance.Smart NotificationsReceive emails, texts, and alerts right on your watch when paired with a compatible device.Garmin Pay™ Contactless PaymentsBreeze through checkout lines with Garmin Pay contactless payment solution through participating providers.Music AppsDownload songs plus playlists from your Spotify, Deezer, or Amazon Music accounts (a subscription may be required). Use wireless headphones (not included) for phone-free listening.Safety & Tracking FeaturesWhen your watch and phone are paired, a message with your live location can be sent to your contacts manually or — during select outdoor activities — automatically with built-in incident detection4.Connect IQ™ StoreDownload custom watch faces, add data fields and get apps and widgets from the Connect IQ Store on your compatible smartphone.What's In The Box? quatix 7 Charging/data cable Documentation 1 When paired with a compatible smartphone2 When paired with the Garmin Connect™ smart-device app and the Surfline smart-device app3 Activity tracking accuracy4 For safety and tracking feature requirements and limitations, see Garmin.com/safetyWi-Fi is a registered trademark of the Wi-Fi Alliance. SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Amazon Music and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Normalized SKU: 0100258260UPC Code: 753759298425

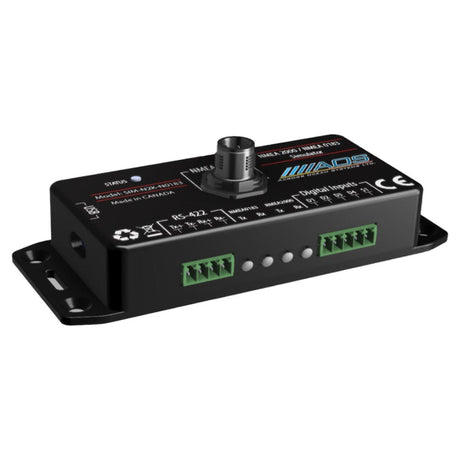

Download LiteratureAcross Ocean Systems SIM-N2K-N0183 Navigational InstrumentsNMEA 2000/NMEA 0183 Simulator/AnalyzerUSB simulator for the Marine Industry.  Used to simulate NMEA 2000/NMEA 0183 traffic via PGN for analysis/simulation using a Windows based downloadable software program.  Features: Fully configurable.  Perfect for installers, and developers.  Technical Specifications: CE Certification - Marine standard IEC60945 Comm Method - NMEA 2000® Connector - NMEA2000® Micro Housing Material -  Plastic Inputs/Outputs - 1/2 NMEA 2000 LEN - 1 RoHS Compliant - Yes Voltage - 9 to 32 VDC Waterproof Rating - IP42 In the Box: Simulator USB Cable 3' (.3M) Software (download key) *Sold as an IndividualWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: SIMN2KN0183Across Ocean Systems SIM-N2K-N0183 Literature Download Quick Reference Guide

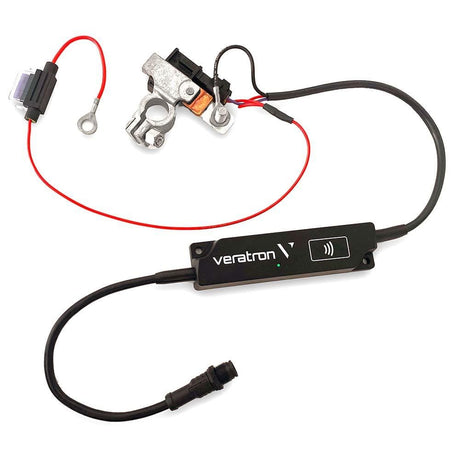

Download Literature Watch VideoVDO B00070401 Navigational InstrumentsLinkUp - Intelligent Battery Sensor (IBS) Kit - 24VBatteries are essential for engine starting and operating onboard utilities.  With Veratron’s new Intelligent Battery Sensor (IBS), it’s simple to monitor their status and health in real-time.  The system works with any OceanLink, AcquaLink, or NMEA 2000-networked display, and is compatible with the latest glass cockpit systems.The system includes a Veratron LinkUp Gateway Module that enables the Intelligent Battery Sensor to be connected to and compatible with the NMEA 2000 network.  Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement.Veratron’s Intelligent Battery Sensor (IBS) measures vital battery parameters: voltage, current, and temperature, as well as state of charge, health, and function. This provides the essential information needed to plan energy usage aboard and be aware of potential problems.The IBS system monitors a single battery or full bank.  Multiple LinkUp kits can be used to provide data specific to house, starter, and system-specific supplies.  It works with 12V starter, gel, or AGM battery types.The IBS simply clamps onto the negative pole terminal.  Completely sealed, it has a watertight 3A inline fuse within the housing.  This connects to the NMEA 2000 backbone through the innovative LinkUp Gateway Module and enables Veratron’s numerous sensors to communicate with the network.Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play.  Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance, and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.*Includes sensor and Link Up Gateway.Features: NMEA 2000® certified Wireless configuration through companion mobile App Status LED Plug-and-Play installation and configuration Input Signal - LIN bus Nominal Voltage - 24V *Sold as an Individual Normalized SKU: B00070401UPC Code: 7640178729667VDO B00070401 Literature Download Product BrochureVDO B00070401 Video

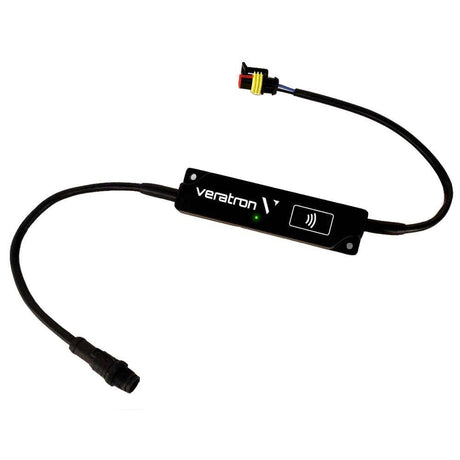

Watch VideoVDO B00042401 Navigational InstrumentsLinkUp J1939 to NMEA 2000 GatewayThis single-sensor gateway is designed to upgrade your vessel sensors to NMEA 2000®. Can be easily configured through either the embedded wireless interface or NMEA 2000® by means of our Configuration Tool. The ISO 8846:1990 compliance completes the devices by allowing their installation into compartments.Features: Waterproof sensor connection No external power supply required Wireless configuration through companion mobile App Explosion-proof housing body for engine room installation Standard DeviceNet M12 plug to interface NMEA 2000 Input signal - SAE J1939 Nominal Voltage - 12V *Sold as an Individual Normalized SKU: B00042401VDO B00042401 Video

Download Literature Watch VideoVDO B00041701 Navigational InstrumentsGO GPS PLUS ReceiverAll your boat’s data is close to your fingertips. Veratron GO is NMEA 2000® certified and features an integrated GPS/GLONASS/GALILEO receiver. Compact and easy to install, it does not require any additional protection against harsh weather conditions.  One of the smallest GPS receivers available.The Veratron GO GPS Receiver works in conjunction with the Veratron Go Data.The "Plus+" variant expands the device with a Bluetooth Low Energy interface which allows you to visualize all the vessel data on your portable devices like smartphones or tablets.Features: 72 channel receiver Fast cold-start position fix Compatible with OceanLink 52MM Bezels  10Hz update rate Up to 3 concurrent GNSS systems (GPS, GLONASS, and GALILEO) SBAS – WAAS/EGNOS/MSAS/GAGAN supported NMEA 2000 standard PGNs transmitted for position, time, speed, and heading Front-end SAW band-pass filter for enhanced immunity against electrical noise Interchangeable bezel option Technical Specifications: Update Rate: Up to 10Hz  using concurrent GNSS, up to 18Hz using single GNSS Position Fix Time: 26 second  cold-start, 1 second hot start Tracking Sensitivity:  -165dBm Position Accuracy: 2.5m Velocity Accuracy: 0.05m/s Heading Accuracy: 0.3° Water Resistance: IPX7 Dimensions (D x H): 60.7 mm x 18.9 mm Power Source: NMEA 2000 backbone (12V nominal voltage), no external power supply required Power Consumption: 100mA (2 LEN) operational, 150mA (3 LEN) during startup In the Box: GO GPS Plus Receiver Instructions Manual  *Sold as an Individual Normalized SKU: B00041701UPC Code: 7640178729445VDO B00041701 Literature Download Product BrochureVDO B00041701 Video
