Seatronx
Seatronx 15" Wide Screen Pilothouse Touch Screen #PHT-15W
$2,796.64
$3,154.61
Download LiteratureSeatronx PHT-15W Multifunction Displays15" Wide Screen Pilothouse Touch Screen DisplaySeatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling. The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 15.89" x 10.72" x 2.28"
Cutout Dimensions - 15.18" x 10.01" x 2.40"
Projected Capacitive Touch
Optical Bonding
Optional Remote Control
Technical Specifications:
Diagonal (active area) Inch - 15.6"
Native Resolution (Pixels) - 1920x1080
Contrast Ratio - 1500:1
Brightness - 400
Viewing Angle (left, right) - 89, 89
Viewing Angle (up, down) - 89, 89
Backlight Dimming - 0 - max
Backlight Lifetime (Hrs) - 50,000
Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
Power Source - 9-34V + and -
Power Consumption (AMPS @ 24VDC) - 3.2
Inlet Plug DC Power - Screw Terminal
Sealing Front - IP68 with Potentiometer
Operating Temperature (°C) - -20 to 75
Storage Temperature (°C) - -20 to 80
Normalized SKU: PHT15WSeatronx PHT-15W Literature Download Quick Reference Guide Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Seatronx
Seatronx 12" Pilothouse Touch Screen Display 1024 x 768 #PHT-12
$2,298.35
$2,666.09
Download LiteratureSeatronx PHT-12 Multifunction Displays12" Pilothouse Touch Screen DisplaySeatronx glass bridge displays are the perfect fit for those looking for rugged design combined with attractive styling. The pilothouse displays feature up to 300 nits of low-power LED backlighting, which makes them a perfect fit for pilothouses where brightness is not a problem. They can also be completely dimmed for nighttime use using the front panel control.Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 11.88" x 10.13" x 2.28"
Cutout Dimensions - 11.16" x 9.43" x 2.40"
Projected Capacitive Touch
Optical Bonding
Optional Remote Control
Technical Specifications:
Diagonal (active area) Inch - 12.1"
Native Resolution (Pixels) - 1024x768
Contrast Ratio - 700:1
Brightness - 700
Viewing Angle (left, right) - 80, 80
Viewing Angle (up, down) - 80, 80
Backlight Dimming - 0 - max
Backlight Lifetime (Hrs) - 50,000
Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
Power Source - 9-34V + and -
Power Consumption (AMPS @ 24VDC) - 2.5
Inlet Plug DC Power - Screw Terminal
Sealing Front - IP68 with Potentiometer
Operating Temperature (°C) - -30 to 85
Storage Temperature (°C) - -30 to 80
Normalized SKU: PHT12Seatronx PHT-12 Literature Download Quick Reference Guide Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Seatronx
Seatronx 19.0" TFT LCD Industrial Display 1280 x 1024 #IND-19
$3,414.43
$3,851.47
Download LiteratureSeatronx IND-19 Multifunction Displays19.0" TFT LCD Industrial DisplayThe Seatronx IND Series – Unmatched picture quality with a ruggedized look at an outstanding price. Extreme environments demand ruggedized dependability. With the IND commercial marine display, you’re in complete control with easy-to-use controls, source selection, and dimming capabilities. Heavy-duty mount bracket and AC DC control come standard on 19″ or 24″ displays.Features:
Mounting - VESA/Flush/U-Bracket mounted
Dimensions - 14.96”(W)x17.51”(H)x2.23”(D)
2-year warranty
Black & Dark Grey case colors
Panel Surface - Anti-Glare Coating with Tempered Glass
Technical Specifications:
LCD Type - TFT Active Matrix LCD (16.7 Million colors)
Display Size - 19.0”
Resolution - 1280x1024 (SXGA)
Contrast Ratio - 1000:1
Brightness - LED Backlight Type - 1,500 nit (min.)
Inputs - DVI, VGA, HDMI (With PIP/POP)
View Angle - 170(H) 170 (V)
Response Time - 3m/sec
Light Source - Light Emitting Diodes
Input Voltage - 10 to 38VDC Power Input, AC/DC brick power supply included
Power Consumption - 34W
Operating Range -10C - 60C
IP Rating - Front Side: IP65, Rear Side: IP32
Dimming Range - 1000:1 (dimming control to dark to full bright)
Weight - 13.67 LBS(6.2Kg)
Normalized SKU: IND19Seatronx IND-19 Literature Download Product Brochure
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Seatronx
Seatronx 26" Commercial Touch Screen Display 1920x1200 #CD-26T
$4,985.00
$5,583.20
Download LiteratureSeatronx CD-26T Multifunction Displays26" Commercial Touch Screen DisplayElectronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching). Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 24.44" x 17.02" x 3.66"
Cutout Dimensions - 23.54" x 16.06"
Projected Capacitive touch
Optional ECDIS Color Calibration
2x 2W Speakers
77 dB - 80 dB buzzer
Technical Specifications:
Diagonal (active area) Inch - 26"
Native Resolution (Pixels) - 1920x1200
Contrast Ratio - 1500:1
Brightness - 350
Viewing Angle (left, right) - 89, 89
Viewing Angle (up, down) - 89, 89
Backlight Dimming - -0 (3 Stage ECDIS Option)
Inputs - 3 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
Power Source - 9-36VDC Isolated power supply 80W (Max)
Power on/off dimming control - Front Bezel
IP Rating - IP65 Front
Operating Temperature (°C) - -15 to 55
Normalized SKU: CD26TSeatronx CD-26T Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Seatronx

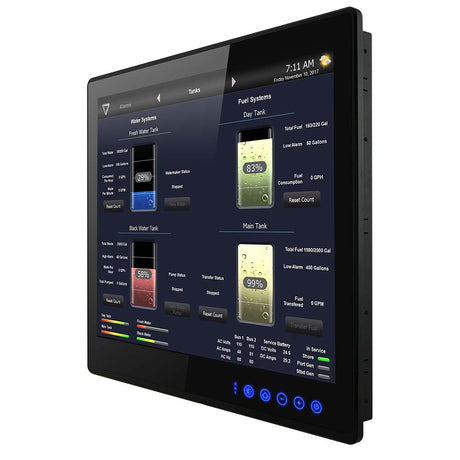

Seatronx 19" Commercial Touch Screen Display 1280x1024 #CD-19T
$3,546.88
$4,000.88
Download LiteratureSeatronx CD-19T Multifunction Displays19" Commercial Touch Screen DisplayElectronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching). Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 16.889" x 15.433" x 2.866"
Cutout Dimensions - 16.03" x 14.13"
Projected Capacitive touch
Optional ECDIS Color Calibration
2x 2W Speakers
75 dB - 80 dB buzzer
Technical Specifications:
Diagonal (active area) Inch - 19"
Native Resolution (Pixels) - 1280x1024
Contrast Ratio - 1200:1
Brightness - 350
Viewing Angle (left, right) - 89, 89
Viewing Angle (up, down) - 89,89
Backlight Dimming - -0 (3 Stage ECDIS Option)
Inputs - 1 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
Power Source - 9-36VDC Isolated power supply 60W (Max)
Power on/off dimming control - Front Bezel
IP Rating - IP65 Front
Operating Temperature (°C) - -15 to 55
Normalized SKU: CD19TSeatronx CD-19T Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Seatronx

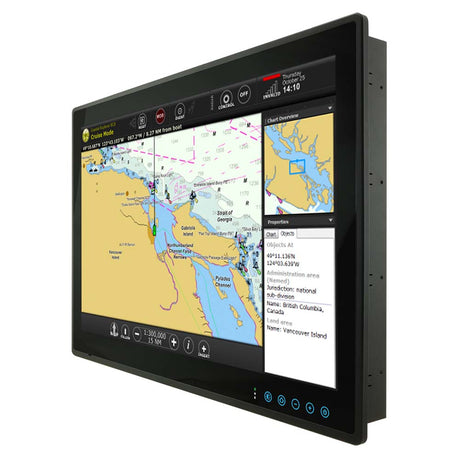

Seatronx 24" Commerical Touch Screen Display 1920x1080 #CD-24T
$4,341.25
$4,862.20
Download LiteratureSeatronx CD-24T Multifunction Displays24" Commercial Touch Screen DisplayElectronic Chart Display and Information Systems (ECDIS) are designed to meet International Maritime Organization (IMO) compliance regulations. These displays are color calibrated for optimal electronic chart viewing and feature capacitive touch keys for quick function access and display control (support ECDIS day, dusk, and night mode switching). Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 23.43" x 15.16" x 2.51"
Cutout Dimensions - 22.51" x 14.29"
Projected Capacitive touch
Optional ECDIS Color Calibration
2x 2W Speakers
76 dB - 80 dB buzzer
Technical Specifications:
Diagonal (active area) Inch - 24"
Native Resolution (Pixels) - 1920x1080
Contrast Ratio - 5000:1
Brightness - 350
Viewing Angle (left, right) - 89, 89
Viewing Angle (up, down) - 89,89
Backlight Dimming - -0 (3 Stage ECDIS Option)
Inputs - 2 x VGA, 1 x DVD-D, 1 x HDMI 2.0, 1 x HDMI 1.4, 1 x Display Port 1.2
Power Source - 9-36VDC Isolated power supply 70W (Max)
Power on/off dimming control - Front Bezel
IP Rating - IP65 Front
Operating Temperature (°C) - -15 to 55
Normalized SKU: CD24TSeatronx CD-24T Literature Download Quick Reference Guide
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Furuno
Furuno FA170 Display Unit #FA1702
$1,438.89
$1,669.11
Furuno FA1702 Multifunction DisplaysFA170 Display UnitThis 4.3" color LCD display displays symbols for AIS-equipped vessels, AIS-SARTs, coastal stations, and other aids to navigation within VHF range. AIS data can be output to ECDIS, radar, or other navigational equipment for collision avoidance support. The FA170 includes 6 in/out ports, 3 input-only ports, one LAN port, and one alarm output (contact closure) port. The unit is BAM (Bridge Alert Management) ready, meeting the specific requirements for BAM as specified in IMO MSC.302 (87).This compact unit can store up to 2,048 AIS targets and AIS SARTs. Selecting a target from the list generates a pop-up window where detailed information is displayed. Users can also create an AIS message or send a name request to the target ship. When dangerous targets are detected, the FA170 provides a dangerous target list. The FA170 is also capable of exchanging short, safety-related messages with a specified MMSI or all AIS-equipped vessels via VHF channels. The FA170 can store up to 20 transmitted and 20 received messages.Specifications:
Screen Size: 4.3 Inch color LCD, 480 x 272 dots (WQVGA)
Viewing Area: 95.04 (W) x 53.856 (H) mm
Brightness Adjustment: 18 steps
*Display unit only *No AIS transponder included Normalized SKU: FA1702UPC Code: 611679368263
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

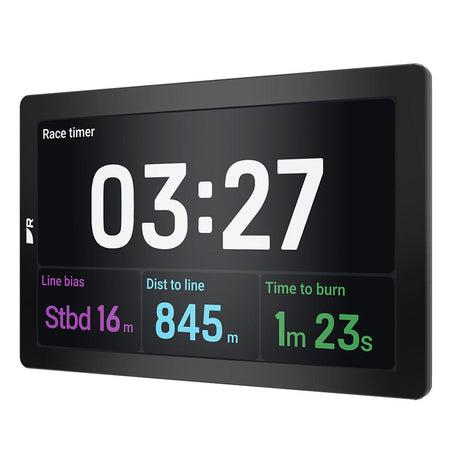

Raymarine Alpha 9 Performance Display #E70650
$2,199.99
$2,551.99
Raymarine E70650 Multifunction DisplaysAlpha 9 Performance DisplayAlpha Performance Displays are the most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha's extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance. Alpha & Axiom Systems Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom's connected transducers and NMEA2000/SeaTalk NG devices. Once paired with an Axiom network, users can customize and configure your Alpha display into a powerful performance sailing, navigation, and engine data instrument.High Visibility Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote locationRugged BuildTested to the extreme and built with our exclusive HydroToughTM nano-coating that repels water and oils for reliable touchscreen controlFully Scaleable A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displaysTactical Awareness Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.SailPoint™ TargetSailPoint™ mode provides you with a visual reference of the target wind angle, so you achieve your maximum VMG upwind or downwindDynamic WindThe dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.Other Features:
9 in. bright, high contrast sailing instrument display
Power cables sold separately
What’s in the Box:
Alpha 9 performance display - 2 x mounting brackets
Suncover
Waterproof gasket
Documentation pack
4 x Threaded studs, M4 x 40 mm
4 x Thumb nuts
Physical Specifications:
Width: 148.9 mm (5.86 in.)
Height: 235.9 mm (9.29 in.)
Depth: 34 mm (1.34 in.)
Post Separation Distance: 5.71 mm (0.22 in)
Weight: 1.18 kg (2.60 lbs)
Power Specifications:
Nominal Supply Voltage: 12 V / 24 V dc
Operating Voltage Range: 10.8 V to 32 V dc
Current: 1.02 A (nominal) @ 12 V dc / 0.52 A (nominal) @ 24 V dc
Power Consumption: 12 W (maximum)
Inline Fuse Rating: 8 A
Thermal Breaker Rating: 8 A
Network Specifications:
Axiom: The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data Connections: 1 x Daisy-chain connector & 1 x Power / RayNet Ethernet connector
Environmental Specifications:
Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
Relative Humidity: 93% Max
Waterproof Rating: IPx6 and IPx7
Display Specifications:
Display Screen: 9 in. IPS TFT LCD
Brightness / Luminance: 1500 nits / 1500 cd/m2
Viewing Angles: Portrait — 85 + / 85 + & Landscape — 85 + / 85 +
Resolution: 1280 (H) x 720 (V)
PPI (Pixels Per Inch): 9 in. display — 163 PPI
Color: 24-bit color (16.7 million colors)
Refresh Rate: 60 Hz
Conformance:
Europe, Australia & New Zealand: EN 60945:2002
Canada: ICES-003
USA: CFR47 Part 15
Japan / China: IACS section E10
Product Markings
UKCA, CE, Australian Tick, WEEE Directive, Industry Canada
Normalized SKU: E70650UPC Code: 723193842737
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

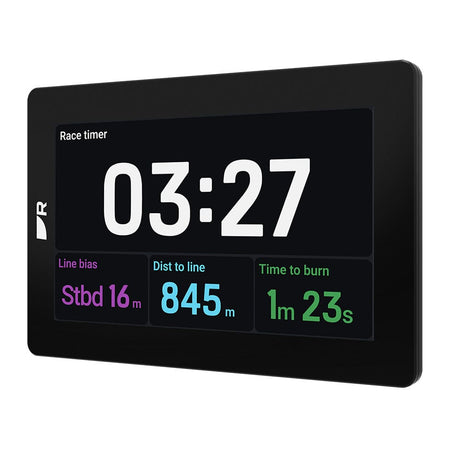

Raymarine Alpha 7 Performance Display #E70649
$1,319.99
$1,531.19
Raymarine E70649 Multifunction DisplaysAlpha 7 Performance DisplayAlpha Performance Displays are the most versatile marine data displays. High-bright touchscreen instruments with wide view angles offer excellent visibility from anywhere onboard. Alpha's extensive data dashboard options and widgets make critical sailing, navigation, and engine data easy to interpret at a glance. Alpha & Axiom Systems Alpha Performance Displays are companion instruments for Raymarine Axiom chartplotters. A simple RayNet Ethernet cable between Axiom and the Alpha display gives Alpha access to Axiom's connected transducers and NMEA2000/SeaTalk NG devices. Once paired with an Axiom network, users can customize and configure your Alpha display into a powerful performance sailing, navigation, and engine data instrument.High Visibility Polarized sunglass-friendly displays with extra wide viewing angles, viewable on the mast or remote locationRugged BuildTested to the extreme and built with our exclusive HydroToughTM nano-coating that repels water and oils for reliable touchscreen controlFully Scaleable A single power and data cable for fewer cables running through the deck and mast. Support for daisy-chaining up to 4 Alpha displaysTactical Awareness Intuitively designed graphical instrument displays, aimed at enhancing tactical awareness and facilitating better decision-making on the water.SailPoint™ TargetSailPoint™ mode provides you with a visual reference of the target wind angle, so you achieve your maximum VMG upwind or downwindDynamic WindThe dynamic wind performance display provides automatic zoom to the most critical part of the instrument display based on wind direction.Other Features:
7 in. bright, high-contrast sailing instrument display
Power cables sold separately
What’s in the Box:
Alpha 7 performance display - 2 x mounting brackets
Suncover
Waterproof gasket
Documentation pack
4 x Threaded studs, M4 x 40 mm
4 x Thumb nuts
Physical Specifications:
Width: 120.1 mm (4.72 in.)
Height: 188.4 mm (7.42 in.)
Depth: 32 mm (1.26 in.)
Post Separation Distance: 5.71 mm (0.22 in)
Weight: 0.72 kg (1.59 lbs)
Power Specifications:
Nominal Supply Voltage: 12 V / 24 V dc
Operating Voltage Range: 10.8 V to 32 V dc
Current: 0.84 A (nominal) @ 12 V dc / 0.43 A (nominal) @ 24 V dc
Power Consumption: 10 W (maximum)
Inline Fuse Rating: 8 A
Thermal Breaker Rating: 8 A
Network Specifications:
Axiom: The Alpha Performance Displays require an Axiom Chartplotter in order to operate.
Data Connections: 1 x Daisy-chain connector & 1 x Power / RayNet Ethernet connector
Environmental Specifications:
Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
Storage Temperature Range: -30°C to +70°C (-22°F to +158°F)
Relative Humidity: 93% Max
Waterproof Rating: IPx6 and IPx7
Display Specifications:
Display Screen: 7 in. IPS TFT LCD
Brightness / Luminance: 1500 nits / 1500 cd/m2
Viewing Angles: Portrait — 85 + / 85 + & Landscape — 85 + / 85 +
Resolution: 1024 (H) x 600 (V)
PPI (Pixels Per Inch): 7 in. display — 170 PPI
Color: 24-bit color (16.7 million colors)
Refresh Rate: 60 Hz
Conformance:
Europe, Australia & New Zealand: EN 60945:2002
Canada: ICES-003
USA: CFR47 Part 15
Japan / China: IACS section E10
Product Markings
UKCA, CE, Australian Tick, WEEE Directive, Industry Canada
Normalized SKU: E70649UPC Code: 723193842720
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Furuno
Furuno 19" Color LCD Marine Monitor #MU192HD
$6,879.94
$7,705.53
Download LiteratureFuruno MU192HD Multifunction Displays19" Color LCD Marine MonitorThis 19" (SXGA) monitor features bonded LCD panels that deliver high-resolution and high-contrast video presentations in a wide range of operating conditions, even in direct sunlight. These compact and ergonomically designed monitors showcase an ultra-sleek, upscale, edge-to-edge design that will add a touch of class to any bridge.These monitors are designed to work seamlessly with Furuno's commercial Black Box systems, such as radars, fish finders, and sonars. In addition to a wide array of Furuno products, the MU192HD can also be paired with compatible systems from other manufacturers.Features:
MU192HD can also display images from security cameras, DVD players, computers, or other peripheral devices
1,000 cd/m2 color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare
Its wide range of interface options include (1) HDMI,(1) RGB, (1) DVI-D, and (1) composite video inputs
Easy retrofit from MU150HD/MU190HD, using the same cutout
A wide range of brightness options offers comfortable viewing in any light
High-contrast LCD that delivers a clear and sharp image
IP56 waterproof design (Front panel)
Displays can be flush-mounted (standard) or bracket-mounted (optional)
Specifications:
Screen Resolution: SXGA (1280 x 1024)
Display Size: 19 inches
Display Type: Color LCD
Power Usage: 12-24 VDC
Normalized SKU: MU192HDFuruno MU192HD Literature Download Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Furuno
Furuno 15" Color LCD Marine Monitor #MU152HD
$5,867.44
$6,571.53
Download LiteratureFuruno MU152HD Multifunction Displays15" Color LCD Marine MonitorThis 15" (XGA) monitor features bonded LCD panels that deliver high-resolution and high-contrast video presentations in a wide range of operating conditions, even in direct sunlight. These compact and ergonomically designed monitors showcase an ultra-sleek, upscale, edge-to-edge design that will add a touch of class to any bridge.These monitors are designed to work seamlessly with Furuno's commercial Black Box systems, such as radars, fish finders, and sonars. In addition to a wide array of Furuno products, the MU152HD can also be paired with compatible systems from other manufacturers.Features:
MU152HD can also display images from security cameras, DVD players, computers, or other peripheral devices
1,000 cd/m2 color TFT LCD with special AR (anti-reflective) glass filter to cut down on annoying glare
Inputs include (1) HDMI, (1) DVI-D, (1) analog RGB, & (1) composite
Easy retrofit from MU150HD/MU190HD, using the same cutout
A wide range of brightness options offers comfortable viewing in any light
High-contrast LCD that delivers a clear and sharp image
IP56 waterproof design (Front panel)
Displays can be flush-mounted (standard) or bracket-mounted (optional)
Specifications:
Screen Resolution: XGA (1024 x 768)
Display Size: 15 inches
Display Type: Color LCD
Power Usage: 12-24 VDC
Normalized SKU: MU152HDFuruno MU152HD Literature Download Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

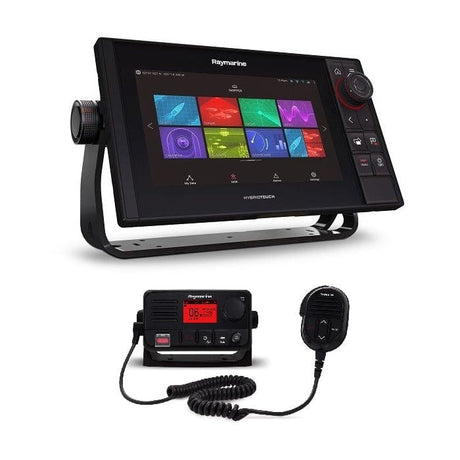

Raymarine Axiom Pro 9RVX MFD No Ducer LNC3 #E70371-00-102 Ray53 Bundle
$2,927.98
$3,302.76
Raymarine E70371-00-102 Ray53 Bundle Multifunction DisplaysRaymarine Axiom Pro 9RVX 9" MFD With RealVision 3D and 1kW CHIRP, Lighthouse NC3 North America Lakes and Coastal Tide Stations RAY53 BundleModel: E70371-00-102 Ray53
RealVision 3D
True 1kW Sonar
Sonar Scroll Back
HybridTouch™
Quad Core Processor
Optical Bonding Technology & IPS Displays
IP & Analog Video
Clear Cruise™
Quantum CHIRP, HD & SHD
NMEA2000 & NMEA0183
Specifications
Display Size
9" IPS Optically Bonded LCD
Display Resolution
1280 x 720 WXGA
Display Type
Multitouch
Brightness
1,200 nits
Viewing Angle
Degrees: 88 / 88 / 88 / 88 (Top / Bottom / Left / Right)
Mounting
Top, Front, Bracket
Waterproof Rating
IPX6 / IPX7
Operating Temp
minus 13deg F to 131deg F (-25deg C to +55deg C)
Storage Temp
minus 22deg F to 158deg F (-30deg C to +70deg C)
Sensors
Sonar Type - Built-in
RealVision 3D & 1kW CHIRP Sonar built in
Sonar Connections
25pin connector used only with CPT-S transducers, Pro S can only be used with CPT-S transducers that also connect directly to CP470 sonar module. Requires A80490 adaptor cable.
Sonar Depth
CHIRP Sonar = 900 feet (974 m)DownVision™ = 600 feet (183 m)
External Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - N2K compatible
GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou - 10Hz 72 Channel - External Accessory: GA150 (A80288)
Autopilot Control
Yes - Evolution Autopilot
Thermal Night Vision
Yes - IP or Analogue
Video / Camera
1 x Analogue input (BNC) Up to 10 IP Cameras
Weather
GRIB View - Free GRIB viewer and Theyr Ltd Subscription - SiriusXM - N. America Only
Audio
N2K / *Bluetooth / *SiriusXM Audio [*Available in future Lighthouse 3 software update]
Digital Switching
Yes - Empirbus & C-Zone compatible [C-Zone integration available in future Lighthouse 3 software update]
Remote Control
RMK-10 (A80438) & RCU-3 (E62351)
Networking
Ethernet
2 x 10/100/1000 Mbits/ Network (RayNet)
NMEA0183
1 Transmit / 2 Receive
NMEA2000
1 x NMEA2000 port (DeviceNet microC)
SeaTalkNG
Requires DEVICENET FEMALE (F) ADAPTOR CABLE (A06079 100mm adaptor included in box)
USB
1 x USB microAB (rear - charging, external storage device or RCR-SD/USB Accessory (A80440)
Wi-Fi
WiFi - 802.11 a / b / g / n
BlueTooth
Bluetooth 4.0 + Low Energy + Power Class 1.5 [Available in future Lighthouse 3 software update]
Navigation
Cartography
Lighthouse, Navionics, *C-MAP Essentials & *C-MAP 4D MAX+ [*C-MAP chart compatibility available in future Lighthouse 3 software update]
Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
MEMORY
Internal
16GB Solid State
16GB Solid State
2 x microSD slots (front) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
Input Voltage
12V and 24V DC (8 V to 32 DC)
Input Draw
~20W
Dimensions
11.9" x 6.85" x 2.56" (300 x 174 x 65 mm)
What's in the Box:
Axiom Pro 9RVX
RayNet (F) to Raynet (F) Cable — 2M (A62361)
Trunnion Cover
Trunnion Knobs
Trunnion Bracket
Suncover (A80534)
Power / Video / NMEA0183 Cable - Straight, 1.5M (R62379)
Micro-C DeviceNet (F) to STNG (F) Cable - 1M (A06075)
Panel Seal Gasket
Bezel Pieces and Home / Menu Button
Mounting Fixings
Quick Start Guide
Warranty Card
Raymarine window decal
LNC3 Card
RAY53 VHF
Normalized SKU: E7037100102Ray53Bundle
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

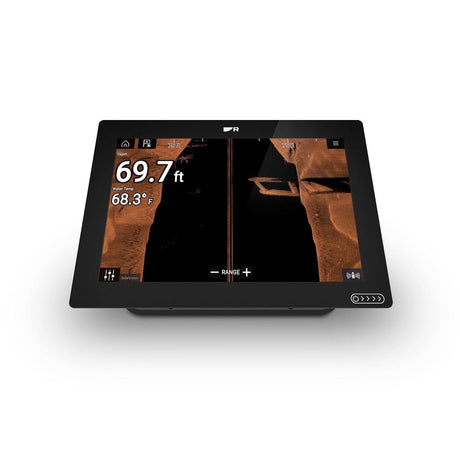

Raymarine Axiom+ 12RV Reman No Transducer No Chart #E70639R
$2,359.99
$2,737.59
Raymarine E70639R Multifunction DisplaysRaymarine Axiom+ 12 12" Muilti-Function Display with RealVison Sonar, No Transducer - RemanufacturedModel: E70639R
Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
Powerful quad-core processor, plus increased onboard storage for personal data and apps.
Smart and intuitive LightHouse 3 OS makes navigating easy.
ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
Network with multiple Axiom displays, radars, sonar, and more.
Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.
The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.Specifications
General
Display Size
12.1 inch High Density IPS
Display Resolution
1280 x 720 (WXGA)
Display Type
Multitouch with HydroTough™ rugged hydrophobic coating
Brightness
1,800 nits
Viewing Angle
88° Top, Bottom, Left, Right
Dimensions W x H x D (Excluding trunnion and cables)
12.36 x 8.54 x 3.0in
Mounting Options
Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating
IPX6 / IPX7
Operating Temperature Range
-25°C to +55°C (-13°F to +131°F)
Storage Temperature Range
-30°C to +70°C (-22°F to +158°F)
Power
Voltage
12V DC (8V to 16V DC)
Power Consumption (Full brightness)
19.96 Watts
Sensors
GNSS / GPS
Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
Sonar Type (Built-in)
RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
Sonar Connections
25pin RealVision™ type connector
Sonar Depth
High CHIRP Sonar = 900 feet (274m)DownVision™ = 600 feet (183m)SideVision™ = 300 feet (91m) RealVision™ 3D = 300 feet (91m)
External Sonar Option
Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar
Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS
Yes - NMEA2000 compatible
Autopilot Control
Yes - Evolution Autopilot
Thermal Night Vision
Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera
Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather
GRIB View - Free GRIB viewer and Theyr Ltd SubscriptionSiriusXM - N. America Only
Audio
NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching
Yes - Empirbus & C-Zone compatible
Remote Control
Yes Optional RMK-10 (A80438)
Networking
Ethernet
1 x 10/100 Mbit/s Network (RayNet)
NMEA0183
No
NMEA2000
NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG
Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB
1 x USB microAB
Wi-Fi
WiFi - 802.11 a/b/g/n
BlueTooth
Bluetooth v4.0
Navigation
Cartography
Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk)
10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Memory
Internal Memory
16 GB Solid State
External Memory
1x MicroSD Card Slot
Languages
24
Conformances
NMEA 2000 certificationEurope: 1999/5/ECAustralia and New Zealand: C-Tick, Compliance Level 2FCC 47CFR part 15Industry Canada RSS210
What's in the Box:
Multifunction Display - Remanufactured
Trunnion bracket
Trunnion knobs x 2
Suncover — Trunnion mount
Panel mount gasket for surface/flush mounting
M5x58 Threaded studs x 4
M5 Thumb nuts x 4
Documentation pack
DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
Rear mounting brackets
Normalized SKU: E70639R
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

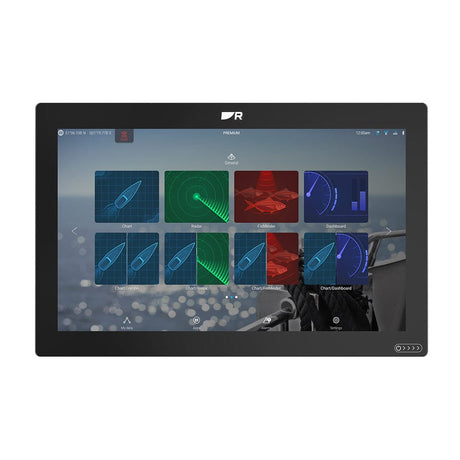

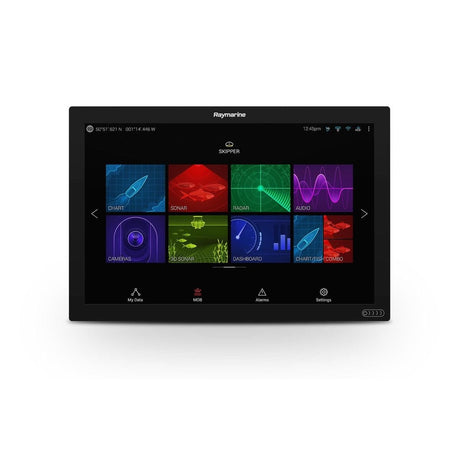

Raymarine Axiom 2 XL 19 Multifunction Display #E70662
$10,779.99
$12,073.59
Raymarine E70662 Multifunction DisplaysAxiom 2 XL 19 Multifunction Display Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.Features
A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
Get underway faster with a fast 6-core processor
HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
HDMI output for connecting to remote monitors or HDTVs
HDMI input and USB touchscreen input for remote PC integration
Analog audio output for integrating with marine entertainment systems
Easy to upgrade with the same mounting footprint as Axiom XL
Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
NMEA 2000 port
Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
Normalized SKU: E70662
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

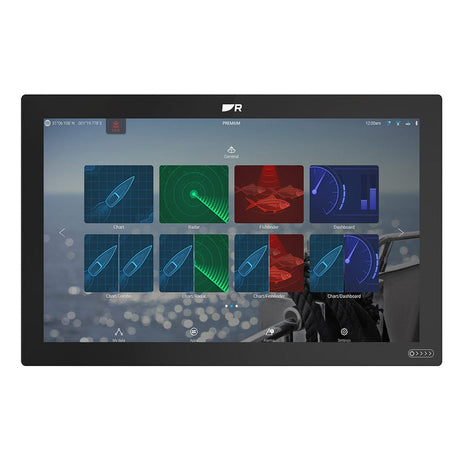

Raymarine Axiom 2 XL 22 Multifunction Display Only #E70663
$13,595.00
$15,226.40
Raymarine E70663 Multifunction DisplaysAxiom 2 XL 22 Multifunction Display Axiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.Features
A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
Get underway faster with a fast 6-core processor
HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
HDMI output for connecting to remote monitors or HDTVs
HDMI input and USB touchscreen input for remote PC integration
Analog audio output for integrating with marine entertainment systems
Easy to upgrade with the same mounting footprint as Axiom XL
Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
NMEA 2000 port
Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
Normalized SKU: E70663
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
VDO

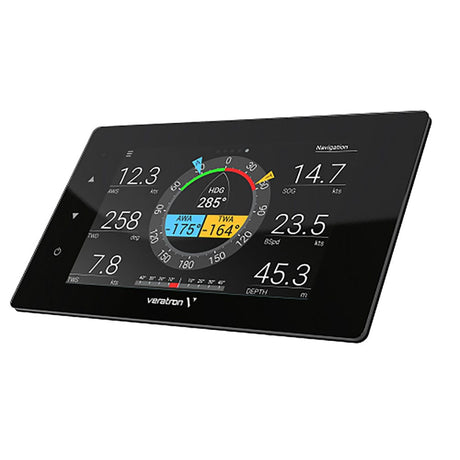

Veratron VMH 70 7" Sunlight Readable IPS TFT Touchscreen #B00129201
$1,598.66
$1,854.45
Download LiteratureVDO B00129201 Multifunction DisplaysVMH 70 7" Sunlight Readable IPS TFT Touchscreen DisplayThe best-in-class VMH 70 display is designed to manage large amounts of complex data, and thanks to its real-time operating system it ensures full control of vital engine information immediately after power up.Easily configured to display information from up to four engines when connected to NMEA2000 or two engines via J1939 or analog inputs simultaneously, it has a large possible setting. This allows users to group similar items such as single or dual engines, battery performance, fuel, water, waste, tank level, rudder and trim, onboard systems, navigation, and weather if desired.The device has an integrated light sensor that adjusts for easy reading without eye strain, no matter how bright or dark the conditions and two camera inputs allow one to control the engine compartment during navigation and keep an eye on the main deck while maneuvering.The embedded NMEA 2000 gateway brings all the sensor readings and alarms to your external multi-functional display, saving the cost of an additional converter.Features:
Veratron VMH premium instruments series
7" sun-readable IPS TFT touchscreen display
Slim panel installation profile
Mineral glass front lens
Reliably operating in high-temperature environments
IPX7 protection rating (exposed device)
NMEA 2000 certified
Fully configurable analog inputs for direct sensor connections with NMEA 2000 gateway
Customizable startup screen
Dual SAE J1939 CAN ports
Easily customizable GUI screens
Technical Specifications:
Nominal Voltage - 12/24v
Operating Voltage - 9-32v
Housing - Aluminum case, mineral glass front lens
Mounting - Front panel mount via mounting kit
Connectors - 2x Molex MX-150, 12 pins, 1x DeviceNet M12, 5 pins (NMEA 2000), 2x TE SuperSeal 1.5, 3 pins (EasyLink), 1x M12, 4 pins (Video)
Compliance - CE, UKCA, Reach, RoHS
In the Box:
VMH 70 Display
Sun Cover
Panel mounting kit
Engine 1 power and data cable
Engine 2 data cable
EasyLink extension cable
*Sold as an Individual Normalized SKU: B00129201UPC Code: 7640190290084VDO B00129201 Literature Download Owners Manual Product Brochure
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

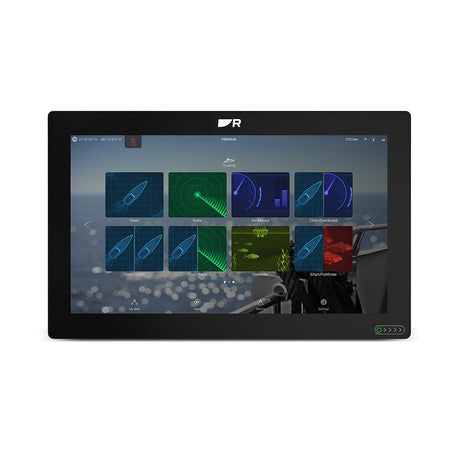

Raymarine Axiom 2 XL 16 Multifunction Display Only #E70661
$5,999.99
$6,719.99
Raymarine E70661 Multifunction DisplaysAxiom 2 XL 16 - 15.6" Multifunction DisplayAxiom 2 XL, the flagship of the Axiom family, delivers powerful chartplotter performance, stylish large-format navigation, and the elegant simplicity of the LightHouse 4 operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best. Axiom 2 XL displays are available in 16, 19, 22, and 24-inch diagonal display sizes.Features
A slim bezel display allows the largest possible displays in a small footprint. Experience big-screen navigation even on tightly spaced helms.
Get underway faster with a fast 6-core processor
HydroTough™ nano-coating repels water for reliable touchscreen control and superior sunlight visibility
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening
Create your own glass bridge Axiom 2 XL system with multiple Axiom 2 XL displays
Three power-over-Ethernet ports simplify the remote camera and RMK-10 remote keypad connectivity
Stay entertained with streaming apps and Axiom 2 XL’s HDMI and audio output for remote displays and marine entertainment systems
Pair Axiom 2 XL with the RVM1600 RealVision Max for the ultimate big-screen CHIRP sonar experience
HDMI output for connecting to remote monitors or HDTVs
HDMI input and USB touchscreen input for remote PC integration
Analog audio output for integrating with marine entertainment systems
Easy to upgrade with the same mounting footprint as Axiom XL
Built-in ambient light sensor and smart backlighting automatically adjust backlighting based on lighting conditions
Three RayNet Ethernet POE ports for networking multiple Axiom displays, radar, cameras, and sonar modules
NMEA 2000 port
Integrated high-accuracy GPS/GNSS sensor with support for the Galileo constellation
Ample storage with 64 GB of internal memory for apps, charts, and waypoint storage
Normalized SKU: E70661UPC Code: 723193844953
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Seatronx

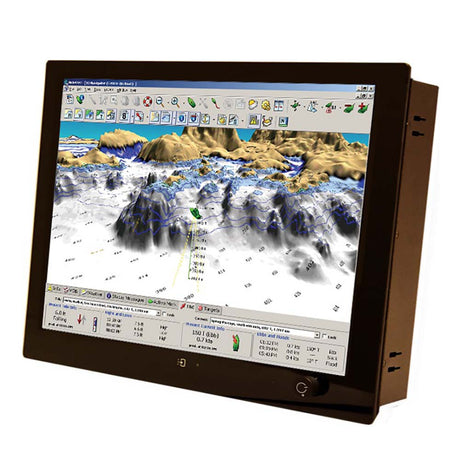

Seatronx 18.5" Wide Screen Sunlight Readable Touch Screen #SRT-185W
$5,172.23
$5,792.89
Download LiteratureSeatronx SRT-185W Multifunction Displays18.5" Wide Screen Sunlight Readable Touch Screen DisplaySeatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays. Features:
Mounting - Panel Mount , Vesa Mount
Dimensions - 18.35" x 12.1" x 2.40"
Cutout Dimensions - 17.65" x 11.39" x 2.40"
Projected Capacitive Touch
Optical Bonding
Optional Remote Control
Technical Specifications:
Diagonal (active area) Inch - 18.5"
Native Resolution (Pixels) - 1920x1200
Contrast Ratio - 1000:1
Brightness - 1500
Viewing Angle (left, right) - 89, 89
Viewing Angle (up, down) - 89, 89
Backlight Dimming - 0 - max
Backlight Lifetime (Hrs) - 50,000
Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
Power Source - 9-34V + and -
Power Consumption (AMPS @ 24VDC) - 3.5
Inlet Plug DC Power - Screw Terminal
Sealing Front - IP68 with Potentiometer
Operating Temperature (°C) - 0 to 70
Storage Temperature (°C) - -20 to 70
Normalized SKU: SRT185WUPC Code: 850036822073Seatronx SRT-185W Literature Download Quick Reference Guide Owners Manual
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine

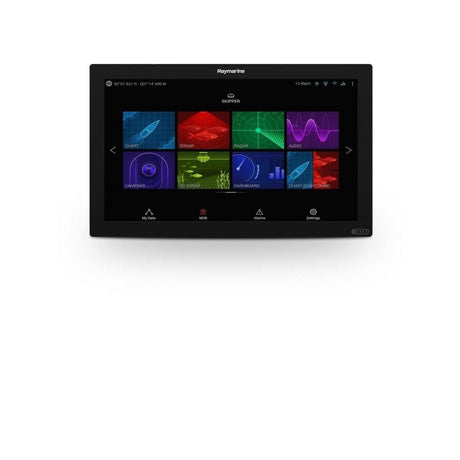

Raymarine Axiom2 XL 24 MFD #E70664
$15,195.00
$17,018.40
Raymarine E70664 Multifunction DisplaysRaymarine AXIOM2 XL 24 - 24" Multifunction Display OnlyModel: E70664
Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications
Weight
11.3 kg (24.9 lbs)
Power consumption @ 12 V dc
92.5 W
Power consumption @ 24 V dc
77.96 W
Off current @ 12 V dc
PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Off current @ 24 V dc
PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
PoE operating voltage range
9.5 V dc to 32 V dc
Current
10.03 A
Operating voltage range
8 V dc to 32 V dc
Fuse rating
15 A
Nominal supply voltage
12 V dc / 24 V dc
Dimensions
Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)
Normalized SKU: E70664UPC Code: 723193844984
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Raymarine
Raymarine Axiom2 XL 24 Kit with RCR-SD/Alarm/Cable #T705478
$15,395.00
$17,242.40
Raymarine T705478 Multifunction DisplaysRaymarine AXIOM2 XL 24 - 24" Multifunction Display OnlyModel: E70664
Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.Specifications
Weight
11.3 kg (24.9 lbs)
Power consumption @ 12 V dc
92.5 W
Power consumption @ 24 V dc
77.96 W
Off current @ 12 V dc
PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Off current @ 24 V dc
PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
PoE operating voltage range
9.5 V dc to 32 V dc
Current
10.03 A
Operating voltage range
8 V dc to 32 V dc
Fuse rating
15 A
Nominal supply voltage
12 V dc / 24 V dc
Dimensions
Height: 386.84 mm (15.23 in), Width, 578.40 mm (22.77 in), Depth (including cables): 177.39 mm (6.98 in)
Normalized SKU: T705478UPC Code: 723193844946
Frequently Asked Questions
First Choice Marine is an online marine retailer carrying a diverse line of marine parts and accessories and related items from industry-respected and demanded manufacturers and suppliers. Through our diverse distributor network, we are able to access over 150,000 items, including our current site inventory, new products being added, and special order items. If you need it on your boat... we are your one-stop shop!
Yes, we offer FREE Shipping on most orders over $149 to US-48*.
Each product displays a shipping status message, just above the item price. Below is the meaning for each of these codes.
- Qualifies for Free Shipping: This item qualifies for free shipping when the order is $149+
- Qualifies for Free Ground Shipping: This item qualifies for free ground shipping when the order is $149+.
- Oversized - Not Qualified for Free Shipping: This item is too large/heavy to qualify for free shipping
- Hazardous Item - Not Qualified for Free Shipping: This item is hazardous and does not qualify for free shipping
- Truck Freight - Not Qualified for Free Shipping: This item has to be shipped via truck freight. Please contact us for a quote
- In-Store Pickup Only: This item can only be picked up in our Grain Valley, MO retail store
Below the price of the item, on the product page, there is a message indicating the availability of the product.
The quantity on hand is updated as inventory events happen and matches what we have available. If you have urgent needs and we are close to what you need, contact us, and we can confirm stock.
We offer a hassle-free return policy. If you're not completely satisfied with your purchase, you can return it within 30 days for a full refund or exchange.
If you need to return an item, please follow the guidelines here so we can process a prompt refund and assist you in finding the correct item.
Free Shipping
On most orders $149+ to the continental 48 US states.Secure Shopping
Fast, secure checkout with a variety of payment methods.Shop with confidence
25+ years serving the marine industry.Support center
Need help? Contact us via live chat, phone, or email.
