Download LiteratureFuruno FR12 Multifunction DisplaysFR-12 Color LCD Marine Radar Display - 12"The FR-12 12.1" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.Compatible with Furuno’s powerful antenna line-upThe FR-12 is compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size, and antenna type and size based on what you want to accomplish, you can build the Radar that best meets your needs. Compatible DRS antennas:Radome type: Model DRS2D-NXT Model DRS4D-NXT Model DRS4DL+Open Array type: Model DRS6A-NXT Model DRS12A-NXT Model DRS25A-NXT Model DRS6A X-Class Model DRS12A X-Class Model DRS25A X-Class Risk Visualizer™ Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.Fast Target Tracking™Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector. Target Analyzer™Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.Echo AverageEcho Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.Radar overlay on charts/Share points and linesThe FR-12 can show Radar echoes overlaid on MapMedia MM3D charts. Additionally, when connected to the GP-3700/F* via Ethernet, marks, and lines can be displayed.Specifications: Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas) Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT) Display Unit:  12.1-inch color LCD Display Mode: Head-up, Course-up, North-up, True motion, Stern-up Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts Power Supply/Consumption Current: FR-12: 12-24 VDC: 1.7-0.9 A Normalized SKU: FR12Furuno FR12 Literature Download Product Brochure

Download LiteratureFuruno FR10 Multifunction DisplaysFR-10 Color LCD Marine Radar Display - 10"The FR-10 10.4" Color LCD Radars are Marine Radar displays consisting of a dedicated vertical display unit that can be freely combined with Furuno’s extensive DRS Series Antennas to meet a wide variety of detection needs. These Radars feature the latest technologies including Risk Visualizer™, a new function that provides visual information on potential collision areas and movement of all surrounding vessels, as well as Echo Average, Target Analyzer™, Fast Target Tracking™, RezBoost™, and many other great functions to help you keep track of any target for your navigation and operations such as Custom AIS, User-Programmable function keys and Multi-language support.Compatible with Furuno’s powerful antenna line-upThe FR-10 is compatible with any of the DRS Series Antennas, allowing for a variety of configurations. By selecting the detection range (power output), screen size, and antenna type and size based on what you want to accomplish, you can build the Radar that best meets your needs. Compatible DRS antennas:Radome type: Model DRS2D-NXT Model DRS4D-NXT Model DRS4DL+Open Array type: Model DRS6A-NXT Model DRS12A-NXT Model DRS25A-NXT Model DRS6A X-Class Model DRS12A X-Class Model DRS25A X-Class Risk Visualizer™ Risk Visualizer™ is a technology that shows potential collision areas based on the current position and movement of all surrounding vessels. Thanks to the on-screen display, it is easy to get a quick and intuitive overview of the situation around your ship. Additionally, color-coded alerts according to the threat of a collision, from green (normal) to red (hazardous), will help you assess the level of danger and plan your next move. This is our first commercial mid-range Radar to incorporate this feature, which contributes to the continuous improvement of safety at sea.Fast Target Tracking™Fast Target Tracking™ is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediately calculate the target's trajectory and display the velocity vector. Target Analyzer™Target Analyzer™ is a technology that analyzes targets and identifies the dangerous ones that are likely to collide with your ship, using different colors according to the degree of danger. The display of potentially dangerous targets in different colors allows an operator to understand threats to safe navigation at a glance.Echo AverageEcho Average is a feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, precipitation, or dense fog.Specifications: Peak Output Power: Depending on the selected Antenna Unit (See DRS Antennas) Type: Compatible Antenna Unit: DRS4DL+, DRS2D/4D/6A/12A/25A-NXT, DRS6A/12A/25A X-Class Range Scales: 0.0625 to 36 NM (DRS4DL+), 0.0625 to 48 NM (DRS2D/4D-NXT), 0.0625 to 72 NM (DRS6A-NXT), 0.0625 to 96 NM (DRS6A/12A/25A X-Class, DRS12A/25A-NXT) Display Unit: 10.4-inch color LCD Display Mode: Head-up, Course-up, North-up, True motion, Stern-up Other Mode/Functions: Risk Visualizer™, Target Analyzer™, Target Tracking™, True Echo Trail, Echo Average, Sub Display Unit, AIS Display, Radar overlay on charts Power Supply/Consumption Current: FR-10: 12-24 VDC: 1.1-0.6 A Normalized SKU: FR10UPC Code: 611679398062Furuno FR10 Literature Download Product Brochure

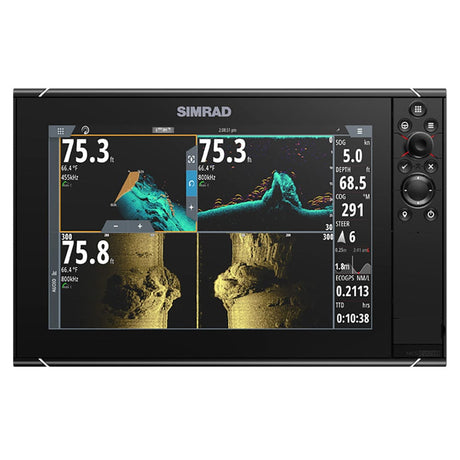

Simrad 000-15403-002 Multifunction DisplaysNSS12 evo3S Combo Multi-Function Chartplotter/Fishfinder - No HDMI Video OutportImproved Charting experience with the iMX8 processorWith a 2X faster page loading time, choosing any split-screen combination with views in 3D or Navigation perspective has never been easier. NSSevo3S™ features a preloaded US Chart with high-resolution inland and coastal coverage, plus a C-MAP® Reveal layer of the ocean floor in Florida.In addition to the preloaded C-MAP chart, NSSevo3S is compatible with a wide range of charting providers, including C-MAP, Navionics®, CMOR, and Florida Marine Tracks.Enhanced Sonar with superior on-water performance 1kW CHIRP-enabled sonar provides exceptional bottom-tracking and fish-finding performance. Dual transducer ports offer the convenience of connecting multiple transducers to a single display.Better-than-ever processing power ensures Active Imaging™ delivers picture-like views of fish-holding structures, and crystal clear views of the bottom ahead using ForwardScan® sonar.SolarMAX™ IPS display for high-definition views Clear views under any lighting condition with SolarMAX™ IPS technology, and ultra-wide viewing angles to keep everything in sight, even when viewed through polarized sunglasses.These all-weather screens have been engineered to withstand the heat of the summer sun and are optically bonded to prevent condensation or fogging within the display.UI improvements Dark-themed wallpaper for less light pollution from a dash of multiple screens. The Audio side bar can now expand into a full page view. The addition of a chart orientation button to switch instantly between North up, Heading up and Course up without having to open the menu. The addition of a Tide Graph in the instrument bar to monitor tide changes without having to leave the existing page Wireless connectivity for smartphones and tablets Displays can be mirrored to compatible iOS and Android devices to access charts, radar, sonar, engine data and more. Wireless connectivity also enables online software upgrades through any internet hotspot, access to the latest features and accessory support.The Simrad App can also be downloaded for added benefits – from device registration and manual downloads, to saving waypoints and your favorite fishing spots – accessible both on and off the water.Radar Options HALO® Pulse Compression radar systems can be added to negotiate crowded harbors, navigate safely in poor visibility, monitor distant weather squalls, and even locate flocks of feeding birds in order to locate fishing spots.FLIR IP Camera SupportDay and night situational awareness can be improved by adding a FLIR M232 thermal imaging camera. The M232 features a resolution of 320x240 and offers the ability to pan and tilt the camera to allow for 360-degree viewing while underway. The M232 distributes video over Ethernet allowing for both display and control from an NSSevo3S™. WM-4 ReceiverGet up-to-date, detailed weather forecasts, weather radar, lightning, storm warnings, sea surface temperature, insight on favorable areas for particular fish species, and more, when you complete your boat’s system with a WM-4 Receiver and a SiriusXM® Marine Satellite Weather subscription. Add audio to your Marine Weather or Fish Mapping* subscription and get access to more than 140 SiriusXM® radio channels at a discount.Fast & Simple Networking & ConnectivityIndustry-standard connectivity to create multi-display systems and link to all on-board electronics, engine and fuel monitoring in real-time, control of on-board sound systems, and much more. Includes system expansion with Simrad modules and accessories, advanced fish-finding tools such as deepwater S5100, Active Imaging™ 3-in-1 or TotalScan™, increased situational awareness with legendary HALO® Pulse Compression radar, and automated control with a fully integrated Simrad autopilot. What's In The Box? Display Unit Bezel Trim Documentation pack Power cable kit U-bracket kit Panel mounting kit Connections: Ethernet - 2x Ethernet network Power - power, power control, and external alarm Video- composite video and NMEA0183 NMEA 2000 - NMEA 2000 data Sonar CH1 Sonar CH2 Normalized SKU: 00015403002UPC Code: 9420064130177

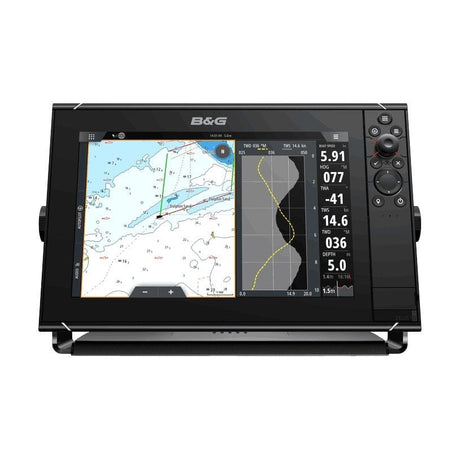

B & G 000-15409-002 Multifunction DisplaysB&G Zeus3S 12 12-inch touchscreen displayModel: 000-15409-002 The fastest / most responsive sailing chartplotter and navigation display yet SolarMAX IPS Screens Best in class visibility from all angles with and without polarised glasses Connects to B&G’s performance network modules for the ultimate offshore performance: Halo Radar, Autopilot, ForwardScan™, NMEA 2000 and 0183, Integrated Pilot Control Full suite of sailing features: Sailsteer, PredictWind, RacePanel, LayLines and SailingTime Up to 6-Way information panel split on the display Built in Wi-Fi Connect with smartphones, tablets, and internet hotspots This ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.The Zeus 3S series are the complete navigation solution for blue water cruisers and regatta racers. With superfast processors you can display up to 6 different information panels simultaneously, on the ultra-bright SolarMax IPS all- weather touchscreen, which is combined with a rotary dial and keypad for ultimate control in all conditions.These easy to use chartplotters include all of B&G’s unique and proven sailing features such as SailSteer, Laylines, and RacePanel and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.The SolarMAX IPS screen ensures perfect visibility in all conditions. Zeus 3S’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.Let Zeus 3S do the hard work: See your course and minimise your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.Be on the line as the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus 3S can also take full control of on-board systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.Zeus 3S has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.Just add power to enjoy Zeus 3S as a versatile standalone chartplotter with first-rate navigation functions. For the best experience and to take advantage of our award-winning sailing features, network your chartplotter with instruments and sensors using industry standard NMEA 2000 connectivity.Zeus 3S sits at the heart of your boat — and you can take command of commissioning and controlling your B&G autopilot from your Zeus 3S’s touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.See what lies ahead under the water by adding a ForwardScan transducer. Benefit from a real-time two-dimensional view of the seabed in front of your boat. Navigate into shallow anchorages and poorly charted areas with ease and know what lies ahead with confidence.Negotiate busy shipping lanes, see through darkness and poor visibility and track weather cells with B&G Halo Radar on your Zeus 3S.Add a SonicHub to take control of your onboard entertainment from your Zeus 3S display. With integrated Bluetooth, stream music from your smartphone or tablet, or listen to music on a USB drive or AM/FM radio. Control everything including volume and individual zones from your Zeus 3S display.Zeus 3S chartplotters support a wide range of leading cartography, from C-MAP and Navionics. Take advantage of advanced mapping features including autorouting, dynamic tides and currents, aerial photos and detailed harbour charts to ensure you know exactly what lies beneath your keel at all times.Specifications Physical Dimensions 352 x 225 x 98 mm (13.84 x 8.87 x 3.82")with bracket: 377 x 241 x 120 (14.85 x 9.47 x 4.71) Weight 3.10kg/6.83lb Environmental Operating temperature range -15°C to +55°C (5° F to 131° F) Environment Shock Vibration 100,000 cycles of 20G Storage temperature range -20°C to +60°C (4°F to 140°F) Water resitance IPX6 and 7 Power Supply voltage 10 - 31.2 V DC Fuse rating 5A Power consumption (Max) 28W Display Display backlight color White Display resolution 800 x 1280 Display screen brightness 1200 nits Display size and type High Visibility SolarMax HD® IPS 7" optically bonded TFT Display viewing angles 80° top/bottom, 80° left/right Connectivity Ethernet 2 x 5 pin yellow connector x 1 Mbit Bluetooth Internal NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN NMEA 0183 connectivity 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use the same baud rate. Optional data cable required (P/N 000-00129-001) Video connectivity 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001). Note Navico removed HDMI Output April 2022 WiFi connectivity Internal Sonar Sonar frequencies 40-250kHz 455-800kHz Sonar max depth 3000’+ (tested with B175L) Sonar output power 1kW RMS GPS GPS Internal GPS update rate 10 Hz GPS channels 34 Channels GPS correction WASS, EGNOS, MSAS, GLONASS GPS position accuracy Horizontal Accuracy 3 m (9.8 ft) GPS time to first fix Cold start 50 sec, Satellite Reacquisition 5 sec Features Interface Full touch screen (multi-touch ) and full keypad control, OP50 remote controllers Charts Incuded Insight Radar Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar Sonar Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan.Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders" Weather SiriusXM via WM-3 (USA only), GRIB AIS Receive AIS data over NMEA 2000 or *NMEA 0183 (has to be wired to all NSS processors) Auto pilot integration Full auto pilot control and commissioning Autopilot steering modes Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) Autopilot manouevres turn patterns U-turn, Spiral-turn, C-turn, Zig-zag, Square-turn, Lazy S-turn, Depth contour tracking Supported Charts Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) Digital switching BEP C-Zone, Naviop External storage 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS Internal storage 16 GB Multi-media via SonicHub2, FusionLink, *Sirius, **JL Audio. *USA only, **AUST. & NZ only) Waypoints, routes & tracks 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. Launguage Support Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. What's in the Box: Zeus S 12 12-inch touchscreen display Mounting Bracket 7 Knobs Dash Mount Kit Edge Bezels Sun cover 4-Pin Power Cable Normalized SKU: 00015409002

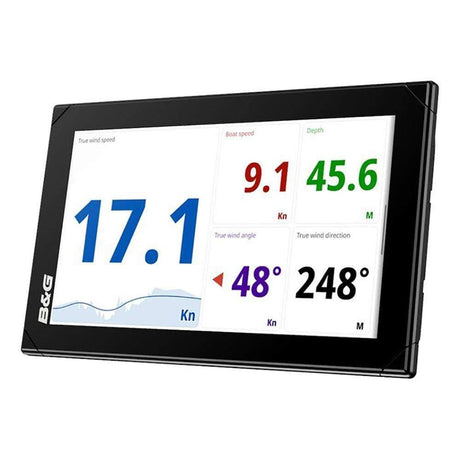

B & G 000-15611-001 Multifunction DisplaysNemesis™ 9 Sailing DisplayNemesis™ 9 is the perfect solution for displaying all the crucial sailing data you need either on the mast, in the cockpit or at the helm station; as a single or as multiple screens via the Nemesis Hub. The super bright touch screen, with adjustable data sizes, palettes and backlight provides outstanding visibility, from wherever you are on the boat and in all conditions. The Nemesis display is also completely customizable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own - you can view your trusted sailing data and unique software from your network the way you want to, ensuring you get the most accurate data right in front of you, all the time.The Intelligent Sailing DisplayThis intelligent sailing display offers unparalleled visibility from all angles and distances on-board, and with complete data customization or a choice of easy to use multi-function templates and automatic dashboards based on your point of sail, whether racing or cruising, you will never be out of touch. The Nemesis display allows you to define what data you see, when and how you see it, no matter what the conditions, providing an intuitive link between your trusted instrument network and the real world.Visibility & VersatilityA bright touch screen, with super-wide viewing angles and the ability to view with polarized sunglasses at all angles and from any distance on-board, with adjustable data sizes, palettes and backlighting, this display offers optimal viewing in all conditions, whether on the mast or in the cockpit.Complete CustomizationThis all-in-one customizable display can be mounted in both portrait or landscape, whilst the easy to use drag & drop editor allows full customization with a wide choice of graphical gauges, SailSteer™, tank levels, digital data, IP camera views, histograms and images. With this, you have the freedom to select the data, visualization and set size and position that you want, or you can simply choose from a choice of pre-selected built-in B & G dashboards and templates.Additional automatic context modes allow you to choose the sailing data you want to display based on your point of sail or sailing mode: Upwind, Reaching, Downwind, Pre-start or Motoring.IntegrationThe use of commercial grade components, and hours of testing and development by sailors in all conditions, combined with the most accurate sailing data available from your B & G network and instruments, will ensure you can have complete trust in Nemesis. The reliability and accuracy of both the data and the display, will give you the confidence you need to make the right decision, when you need to.Features: Pre-set dashboards or easy to use drag & drop editor for full customization Wide choice of digital data displays including graphical gauges, SailSteer™, tank levels, IP camera views, histograms and images Context modes: Upwind, Reaching, Downwind, Pre-start, Motoring Bright touch screen, with super-wide viewing angles Adjustable palettes and backlight for optimal view in all conditions Mount in portrait and landscape Connect multiple screens via the Nemesis Hub Ethernet and/or NMEA2000 Normalized SKU: 00015611001UPC Code: 9420064115648

SI-TEX NAVPRO-900F Multifunction DisplaysSi-Tex NavPro 900f 9" Touchscreen MFDModel: NAVPRO 900F 9" Hi-Res. Hybrid Touch Screen Display Innovative new Yoke & Swivel mount NMEA-0183 & NMEA2000 Interfacing WIFI Interface Automatic Software Updates when in WIFI Coverage Captain Cloud automatically backs up all User Data to a Free Cloud Based Data backup Service for Waypoints, Marks, Events, and Track memories when in WIFI coverage. Mirror Screen Capability via Bluetooth connection allows user to download mirror app to his Android based smart phone and view and control the NavPro 900 from Smart Phone. C-Map 4D Cartography — comes bundled with a US Coastal & Rivers Continental 4D card in the box Optional dedicated Remote Control Available Designed for easy flush mount without any special kit needed New CHIRP Sounder with selectable 300w, 600w, & 1kW outputs CHIRP Sounder has scroll back screen memory that allows user to quickly scroll back and pickoff a location to mark on Nav Chart. Uses the popular AIrmar CHIRP Transducers with TX ID will automatically setup the Sounder transducer interconnect Adapters available to allow the unit to be installed on older non-CHIRP transducers. Like 50/200 kHz Dual Frequency transducers and 120kHz Single Freq. transducers. This allows the NavPro 900F to be used to retro fit onto any of the older SI-TEX Transducers. For example, any of the transducers used by the very popular old CVS-106 Sounders. 50/200 & 120kHz If customer doesn’t have a need for CHIRP sounding he can use a traditional less expensive transducer option Internal Hi-Resolution 18Hz 72 Channel GPS Receiver & Antenna New User interface makes the unit very easy to operate and navigate with Full AIS Integration when interfaced to an AIS Unit Specifications LCD Display Size 9.0" Display Brightness 1,100 NITS Display Resolution 800x480 Touch Screen Yes, Capacitive Multi-Touch Keyboard Backlight Yes Operating Voltage 10 to 35 VDC GPS Receiver Built-In High Resolution 18Hz 72 Channel GPS/GLONASS External GPS Yes, optional via 6 pin Connector Network Connections NMEA-2000 (Optional Cable Required)ual NMEA-0183 Input/Output Ports WIFI Connection Yes Bluetooth Connection Yes Waterproof Rating IPX6 Operating Temperature range -10’C to +60’C Dimensions 10.9" Wide x 6.8" High x 3.7" Deep Warranty 2 Year What's in the Box: NavPro 900 Display Unit C-Map 4D Continental Chart Card Mounting Bracket Mounting Screws Combination Power Data Cord Sun Cover Installation & Operation manual Normalized SKU: NAVPRO900F
