Download Literature Watch VideoVictron Energy PIN122510510 InvertersPhoenix Inverter 12/250 - 120V - VE.Direct GFCI Duplex Outlet - 200WInverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.*This inverter has a GFCI Duplex Outlet.E.Direct Communication PortThe VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully Configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring:In- and output voltage, % load, and alarmsProven ReliabilityThe full bridge plus toroidal transformer topology has proven its reliability over many years.The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.High Start-Up PowerNeeded to start loads such as power converters for LED lamps, halogen lamps, or electric tools.ECO ModeWhen in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.Remote On/OffA remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.LED DiagnosisPlease see the manual for a description.To Transfer the Load to Another AC Source: The Automatic Transfer SwitchFor Victron’s low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Inverter Specifications: Cont. Power at 25 degrees C: (1) 250VA  Cont. Power at 25 degrees C / 40 degrees C: 200 / 175W  Peak Power: 400W  Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1% Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff DC Low Restart & Alarm (adjustable): 10,9 / 21,8 / 43,6V Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V Max. Efficiency: 87 / 88 / 88%  Zero-Load Power: 4,2 / 5,2 / 7,9W  Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W  ECO Mode Stop & Start Power Setting: Adjustable Protection (2): a - f Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)  Enclosure Specifications: Material & Color: Steel chassis and plastic cover (blue Ral 5012) Battery-Connection: Screw terminals Maximum Cable Cross-Section: 10mm² / AWG8  Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI Protection Category: IP 21 Weight: 2,4kg / 5,3lbs  Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2 Accessories: Remote On-off: Yes Automatic Transfer Switch: Filax Standards: Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PIN122510510UPC Code: 8719076050193Victron Energy PIN122510510 Literature Download Quick Reference Guide Owners Manual Product BrochureVictron Energy PIN122510510 Video

Download LiteratureVictron Energy PMP121500100 InvertersMultiPlus 12/500 - 20-16 - 120V - VE. Bus UL ApprovedThe MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology, and a high-speed AC transfer switch in a single compact enclosure. Next to these primary functions, the MultiPlus has several advanced features, as outlined below.Parallel Operation and Three-Phase CapabilityUp to six Multis can operate in parallel to achieve higher power output.  In addition to parallel connection, three units can be configured for three-phase output.  PowerControl - Dealing with Limited Generator, Shore Side or Grid PowerWith the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.  PowerAssist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows the MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load is reduced, the spare power is used to recharge the battery.  Four Stage Adaptive Charger and Dual-Bank Battery ChargingThe main output provides a powerful charge to the battery system using advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stage for long periods of float charging. The adaptive charge process is described in more detail on the Charger datasheet and Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.  High Start-Up PowerIt is needed to start high-inrush loads such as power converters for LED lamps, halogen lamps, or electric tools.  Search ModeWhen Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode, the Multi, when operating in inverter mode, is switched off in case of no load or very low load and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again.Programmable RelayBy default, the programmable relay is set as an alarm relay, i.e. the relay will de-energize in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low).  Remote On/Off/Charger OnThree pole connector.  On-Site System Configuring, Monitoring, and ControlAfter installation, the MultiPlus is ready to go. Some settings can be changed with DIP switches. 500/800/1200VA models: remote switch/battery charge voltage/inverter frequency/search mode. 1600/2000VA models:  battery charge voltage/search mode. For more settings use VE-Config or the VE. Bus Smart dongle.  Remote Configuring and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on Victron's VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed. Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 16 Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V, 19 – 33 V, 38– 66 V  Output voltage: 230 VAC, ± 2% / Frequency 50 Hz ± 0,1% Continuous Output Power at 25°C (VA): 500 Continuous Output Power at 25°C (W): 430 Continuous Output Power at 40°C (W): 400 Continuous Output Power at 65°C (W): 300 Peak Power (W): 900 Maximum Efficiency (%): 90 / 91 / 92% Zero Load Power (W): 6 / 6 / 7W Zero Load Power in Search Mode (W): 2 / 2 / 3W Charger Specifications: AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 – 65 Hz Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6 Charge Voltage Float (V DC): 13,8 / 27,6 Storage Mode (V DC): 13,8 / 27,6 / 55,2 Charge Current House Battery (A): 20 / 10 / 6 A Charge Current Starter Battery (A): 1A (12 V and 24 V models only) Battery Temperature Sensor: Yes General Specifications: Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration  (RJ45-splitter ASS030065510 needed for 500 / 800 / 1200 VA models) Remote On-Off: On/off/charger only DIP Switches: Yes Internal DC Fuse: 125 / 60 /30 A Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: 16 / 10 / 10 mm² 230 V AC-Connection: G-ST18i connector Weight: 4,4 kg Dimensions (H x W x D): 311 x 182 x 100 mm / 12.2 x 7.2 x 3.9 in. Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3  Automotive Directive: ECE R10-5 Can be adjusted to 60Hz and 240V  Protection: Output short circuit, Overload, Battery voltage too high, Battery voltage too low, Temperature too high, 230VAC on inverter output, Input voltage ripple too high Non-linear load, crest factor 3:1                                                                               Up to 25°C ambient                                                                                                                          A programmable relay that can be set for General alarm, DC under voltage or generator start/stop signal function, AC rating: 230V/4A, DC rating: 4A up to 35VDC, 1A up to 60VDC  Remote/battery charge voltage/inverter frequency/search mode  Battery charge voltage/search mode Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PMP121500100UPC Code: 8719076058168Victron Energy PMP121500100 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureNewmar POWER-PAC14AH InvertersPower-Pac 14AH Power Supply  The 12V DC power supply features built-in backup batteries, which are charged during normal operation and then continue to power radios and critical navigation equipment when AC power is lost. The Power-Pac is ideal for commercial vessels, work boats, and yachts.The Power-Pac’s highly regulated, low-rising 10-amp output powers radios and other sensitive communications equipment without causing RF or audio interference. At the same time, it floats and charges one or two (depending on the model) built-in 7-amp/hour backup batteries. These are kept at peak charge during the normal functioning of the unit when AC is being supplied. In the event of a loss of AC power, the internal batteries automatically take over to power communication equipment, providing a true uninterruptible DC source.Features: Highly regulated, low ripple, noise-free 12-volt output Built-in, “on-line” stand-by battery provides immediate backup power in case of AC power loss Internal mounting space and terminals for conversion of the 7 A/H model into the 14 A/H model Output “Normal” indicator L.E.D. “Back-up power only” warning light Audible and visual low battery (10.7 VDC) voltage indicators Low battery warning buzzer mute switch Automatic low battery (10.3 VDC) voltage disconnect Low voltage disconnect override button Over-voltage protection Current limit protection Input/output fused Separate output terminals are provided for charging external batteries 115/230 50-60 Hz input, selected by a slide switch on the rear panel Specifications: Battery Capacity: 14 amp/hour   Case Size (H x W x D): 5.3 x 9.0 x 10.5 inches (13.3 x 22.9 x 26.7 centimeters)   Weight: 24 lbs. (10.9 kg) Input: 115/230 VAC, 50-60 Hz. Output: 13.6 VDC @ 5A cont., 10A Int. Regulation: 1% line and load Ripple: 1% P-P Operating Temp: 0-40 degrees C With a 14 Amp/Hour Battery Installed, the Unit Provides Approximately the Following Power: 7 amps for 100 min. 10 amps for 60 min. 15 amps for 30 min. 20 amps for 15 min *Assuming battery at full charge when a.c. power failed.The Power-Pac 7 A/H (single battery model) can power a 25-watt transceiver for up to 3 hours, based on a 20% transmit/receive duty cycle. Power-Pac 14 A/H can provide the same service for up to 6 hours. Provision is made for expanding backup power up to twelve hours (in this example, longer under lesser loads) with the installation of additional externally wired batteries (total 28 amps/hours max.). Batteries are automatically recharged when the AC is restored.The operator is kept informed of all important functions, such as AC input, DC output, and battery status, with front panel indicator lights and a low battery warning buzzer.Protection: AC Input fuse Internal and external Battery fuses Over Voltage Current Limit Automatic Thermal Shutdown Low Battery Disconnect Mechanical Details: Vinyl Laminated aluminum case 6’ standard AC power cord Ac input selector switch Battery Details: Sealed Lead Acid, Deep-cycle. Certified by DOT and IATA for shipment by Air Weight per 7 AH Battery: 6 lbs. Size (inch): 6” x 3.75” x 2.5” Options: Form C AC Failure Contacts (Contact factory for details) Extra batteries, sold separately 7 A/H increments; each Power Pac will accommodate 28 A/H max. (14 internal, 14 external) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: POWERPAC14AHNewmar POWER-PAC14AH Literature Download Quick Reference Guide Owners Manual

Download LiteratureNewmar POWER-PAC7AH InvertersPower-Pac 7AH Power SupplyThe 12V DC power supply features built-in backup batteries, which are charged during normal operation and then continue to power radios and critical navigation equipment when AC power is lost. The Power-Pac is ideal for commercial vessels, work boats, and yachts.The Power-Pac’s highly regulated, low-rising 10-amp output powers radios and other sensitive communications equipment without causing RF or audio interference. At the same time, it floats and charges one or two (depending on the model) built-in 7-amp/hour backup batteries. These are kept at peak charge during the normal functioning of the unit when AC is being supplied. In the event of a loss of AC power, the internal batteries automatically take over to power communication equipment, providing a true uninterruptible DC source.Features: Highly regulated, low ripple, noise-free 12-volt output Built-in, “on-line” stand-by battery provides immediate backup power in case of AC power loss Internal mounting space and terminals for conversion of the 7 A/H model into the 14 A/H model Output “Normal” indicator L.E.D. “Back-up power only” warning light Audible and visual low battery (10.7 VDC) voltage indicators Low battery warning buzzer mute switch Automatic low battery (10.3 VDC) voltage disconnect Low voltage disconnect override button Over-voltage protection Current limit protection Input/output fused Separate output terminals are provided for charging external batteries 115/230 50-60 Hz input, selected by a slide switch on the rear panel Specifications: Battery Capacity: 7 amp/hour   Case Size (H x W x D): 5.3 x 9.0 x 10.5 inches (13.3 x 22.9 x 26.7 centimeters)   Weight: 18 lbs. (8.2 kg) Input: 115/230 VAC, 50-60 Hz. Output: 13.6 VDC @ 5A cont., 10A Int. Regulation: 1% line and load Ripple: 1% P-P Operating Temp: 0-40 degrees C With a 7 Amp/Hour Battery Installed, the Unit Provides Approximately the Following Power. *7 Amps for 40 Min. 10 amps for 20 min. 15 amps for 10 min. 20 amps for 4 min. *Assuming battery at full charge when a.c. power failed.The Power-Pac 7 A/H (single battery model) can power a 25-watt transceiver for up to 3 hours, based on a 20% transmit/receive duty cycle. Power-Pac 14 A/H can provide the same service for up to 6 hours. Provision is made for expanding backup power up to twelve hours (in this example, longer under lesser loads) with the installation of additional externally wired batteries (total 28 amps/hours max.). Batteries are automatically recharged when the AC is restored.The operator is kept informed of all important functions, such as AC input, DC output, and battery status, with front panel indicator lights and a low battery warning buzzer.Protection: AC Input fuse Internal and external Battery fuses Over Voltage Current Limit Automatic Thermal Shutdown Low Battery Disconnect Mechanical Details: Vinyl Laminated aluminum case 6’ standard AC power cord Ac input selector switch Battery Details: Sealed Lead Acid, Deep-cycle. Certified by DOT and IATA for shipment by Air Weight per 7 AH Battery; 6 lbs. Size (inch): 6” x 3.75” x 2.5” Options: Form C AC Failure Contacts (Contact factory for details) Extra batteries, sold separately 7 A/H increments; each Power Pac will accommodate 28 A/H max. (14 internal, 14 external) This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: POWERPAC7AHNewmar POWER-PAC7AH Literature Download Quick Reference Guide Owners Manual

Download LiteratureMastervolt 28510700 InvertersAC Master 12/700 (120V) InverterReliable AC power for recreational and semi-professional use.These affordable sine wave inverters convert 12 or 24 V battery voltage into reliable 230 V 50/60 Hz or 120 V 50/60 Hz grid power, making them ideal for recreational and semi-professional applications. The AC Master series is easy to install and delivers full output, even under the most demanding conditions. Pure sine wave technology provides an outstanding power quality, ensuring the correct functioning of sensitive equipment. The usage of high-frequency switching technology eliminates any annoying humming and buzzing sounds.Representing complete value for money, these ruggedly built inverters provide essential home comforts when you’re far from the nearest grid connection.Features: Pure sine wave technology protects sensitive equipment. Delivers full output at high peak power under the most demanding conditions. Automatic power-saving system for extended runtime. Compact and lightweight design, saving valuable installation time. Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage. Variable-speed fan for quiet operation at low power. Optional remote control for instant switch-off of the inverter and all connected equipment (not available for the 300 and 500 W models). Convenient plug connection for all models, 2500/3500 Watt models also hard-wired.  Applications:Both recreational and semi-professional use, where grid power varies or is unavailable. Applications include lighting, appliances, electric cooking, and power tools. For (mobile) applications in your home, office, or service vehicle, or during your holidays.General Specifications: Output voltage: 100/110/115/120 V – 50/60 Hz (selectable)  Output waveform: True sine Nominal battery voltage:12V Recommended battery capacity: ≥ 100 Ah Continuous power at 25 °C / 77 °F, cos phi 1: 700 W Continuous power at 40 °C / 104 °F, cos phi 1: 700 W Peak load (1 min.): < 810 W Peak load (1 s): < 1230 W AC connection: North American socket with GFCI Galvanic isolation: Yes Efficiency: 91% Display/read-out: LED indication: battery voltage, load level, status Alarms: Potential free alarm contact Dimensions, hxwxd: 200 x 330 x 83 mm/7.9 x 13.0 x 3.3 inc  Weight: 2.6 kg/5.7 lb Compliance: Safety: ABYC A31, UL 458, EMC: FCC class B  Technical Specifications: Technology: high frequency, input & output fully isolated Low battery voltage, switches off at 10.5 V Low battery voltage, switches on at 12.5 V High battery voltage, switches off at 16.5 V High battery voltage, switches on at 14.5 V Input current (nominal load): 70 A No-load power consumption (ON mode): < 1.5 A No-load power consumption (energy saving mode): < 0.1 A Minimal DC fuse (slow blow): 100 A Minimal cable size: 25 mm² Harmonic distortion typical: < 3 % Cos phi: All power factors allowed Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C/-4 °F to 140 °F Cooling: Temperature and load controlled fan Protection degree: IP21, horizontal wall mounting Protections: Over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse) MasterBus compatible: Yes, using a MasterBus AC Master Interface WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 28510700UPC Code: 816882021305Mastervolt 28510700 Literature Download Owners Manual Product Brochure

Download Literature Watch VideoASEA Power Systems 628009-001 InvertersDBT12 GEN2 Dock Boost TransformerThe smart isolation boosting transformer. The Dock Boost Transformer (DBT) provides precision voltage regulation to the vessel, delivering complete protection from the most common shore power problems, including brownouts, spikes, sags, and low-line or high-line voltage conditions from the dock power pedestal. The DBT also provides three levels of boost to keep your ship powered even when input voltages sag by 35%.The DBT features a compact and lightweight footprint. By providing an industry-recognized mounting pattern, it will fit as the perfect replacement for new construction or retrofit applications (direct replacement for the Charles Iso-Boost).The DBT12/15 accepts any input voltage ranging from 167 V-270 V (47-70 Hz) and provides a Split phase 120/240V or 115/230 V output nominal. The DBT24 accepts nominal voltages of 230, 400V, and 480V - each with the same wide range – to provide a 115/230V Split phase output.Features: Drop-in replacement for the Charles Iso-boost 3 boosting levels utilizing a smart tap system Lightweight and compact at 127lbs Industry-recognized mounting pattern The wide input range of 167-270 VAC Parallelable for advanced applications This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 628009001ASEA Power Systems 628009-001 Literature Download Product BrochureASEA Power Systems 628009-001 Video

Download LiteratureVictron Energy PMP482505110 InvertersMultiPlus-II 48/5000 70-95 120VThe MultiPlus-II is a multifunctional inverter/charger with all the features of the MultiPlus, plus an external current sensor option that extends the PowerControl and PowerAssist function to 100A.PowerControl and PowerAssist - Boosting the Capacity of the Grid or a Generator A maximum grid or generator current can be set. The MultiPlus-II will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the MultiPlus-II will compensate for insufficient generator, shore, or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.Solar Energy: AC Power Available Even During a Grid Failure The MultiPlus-II can be used in off-grid as well as grid-connected PV and other alternative energy systems. It is compatible with both solar charger controllers and grid-tie inverters.Two AC Outputs The main output has no-break functionality. The MultiPlus-II takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.The second output is live only when AC is available on the input of the MultiPlus-II. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output.Virtually Unlimited Power Thanks to Parallel, Split Phase, and Three Phase Operation Up to 6 Multis can operate in parallel to achieve higher power output. Six 48/3000/35 units, for example, will provide 15 kW / 18 kVA output power with 210 Amps charging capacity.In addition to parallel connection, two units of the same model can be connected for a 240V split phase output, and three units of the same model can be configured for three-phase output. But that’s not all: up to 6 sets of three units can be parallel connected per phase.On-Site System Configuring, Monitoring, and Control Settings can be changed in a matter of minutes with VEConfigure software (computer or laptop and MK3-USB interface needed).Several monitoring and control options are available: Color Control GX, Venus GX, Octo GX, CANvu GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.Remote Configuring and Monitoring Install a Color Control GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.Specifications:  PowerControl & PowerAssist: Yes Transfer Switch: 95A Maximum AC Input Current: 95A Inverter Specifications: DC Input Voltage Range: 39 -66 V Output: Output Voltage 120 VAC ± 2% / Frequency 60 Hz ± 0,1% (1) Continuous Output Power at 25°C (3): 5000 VA Continuous Output Power at 25°C: 4000 W Continuous Output Power at 40°C: 3700 W Continuous Output Power at 65°C: 3000 W Peak Power: 9000 W Maximum Efficiency: 96% Zero Load Power: 15 W Zero Load Power in AES Mode: 10 W Zero Load Power in Search Mode: 3 W Charger Specifications: AC Input: Input Voltage Range 90-140 VAC / Input Frequency: 45 – 65 Hz Charge Voltage 'Absorption': 57,6 V Charge Voltage 'Float': 55,2 V Storage Mode: 52,8 V Maximum Battery Charge Current (4): 70 A Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: Yes (42 A) External AC Current Sensor (optional): 100 A Programmable Relay (5): Yes Protection: a – g VE.Bus Communication Port: For parallel, split phase, and three phase operation, remote monitoring and system integration General Purpose Com. Port: Yes, 2x Remote On-Off: Yes Operating Temperature Range: -40 to +65°C (-40 – 150 °F) (fan-assisted cooling) Humidity (Non-Condensing): Max 95% Enclosure Specifications: Material & Color: Steel, blue RAL 5012 Protection Category: IP22 Battery-Connection: M8 bolts 120 V AC-Connection: Screw terminals 35 mm² (2 AWG) Weight: 32 kg / 71 lb. Dimensions (hxwxd): (mm) 676 x 330 x 164 / (inch) 26.6” x 13.0” x 6.5” Standards: Listings: UL1741 pending Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, CSA 22.2 107.1-16 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 *Note: For a short period of time this product was called MultiGrid-IIPlease contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PMP482505110UPC Code: 8719076058465Victron Energy PMP482505110 Literature Download Quick Reference Guide Owners Manual

Download LiteratureVictron Energy QUA242305130 InvertersQuattro-II - 24/3000 - 70-50/50 - 2X 120VSimilar to the MultiPlus-II 2x120V, the Quattro-II 2x120V is a combined inverter and charger specifically designed for standard North American 50A 120/240VAC split-phase applications. Additionally, it can accept two AC inputs and automatically connect to the active source.120/240V Input and Output, or 120V Input and Output (Always 120V Output When in Inverter Mode)The two AC inputs can be supplied from a split-phase 120/240V source or a single-phase 120V source. When one of the AC sources is available, the Quattro will feed through the AC to its output. The output will therefore mirror the AC input.The inverter/charger connects to the neutral and the preferred input line (L1). The power needed to charge the batteries will therefore be drawn from L1.The Quattro switches to inverter operation when no AC source is available. The inverter output is 120V single-phase. In invert mode, the Quattro connects both output lines (L1 and L2) together to provide 120VAC to loads on either line.Any 240V loads will therefore be supplied only when the Quattro is supplied by a split-phase AC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.PowerControl and PowerAssist - Boosting the Capacity of the Grid or a GeneratorA maximum grid or generator current can be set. The Quattro will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is often required only for a limited period, the Quattro will compensate for insufficient generator, shore, or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery (available on L1 input only).Two AC Inputs and Two AC OutputsThe Quattro can be connected to two independent AC sources, for example,shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source.The main output has no-break functionality. The Quattro takes over the supply to the connected 120V loads in the event of a grid failure or when shore/generator power is disconnected. The transfer time of the L1 output is less than 18 milliseconds, so computers and other electronic equipment will continue to operate without disruption. The transfer time of the L2 output is longer: approximately 40 milliseconds.The second (auxiliary) output is live only when AC is available on the input of the Quattro. Loads that should not discharge the battery can be connected to this output.Virtually Unlimited Power Thanks to Parallel and Three-Phase OperationUp to 6 Quattros can operate in parallel to achieve a higher power output. In addition to parallel connections, three units of the same model can be configured for three-phase output. In multi-phase setups, L2 is disabled on all units.On-Site System Configuring, Monitoring and ControlSettings can be changed in a matter of minutes with the VictronConnect app or VEConfigure software (computer or laptop and MK3-USB interface are needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.Remote Configuration and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.Specifications: PowerControl & PowerAssist: Yes (on L1 input) Transfer Switch: 50 A Maximum AC Input Current: 50A (each leg) Inverter Specifications: DC Input Voltage Range: 19-33V Output When in Inverter Mode: Output voltage: 120 Vac ± 2% / Frequency: 60 Hz ± 0.1% (1) Cont. Output Power at 25°C: 3000 VA Cont. Output Power at 25°C: 2400 W Cont. Output Power at 40°C: 2200 W Cont. Output Power at 65°C: 1700 W Maximum Apparent Feed-in Power: 2500 VA Peak Power: 5500 W Maximum Efficiency: 94% Zero Load Power: 11W Zero Load Power in AES Mode: 8W Zero Load Power in Search Mode: 4W Charger Specifications: AC Input: Split-phase: 180-280Vac 45 – 65Hz / Single-phase: 90-140Vac 45 – 65Hz Charge Voltage 'Absorption': 28.8 V Charge Voltage 'Float':  27.6 V Storage Mode: 26.4 V Maximum Battery Charge Current: 70 A Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: 50 A (each leg) External AC current Sensor (optional): 100A Programmable Relay: Yes Protection: a – g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration General Purpose com. Port: Yes, 2x Remote On-Off: Yes Operating Temperature Range: -40 to +65°C (-40 -150°F) Fan assisted cooling Humidity (non-condensing): Max 95% Enclosure Specifications: Material & Color: Steel, blue RAL 5012 Protection Category: IP22 Battery-Connection: 2 M8 bolts 120/240 V AC-Connection: Screw terminals 21 mm² (4 AWG) Weight: 22.5 kg / (50lb) Dimensions (hxwxd): 579 x 319 x 168 mm / (23 x 13 x 7 inch) Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 Can be adjusted to 50 Hz Protection key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120Vac on inverter output, input voltage ripple too high Non-linear load, crest factor 3:1. Up to 75-degrees F / 25-degrees C ambient temperature Switches off when no external AC source is available. Programmable Relay That Can for Example Be Set for General Alarm or DC under Voltage or Genset Start/Stop Function: AC rating: 120Vac / 4A / DC rating: 4A up to 35dc, 1A up to 60Vdc Use, for example, to communicate with a lithium battery BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: QUA242305130UPC Code: 8719076057376Victron Energy QUA242305130 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download LiteratureVictron Energy QUA122305130 InvertersQuattro-II - 12/3000 - 120-50/50 - 2X 120VSimilar to the MultiPlus-II 2x120V, the Quattro-II 2x120V is a combined inverter and charger specifically designed for standard North American 50A 120/240VAC split-phase applications. Additionally, it can accept two AC inputs and automatically connect to the active source.120/240V Input and Output, or 120V Input and Output (Always 120V Output When in Inverter Mode)The two AC inputs can be supplied from a split-phase 120/240V source or a single-phase 120V source. When one of the AC sources is available, the Quattro will feed through the AC to its output. The output will therefore mirror the AC input.The inverter/charger connects to the neutral and the preferred input line (L1). The power needed to charge the batteries will therefore be drawn from L1.The Quattro switches to inverter operation when no AC source is available. The inverter output is 120V single-phase. In invert mode, the Quattro connects both output lines (L1 and L2) together to provide 120VAC to loads on either line.Any 240V loads will therefore be supplied only when the Quattro is supplied by a split-phase AC source. This prevents heavy loads such as water heaters or 240V air conditioners from discharging the battery.PowerControl and PowerAssist - Boosting the Capacity of the Grid or a GeneratorA maximum grid or generator current can be set. The Quattro will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is often required only for a limited period, the Quattro will compensate for insufficient generator, shore, or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery (available on L1 input only).Two AC Inputs and Two AC OutputsThe Quattro can be connected to two independent AC sources, for example,shore-side power and a generator, or two generators. The Quattro-II will automatically connect to the active source.The main output has no-break functionality. The Quattro takes over the supply to the connected 120V loads in the event of a grid failure or when shore/generator power is disconnected. The transfer time of the L1 output is less than 18 milliseconds, so computers and other electronic equipment will continue to operate without disruption. The transfer time of the L2 output is longer: approximately 40 milliseconds.The second (auxiliary) output is live only when AC is available on the input of the Quattro. Loads that should not discharge the battery can be connected to this output.Virtually Unlimited Power Thanks to Parallel and Three-Phase OperationUp to 6 Quattros can operate in parallel to achieve a higher power output. In addition to parallel connections, three units of the same model can be configured for three-phase output. In multi-phase setups, L2 is disabled on all units.On-Site System Configuring, Monitoring and ControlSettings can be changed in a matter of minutes with the VictronConnect app or VEConfigure software (computer or laptop and MK3-USB interface are needed). Several monitoring and control options are available: Cerbo GX, Color Control GX, laptop, computer, Bluetooth (with the optional VE.Bus Smart dongle), Battery Monitor, and Digital Multi Control Panel.Remote Configuration and MonitoringInstall a Cerbo GX or other GX product to connect to the internet. Operational data can be stored and displayed on our VRM (Victron Remote Management) website free of charge. When connected to the internet, systems can be accessed remotely, and settings can be changed.Specifications: PowerControl & PowerAssist: Yes (on L1 input) Transfer Switch: 50 A Maximum AC Input Current: 50A (each leg) Inverter Specifications: DC Input Voltage Range: 9.5-17V Output When in Inverter Mode: Output voltage: 120 Vac ± 2% / Frequency: 60 Hz ± 0.1% (1) Cont. Output Power at 25°C: 3000 VA Cont. Output Power at 25°C: 2400 W Cont. Output Power at 40°C: 2200 W Cont. Output Power at 65°C: 1700 W Maximum Apparent Feed-in Power: 2500 VA Peak Power: 5500 W Maximum Efficiency: 93% Zero Load Power: 15W Zero Load Power in AES Mode: 10W Zero Load Power in Search Mode: 4W Charger Specifications: AC Input: Split-phase: 180-280Vac 45 – 65Hz / Single-phase: 90-140Vac 45 – 65Hz Charge Voltage 'Absorption': 14.4V Charge Voltage 'Float': 13.8V Storage Mode: 13.2V Maximum Battery Charge Current: 120A Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: 50 A (each leg) External AC current Sensor (optional): 100A Programmable Relay: Yes Protection: a – g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring and system integration General Purpose com. Port: Yes, 2x Remote On-Off: Yes Operating Temperature Range: -40 to +65°C (-40 -150°F) Fan assisted cooling Humidity (non-condensing): Max 95% Enclosure Specifications: Material & Color: Steel, blue RAL 5012 Protection Category: IP22 Battery-Connection: 2x2 M8 bolts 120/240 V AC-Connection: Screw terminals 21 mm² (4 AWG) Weight: 32.8 kg / (52 lb) Dimensions (hxwxd): 579 x 319 x 168 mm / (23 x 13 x 7 inch) Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 Can be adjusted to 50 Hz Protection key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 120Vac on inverter output, input voltage ripple too high Non-linear load, crest factor 3:1. Up to 75-degrees F / 25-degrees C ambient temperature Switches off when no external AC source is available. Programmable Relay That Can for Example Be Set for General Alarm or DC under Voltage or Genset Start/Stop Function: AC rating: 120Vac / 4A / DC rating: 4A up to 35dc, 1A up to 60Vdc Use, for example, to communicate with a lithium battery BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: QUA122305130UPC Code: 8719076057369Victron Energy QUA122305130 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download Literature Watch VideoMastervolt 35022000 InvertersCombiMaster 24V - 2000W - 40 Amp (230V)Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options.Features: Most compact and lightweight Combi in its class. Reliable, hum-free and longer operation from your batteries. Starts even the heaviest and most sensitive loads. Intelligent 3-step+ battery charger for faster and safer charging. Automatic switching between mains and inverter mode. Power Assist prevents blown mains fuses. Generator compatible. Integrated CZone*, MasterBus and NMEA 2000 communication. Quick installation with heavy duty connections. E-mark certified. Remote Control & Monitoring Options: MasterBus compatible via SmartRemote or EasyView 5 display. CZone* / NMEA 2000 compatible via Touch 5 or Touch 10 display. NMEA 2000 compatible via 3rd party multifunctional display WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 35022000UPC Code: 816882021879Mastervolt 35022000 Literature Download Owners Manual Product BrochureMastervolt 35022000 Video

Download LiteratureVictron Energy PMP242200102 InvertersMultiPlus 24/2000 - 50-50 - 120V - VE.Bus UL Approved The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, and multiple system integration features.Two AC OutputsThe main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output (a second output is available on models rated at 3 kVA and more).Virtually Unlimited Power Thanks to Parallel OperationUp to six Multis can operate in parallel to achieve higher power output. Six 24/3000/70 units, for example, provide 15kW / 18kVA output power with 420 Amps of charging capacity.Three Phase CapabilityIn addition to parallel connections, three units can be configured for three-phase output. But that’s not all: with three strings of six parallel units, a 45 kW / 54 kVA three-phase inverter and 1260 A charger can be built.Split Phase OptionsTwo units can be stacked to provide 120-0-120 V, and additional units can be paralleled up to a total of 6 units per phase, to supply up to 30 kW / 36 kVA of split phase power.Alternatively, a split-phase AC source can be obtained by connecting Victron's autotransformer (see data sheet onwww.victronenergy.com) to a ‘European’ inverter programmed to supply 240 V / 60 Hz.Power Control - Dealing with Limited Generator, Shore Side or Grid PowerThe MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 20 A per 3 kVA MultiPlus at 120 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.Powerassist - Boosting the Capacity of Shore or Generator PowerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.Four-Stage Adaptive Charger and Dual Bank Battery ChargingThe main output provides a powerful charge to the battery system by means of advanced ‘adaptive charge’ software. The software fine-tunes the three-stage automatic process to suit the condition of the battery and adds a fourth stagefor long periods of float charging. The adaptive charge process is described in more detail on the Phoenix Charger datasheet and on Victron's website under Technical Information. In addition to this, the MultiPlus will charge a second battery using an independent trickle charge output intended for a main engine or generator starter battery.System Configuring Has Never Been EasierAfter installation, the MultiPlus is ready to go. If settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure. Even parallel and 3-phase operations can be programmed with DIP switches: no computer is needed!Alternatively, VE.Net can be used instead of the DIP switches. And sophisticated software (VE.Bus Quick Configure and VE.Bus System Configurator) is available to configure several new, advanced features.Specifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 50 Parallel and 3-phase Operation: Yes Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V Output: Output voltage: 120 VAC, ± 2% / Frequency 60 Hz ± 0,1% Continuous Output Power at 25°C (VA): 2000 Continuous Output Power at 25°C (W): 1600 Continuous Output Power at 40°C (W): 1450 Continuous Output Power at 65°C (W): 1100 Peak Power (W): 4000 Maximum Efficiency (%): 92 / 94 Zero Load Power (W): 9 / 11 Zero Load Power in AES Mode (W): 7 / 8 Zero Load Power in Search Mode (W): 3 /4 Charger Specifications: AC Input: Input voltage range: 95-140 VAC / Input frequency: 45 – 65 Hz / Power factor: 1 Charge Voltage Absorption (V DC): 14,4 / 28,8 Charge Voltage Float (V DC): 13,8 / 27,6 Storage Mode (V DC): 13,2 / 26,4 Charge Current House Battery (A): 80 /50 Charge Current Starter Battery (A): 4 Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: N.A. Programmable Relay: Yes (1x) Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration General purpose com. Port: N.A. Remote On-Off: Yes Operating Temperature Range: -40 - +65°C / -40 to 150°F (fan-assisted cooling), Humidity (non-condensing) max 95% Enclosure Specifications: Common Characteristics: Material & Color: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: M8 bolts  120 V AC-Connection: Screw-terminal 6 AWG (13 mm2) Weight: 13 kg / 25 lbs. Dimensions (hxwxd in mm): 520 x 255 x 125 mm / 20.5 x 10.0 x 5.0 in. Standards Safety: UL 458, EN-IEC 60335-1, EN-IEC 60335-2-29 Emission, Immunity: EN-IEC 61000-3-2/3-3/, EN-IEC 61000-6-1/6-2/6-3 Can be adjusted to 50 HZ Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 150 VAC on the inverter output, input voltage ripple is too high Non-linear load, crest factor 3:1 Up to 75°F ambient Switches off when no external AC source is available Programmable Relay That Can, Among Other Things, Be Set for General Alarm Including DC Undervoltage or genset start/stop function / AC rating: 120 V/4A / DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC / A.o. to communicate with a lithium-ion battery BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PMP242200102UPC Code: 8719076060123Victron Energy PMP242200102 Literature Download Quick Reference Guide Owners Manual Product Brochure

Download Literature Watch VideoVictron Energy PMP123021010 InvertersMultiPlus 12/3000 - 120-50 - 230V - VE.BusThe MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, and multiple system integration features.Two AC OutputsThe main output has no-break functionality. The MultiPlus takes over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on the input of the MultiPlus. Loads that should not discharge the battery, like a water heater, for example, can be connected to this output (a second output is available on models rated at 3 kVA and more).Virtually Unlimited Power Thanks to Parallel OperationUp to 6 Multis can operate in parallel to achieve a higher power output. Six 24/5000/120 units, for example, will provide 25 kW / 30 kVA output power with 720 AMP charging capacity.Three Phase CapabilityIn addition to parallel connections, three units of the same model can be configured for three-phase output. But that’s not all up to 6 sets of three units can be connected in parallel for a 75 kW / 90 kVA inverter and more than 2000 Amp charging capacity.PowerControl - Dealing with Limited Generator, Shore Side or Grid PowerThe MultiPlus is a very powerful battery charger. It will therefore draw a lot of current from the generator or shoreside supply (nearly 10 A per 5 kVA Multi at 230 VAC). With the Multi Control Panel, a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded.PowerAssist - Boosting the capacity of shore or generator powerThis feature takes the principle of PowerControl to a further dimension. It allows MultiPlus to supplement the capacity of the alternative source. Where peak power is often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces the spare power is used to recharge the battery.Solar energy: AC Power is Available Even During a Grid FailureThe MultiPlus can be used in off-grid as well as grid-connected PV and other alternative energy systems. Loss of mains detection software is available.System Configuring: In the case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure Parallel and three-phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software Off-grid, grid-interactive, and self-consumption applications, involving grid-tie inverters and/or MPPT Solar Chargers can be configured with Assistants (dedicated software for specific applications) On-site Monitoring and ControlSeveral options are available: Battery Monitor, Multi Control Panel, Color control for GX or other GX devices, smartphone, tablet (Bluetooth Smart), laptop, or computer (USB or RS232).Remote Monitoring and ControlColor Control GX or other GX devices. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.Remote ConfiguringWhen connected to the Ethernet, systems with a Color Control GX or other GX device can be accessed, and settings can be changed remotelySpecifications: PowerControl: Yes PowerAssist: Yes Transfer Switch (A): 16 or 50 Inverter Specifications: Input Voltage Range (V DC): 9,5 – 17 V 19 – 33 V 38 – 66 V Output: Output voltage: 230 VAC, ± 2% / Frequency 50 Hz ± 0,1%(1) Continuous Output Power at 25°C (VA): 3000 Continuous Output Power at 25°C (W): 2400 Continuous Output Power at 40°C (W): 2200 Continuous Output Power at 65°C (W): 1700 Peak Power (W): 6000 Maximum Efficiency (%): 93 / 94 / 95 Zero Load Power (W): 20 / 20 / 25 Zero Load Power in AES Mode (W): 15 / 15 / 20 Zero Load Power in Search Mode (W): 8 / 10 / 12  Charger Specifications: AC Input: Input voltage range: 187-265 VAC / Input frequency: 45 – 65 Hz / Power factor: 1 Charge Voltage Absorption (V DC): 14,4 / 28,8 / 57,6 Charge Voltage Float (V DC): 13,8 / 27,6 / 55,2 Storage Mode (V DC): 13,2 / 26,4 / 52,8 Charge Current House Battery (A): 120 / 70 / 35 Charge Current Starter Battery (A): 4 (12 V and 24 V models only) Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: Yes (16A) Programmable Relay: Yes Protection: a - g VE.Bus Communication Port: For parallel and three-phase operation, remote monitoring, and system integration General purpose com. Port: Yes Remote On-Off: Yes Common Characteristics: Operating temp. range: -40 to +65°C (fan-assisted cooling) / Humidity (non-condensing): max 95% Enclosure Specifications: Common Characteristics: Material & Colour: aluminum (blue RAL 5012) / Protection category: IP 21 Battery-Connection: Four M8 bolts (2 plus and 2 minus connections) 230 V AC-Connection: Screw terminals 13mm^2 (6 AWG) M6 bolts Weight (kg): 18 Dimensions (hxwxd in mm): 362 x 258 x 218 Standards Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 Road Vehicles: 12V and 24V models: ECE R10-4 Anti-Islanding: See Victron's website Can be adjusted to 60 HZ. 120 V models available on request Protection Key: Output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, 230 VAC on the inverter output, input voltage ripple is too high Non-linear load, crest factor 3:1 Up to 25°C ambient Switches off when no external AC source is available Programmable Relay That Can, Among Other Things, Be Set for General Alarm Including DC Undervoltage or genset start/stop function / AC rating: 230 V/4A / DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC / A.o. to communicate with a lithium-ion battery BMS Please contact your dealer for any returns, repairs, or support issues related to this product.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PMP123021010UPC Code: 8719076023951Victron Energy PMP123021010 Literature Download Owners ManualVictron Energy PMP123021010 Video

Download LiteratureVictron Energy PIN242510500 InvertersInverter 24VDC - 250VA - 120VAC - VE.Direct - NEMA 5-15RInverters allow you to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V, or 48VDC. The VE.Direct port can be connected to: A computer (VE.Direct to USB interface cable needed) Apple and Android smartphones, tablets, MacBook, and other devices (VE.Direct Bluetooth Smart dongle needed) Fully configurable: Low battery voltage alarm trip and reset levels Low battery voltage cut-off and restart levels Dynamic cut-off: load-dependent cut-off level Output voltage 210 - 245V Frequency 50 Hz or 60 Hz ECO mode on/off and ECO mode sense level Monitoring: In- and output voltage, % load, and alarms Please get in touch with your dealer for any returns, repairs, or support issues related to this product. Phoenix Inverter 24/250 Specifications: Continuous Power at 25°C: 250VA Continuous Power at 25°C / 40°C: 200 / 175W  Peak Power: 400W  Output AC Voltage / Frequency (adjustable): 120VAC +/- 3% Input Voltage Range: 9,2 - 17 / 18,4 - 34,0 / 36,8 - 62,0V DC Low Shut Down (adjustable): 9,3 / 18,6 / 37,2V Dynamic (Load Dependent) DC low shut down (fully configurable): Dynamic cut-off DC Low Restart and Alarm (adjustable): 10,9 / 21,8 / 43,6V Battery Charged Detect (adjustable): 14,0 / 28,0 / 56,0V Maximum Efficiency: 87 / 88 / 88%  Zero-Load Power: 4,2 / 5,2 / 7,9W  Default Zero-Load Power in ECO Mode (default retry interval: 2,5 s, adjustable): 0,8 / 1,3 / 2,5W ECO Mode Stop and Start Power Setting: Adjustable Protection: a - f Operating temperature Range: -40 to +65°C (fan-assisted cooling) / Derate 1,25% per °C above 40°C Humidity (non-condensing): Max 95% Enclosure: Material & Color: Steel chassis and plastic cover (blue Ral 5012) Battery-Connection: Screw terminals Maximum Cable cross-Section 10mm^2 / AWG8  Standard AC outlets 230V: Schuko (CEE 7/4), IEC-320 (male plug included), UK (BS 1363), AU/NZ (AS/NZS 3112), 120V: Nema 5-15R, GFCI Protection Category: IP 21 Weight: 2,4kg / 5,3lbs Dimensions (h x w x d, mm) / (h x w x d, inch): 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 in. Accessories: Remote On-Off: Yes Automatic Transfer Switch: Filax Normalized SKU: PIN242510500UPC Code: 8719076036005Victron Energy PIN242510500 Literature Download Quick Reference Guide

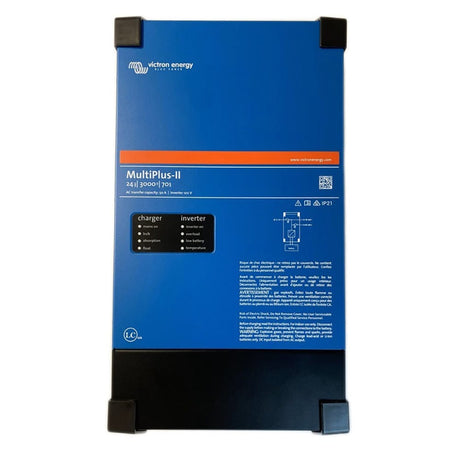

Download Literature Watch VideoVictron Energy PMP242305102 InvertersMultiPlus-II 24/3000 - 70-50 - 120V - UL ApprovedThe MultiPlus-II, an inverter/charger, combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and increasingly long list of country approvals.PowerAssistThe MultiPlus-II will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.ESS: Energy Storage SystemsThe MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters.Uninterrupted AC power (UPS function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will operate without disruption.Remote Monitoring and ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backup generator and more.Specifications:  PowerControl & PowerAssist: Yes Transfer Switch: 50A Maximum AC Input Current: 50A Inverter Specifications: DC Input Voltage Range: 19–33 V Output: Output Voltage 120 VAC ± 2% / Frequency 60 Hz ± 0,1% (1) Continuous Output Power at 25°C (3): 3000 VA Continuous Output Power at 25°C: 2400 W Continuous Output Power at 40°C: 2200 W Continuous Output Power at 65°C: 1700 W Maximum Apparent Feed-In Power: 2500 VA Peak Power: 5500 W Maximum Efficiency: 94% Zero Load Power: 13 W Zero Load Power in AES Mode: 9 W Zero Load Power in Search Mode: 3 W Charger Specifications: AC Input: Input Voltage Range 90-140 VAC / Input Frequency: 45 – 65 Hz Charge Voltage 'Absorption': 28,8 V Charge Voltage 'Float': 27,6 V Storage Mode: 26,4 V Maximum Battery Charge Current (4): 70 A Battery Temperature Sensor: Yes General Specifications: Auxiliary Output: Yes (32 A) External AC Current Sensor (optional): 100 A Programmable Relay (5): Yes Protection (2): a – g VE.Bus Communication Port: For parallel, split phase and three phase operation, remote monitoring and system integration General Purpose Com. Port: Yes, 2x Remote On-Off: Yes Operating Temperature Range: -40 to +65°C (-40 – 150 °F) (fan assisted cooling) Humidity (Non-Condensing): Max 95% Enclosure Specifications: Material & Color: Steel, blue RAL 5012 Protection Category: IP22 Battery-Connection: M8 bolts 120 V AC-Connection: Screw terminals 13 mm² (6 AWG) Weight: 9 kg Dimensions (hxwxd) (mm): 536 x 277 x 147 Standards: Safety: EN-IEC 60335-1, EN-IEC 60335-2-29, UL458 Emission, Immunity: EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 *Note: For a short period of time this product was called MultiGrid-II.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PMP242305102UPC Code: 8719076059202Victron Energy PMP242305102 Literature Download Quick Reference Guide Owners Manual Product BrochureVictron Energy PMP242305102 Video

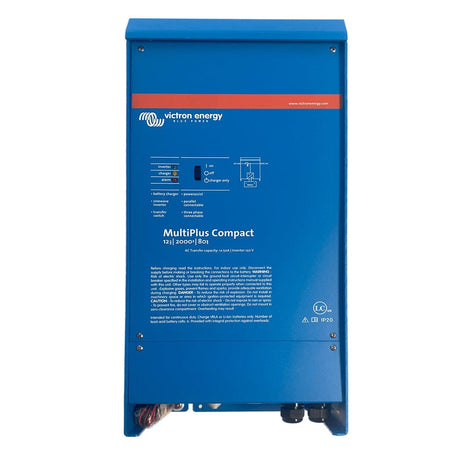

Download LiteratureVictron Energy CMP122200102 InvertersMultiPlus Compact 12/2000/80-150 120V VE.Bus UL ApprovedThe MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features. Unique PowerAssist FeatureThe MultiPlus will prevent the overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery. Uninterrupted AC Power (UPS Function)In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. Virtually Unlimited Power Thanks To Parallel OperationUp to 6 Multis can operate in parallel to achieve higher power output. Three-phase or split-phase operation is also possible. Please check our datasheets to see which models have paralleling, three-phase, and split-phase capabilities. Remote Monitoring & ControlWhen coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop, or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto-starting a backup generator and more… Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: CMP122200102UPC Code: 8719076058137Victron Energy CMP122200102 Literature Download Quick Reference Guide
