Download LiteratureVictron Energy PIN245020000 InvertersPhoenix Inverter 24 VDC - 5000W - 230 VAC - 50Hz Pure sine wave output, high peak power and high efficiency. Combined high frequency and line frequency technologies ensure the best of both worlds.SinusMax - Superior EngineeringDeveloped for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load. Parallel and 3-phase operation capabilityUp to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24V 5000VA units, for example, will provide 24kW / 30kVA output power. Operation in 3-phase configuration is also possible.Warranty InfoWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: PIN245020000UPC Code: 8719076023760Victron Energy PIN245020000 Literature Download Quick Reference Guide

Magnum Energy MPDH175-30D InvertersMagnum Energy Magnum Panel Dual Enclosure High Power #MPDH175-30DNormalized SKU: MPDH17530D

Magnum Energy ME-RSA-M Inverters Magnum Energy Remote Switch Adapter - Momentary These Remote Switch Adapters are simple to install and are designed to be used with inverters that provide a "stack/accessories" port such as the ME MS MS-AE and RD Series inverters The ME-RSA and ME-RSA-M Remote Switch Adapters allows users to connect a external switch and remotely turn the inverter ON and OFF. The ME-RSA requires a "maintain" or on/off type of switch to turn the inverter ON or OFF. The ME-RSA-M requires a "momentary" type of switch and allows multiple switches in different locations conveniently turn the inverter ON and OFF Normalized SKU: MERSAM

Magnum Energy MP-HOOD Inverters Magnum MP-Hood Panel Hood The MP-Hood a single-piece powder-coated steel cover plate It is designed to allow a Magnum inverter to be mounted vertically and prevent items from falling into the ventilation openings in the top of the inverter Normalized SKU: MPHOOD

Magnum Energy MP-CCB InvertersMagnum Energy Charge Controller Bracket #MP-CCBNormalized SKU: MPCCB

Magnum Energy ME-RC-BZ Inverters Magnum Energy ME-RC-BZ Mounting Bezel For use with ME-RC Remote Control Normalized SKU: MERCBZ

Magnum Energy ME-PT2 Inverters Magnum Energy PT2 AGS Pigtail Adapter (Two Wire) The ME-PT2 (Pigtail Adapter Two-wire) is designed to be connected to the AGS to allow the connected generator to be automatically started when the two wires are connected Normalized SKU: MEPT2

Magnum Energy BP-S Inverters Magnum Energy BP-S Back Plate Single for Single Mount System The BP-S is a single-piece powder-coated steel back plate designed to accommodate a single MP or MPX enclosure a Magnum inverter and the inverter hood together Designed with PEM (i.e. internally threaded) nuts the back plate is shipped with ?-20 x ?? Hex head bolts for easily mounting the MP enclosure a Magnum inverter and the inverter hood Normalized SKU: BPS

Magnum Energy A70-0011 InvertersMS BOTTOM PLATENormalized SKU: A700011

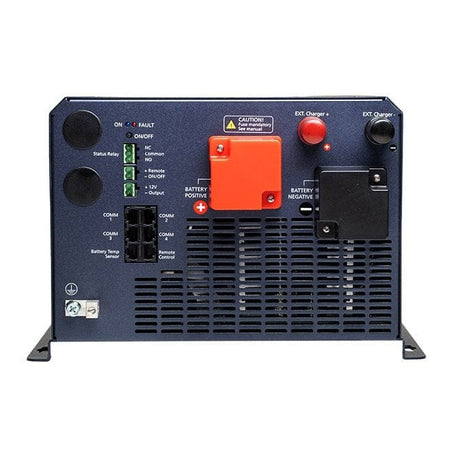

Download Literature Samlex America EVO-4248SP Inverters EVO-4248SP 4200W 120/240 VAC Split Phase Inverter/Charger with 60 AMP Split phase pure sine wave inverter, adaptive battery charger, and transfer relay – ALL in ONE device. Samlex EVOLUTION™ Series Inverter/Chargers provide reliable AC power wherever it’s needed. This 4200-watt, 120V /240V split phase inverter/charger connects to a standard electrical household panel. When you combine it with a 48V battery bank and a solar system you can run a fully equipped off-grid cabin, a remote mobile construction site, or use it as an emergency backup system. Intelligently integrates a 60 Amp, 4-stage Battery Charger and a 40 Amp Transfer Relay into an advanced and affordable off-grid power solution. For use with Lead Acid or Lithium-ion batteries. Optional EVO-RC-PLUS remote control for ease of programming and monitoring. Features: 120 / 240 VAC Split Phase (Dual Phase) The split-phase inverter connects to the standard household panel to provide both 120 and 240 VAC output power AC Input One AC input for the grid or for the generator, no need to reconfigure when a different power source is available. The AC input is programmable for voltage and frequency. The user determines what the min and max thresholds are to switch from Grid or Generator to Inverter. Generator start can be initiated by the “Status Relay” contact and can be programmed to activate when the grid is lost. Solar Input Connect a 48V MPPT solar charge controller directly to the EVOTM through the 100 Amp Battery Charger external DC Input, seamlessly integrates solar charging into the EVO’s power system. ONLINE Mode can be used to prioritize Batteries/Inverters over the grid, ideal for those wishing to operate primarily on solar power (when the grid is available but costly). Battery Charger 3 or 4 stages charging with Equalization (must be manually initiated). An adaptive algorithm is used during Bulk to assess the condition of lead-acid batteries. Subsequent stages are then based on the condition of the battery rather than pre-set time periods for Absorption and Float. Prevents unnecessary charging, and extends the life of batteries. Programmable – set battery voltage thresholds to initiate charging. Specific programmable settings for Lithium-ion batteries. Transfer Switch Zero transfer time when switching from Inverter to Grid. When the grid comes on, the inverter synchronizes with the waveform and then transfers instantly at zero crossing. <16ms transfer when going from Grid to Inverter. When the grid is lost, the transfer relay switches to the inverter at the correct place in the waveform for no power disruption.  Surge Capacity (Power Boost) 3X surge power for high surge loads on start-ups, such as compressor or refrigerator Additionally, the EVOTM has power overload allowances available for short periods of time. Overload allowances decrease with the length of time. Increased inverter capacity, or “Active Power Boost,” means you can size your inverter smaller to handle heavy surge loads, reducing costs.  State-of-the-Art Technology The EVOTM operates at 165 million instructions per second producing lightning-fast load and response times The EVOTM is practically indestructible. It has “Bullet-Proof Intelligence” in the form of 9 physical points of protection monitoring being scanned up to 10,000 times per second for adverse conditions. The EVOTM will detect fault conditions and initiate a healthy shutdown before any product damage can be done. The EVO-RC-PLUS remote control (sold separately) can be used to capture detailed EVOTM performance data. Records all detected faults and the conditions leading up to them. Data is stored on a removable 32GB SD Card (in the remote). Use data to analyze trends for more efficient use of system resources The EVOTM uses five temperature sensors placed throughout the unit to determine the operation of 2 speed-controlled cooling fans. Reduces unnecessary fan noise and energy consumption by only running when and where the fans are needed. Specifications: Input: 48 VDC Output: 120 / 240 VAC Split Phase Watts: 4200 Watts Surge: 12600 Watts Outlets: Hardwired Fuse: External Remote Control: EVO-RC-PLUS (Optional) Weight: 64 lbs Weight: 29 kg Dimensions: 12.8 x 16.3 x 8.35 in Dimensions: 324 x 415 x 212 mm Safety: CSA Listed, Conforms to CAN/CSA STD. C22.2 No. 107.1-16 and UL Std No. 1741 2nd Ed. EMI/EMC Compliant with FCC Part 15(B), Class A Applications: Alternative energy, off-grid, cabins, remote locations, areas with unreliable utility power Back-up and emergency power applications WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: EVO4248SP Samlex America EVO-4248SP Literature Download Quick Reference Guide Owners Manual Product Brochure

Samlex America PST-3000-12NR InvertersSamlex America PST Pure Sine Inverter 3000w #PST-3000-12NRNormalized SKU: PST300012NR
