Ritchie Compass X-10A CompassX-10-A RitchieSportRitchieSport Compass Features: Easy-to-Install on Windshield or Dash Two-Sided, Self-Adhesive Mounting Pads Included Reversible Bracket Adjusts through 300? 2" Direct-Reading, High Visibility Dials Internal Green Night Lighting High Temp Composite Construction for Extended Operating Range Hardened Steel Pivot and Sapphire Jewel Movement Built-in Compensators Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 5 oz (142g)Replacement PartsLight Assembly: RS-0105XSPNotes:Comes standard with 12 volt lighting.For all X-10's built before the year 2000 please see the service manual page 1-2 or contact Ritchie for replacement lighting. RITCHIE X-10A AUTO COMPASS Normalized SKU: X10AUPC Code: 010342170019

Ritchie Compass SS-PR-2 CompassSuperSport SS-PR2 Bulkhead Mount CompassThe SuperSport SS-PR2 is designed primarily for power boats 16 ft. (4.88m) to 35 ft. (10.66m) in length. SuperSport Compass Features:Features: 3-3/4" (9.35cm) CombiDial 12V green LED Night Lighting Compensators included 4-5/8" (118mm) to 4-13/16" (122mm) mounting hole Adapter plate available to retrofit existing HV-76 and HV-77 installations Vertical mounting angle through 40 degrees Protective front cover included Exclusive 5-year Ritchie warranty RITCHIE SS-PR-2 SUPERSPORT BULKHEAD MOUNT COMPASSNormalized SKU: SSPR2UPC Code: 010342110015

Ritchie Compass SP-5C CompassSP-5C-GlobemasterGlobeMaster Compass Features: 5" PowerDamp Flat Dial Brushed Stainless Binnacles Easily Installed, Fits 7.25" (18.42 cm) Mounting Hole. Ideal for both Power and Sail Boats Lightweight/Easy-to-Align Mounting Base Fits all Popular Sailboat Pedestals 45 and 90 Degree Lubber Lines for Easy Reading Full Internal Gimbals Exclusive Green NiteVu 12 Volt Night Lighting Spherical Design with Fiberglass Reinforced Bowl High-Capacity Roller Diaphragm for Extended Temperature Operating Ranges Built-in Compensators Weather Shield Available - Model No. WS-P 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 6 lbs (2.72 kg)Protective Cover: GM-5-CReplacement Parts Light Assembly: SH-0111XSP (green) and SH-0028XSP (red) GM-0087 XSP (Green) & SH-0175 XSP (Red)12 volt lighting standard - 24 & 32 volt lighting options are available. Notes:For Globemaster built before 1996 please see the service manual pages 7-32 and 7-33 or contact Ritchie for replacement lighting.This compass conforms with ISO 10316(E) and ISO 613:2000(E) standards. RITCHIE SP-5C (STAINLESS) 5 DEGREE 12 VOLT Normalized SKU: SP5CUPC Code: 010342050397

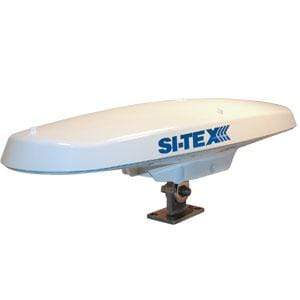

SI-TEX VECTOR PRO-G2 CompassSi-tex Vector Pro G2 GPS CompassModel: VECTOR PRO G2 The rugged enclosure combines GPS’ Crescent Vector board and two multipath-resistant antennas for simple installation The half-meter length smart antenna mounts easily to a flat surface or pole The stability and maintenance-free design of the Vector Pro replaces traditional gyrocompasses at a fraction of the cost IMO Wheelmarked for Commercial applications Experience superior navigation from the accurate heading and positioning performance available with the Vector Pro G2 Series GPS Compass.Specifications GPS SENSOR SPECIFICATION Receiver Type Twin Receivers w/ L1, C/A code, with carrier phase smoothing Channels Two 1?channel, parallel tracking, (Two 10- ?channel when tracking WAAS) Update Rate Standard 20 Hz Adjustable (position and heading) Horizontal Accuracy < 0.6 m 95% confidence (* < 2.5m 95% confidence (aiutonomous, no SA)** Heading accuracy <0.3° rms Pitch/roll accuracy < 1° rms Rate of turn 90°/s max Start up time < 60s typical Heading fix < 20s Satellite reacquisition < 1s Beacon Sensor Specifications (G2B version) Channels 2-channel parallel tracking Frequency range 283.5 to 325 kHz Operating modes Automatic (signal strength or range) and manual Compliance IEC 611 08-4 beacon standard Communications Srial ports 2 full duplex RS-232 and 2 half duplex RS-422 Data I/O protocol NMEA 0183 Enviromental Operating temperature rage -30°C to +70°C Humidity 100% non condensing Input voltage 9-36vDC Power consumption <5w Isolation Power supply isolated fromserial ports Mechanical Dimensions 23.6" x 6.3" x 7.1" Normalized SKU: VECTORPROG2

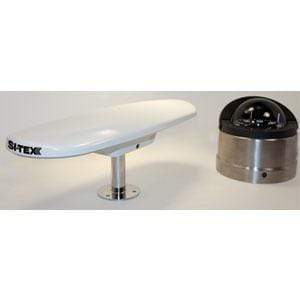

SI-TEX VECTOR PRO G1 CompassSi-tex Vector Pro G1 GPS CompassModel: VECTOR PRO G1 Small compact all-in-one maintenance free unit Fully compatible with NMEA 2000 or 0183 equipment: Autopilots, Radar, AIS, Plotters, etc. Accurate 2D heading and positioning data Better than 0.60 degree Heading accuracy 90 Rate of Turn tracking (ROT) Provides Heave, Pitch and Roll information DGPS provides sub-meter positioning accuracy Differential Correction source SBAS (WAAS, EGNOSand MSAS) and RTCM SC-104 data (External Source) COASTTM technology maintains differentially-corrected position for 40 minutes or more with loss of differential signal Integrated Gyro & Tilt sensors provide fast start up times and Heading updates during temporary loss of GPS 20 Hz position and Heading update rates (10Hz standard) Multiple BAUD rate selections CE certified for EMI and RFI immunity Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long Geographic position, Time & Date 2 year warranty Normalized SKU: VECTORPROG1

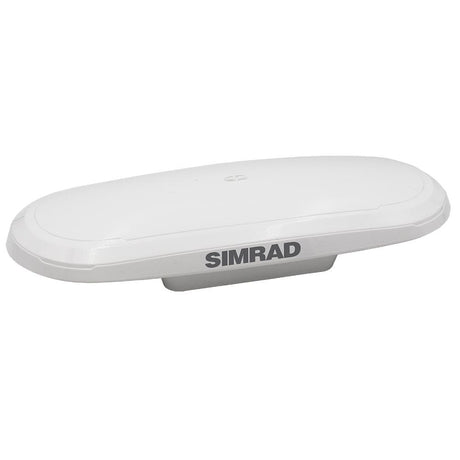

Simrad 000-15585-001 CompassHS75 GNSS CompassThe multi-GNSS HS75 supports GPS, GLONASS, BeiDou, Galileo, and QZSS for pinpoint global positioning and heading accuracy. The HS75 offers a powerful combination of simple installation, small form factor, and high performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. Accurate HeadingAn accurate heading sensor is essential for autopilot, advanced radar features, and many other on-board electronics. The multi-GNSS HS75 supports GPS, GLONASS, BeiDou, Galileo, and QZSS for pinpoint global positioning and heading accuracy. The commercial-grade HS75 offers heading accuracy to within 0.75 degrees: much greater than a common magnetic rate compass, without the cost and maintenance of a gyrocompass.Unlike a standard GPS receiver, which can only estimate heading based on the movement of your boat, the HS75 provides an accurate heading even while your boat is stationary. Integrated gyro and tilt sensors offer enhanced performance, and provide a temporary source of heading data during any loss of GPS signal.Fast and Accurate PositioningThe HS75’s high-speed GPS receiver calculates your position up to 20 times every second, perfect for fast-moving powerboats and equipment that relies on high-speed position updates. Quick startup means you won’t get caught waiting for a position fix before you can get underway. Support for satellite based augmentation systems (SBAS) offers enhanced positional accuracy where available.Rate of Turn, Heave, Pitch, and RollThe HS75 also calculates your boat’s rate of turn, heave, pitch, and roll. Rate of turn is essential for optimal autopilot performance, while heave data is used by some sonar equipment to compensate for the effects of wave action. This additional data is output to compatible equipment over your boat’s NMEA 2000® network.Simple InstallationThe HS75 offers a plug-and-play installation, small form factor, and high performance. The compass - measuring only 35 cm in length - mounts easily to a flat surface or pole. Normalized SKU: 00015585001UPC Code: 9420064115310

  Download LiteratureRitchie Compass SP-5-B CompassGlobeMaster CompassGlobemaster Compass Features: 5" PowerDamp Flat card standard. 5 degree Black Wrinkle Finish Easily Installed Ideal for both Power and Sailboats Lightweight/Easy-to-Align Mounting Base Fits all Popular Sailboat Pedestals 45 and 90 Degree Lubber Lines for Easy Reading Full Internal Gimbals 12V Green LED lighting Standard Built-in Compensators Weather Shield Available - Model No. WS-P 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 6lbs (2.72kg)Notes: 12V lighting standard - 24 & 32V lighting options are available.For Globemaster built before 1996 please see the service manual pages 7-32 and 7-33 or contact Ritchie for replacement lighting. Specifications: Mounting Style = NONE Read = NONE Backlight = Yes Lubber Lines = Yes Normalized SKU: SP5BUPC Code: 010342050458Ritchie Compass SP-5-B Literature Download   Quick Reference Guide

  Download LiteratureRitchie Compass SP-5-C CompassGlobemaster CompassGlobeMaster Compass Features: 5" PowerDamp Flat Dial Brushed Stainless Binnacles Easily Installed, Fits 7.25" (18.42 cm) Mounting Hole Ideal for both Power and Sail Boats Lightweight/Easy-to-Align Mounting Base Fits all Popular Sailboat Pedestals 45 and 90 Degree Lubber Lines for Easy Reading Full Internal Gimbals Exclusive Green NiteVu 12 Volt Night Lighting Spherical Design with Fiberglass Reinforced Bowl High-Capacity Roller Diaphragm for Extended Temperature Operating Ranges Built-in Compensators Weather Shield Available - Model No. WS-P 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 6lbs (2.72 kg)Notes:12 volt lighting standard - 24 & 32 volt lighting options are available. For Globemaster built before 1996 please see the service manual pages 7-32 and 7-33 or contact Ritchie for replacement lighting.This compass conforms with ISO 10316(E) and ISO 613:2000(E) standards. Specifications:Mounting Style = NONE Read = Front Backlight = Yes Lubber Lines = NONENormalized SKU: SP5CUPC Code: 010342050397Ritchie Compass SP-5-C Literature Download  Quick Reference Guide  Owners Manual

KVH Industries 01-0115 CompassThe world's most popular tactical racing compassThe accurate and dependable Sailcomp 103AC is the most widely used, electronic tactical sailing instrument available today. Ideal for racing sailors, the Sailcomps waterproof, remote display provides easy-to-read heading, windshift, and off-course steering information wherever you need it the most. And its standard NMEA 0183 output allows it to interface with other onboard equipment, including radar, autopilots, plotters, PC software, Loran, and GPS. With its simple keypad and easy-to-read display, essential navigation data, and superb compatibility, Sailcomp gives you the edge you need to win races!Highlights: Easy-to-install components designed to military quality standards Automatic compensation ensures the highest degree of accuracy (0.5°) Waterproof, backlit LCD display with large numerals offers clear viewing during both day and night; additional displays may be added wherever they are needed Interfaces with other NMEA 0183-compatible equipment; links to Loran or GPS to display cross-track error, distance to waypoint, and bearing to waypoint information Simple, remote push-button selection of head/lift, starting timer, and off-course modes Specifications:Mounting Style = NONE Output Frequency (mHz) = NONE Output Type = NMEA 0183 Backlight = NONEAZIMUTH 103AC DIGITAL COMPASS 01-0115 Normalized SKU: 010115UPC Code: 028327000008
