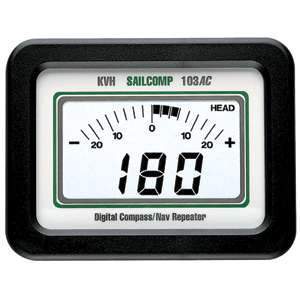

KVH Industries 01-0115 CompassThe world's most popular tactical racing compassThe accurate and dependable Sailcomp 103AC is the most widely used, electronic tactical sailing instrument available today. Ideal for racing sailors, the Sailcomps waterproof, remote display provides easy-to-read heading, windshift, and off-course steering information wherever you need it the most. And its standard NMEA 0183 output allows it to interface with other onboard equipment, including radar, autopilots, plotters, PC software, Loran, and GPS. With its simple keypad and easy-to-read display, essential navigation data, and superb compatibility, Sailcomp gives you the edge you need to win races!Highlights: Easy-to-install components designed to military quality standards Automatic compensation ensures the highest degree of accuracy (0.5°) Waterproof, backlit LCD display with large numerals offers clear viewing during both day and night; additional displays may be added wherever they are needed Interfaces with other NMEA 0183-compatible equipment; links to Loran or GPS to display cross-track error, distance to waypoint, and bearing to waypoint information Simple, remote push-button selection of head/lift, starting timer, and off-course modes Specifications:Mounting Style = NONE Output Frequency (mHz) = NONE Output Type = NMEA 0183 Backlight = NONEAZIMUTH 103AC DIGITAL COMPASS 01-0115 Normalized SKU: 010115UPC Code: 028327000008

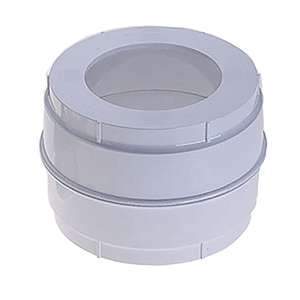

Edson Marine 856WH-345 CompassMolded Compass Cylinder - WhiteEdson’s Compass Cylinders are distinctive, non-reflecting, and virtually indestructible. Great for new boats or upgrading your existing pedestal to a larger, easier to read compass. Fits Edson’s 335 and 336 pedestals, stands 5-1⁄2” high and accommodates flush mounted compasses up to a 6-7⁄8” flange diameter. Normalized SKU: 856WH345

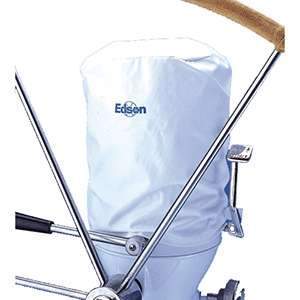

Edson Marine 693-5 CompassCompass/Instrument Housing CoverEdson’s Compass and Instrument Cover protects your compass or pod mounted instruments. The cover is made of sun-resistant white vinyl laminate with a Velcro tie. Specifications:Backlight = NONE Load Equivalence # (LEN) = NONE Lubber Lines = NONE Mounting Style = NONE Output Frequency (mHz) = NONE Output Type = NONE Read = NONENormalized SKU: 6935UPC Code: 796744001648

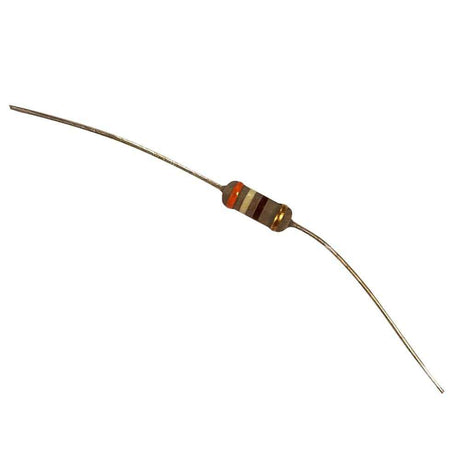

Ritchie Compass SH-0126-390 CompassSH-0126 390 Kit 24V System Resistor with InstructionsStandard Ritchie compasses have 12V lighting. If your boat has a 24V or 32V system a dropping resistor can be installed.Kit Contents: (1) Dropping Resistor with instructionsModels: B-81 F-83 & F-83W HB-71 & HB-741 HD-75 & HD-745 HF-743 & HF-743W S-87 & S-87W Specifications:Backlight = NONE Lubber Lines = NONE Mounting Style = NONE Read = NONENormalized SKU: SH0126390

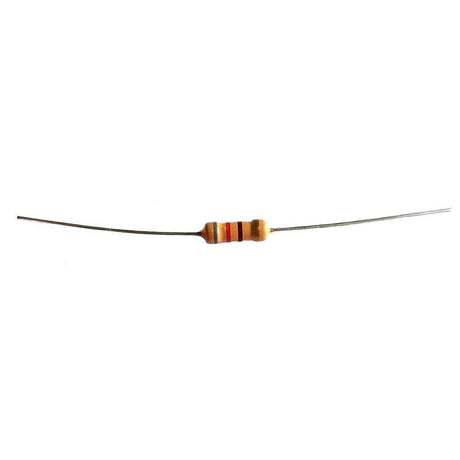

Ritchie Compass SH-0126-820 CompassSH-0126 820 Kit 24V System Resistor with InstructionsStandard Ritchie compasses have 12V lighting. If your boat has a 24V or 32V system a dropping resistor can be installed.Kit Contents: (1) Dropping Resistor with instructionsModels: B-80 D-84 F-82 & F-82W HB-70 & HB-740 HB-85 & HB-845 HD-74 & HD-744 HF-72, HF-72W, HF-742, & HF-742W SS-1002 & SS-1002W Specifications:Backlight = NONE Lubber Lines = NONE Mounting Style = NONE Read = NONENormalized SKU: SH0126820

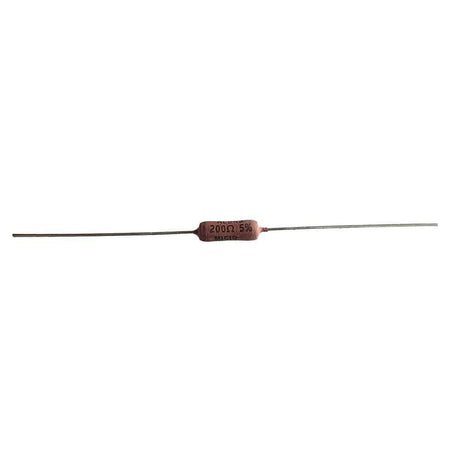

Ritchie Compass SH-0126-200 CompassSH-0126 200 Kit 24V System Resistor with InstructionsStandard Ritchie compasses have 12V lighting. If your boat has a 24V or 32V system a dropping resistor can be installed.Kit Contents: (1) Dropping Resistor with instructionsModels: BN-202 DNB-200, DNP-200 & DNW-200 FN-201 & FNW-201 All Globemasters (1996 to present) SS-2000 & SS-2000W SS-5000 & SS-5000W Specifications:Backlight = NONE Lubber Lines = NONE Mounting Style = NONE Read = NONENormalized SKU: SH0126200

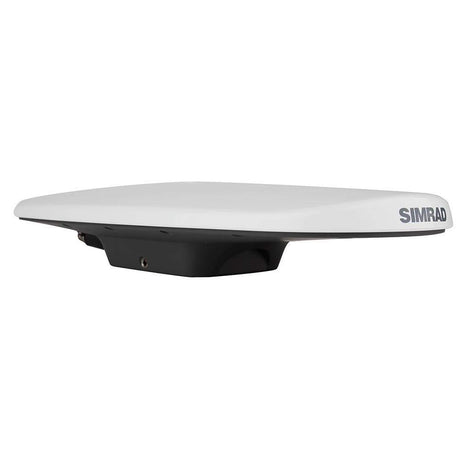

Simrad 000-10453-001 CompassHS70 GPS Compass Non-Magnetic Heading SourceExperience superior navigation from the accurate heading and positioning performance available with the HS70 GPS compass. The HS70 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning, providing a low cost and highly effective heading and position based smart antenna.The rugged and low profile enclosure provides two multipath-resistant antennas for accuracy, portability and simple installation. The smart antenna – measuring only a revolutionary 40cm/16” - mounts easily to a flat surface or pole. The stability and maintenance-free design of the HS70 provides traditional GPS positioning and heading at a low cost.Main Features Provides heading, positioning, heave, roll and pitch SimNet/NMEA2000 or NMEA0183 communication All in one antenna cable – No black box needed Excellent in-band and out-of-band interference rejection 0.75° heading accuracy in amazingly small form factor Extremely quick time-to-first-fix Differential positioning accuracy of 1.0 m, 95% of the time Integrated gyro and tilt sensors deliver fast start- up times and provide heading updates during temporary loss of GPS SBAS compatible (WAAS, EGNOS, MSAS, etc.) and optional external differential input COAST™ technology maintains differentially- corrected positioning for 40 minutes after loss of differential signal Specifications:Backlight = NONE Lubber Lines = NONE Mounting Style = NONE Read = NONENormalized SKU: 00010453001UPC Code: 000-10453-001

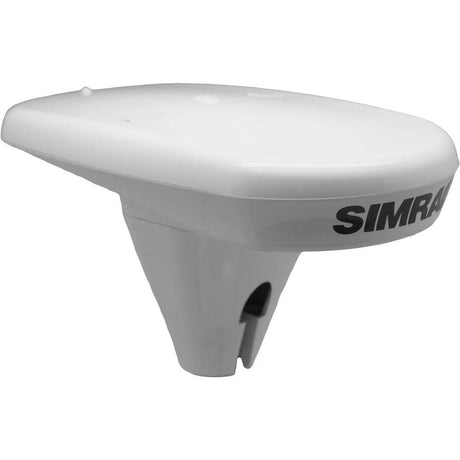

Simrad 000-12308-001 CompassHS60 GPS Compass NMEA2000 - Cable not IncludedThe Simrad HS60 GPS compass provides boaters with accurate heading and position data suitable for use with Simrad chartplotters, autopilots, radar, and AIS transponder systems. For applications such as autopilot, where precise heading information is required, the HS60 provides an all-in-one alternative to the traditional solution of a separate fluxgate compass and GPS receiver.Features: Compass and GPS receiver in one Tracks heading, position, heave, roll, and pitch Suitable for use with Simrad autopilot systems 2° RMS heading accuracy with dual internal GPS antennas 1M differential positioning accuracy (using SBAS supports WAAS, EGNOS, MSAS & GAGAN) 3M positioning accuracy (GPS only) Maintains an accurate heading for up to 3 minutes during GPS outages Compact flush or pole-mounted design NMEA 2000® connectivity (NMEA 0183® optional)The Simrad HS60 combines a high-speed 10 Hz, SBAS-compatible GPS receiver with integrated gyro and tilt sensors to provide smooth and accurate heading, position, heave, roll, and pitch information to Simrad chartplotters, autopilots, radar, and AIS systems.10 Hz GPS ReceiverThe HS60's high-speed GPS receiver delivers accurate and reliable positioning, updated ten times every second for smooth tracking of fast-moving powerboats. Fast startup means you won't get caught waiting for a position fix before you can get underway, with 'hot start' in less than a second and 'cold start' typically under a minute.Enhanced Positioning with SBASWith support for Satellite Based Augmentation Systems (SBAS) including WAAS (USA), EGNOS (Europe), MSAS (Japan) and GAGAN (India), the HS60 is able to use satellite-broadcast error correction data to deliver positional accuracy of up to 1M RMS, 95% of the time. Simrad COAST™ technology means the HS60 can even continue to deliver enhanced accuracy for up to 40 minutes if SBAS signal is lost, using the last error correction data received.In areas or conditions where SBAS is unavailable, the HS60 delivers 'single-point' positioning with accuracy of up to 3M RMS (95%). Actual accuracy experienced depends on environmental factors, the number of satellites in view, satellite geometry, and SBAS coverage where available.Accurate Heading with Dual GPS AntennasThe HS60 includes two separate GPS antennas within its compact casing, which are used to calculate heading with an accuracy of 2° RMS - greater accuracy than a magnetic fluxgate compass, without the cost and ongoing maintenance of a gyrocompass. With its dual GPS antennas, the HS60 provides an accurate heading even when your vessel is stationary, with a typical heading fix in less than ten seconds.Integrated Gyro & Tilt SensorsOnboard gyro and tilt sensors deliver heave, roll, and pitch information; offer faster and smoother heading updates than GPS alone; and provide heading updates during any temporary loss of GPS signal. Using these sensors, the HS60 is able to provide an accurate heading for up to three minutes during GPS outages, with an accuracy loss of no more than two degrees per minute and quick reacquisition of position once the signal has been reacquired.Simple Installation with NMEA 2000® ConnectivityThe compact and lightweight HS60 is supplied as a standalone system including mounting accessories. With GPS receiver, gyro and tilt sensors, and all other electronics integrated into the IP69 water-resistant antenna enclosure, there is no 'black box' required below deck.The HS60 connects to Simrad autopilot systems, NSS evo2 and NSO evo2 chartplotter/multifunction displays, and other systems requiring a NMEA 2000®-connected compass or GPS. A single NMEA 2000® bus connection is required for both power and data, standard drop cable with 5-pin micro connector sold separately.Specifications: Reverse Polarity Protection: Yes Power Consumption: 2.0W nominal Power Supply (Supply Voltage): 8 to 36 VDC Grounding: Isolated to enclosure Humidity: 100% non-condensing Product Width: 129mm / 5.1" Product Depth: 259mm / 10.2" Product Height: 45mm / 1.8" Baud Rates: 4800, 9600, 19200, 38400, 57600, 115200 Correction I/O Protocol: RTCM SC-104 Data I/O Protocol: NMEA 2000 (Optional NMEA 0183) Serial Ports: 2 full-duplex RS232 or 1 NMEA 2000 Compass Safe Distance [mm]: 300 Pitch/Roll Angle: 2° Rate of Turn: 90°/s maximum Receiver Type: GPS L1 Compass Heading Accuracy: 2° RMS Heading Fix: < 10s typical (valid position) Connectors: NMEA 2000 Connector: 5 Pin Male Micro Connector Specifications: Backlight = NONE Load Equivalence # (LEN) = NONE Mounting Style = NONE Output Frequency (mHz) = NONE Output Type = NONE Normalized SKU: 00012308001UPC Code: 000-12308-001

  Download LiteratureRitchie Compass TR-31 CompassTrek CompassTrek Compass Features: Ideal for Runabouts, Center Consoles, Ski Boats, Flats Boats, Bass Boats, Cars, Trucks, RV's and ATV's 2-1/4" Direct Reading Dial with Large Numerals for Easy Reading Black with Black Dial, Bracket Mounted Strong Directive Force Magnets and Composite Dial for Fast Performance Built-in Compensators to Correct for Deviation Extra Large Diaphragm and Rugged Construction Provide Extended Operating Temperature Range High-Impact Rubber Accent Strip Built-in, 12-Volt Green NiteVu Lighting 100% Repairable Exclusive 5-Year Ritchie Warranty Approx. Shipping Weight: 9 oz (256g)Notes:Comes standard with 12 volt lighting.For all Trek models built before 2005 please see the service manual page 2-2 or contact Ritchie for replacement light. Specifications:Backlight = Yes Lubber Lines = NONE Mounting Style = Bracket Read = FrontNormalized SKU: TR31UPC Code: 010342030399Ritchie Compass TR-31 Literature Download  Quick Reference Guide  Owners Manual

  Download LiteratureSI-TEX HDK-11 CompassHDK-11 Rate CompassWhether you are offshore fishing or just enjoying family time on the water, feel confident and comfortable with this reliable source for heading information. The solid-state three-axis compass, combined with additional advanced sensors and software provide unparalleled performance. It can maintain 2 degrees of heading accuracy under dynamic motion conditions, such as steep heeling, hard turns, and rough seas. Heading integrated with the three-axis rate gyro and three-axis accelerometer data allows the ciompass to maintain 2 degrees of accuracy even if the vessel is pitching and rolling up to 30 degrees. This level of accuracy is perfect for interfacing with autopilots, chart plotters, and radar systems. The circular design easily mounts and aligns on any angled bulkhead. Designed for simultaneous use with NMEA 0183 and NMEA 2000 devices. Specifications:Mounting Style = NONE Output Frequency (mHz) = NONE Output Type = NONE Backlight = NONESITEX HDK-11 RATE GYRO COMPASSNormalized SKU: HDK11UPC Code: 010407550534SI-TEX HDK-11 Literature Download  Owners Manual

  Download LiteratureRitchie Compass B-200P CompassNavigator Steel Boat Compass Steel Boat Compass Features: Large 5 degree 4-1/2" PowerDamp flat dial Easy to read numerals Exclusive built-in green NiteVu night illumination Built-in compensators to easily adjust for deviation Scientifically matched sapphire jewel and hardened steel pivot/dial movement Fully gimballed internal gimbal system for maximum stability during adverse pitch and roll conditions Power DirectiveForce magnets for fast heading lock-on Movable sun shield 45 degree lubber lines 100% repairable Exclusive 5-year Ritchie warranty Specifications:Lubber Lines = NONE Mounting Style = NONE Read = NONE Backlight = NONERITCHIE B-200P NAVIGATOR STEEL BOAT COMPASS 5 DEGREE 12VNormalized SKU: B200PUPC Code: 010342155092Ritchie Compass B-200P Literature Download  Quick Reference Guide  Owners Manual

  Download LiteratureRitchie Compass V-537W CompassExplorer Compass Explorer Compass Features: 2-3/4" Easy to Read Direct Reading Dial Viewing is adjustable to 30 Degrees 12V Night Illumination Built-in Compensators to Easily Adjust for Deviation Easily Installed, Fits 3" (7.62cm) Mounting Hole Scientifically Matched Sapphire Jewel & Hardened Steel Pivot Dial Movement Powerful DirectiveForce Magnets for Fast Heading Lock-on High Temperature Composite Construction for Extended Operating Range 100% Repairable Exclusive 5-Year Ritchie Warranty Notes:Comes standard with 12V lighting. 24V lighting option is available.Some custom built OEM models may have different lighting. Contact Ritchie for replacement lighting. Specifications:Lubber Lines = NONE Mounting Style = NONE Read = NONE Backlight = NONERITCHIE V-537W EXPLORER BULKHEAD MT COMPASS WHT DIALNormalized SKU: V537WUPC Code: 010342161215Ritchie Compass V-537W Literature Download  Quick Reference Guide  Owners Manual
