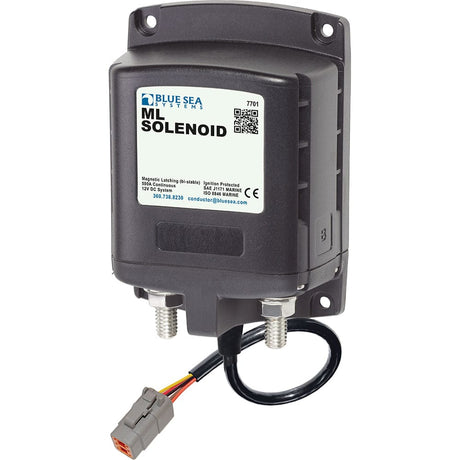

Blue Sea System 7701100 Battery Accessories7701100 ML Solenoid 12V 500A with Deutsch Connector500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.Features: 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch Silver alloy contacts provides high reliability for switching live loads 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance 7/8" (22mm) stud length accepts multiple cable terminals Label recesses for circuit identification Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk Specifications: Control Circuit Connection: Deutsch DTM Nominal Voltage: 12VDC Manual Control: No Coil Function: Bi-Stable Mounting: #10 Amperage Operating Current Continous: 0A Terminal Stud Torque: 140 in-lb (15.82 Nm) Continuous Rating: 500A Intermittent Rating: 700A (5 min) Cable Size to Meet Ratings: 2x (4/0) Stud Material: Tinned Copper Terminal Ring Diameter Clearance: 1.18" (29.97 mm) Terminal Stud Length: 0.875" (22.23 mm) Terminal Stud Size: 3/8" - 16 (M10) Weight: 1.75lb (0.79 kg) WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 7701100UPC Code: 632085770112

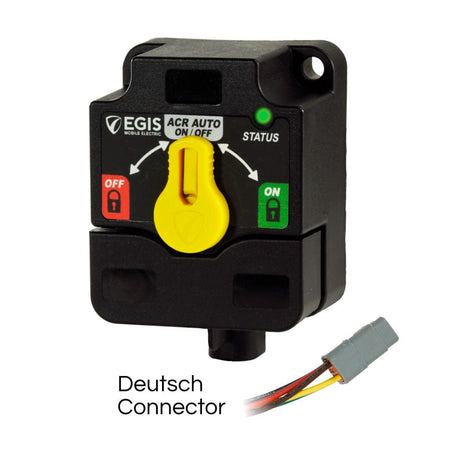

Download LiteratureEgis 8810-1300 Battery AccessoriesXD Series Single Flex 2 ACR-Relay with Knobs - DTM ConnThis Egis relay provides a 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Also, this relay eliminates dead-start batteries by sharing charging on either of two batteries and isolating batteries when no charge sources are present.Applications:  Supports multiple engines or independent charge systems by incorporating two independent start or engine isolation inputs to allow isolation of charge sources when both are active to maximize charging performance.  Expandable with link and cross-link busbars to additional dual, triple, or single XD relays; supports 2 or 3 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction, sealed to IP67/IP6K9K, and high temperature electronics and materials allow mounting anywhere; Stainless steel cable lug studs; Large mounting holes accept 1/4-20 / M6 attachment hardware The intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions) Simple programmability via simple dip switches allows each relay function significant flexibility for OEMs and installers Plug-and-play compatible with Legacy competitor products: Single, dual, and triple relay options are available with DTM/ATM connector pins for pin compatibility with ML Series bi-stable relays 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality Specifications: Total Continuous Current Amps: 500 Max Cranking Current (Amps): 1500 Mechanical Switching Life: 1,000,000 Cycles Voltage Range (VDC): 8-36 Off-State Current Draw (mA): 1.3 State Change Current: 5A @ 12 VDC; 3A @ 24 VDC Focal Features:Led Status DisplayThe easy-to-see front-facing LED indicator provides visual device status, and the remote LED replicates the local on-device LED. 3-Position Manual OverrideForce each relay open or closed, and optionally leave the knob in either position to lock the relay in either condition. 40 Circuit Label Sheet IncludedConvenient recesses for the included weatherproof label set make circuit and relay identification easy. Blank labels for custom applications. Protective Cover IncludedProtects terminal studs and cable terminal edges from inadvertent shorts to each other or ground. Stainless Hardware Corrosion is no issue with quality stainless steel studs and self-locking flanged nuts.ProgrammableVia dip switches located under the protective cover. An easy-to-use configuration guide on the reverse makes custom settings a breeze to configure for a wide variety of applications. Smaller FootprintXD relays offer a high amp rating in a smaller package than competitive solutions, reducing installation space requirements to a minimum. Integrated VentHigh-quality Gortex vents regulate internal device pressure to eliminate moisture entry across seals and ensure long product life in harsh environments. Normalized SKU: 88101300UPC Code: 850035199831Egis 8810-1300 Literature Download Quick Reference Guide Owners Manual

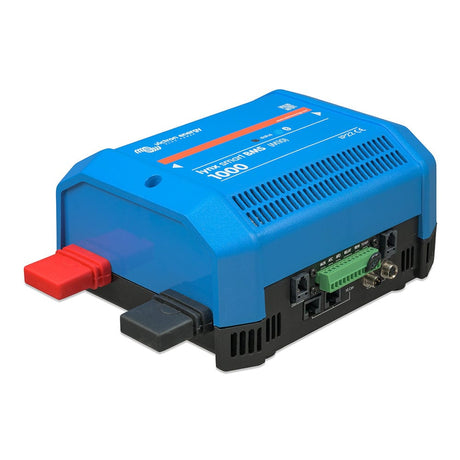

Download LiteratureVictron Energy LYN034170210 Battery AccessoriesLynx Smart BMS 1000 Battery Management System for Lithium Smart BatteriesThe Lynx Smart BMS is a dedicated Battery Management System (BMS) for the Victron Lithium Battery Smart batteries. These batteries are Lithium Iron Phosphate (LiFePO4) batteries and are available in 12.8 V or 25.6 V in various capacities. They can be connected in series, parallel, and series/parallel so that a battery bank can be built for system voltages of 12V, 24 V, or 48 V. The maximum number of batteries in one system is 20, which results in a maximum energy storage of 84 kWh in a 12 V and up to 102 kWh in a 24 V1) and 48 V1) system.Out of the various available BMSes, the Lynx Smart BMS is the most feature-rich and complete option and integrates seamlessly into the Lynx Distributor system. This model is a 1000 A (M10) version.Built-in 1000 A ContactorThe contactor acts as a secondary safety system to protect the battery in case the primary controls (ATC, ATD, and/or DVCC) fail to disable loads and/or chargers when required and is also suitable as a remote controllable main system switch.Pre-charge CircuitIn addition to the contactor, a built-in pre-charge circuit prevents high inrush currents when connecting a capacitive load such as a MultiPlus/Quattro or other inverter, eliminating the need for external pre-charging.Monitoring and ControlMonitor and control the BMS via Bluetooth using the VictronConnect App or a GX device such as a Cerbo GX and the VRM Portal. A built-in battery monitor that operates similarly as the other Victron Energy battery monitors, provides data such as state of charge, voltage, current, historical data, status info, and more in real-time and with instant readout even without the need to connect to the BMS, allowing diagnostic at a glance.DVCC closed Loop Control as Well as ATC/ATD ContactsCompatible Victron inverters/chargers and solar chargers are automatically controlled via a connected GX device and DVCC. The ATC/ATD contacts can be used to control other chargers and loads that have a remote on/off port.Programmable RelayThe relay can be used either as an alarm relay (combined with the pre-alarm) or to control an alternator via its external regulator (ignition cable). In Alternator ATC mode, the relay will only activate when the contactor is closed. Alternator ATC contact of the alternator opens first and then with a delay of 2 seconds the contactor. These 2 seconds ensure that the alternator is switched off before the battery is disconnected from the system.AUX TerminalThe advantage of the onboard auxiliary power supply (1.1 A @ system voltage) is to provide power to specific loads (i.e. a GX device) after the BMS has shut down the loads in the event of a low cell voltage event. If no charge voltage is detected within 5 minutes, the BMS, including the AUX connection switches off.VE.Can and NMEA 2000 Data CommunicationVE.Can allows for easy connection (standard RJ45 network cable) and communication with a GX device. Since the CANbus protocol is based on NMEA 2000 (and J1939), it is easy to integrate into a marine network and feed a marine MFD with data (requires a VE.Can to NMEA 2000 micro-C male cable).Lynx Distributor Fuse MonitoringRead out the fuse status and receive an alarm in case a fuse is blown. The Lynx Smart BMS monitors up to 4 connected Lynx Distributors and their fuses via VictronConnect or a GX device 1) To reduce the required balancing time, we recommend using as many different batteries in series as possible for the application. 24 V systems are best built using 24 V batteries, and a 48 V system.This System Contains the Following Components: Lynx Distributor with 2 fused paralleled lithium-ion smart batteries. Lynx Smart BMS with BMS, contactor, and battery monitor A second Lynx distributor provides fused connections for inverter/charger(s), loads and chargers (additional modules can be added if more connections are needed) A Cerbo GX (or other GX device) to read out the Lynx Smart BMS and Lynx Distributor data. Power Specifications: Battery Voltage Range: 9 – 60 VDC Maximum Input Voltage: 75 VDC Supported System Voltages: 12, 24, or 48 V Reverse Polarity Protection: No Main Safety Contactor Continuous Current Rating: 1000 A continuous Main Safety Contactor Peak Current Rating: 1200 A for 5 minutes  Power Consumption OFF Mode: 0.3 mA for all system voltages Power Consumption in Standby Mode: Approximately 0.6 W (50 mA at 12 V) Power Consumption in ON Mode: Approx. 2.6 W (217 mA at 12 V) depending on the state of the relays Approximately 4.2 W (350 mA at 12 V) depending on the state of the relays Minimum Load Resistance for Pre-Charging: 10 Ω and above for 12 V systems, 20 Ω and above for 24 V and 48 V systems AUX Output Maximum Current Rating: 1.1 A continuous, protected by resettable fuse Allow-to-Charge Port Maximum Current Rating: 0.5 A at 60 VDC, protected by a resettable fuse Allow-to-Discharge Port Maximum Current Rating: 0.5 A at 60VDC, protected by a resettable fuse Alarm Relay (SPDT) Maximum current Rating: 2 A at 60 VDC Connections: Busbar: M10 (Torque: 17 Nm) VE.Can: RJ45 I/O: Removable multi-connector with screw terminals Battery BTV Cables: Male and female circular 3-pole connector with M8 screw ring Up to 20 batteries can be connected in one system Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor) Physical Specifications: Enclosure Material: ABS Enclosure Dimensions (h x w x d): 230 x 180 x 100 mm Unit Weight: 2.7 kg Busbar Material: Tinned copper Busbar Dimensions (h x w): 8 x 30 mm Environmental Specifications: Operating Temperature Range: -40 °C to +60 °C Storage Temperature Range: -40 °C to +60 °C Humidity Max.: 95 % (non-condensing) Protection Class: IP22 Standards Safety: EN-IEC 63000:2018 EMC: EN-IEC 61000-6-3:2007/A1:2011/AC:2012 QMS: NEN-EN-ISO 9001:2015 Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: LYN034170210UPC Code: 8719076057604Victron Energy LYN034170210 Literature Download Quick Reference Guide Owners Manual

Newmar APS-160 Battery AccessoriesAPS-160 Automatic Power Selector - 160AThe Automatic Power Selector (APS) is a solid-state device that enables the installation of a seamless, redundant power system for critical electronic loads. It selects the higher voltage of two independent DC power sources and routes power to the load. Should one source falter or fail, the other will automatically supply the load with no transfer delay, and the operation continues uninterrupted.Two independent power sources are wired to the APS and routed as a single output to the vital load. Alarm sense wires can be easily attached to input studs, providing a loss of power source signal. Features: Easy installation Rugged, rust-proof anodized aluminum case Specifications: Max Loads: 160 amps Voltage Rating: 6 – 50 VDC, neg. ground Stud Terminal Size: 6mm Dimensions (inches): 9.0 x 4.5 x 3.1 Weight (lbs): 5 Normalized SKU: APS160

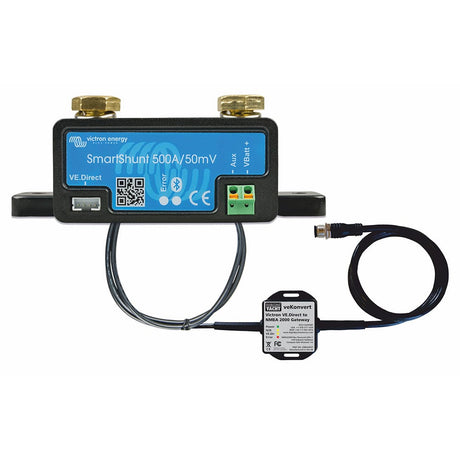

Digital Yacht ZDIGISSBM100 Battery AccessoriesBM100 Battery Monitoring SolutionThe BM100 is a complete system comprising SmartShunt and the veKonvert NMEA 2000 interface. It is part of Digital Yacht’s iSeaSense range of NMEA 2000 boat instruments. With this solution, your multi-function display becomes a sophisticated battery and energy management system.FeaturesDigital Yacht’s BM100 battery monitoring system allows highly accurate DC voltage, current, and capacity measurements, enabling reliable monitoring of your boat’s battery and electrical system.Core to the system is the SmartShunt. It measures battery voltage and current. Based on these measurements, it intelligently calculates the battery’s state of charge and the time to depletion for the remaining charge. It also keeps track of historical data, such as the deepest discharge and average discharge current, as well as the number of charge and discharge cycles. The smart shunt can also monitor the voltage of a 2nd battery, typically dedicated to engine starting.The product is a collaboration between Victron Energy and Digital Yacht. The system utilizes Victron’s proprietary VE.Direct data connectivity as a source for the NMEA 2000 data.The BM100 is part of a wider group of products now introduced by Digital Yacht that bring NMEA 2000 connectivity to Victron systems using the VE.Direct interface.Victron solar panel controllers (MPPTs) and battery monitors can now also interconnect to NMEA 2000 via the veKonvert interface.Monitoring the battery with the BM100 will give important feedback to the user so that remedial measures can be taken when necessary. Doing this will extend battery life. There’s also an optional battery temperature sensor available.The BM100 can also integrate with Digital Yacht’s other NMEA 2000 and wireless instruments, which offer hybrid NMEA 2000 and wireless display options.NMEA 2000 InterfaceThe system features an NMEA 2000 interface, so your navigation multi-function display or plotter can display all key parameters. Modern MFDs from leading manufacturers such as Garmin, Raymarine, Furuno, and Navico allow electrical battery data to be displayed via their NMEA 2000 interface. Alarms and alerts for low capacity and voltage can also be enabled.Bluetooth InterfaceThe BM100 also has a standalone wireless Bluetooth interface, so your mobile phone or iPad can connect and display current, voltage, capacity, additional historical data, state of charge information, and time to go based on remaining battery capacity.Specifications: BM100 solution comes as a complete package with SmartShunt and the veKonvert NMEA 2000 interface Bluetooth interface for setup and detailed analysis, including charge/discharge cycles, state of charge, remaining capacity, and historical data Use your phone/tablet and your NMEA 2000 devices for battery monitoring and management 500A SmartShunt included for the main battery system Monitor the voltage of a separate (eg starter) battery Universal NMEA 2000 gateway for Victron’s popular range of smart battery monitors/SmartShunt using the VE.Direct interface (see compatibility list in the FAQ tab) Enables electrical and battery monitoring and management on compatible multi-function displays (Raymarine, Garmin, Navico, Furuno, etc) Provides battery voltage, charge/discharge current, state of charge, and time to depletion based on a sophisticated algorithm Easy installation, plug ‘n play connectivity, and self-powering from the NMEA 2000 bus Supports alerts generated by the SmartShunt Supports multiple SmartShunts for multi-battery systems Also compatible with other VE.Direct products such as solar MPPT controllers Vekonvert Is Compatible with the Following Victron Products:BMV -700, BMV -702, BMV -700H, BMV-712 Smart, BMV-710H Smart, BMV-712 Smart Rev2, SmartShunt 500A/50mV, SmartShunt 1000A/50mV, SmartShunt 2000A/50mV, and All MPPT Charge ControllersNOTE: veKonvert is not compatible with Victron Chargers and Inverters. It should also not be plugged into the VE.Direct interfaces of any Victron "Consumers" such as Multiplus, Quattro, Cerbo, etc. Normalized SKU: ZDIGISSBM100UPC Code: 703791696550

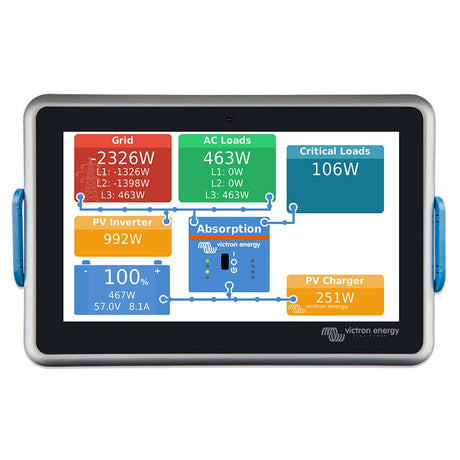

Download LiteratureVictron Energy BPP900480100 Battery AccessoriesEkrano GXThe Ekrano GX represents the next generation in the GX product family. With its complete range of connections and interfaces as well as its integrated 7-inch touchscreen display, it is the most powerful GX device to date and allows you to always have perfect control over your system from wherever you are and to maximize its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the built-in touchscreen, a Multi-Functional Display (MFD), or our VictronConnect app thanks to its Bluetooth capability. The Ekrano GX is also the successor to the Color Control GX.Perfect Monitoring & ControlInstantly monitor the battery state of charge, power consumption, and power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Ekrano GX turns any power challenge into an effortless experience.Expand Your ViewThe integrated 7-inch touchscreen allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim waterproof design offers a lot of flexibility in designing a crisp and clean dashboard. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use.Simple Mounting & ConfigurationThe Ekrano GX is optimized for flush panel or blind hole mounting and has all the necessary mounting material supplied. Screw-on terminal blocks keep everything securely in place. Outsmart Any Power ChallengeThe Ekrano GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Offgrid & Backup, it will auto-start/stop your generator, or delays ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks in during power cuts, and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BPP900480100UPC Code: 8719076058038Victron Energy BPP900480100 Literature Download Quick Reference Guide

Download Literature Watch VideoVictron Energy BAM030710100 Battery AccessoriesBMV-710H Smart High Voltage Battery Monitor (60-385VDC)The BMV-710H Smart has Bluetooth built-in and can connect wirelessly to your phone (or tablet) via the VictronConnect App to conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.This battery monitor can calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery.The monitor comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable, and a 500 A/50 mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.Battery ‘fuel gauge’, time-to-go indicator, and much more The remaining battery capacity depends on the ampere-hours consumed, discharge current, and temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.Next to the basic display options, such as voltage, current, and ampere-hours consumed, the BMV-700 series also displays the state of charge, time to go, and power consumption in Watts.Bluetooth SmartUse the Bluetooth Smart dongle to monitor your batteries on Apple or Android smartphones, tablets, Macbooks and other devices.Easy to InstallAll electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ12 cable (10m) and battery cable with fuse (2m); No other components are needed.Also included are a separate front bezel for a square or round display appearance and a securing ring for the rear mounting and screws for the front mounting.Easy to Program (with your smartphone!)A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.Alternatively, choose the fast and easy solution: Download the smartphone app (Bluetooth Smart Dongle needed)Features: Battery voltage, current, power, ampere-hours consumed, and state of charge Remaining time at the current rate of discharge Programmable visual and audible alarm Programmable relay, to turn off non critical loads or run a generator when needed 500 Amp quick connect shunt and connection kit Shunt selection capability up to 10,000 amps VE.Direct communication port Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health Wide input voltage range: 6.5 – 95V High current measurement resolution: 10 mA (0.01A) Low current consumption: 2.9Ah per month (4mA) @12V and 2.2Ah per month (3mA) @ 24V BMV-710H Specifications: Supply Voltage Range: 60 – 385 VDC Current Draw, Back Light Off: < 4mA Input Voltage Range, Auxiliary Battery:  n. a. Battery Capacity (Ah): 1 - 9999 Ah Operating Temperature Range: -40 +50°C (-40 - 120°F) Measures Voltage of Second Battery, or Temperature, or Midpoint: No Temperature Measurement Range: n. a. VE.Direct Communication Port: Yes Relay: 60V / 1A normally open (function can be inverted) Resolution & Accuracy (with a 500 A shunt): Current: ± 0.01A Voltage: ± 0.01V Amp Hours: ± 0.1 Ah State of Charge: (0 – 100%) ± 0.1% Time to Go: ± 1 min Temperature: n. a. Accuracy of Current Measurement: ± 0.4% Accuracy of Voltage Measurement: ± 0.3% Installations & Dimensions:  Installation: Flush mount Front: 63mm diameter Front Bezel: 69 x 69 mm (2.7 x 2.7 inch) Shunt Connection Bolts: M10 (0.3937 inch) Body Diameter and Depth: 52 mm (2.0 inch) and 31 mm (1.2 inch) Protection Category: IP55 (not intended for outdoor use) Standards: Safety: EN 60335-1 Emission / Immunity: EN 55014-1 / EN 55014-2 Automotive: ECE R10-4 / EN 50498 Accessories: Shunt (included): 500A / 50mV Cables (included): 10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection Temperature Sensor: Optional (ASS000100000) Please contact your dealer for any returns, repairs or support issues related to this product. Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BAM030710100UPC Code: 8719076049500Victron Energy BAM030710100 Literature Download Quick Reference Guide Product BrochureVictron Energy BAM030710100 Video

BEP Marine 701-MDVS-D Battery Accessories275A Cont Motorized Dual Operation VSS (Voltage Sensitive Switch) - Deutsch ConnectorThese Voltage Sensitive Switches (VSS) automatically sense connected battery bank voltages and provide optimal, efficient charging of the second bank. The VSS allows for independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger), while also offering remotely activated, high current, emergency parallel connection. Features: Deutsch Connector Dual battery sensing Manual override option Designed and constructed for longevity in the marine environment with tinned copper conductors, stainless steel nuts, and high temperature, fiber reinforced plastics Features (Engine Run Sensing):VSS will engage when the voltage on either start or house battery reaches 13.7 volts. If the combined battery voltage drops below 13.0 volts and the engine is not running, after 5 seconds the contacts will open and stay open until the start or house battery voltage exceeds 13.7 volts. If the combined battery voltage drops below 12.2 volts and the engine is running, after 5 minutes the contacts will open and stay open until the start or house battery voltage exceeds 13.7 volts. If voltage drops below 13 volts and stays above 12.2 volts on either start or house battery while engine is running, the VSS will stay engaged. Features (Remote Emergency Parallel Function): The 701-MDVS-D can be operated through a momentary button on the dash which will parallel the batteries for a present time of 10 minutes Once this 10 minutes has passed, if the voltage is up high enough for the voltage sensitive switch to operate, it will stay engaged. If not, it will disengage The advantages of using a high current VSS is that it will cover your dual battery charging requirements and emergency parallel operation in one unit Specifications: Continuous Rating: 275 Amps DC Intermittent Rating: 455 Amps DC Cranking Rating: 1250 Amps DC Voltage Rating: 9.5 - 32 Volts Operation: On / Off Mounting: Recessed or surface Ignition: Protected Stud Size: 2 x 10mm / (3/8-inch) Power Draw: Switch off 12mA; Switch on 15mA; Switch operating 120mA for 3 seconds at 12v nomial Normalized SKU: 701MDVSDUPC Code: 870216038360

Victron Energy BMS300200200 Battery AccessoriesVE.Bus BMS V2 for Victron LiFePO4 Batteries 12-48VDC - Work with All VE.Bus & GX DevicesThe VE.Bus BMS and VE.Bus BMS V2 is Battery Management System (BMS) designed to interface with and protect a single or multiple Victron Lithium Battery 12,8V & 25,6V Smart (LiFePO4 or LFP) in systems that have Victron inverters or inverter/chargers with VE.Bus communication. It monitors and protects the batteries against the over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.Based on the status of the battery or batteries, the BMS will: Generate a pre-alarm signal to alert of an imminent cell under voltage conditions. Disable inverting in VE.Bus inverters or inverters/chargers via VE.Bus, and disable other loads via the 'Load Disconnect' terminal in the event of a cell under voltage conditions. Disable charging in VE.Bus inverters or inverters/chargers via VE.Bus and disable other chargers via the 'Charge Disconnect' terminal in the event of a cell overvoltage, under-temperature, or over-temperature conditions. The "original" VE.Bus BMS is best used in systems without a GX device The "next generation" VE.Bus BMS V2 has additional features such as: Remote on/off terminals. Ability to disable VE.Direct and VE.Can solar chargers via a GX device. Allowing control of the VE.Bus inverter/charger from multiple devices, like the Digital Multi Control, the VE.Bus Smart dongle and/or a GX device. Auxiliary power input and output terminals that allow a GX device to remain powered in the event of a system shutdown. Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BMS300200200UPC Code: 8719076057277
