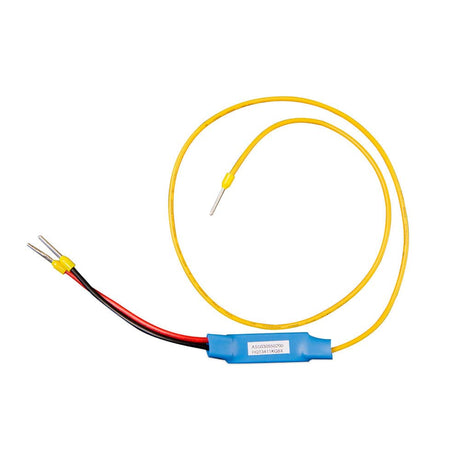

Download LiteratureVictron Energy ASS030550220 Battery AccessoriesNon-Inverting Remote On-Off CableUse this cable to connect the following products to the VE.Bus BMS: Skylla-TG all models Battery Protect models BP40i, BP60i, and BP200i (all discontinued). The cable translates the remote on/off driver logic from the VE.Bus BMS (normally high, and open circuit in case of alarm) to the logic needed by above products: active pull down to switch off. Normalized SKU: ASS030550220UPC Code: 8719076036487Victron Energy ASS030550220 Literature Download Quick Reference Guide

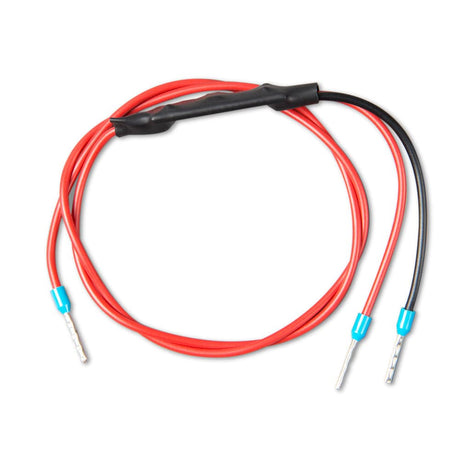

Download LiteratureVictron Energy ASS030550120 Battery AccessoriesInverter Remote On-Off CableUse this cable to connect the (discontinued) Phoenix Inverter 12/180, 24/180, 12/350, or 24/350 to a VE.Bus BMS or a BlueSolar MPPT Charger that features a load output:  VE.Bus BMS: the Inverter will be switched off when the batteries are empty BlueSolar MPPT Charger: connecting an inverter directly to the load output of a BlueSolar MPPT Charger is not possible; the inverter needs to be connected to the battery. Then use this cable to switch the inverter on and off with the load output. Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ASS030550120UPC Code: 8719076036470Victron Energy ASS030550120 Literature Download Quick Reference Guide

Victron Energy CYR010120011R Battery AccessoriesCYRIX-CT 12/24V-120A Intelligent Battery CombinerThe Cyrix Battery Combiner is a microprocessor controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged) and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so the output voltage of alternators or battery chargers does not need to be increased.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: CYR010120011R

Sea-Dog 415196-1 Battery AccessoriesSea-Dog PVC Terminal Cap Red 2-2/0 #415196-1Normalized SKU: 4151961UPC Code: 035514415224

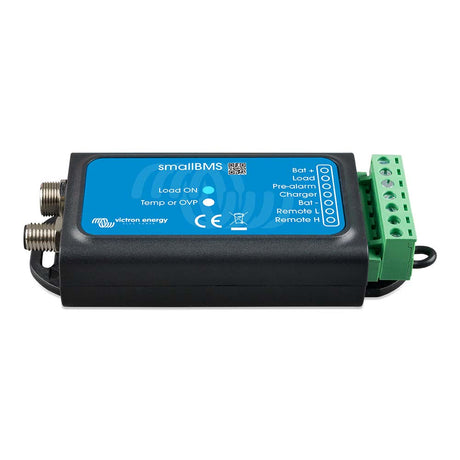

Download LiteratureVictron Energy BMS400100000 Battery AccessoriesSmallBMS for Smart LiFePO4 Batteries with M8A simple and low-cost alternative to the VE.Bus BMS. The smallBMS can replace the VE.Bus BMS in several applications. It is however not suitable for use with VE.Bus MultiPlus and Quattro inverter/chargers: it has no VE.Bus interface.The smallBMS is intended for use with Victron Smart LiFePo4 batteries with M8 circular connectors. The smallBMS has three outputs, similar to the VE.Bus BMS. Load Disconnect output The Load output is normally high and becomes free-floating in case of the cell under voltage (default 2,8V/cell, adjustable on the battery between 2,6V and 2,8V per cell). Maximum current: 1A. The Load output is not short-circuit protected.The Load output can be used to control: A high current relay or contactor. The remote on/off the input of a Battery Protect, inverter or DC-DC converter, or other loads. Pre-alarm outputThe pre-alarm output is normally free-floating and becomes high in case of the imminent cell under voltage (default 3,1V/cell, adjustable on the battery between 2,85V and 3,15V per cell). Maximum current: 1A (not short circuit protected).The minimum delay between pre-alarm and load disconnect is 30 seconds.Charge disconnect outputThe Charger output is normally high and becomes free-floating in case of imminent cell overvoltage or over-temperature. Maximum current: 10mA. The Charger output is not suitable to power an inductive load such as a relay coil. The Charger output can be used to control: The remote on/off of a charger A Cyrix-Li-Charge relay A Cyrix-Li-ct Battery Combiner System on/off inputThe system on/off input controls both outputs. When off, both outputs will be free floating so that loads and chargers are turned off. The System on/off consists of two terminals: Remote L and Remote H. A remote on/off switch or relay contact can be connected between L and H. Alternatively, terminal H can be switched to battery plus, or terminal L can be switched to battery minus.Protects 12V, 24V and 48V systemsOperating voltage range: 8 to 70V DC.LED indicators: Load ON (blue): Load output high (cell voltage >2.8V, adjustable on the battery). Temp or OVP (red): Charger output free floating (due to cell over temperature (>50°C), cell under temperature (<5 °C) or cell over voltage). Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BMS400100000UPC Code: 8719076043485Victron Energy BMS400100000 Literature Download Product Brochure

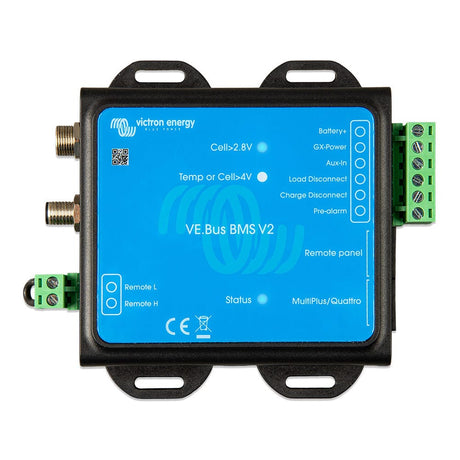

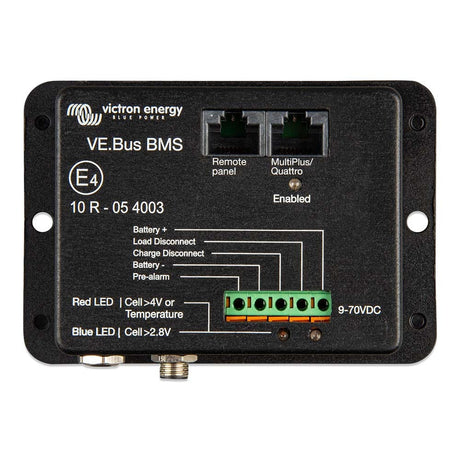

Download LiteratureVictron Energy BMS300200000 Battery AccessoriesVE.Bus BMS for Victron LiFePO4 Batteries 12-48VDC Works with All VE.BusThe VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery.Each individual cell of a LiFePO4 battery must be protected against over-voltage, under-voltage, and over-temperature. Victron LiFePO4 batteries have integrated Balancing, Temperature, and Voltage control (acronym: BTV) and connect to the VE.Bus BMS with two M8 circular connector cord sets. The BTVs of several batteries can be daisy-chained. Please see our LiFePO4 battery documentation for details.The BMS will: Shut down or disconnect loads in case of the imminent cell under voltage. Reduce charge current in case of imminent cell overvoltage or over temperature (VE.Bus products only, see below). Shut down or disconnect battery chargers in case of imminent cell overvoltage or over-temperature. Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BMS300200000UPC Code: 8719076021032Victron Energy BMS300200000 Literature Download Product Brochure

Victron Energy CYR010120430 Battery AccessoriesCYRIX-LI-CHARGE 12/24-120A Intelligent Charge Relay Cyrix LI ChargeThe Cyrix Battery Combiner is a microprocessor-controlled heavy duty relay that automatically connects batteries in parallel when one of them has reached a pre-set voltage (indicating that the battery is being charged) and disconnects when the voltage decreases below float level (indicating that one or more batteries are being discharged). Cyrix Battery Combiners are an excellent replacement for diode isolators. The main feature is that there is virtually no voltage loss so that the output voltage of alternators or battery chargers does not need to be increased.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: CYR010120430UPC Code: 8719076022183

Victron Energy BMS210055000 Battery AccessoriesSmart BMS 12/200 for Victron LIFEPO4 Batteries 12VDC OnlyThe Smart BMS 12/200 is an all-in-one Battery Management system for Victron Lithium-Iron-Phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator such as in vehicles and boats.It combines a Current Limiter, Battery Combiner, and Battery Protector in a robust and compact solution and lets you safely connect any size 12V alternator (and starter battery), loads, and chargers to Smart Lithium batteries.The Smart BMS 12/200 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources, or DC loads in case of low battery cell voltage, high battery cell voltage, or over temperature.The dedicated alternator connection provides current limiting and one-way traffic from the alternator into the battery, so any size alternator (and starter battery) can be safely connected to the Smart Lithium battery (or battery bank) and the starter battery is protected from excessive discharge.The BMS is equipped with Bluetooth for monitoring and configuration, a remote on/off the connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BMS210055000UPC Code: 8719076052883

Victron Energy ASS030560500 Battery AccessoriesM8 Circular Connector 3-Pole BMS BTV Extension Cables - Pair - 5MFeatures: 5-meter cable Extends the data cables that run from a 12.8 Volt Lithium-Ion battery to the BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ASS030560500

Victron Energy BMS110022000 Battery AccessoriesSmart BMS CL 12/100 f/Victron LIFEPO4 Batteries 12VDC OnlyThe Smart BMS CL 12/100 is a Battery Management system for Victron lithium-iron-phosphate (LiFePO4) Smart Batteries. It has been specifically designed for 12V systems with a 12V alternator.The BMS CL 12/100 monitors and protects each individual battery cell within the battery (or battery bank) and will disconnect the alternator, charge sources, or DC loads in case of low battery voltage, high battery voltage, or over temperature.The dedicated alternator input provides current limiting and one-way traffic from the alternator into the battery, so any size alternator (and start battery) can be safely connected to the Smart Lithium battery or batteries.The BMS is also equipped with a remote on/off the connector, to turn the BMS (and the system) off via a remote switch, and a pre-alarm contact, to give a warning signal before the BMS will disconnect the batteries from the system.Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: BMS110022000UPC Code: 8719076046851

Victron Energy ASS070200100 Battery AccessoriesCable for Smart BMS CL 12-100 to MultiPlus This cable will allow the MultiPlus 500VA – 1600VA, MultiPlus Compact 800VA – 2kVA and MultiPlus-II models to be used with BMS products that have no VE.Bus interface, such as the Smart BMS CL 12-100 and the small BMS. These MultiPlus models can be controlled from the Load/Charge Disconnect outputs and Load/Charger outputs respectively. The cable must be wired to the remote on/off connector of the MultiPlus models:  When used with the MultiPlus 500VA-1200VA models connect the black wire to the ON terminal and the red wire to the (+) terminal.  When used with the MultiPlus Compact 800VA-2kVA models connect the black wire to the middle terminal and the red wire to the right (IN) terminal.  When used with the MultiPlus-II models connect the black wire to the lower (-) terminal and the red wire to the upper (+) remote on-off terminal.  Both the Load/Charge Disconnect outputs of Smart BMS CL 12-100 and Load/Charger outputs of the small BMS must be in ‘High’ state in order for the MultiPlus to operate. After shutdown due to low battery voltage, run the alternator or use a battery charger on the primary side of the BMS to reset the system. The MultiPlus will then switch on and start charging (if connected to an AC power source).Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ASS070200100UPC Code: 8719076051183

Victron Energy ASS030560300 Battery AccessoriesM8 Circular Connector 3-Pole BMS BTV Extension Cables - Pair - 3MFeatures: 3-meter cable Extends the data cables that run from a 12.8 Volt Lithium-Ion battery to the BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ASS030560300

Victron Energy ASS030560100 Battery AccessoriesM8 Circular Connector 3-Pole BMS BTV Extension Cables - Pair - 1MFeatures: 1-meter cable Extends the data cables that run from a 12.8 Volt Lithium-Ion battery to the BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ASS030560100

Victron Energy ASS030560200 Battery AccessoriesM8 Circular Connector 3-Pole BMS BTV Extension Cables - Pair - 2MFeatures: 2-meter cable Extends the data cables that run from a 12.8 Volt Lithium-Ion battery to the BMS Please contact your dealer for any returns, repairs or support issues related to this product. Normalized SKU: ASS030560200
